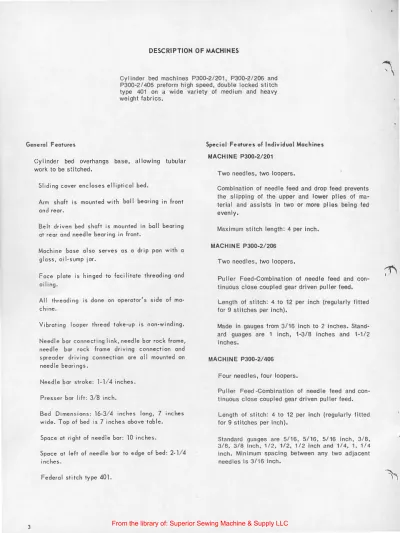

DESCRIPTION OF MACHINES

Cylinder bed machines P300-2/201, P300-2/206 and P300-2/406 preform high speed, double locked stitch type 401 on a wide variety of medium and heavy weight fabrics.

General Features Sp.,c:io l Features of Individual Mo c:hinu

3

Cy li nder bed overhangs base, a l lowing tubular work to be stitched.

Sliding cover encloses elliptical bed.

Arm shaft is mounted with boll bearing in front and rea r.

Belt dr iven bed sha ft is mounted in boll bear ing at rear and needle bearing in Iron!.

Machine bose also serves as o drip pan with a gloss, oil ·sump j ar.

Face plate i s h inged to fac i l itate threading and oiling.

All threading is done on operator's side of mo·

chine.

V i brat ing looper th read toke·up i s non·winding.

Needle bor connecting link, needle bar rock frame, needle bor rock frame driving conne~tion and spreader driving connection ore all mounted on

needle bear i ngs.

Need le bar stroke: i- 1/ 4 inche s.

Presser bar lift: 3/ 8 inch.

Bed

Dimen~ions:

1 6· 3/4 inches long, 7 inches w ide. T op of bed is 7 inc hes above table.

Space at ri ght of need le bar: 10 inches.

Space at left of needl e bar to edge of bed: 2·1 / 4 inc hes.

Federa l stitch type 401.

MACHIN E P300-2/201

Two need les , two loopers.

Combination of needle feed and drop feed prevents the slipping of the upper and lower plies o f ma- terial and assists in two or more plies being fed even ly.

Maximum stitch length: 4 per Inch.

MACHINE P300-21206

Two need les , two loopers.

Pul ler Feed -Combinati on of needle feed and con- tinuous close coupled gear driven puller feed.

L ength of st itch: 4 to 12 per inch (regularly fitted for 9 stitches per inch).

M ade In gauges from 3/16 Inch to 2 inches. Stand- ard guages are 1 inch, 1-3/8 inches and 1- 1/2

inches .

MACHI NE P300-2/406

Fou r needles, four loopers .

Puller Feed -Combination of needle feed and con- tinuous close coupled gear driven puller feed.

Length of st itch: 4 to 12 per inch (regu larly f i tted for 9 stitches per inch).

Standard guages are 5/16, 5/16. 5/1 6 Inch, 3/8, 3/6, 3/6 Inch, 1/2, 1/2, 1/2 Inch and 1/4, 1. 1/4 Inch . Minimum spacing between any two adjacent

needles is 3/16 inch.

' .

•
