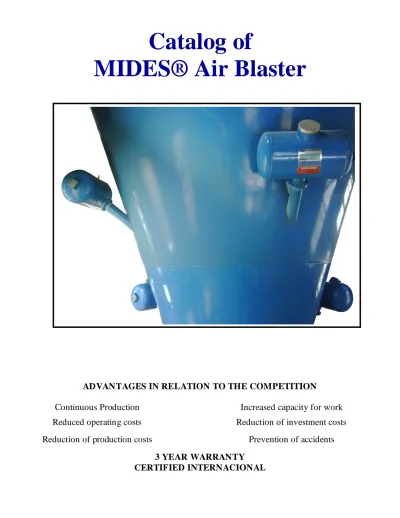

Catalog of MIDES Air Blaster

(1)

MIDES® Air Blaster

ADVANTAGES IN RELATION TO THE COMPETITION

Continuous Production

Increased capacity for work

Reduced operating costs

Reduction of investment costs

Reduction of production costs

Prevention of accidents

3 YEAR WARRANTY

CERTIFIED INTERNACIONAL

(2)

Matriculada na Conservatória do Registo Comercial do Seixal, sob nº7348.Capital Social €5000. Contribuinte nº 506 612 546

OPERATION:

The system of MIDES®AIR BLASTER, is designed to solve problems of obstruction by accumulation and aggregation of materials during disposal and storage.

The MIDES® AIR BLASTER instantly expel a charge of compressed air directed to critical areas where the material tends to accumulate. The energy released by the blow of air is sufficient to clear the passage and break down the wall material without producing harmful effects in the installation, providing a continuous flow in the discharge of material and the annulment of dead zones.

TYPICAL CASES OF APPLICATION:

Silos and hoppers for different types of

material in the industry.

Tower of cyclones and furnace clinker

coolers.

Bucket trucks for mining.

(3)

INSTALLATION:

MIDES® offers, at no cost to the customer, a study for the installation project, with this project will go the following documents:

1. Sizing and design overall installation with details of positioning and fixing of equipment.

2. Detailed description of electrical, pneumatic and mechanical sistems. 3. Functional diagram.

4. Line diagrams showing the control system of automatic shooting of the MIDES® AIR BLASTERS.

5. Manuals of installation, operation and maintenance.

CONSTRUCTIVE DETAILS:

(1) – Reservoir.

(2) – Copper pipe Ø3 / 8 "(6TMM) / Hose Rubber Ø3 / 8" (5TE).

(3) – Valve 3/2 way Solenoid / Spring, "IN", 110 or 220 VAC / 24 VDC Special. (4) – MIDES® Manometer – 0 – 200 psi ( 0 a 10 bar ).

(5) – Safety Valve.

(6) – Adhesive with safety and operating instructions(in English or Chinese) (7) – Adhesive manufacturer's identification.

(8) – Aluminum plate for identification and registration. (9) – Registration ball (not supplied for "short" installation).

(10) – Panel for actuation Valves (Accommodation valves 3/2 way to trigger at distance). (11) – Quick Exhaust Valve (Only for model 6TMM)

MODELO 6TMM MODELO 5TE

(4)

MODELS:

MODEL

DESCRIPTION AND MAIN APPLICATIONS

5TE (Short)

Main piston metal / elastomer with control valve incorporated into the equipment.

Application at temperatures <130oC, (*) low aggressiveness of the environment (dust), no passage of persons or materials falling on the control system.

5TE (Long)

Main piston metal / elastomer with valve of the remote control.

Application at temperatures <130oC, (*) in environments of great presence of dust or passage of persons or materials falling on the control system. 6TMM (Short)

3 YEARS WARRANTY FREE TRIAL

Main piston metal / metal control valve incorporated into the equipment. Application at high temperatures> 130oC, (*) low aggressiveness of the environment (dust), no passage of persons or materials falling on the control system.

6TMM (Long)

3 YEARS WARRANTY FREE TRIAL

Main piston metal / metal control valve mounted at a distance.

Application at high temperatures> 130oC, (*) and high aggressiveness of the environment (dust), passage of persons or materials falling on the control system.

(* ) = Temperature on the external wall of the installation.

CAPACITIES:

DMA DMB DMC DMD DME DMF DMG

Capacity 12 lts 25 lts 50 lts 75 lts 100 lts 150 lts 200 lts Max. Pressure 8 bar 8 bar 8 bar 8 bar 8 bar 8 bar 8 bar

Weigth 18 Kg 25 Kg 42 Kg 46 Kg 50 Kg 65 Kg 85 Kg

(5)

TECHNICAL DATA:

o Constructively Form: T mod 5 / T mod 6,

o Constructively Norm: NR13; ANSI/ASME BPV VIII-1, o Norm of conformity: Diretiva 97/23/CE

o Certification: MB 0032 (BV);

o Temperature max. / min. external environment:

mod. “TE” ou “TES” : > -30 and <130 °C; mod. “TMM” >130 °C o Work pressure: Min.: 3 bar; Max.: 08 bar;

o Time to recharge the reservoir: 40 seg. at 6 bar;

o Residual pressure in the reservoir after discharging: < 0,5 bar; o Consumption of air command: 0,180 lts / trigger;

o Quality of compressed air: Air industrial 5-7 bar, filtered, dispensing line lubricator; o Sealing: 100% guarantee seal valves.

OPERATIONAL RELIABILITY:

o The MIDES® VALVES dispenses lubrication of the compressed air system. The MIDES only recommends the use of air filters with automatic drain.

o The MIDES® VALVES are guaranteed for 100% sealing.

o The MIDES® VALVES are designed to withstand large temperature variations.

(6)

MIDES

®

CONTROL

MIDES® CONTROL– Control Trigger

COST / BENEFIT:

The MIDES® AIR BLASTER

are distinguished on the market for the following reasons:

Effectiveness:

The MIDES® AIR BLASTER constructively with the following main

features:

- No stops for repairs.

- The fewer moving parts than any similar valve.

- No charge negligible and air volume control minimum, allowing a high speed of operation.

The MIDES® AIR BLASTER is the equipment in the market that more quickly release the potential energy of compressed air which is in the reservoir and thus greater ability to perform work (clearance).

Quality:

Given mainly to its constructive design and materials used in its construction is reliable equipment able to withstand the harshest environmental conditions and work.

Cost:

All the technology applied is 100% MIDES; the project has the highest constructive simplicity and the lowest number of moving parts, enabling the MIDES to offer the equipment with the lowest manufacturing cost and higher reliability on the market.

The firing may be controlled by the MIDES®

CONTROL SEQ1 cyclic timer that controls the time

intervals of a set of trigger equipment, according to established schedule.

(7)

DESOCEL – Comércio e Representação

de Máquinas Industriais Lda. Rua da Ponte n.º11 Casa 5 2710-277 – Janas – Portugal

Email: [email protected] Website: www.desocel.com Mobile: 00 351 932 932 065 WARRANTIES:

EQUIPMENT: Three-year warranty against defects in material or workmanship, equipment components included.

INSTALLATION: 100% improvement in facilities projected MIDES®.

TECHNICAL ASSISTANCE: Through local technician accredited by MIDES®.

ISO 9001/2008 Mark CE

REPRESENTATIVE:

MANUFACTURER:

R. Lateral nº 580 – Cachoeira Grande CEP. 33.600-000

Pedro Leopoldo - MG – Brasil E-mail: [email protected] Website: www.mides.com.br
