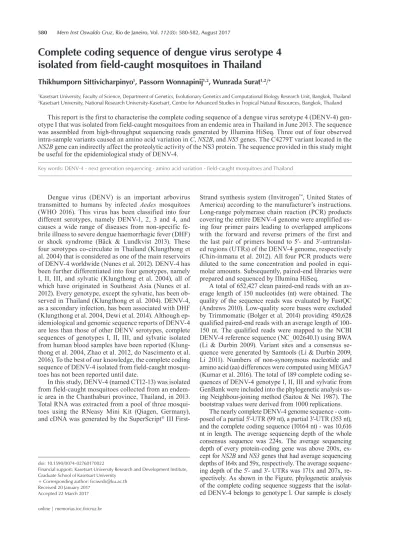

580 Mem Inst Oswaldo Cruz, Rio de Janeiro, Vol. 112(8): 580-582, August 2017
online | memorias.ioc.fiocruz.br
Complete coding sequence of dengue virus serotype 4
isolated from field-caught mosquitoes in Thailand
Thikhumporn Sittivicharpinyo1, Passorn Wonnapinij1,2, Wunrada Surat1,2/+
1Kasetsart University, Faculty of Science, Department of Genetics, Evolutionary Genetics and Computational Biology Research Unit, Bangkok, Thailand 2Kasetsart University, National Research University-Kasetsart, Centre for Advanced Studies in Tropical Natural Resources, Bangkok, Thailand
This report is the first to characterise the complete coding sequence of a dengue virus serotype 4 (DENV-4) gen-otype I that was isolated from field-caught mosquitoes from an endemic area in Thailand in June 2013. The sequence was assembled from high-throughput sequencing reads generated by Illumina HiSeq. Three out of four observed intra-sample variants caused an amino acid variation in C, NS2B, and NS5 genes. The C4279T variant located in the
NS2B gene can indirectly affect the proteolytic activity of the NS3 protein. The sequence provided in this study might
be useful for the epidemiological study of DENV-4.
Key words: DENV-4 - next generation sequencing - amino acid variation - field-caught mosquitoes and Thailand
doi: 10.1590/0074-02760170022
Financial support: Kasetsart University Research and Development Institute, Graduate School of Kasetsart University
+ Corresponding author: fsciwrds@ku.ac.th Received 20 January 2017
Accepted 22 March 2017
Dengue virus (DENV) is an important arbovirus transmitted to humans by infected Aedes mosquitoes (WHO 2016). This virus has been classified into four different serotypes, namely DENV-1, 2, 3 and 4, and causes a wide range of diseases from non-specific fe-brile illness to severe dengue haemorrhagic fever (DHF) or shock syndrome (Bäck & Lundkvist 2013). These four serotypes co-circulate in Thailand (Klungthong et al. 2004) that is considered as one of the main reservoirs of DENV-4 worldwide (Nunes et al. 2012). DENV-4 has been further differentiated into four genotypes, namely I, II, III, and sylvatic (Klungthong et al. 2004), all of which have originated in Southeast Asia (Nunes et al. 2012). Every genotype, except the sylvatic, has been ob-served in Thailand (Klungthong et al. 2004). DENV-4, as a secondary infection, has been associated with DHF (Klungthong et al. 2004, Dewi et al. 2014). Although ep-idemiological and genomic sequence reports of DENV-4 are less than those of other DENV serotypes, complete sequences of genotypes I, II, III, and sylvatic isolated from human blood samples have been reported (Klung-thong et al. 2004, Zhao et al. 2012, do Nascimento et al. 2016). To the best of our knowledge, the complete coding sequence of DENV-4 isolated from field-caught mosqui-toes has not been reported until date.
In this study, DENV-4 (named CTI2-13) was isolated from field-caught mosquitoes collected from an endem-ic area in the Chanthaburi province, Thailand, in 2013. Total RNA was extracted from a pool of three mosqui-toes using the RNeasy Mini Kit (Qiagen, Germany), and cDNA was generated by the SuperScript® III
First-Strand synthesis system (Invitrogen™, United States of
America) according to the manufacturer’s instructions. Long-range polymerase chain reaction (PCR) products covering the entire DENV-4 genome were amplified us-ing four primer pairs leadus-ing to overlapped amplicons with the forward and reverse primers of the first and the last pair of primers bound to 5′- and 3′-untranslat-ed regions (UTRs) of the DENV-4 genome, respectively (Chin-inmanu et al. 2012). All four PCR products were diluted to the same concentration and pooled in equi-molar amounts. Subsequently, paired-end libraries were prepared and sequenced by Illumina HiSeq.
A total of 652,427 clean paired-end reads with an av-erage length of 150 nucleotides (nt) were obtained. The quality of the sequence reads was evaluated by FastQC (Andrews 2010). Low-quality score bases were excluded by Trimmomatic (Bolger et al. 2014) providing 450,628 qualified paired-end reads with an average length of 100-150 nt. The qualified reads were mapped to the NCBI DENV-4 reference sequence (NC_002640.1) using BWA (Li & Durbin 2009). Variant sites and a consensus se-quence were generated by Samtools (Li & Durbin 2009, Li 2011). Numbers of non-synonymous nucleotide and amino acid (aa) differences were computed using MEGA7 (Kumar et al. 2016). The total of 189 complete coding se-quences of DENV-4 genotype I, II, III and sylvatic from GenBank were included into the phylogenetic analysis us-ing Neighbour-joinus-ing method (Saitou & Nei 1987). The bootstrap values were derived from 1000 replications.
The nearly complete DENV-4 genome sequence - com-posed of a partial 5′-UTR (99 nt), a partial 3′-UTR (353 nt), and the complete coding sequence (10164 nt) - was 10,616 nt in length. The average sequencing depth of the whole consensus sequence was 224x. The average sequencing depth of every protein-coding gene was above 200x, ex-cept for NS2B and NS3 genes that had average sequencing depths of 164x and 59x, respectively. The average sequenc-ing depth of the 5′- and 3′- UTRs was 171x and 207x, re-spectively. As shown in the Figure, phylogenetic analysis of the complete coding sequence suggests that the isolat-ed DENV-4 belongs to genotype I. Our sample is closely
DENV-4 from field-caught mosquitoes • Thikhumporn Sittivicharpinyo et al. 581
related to DENV-4 genotype I strains previously isolated from human samples in Thailand, (AY318990, AY318992, KR922405), Cambodia, (KF955510, JN638570, JN638571, JN638572) and Brazil (JQ513345) (Saitou & Nei 1987, Klungthong et al. 2004, Nunes et al. 2012). However, our sample is not grouped into the same clade as these samples, suggesting that the mosquitoes collected in this study may carry a new sub-lineage of DENV-4.
There were four positions in the protein-coding genes showing variation within the sample. These intra-sample variants were C403T, C4279T, G6125A/T, and G9992A located in C, NS2B, NS3, and NS5 genes, respectively. Unlike the intra-host variation previously reported by do Nascimento et al. (2016), we observed no intra-sample variation in the E or NS1 genes. This difference could be the result of different genotypes, sample types, or criteria for variant calling. The position of variants pre-sented here was based on the NCBI reference sequence (NC_002640.1). As shown in the Table, the minor allele
frequencies of these variants were at least 30%. Every variant, except the G6125A/T variant, generated two types of aas. Interestingly, the V49A variation generated by the C4279T variant is located in the NS2B protein within the region that interacts with the protease domain of the NS3 protein (Sessions et al. 2015). Thus, this aa change would possibly affect the proteolytic activity of the NS3 protein. We also observed an intra-sample variation in the NS3 gene (the G6125A/T) located in the protease domain-encoding region (Natarajan 2010). However, this variant did not cause an aa change. This intra-sample genetic variation could be generated by ei-ther an error-prone replication of DENV within a mos-quito vector (Sessions et al. 2015, Sim et al. 2015) or a co-circulation of multiple forms of DENV-4 in the area (Zhao et al. 2010). Nevertheless, the limitations of our study design do not allow to address this question. Al-though we could not identify whether this intra-sample variation represented an intra-host variation, DENV
ge-TABLE
Intra-sample genetic variation presented in the dengue virus serotype 4 (DENV-4) genotype I isolated from the pooled field-caught mosquitoes named CTI2-13
Sitea Gene Covb Majc Mind Min freqe Type Posf aag
403 C 236 t c 0.50 NS 2 I101T
4279 NS2B 245 t c 0.46 NS 2 V49A
6125 NS3 46 a t 0.39 S 3 V534V
9992 NS5 289 a g 0.33 NS 3 I810M
a: nucleotide position that was based on the NCBI reference sequence (NC_002640.1); b: coverage (COV); c: major allele (maj); d: minor allele (min); e: minor allele frequency (min freq); f: position in the codon (pos); g: amino acid (aa) position that was based on position in the protein product of the gene; NS: nonsynonymous substitution; S: synonymous substitution.
Neighbour-joining phylogenetic tree of the complete coding sequence of dengue virus serotype 4 (DENV-4). Our sample, named CTI2-13 (KY451945), is represented by a black dot. 189 complete DENV-4 coding sequences were retrieved from GenBank for the phylogenetic analysis. The numbers on the branches represent bootstrap supports calculated from 1,000 replicates. GI, GII, GIII, and GS represent genotype I, II, III, and sylvatic, respectively.
582 Mem Inst Oswaldo Cruz, Rio de Janeiro, Vol. 112(8), August 2017
netic variations may increase the incidence of dengue disease in the area. The variants reported herein might not affect the incidence of dengue disease if they are lost in the DENV population bottleneck produced during ab-domen-to-salivary gland or mosquito-to-human trans-mission (Sim et al. 2015).
In summary, this is the first report on the complete coding sequence of DENV-4 genotype I isolated from field-caught mosquitoes in Thailand. Several intra-sam-ple variants were observed, at least one of them poten-tially affecting the activity of the NS3 protein of the virus. Our results support the use of high-throughput se-quencing to detect intra-sample genetic variation, which might help gain insight into the epidemiology of diseases caused by viral infection.
The complete coding sequence, as well as the partial 5′- and 3′- UTRs, of DENV-4 genotype I (named CTI2-13) isolated from the field-caught mosquitoes in Thai-land was submitted to GenBank, under the accession number KY451945.
ACKNOWLEDGEMENTS
To Mr Wirat Wonghiranrachta, for his help regarding identification of mosquito samples. We also would like to thank staffs in Na Yai Am Hospital, Chanthaburi province, for their help in collecting Aedes mosquitoes.
AUTHORS’ CONTRIBUTION
TS - Performed the experiment and phylogenetic analysis; PW - performed next generation sequencing data analysis and joinly wrote the manuscript; WS - conceived the study and wrote the manuscript.
REFERENCES
Andrews S. FastQC: a quality control tool for high throughput se-quence data. Babraham Institute. 2010. Available from: http:// www.bioinformatics.babraham.ac.uk/ projects/fastqc.
Bäck AT, Lundkvist Å. Dengue viruses - an overview. Infect Ecol Epidemiol. 2013; 3(1): 1-22.
Bolger AM, Lohse M, Usadel B. Trimmomatic: a flexible trimmer for illumina sequence data. Bioinformatics. 2014; 30(15): 2114-20. Chin-inmanu K, Suttitheptumrong A, Sangsrakru D,
Tangphatsorn-ruang S, Tragoonrung S, Malasit P, et al. Feasibility of using 454 pyrosequencing for studying quasispecies of the whole dengue viral genome. BMC Genomics. 2012; 13(Suppl. 7): 1-8.
Dewi BE, Naiggolan L, Putri DH, Rachmayanti N, Albar S, Indriastu-ti NT, et al. CharacterizaIndriastu-tion of dengue virus serotype 4 infecIndriastu-tion in Jakata, Indonesia. Southeast Asian J Trop Med Public Health. 2014; 45(1): 53-61.
do Nascimento VA, de Souza VC, Naveca FG. Complete genome of a dengue virus serotype 4 strain from Amazonas, Brazil. Mem Inst Oswaldo Cruz. 2016; 111(2): 141-3.
Klungthong C, Zhang C, Mammen Jr MP, Ubol S, Holmes EC. The molecular epidemiology of dengue virus serotype 4 in Bangkok, Thailand. Virology. 2004; 329(1): 168-79.
Kumar S, Stecher G, Tamura K. MEGA7: Molecular Evolutionary Genetics Analysis version 7.0 for bigger datasets. Mol Biol Evol. 2016; 33(7): 1870-4.
Li H, Durbin R. Fast and accurate short read alignment with Burrows-Wheeler transform. Bioinformatics. 2009; 25(14): 1754-60. Li H. A statistical framework for SNP calling, mutation discovery,
association mapping and population genetical parameter estima-tion from sequencing data. Bioinformatics. 2011; 27(21): 2987-93. Natarajan S. NS3 protease from flavivirus as a target for designing
antiviral inhibitors against dengue virus. Genet Mol Biol. 2010; 33(2): 214-9.
Nunes MR, Faria NR, Vasconcelos HB, Medeiros DB, de Lima CPS, Carvalho VL, et al. Phylogeography of dengue virus serotype 4, Brazil, 2010-2011. Emerg Infect Dis. 2012; 18(11): 1858-64. Saitou N, Nei M. The neighbor-joining method: a new method for
re-constructing phylogenetic trees. Mol Biol Evol. 1987; 4(4): 406-25. Sessions OM, Wilm A, Kamaraj US, Choy MM, Chow A, Chong Y, et al. Analysis of dengue virus genetic diversity during human and mosquito infection reveals genetic constraints. PLoS Negl Trop Dis. 2015; 9(9): e0004044.
Sim S, Aw PPK, Wilm A, Teoh G, Hue KDT, Nguyen NM, et al. Track-ing dengue virus intra-host genetic diversity durTrack-ing human-to-mosquito transmission. PLoS Negl Trop Dis. 2015; 9(9): e0004052. WHO - World Health Organization. Dengue factsheet. 2016. Avail-able from: http://www.who.int/mediacentre/factsheets/fs117/en/. Zhao H, Yu XD, Zhang XY, Jiang T, Hong WX, Yu M, et al. Complete
genome sequence of a dengue virus serotype 4 strain isolated in Guangdong, China. J Virol. 2012; 86(12): 7021-2.
Zhao R, Chinnawirotpisan P, Klungthong C, Zhang C, Putnak R. Evidence for inter- and intra-genotypic variations in dengue se-rotype 4 viruses representing predominant and non-predominant genotypes co-circulating in Thailand from 1977 to 2001. Virus Genes. 2010; 41(1): 5-13.
