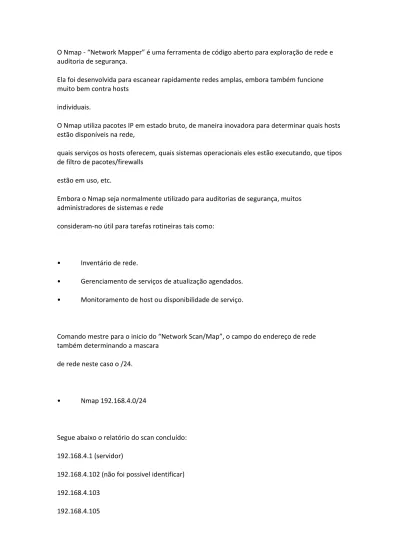

O Nmap - “Network Mapper” é uma ferramenta de código aberto para exploração de rede e auditoria de segurança.
Ela foi desenvolvida para escanear rapidamente redes amplas, embora também funcione muito bem contra hosts
individuais.
O Nmap utiliza pacotes IP em estado bruto, de maneira inovadora para determinar quais hosts estão disponíveis na rede,
quais serviços os hosts oferecem, quais sistemas operacionais eles estão executando, que tipos de filtro de pacotes/firewalls
estão em uso, etc.
Embora o Nmap seja normalmente utilizado para auditorias de segurança, muitos administradores de sistemas e rede
consideram-no útil para tarefas rotineiras tais como:
• Inventário de rede.
• Gerenciamento de serviços de atualização agendados. • Monitoramento de host ou disponibilidade de serviço.
Comando mestre para o inicio do “Network Scan/Map”, o campo do endereço de rede também determinando a mascara
de rede neste caso o /24.
• Nmap 192.168.4.0/24
Segue abaixo o relatório do scan concluído: 192.168.4.1 (servidor)
192.168.4.102 (não foi possivel identificar) 192.168.4.103
192.168.4.109 192.168.4.111 192.168.4.113 192.168.4.115 192.168.4.119 192.168.4.130 192.168.4.134 192.168.4.140 192.168.4.141 192.168.4.143
Nmap scan report for 192.168.4.1 Host is up (0.0018s latency). Not shown: 998 closed ports PORT STATE SERVICE VERSION
23/tcp open telnet Dell PowerConnect M6220-series switch telnetd 80/tcp open http Dell OpenManage switch http config
|_http-methods: HEAD GET OPTIONS
|_http-title: Dell OpenManage Switch Administrator MAC Address: 00:25:64:1B:D4:8B (Dell)
Device type: switch
Running: Enterasys embedded, Netgear embedded, Dell embedded OS CPE: cpe:/h:enterasys:c3_c3g124 cpe:/h:netgear:gsm7328sv2 cpe:/h:dell:powerconnect_6248
OS details: Dell PowerConnect 6248, Enterasys C3 C3G124 or Netgear GSM7328Sv2 switch Network Distance: 1 hop
TCP Sequence Prediction: Difficulty=0 (Trivial joke) IP ID Sequence Generation: Incremental
Service Info: Device: switch; CPE: cpe:/h:dell:powerconnect_m6220
TRACEROUTE HOP RTT ADDRESS 1 1.77 ms 192.168.4.1
Nmap scan report for 192.168.4.103 Host is up (0.00054s latency).
All 1000 scanned ports on 192.168.4.103 are filtered
MAC Address: 50:E5:49:F7:0D:1C (Giga-byte Technology Co.) Too many fingerprints match this host to give specific OS details Network Distance: 1 hop
TRACEROUTE HOP RTT ADDRESS 1 0.54 ms 192.168.4.103
Nmap scan report for 192.168.4.105 Host is up (0.00094s latency).
All 1000 scanned ports on 192.168.4.105 are filtered
MAC Address: 50:E5:49:FA:D3:B5 (Giga-byte Technology Co.) Too many fingerprints match this host to give specific OS details Network Distance: 1 hop
TRACEROUTE HOP RTT ADDRESS 1 0.94 ms 192.168.4.105
Nmap scan report for 192.168.4.109 Host is up (0.00067s latency).
All 1000 scanned ports on 192.168.4.109 are filtered
MAC Address: 50:E5:49:F7:0E:C9 (Giga-byte Technology Co.) Too many fingerprints match this host to give specific OS details Network Distance: 1 hop
TRACEROUTE HOP RTT ADDRESS 1 0.67 ms 192.168.4.109
Nmap scan report for 192.168.4.111 Host is up (0.00058s latency).
All 1000 scanned ports on 192.168.4.111 are filtered
MAC Address: 50:E5:49:F8:39:51 (Giga-byte Technology Co.) Too many fingerprints match this host to give specific OS details Network Distance: 1 hop
TRACEROUTE HOP RTT ADDRESS 1 0.58 ms 192.168.4.111
Nmap scan report for 192.168.4.113 Host is up (0.0010s latency).
Not shown: 999 filtered ports PORT STATE SERVICE VERSION 49176/tcp open unknown
MAC Address: 50:E5:49:F7:05:F9 (Giga-byte Technology Co.)
TRACEROUTE HOP RTT ADDRESS 1 1.00 ms 192.168.4.113
Nmap scan report for 192.168.4.115 Host is up (0.00043s latency).
All 1000 scanned ports on 192.168.4.115 are filtered
MAC Address: 90:2B:34:F5:BA:C3 (Giga-byte Technology Co.) Too many fingerprints match this host to give specific OS details Network Distance: 1 hop
TRACEROUTE HOP RTT ADDRESS 1 0.43 ms 192.168.4.115
Nmap scan report for 192.168.4.119 Host is up (0.00076s latency).
All 1000 scanned ports on 192.168.4.119 are closed
Too many fingerprints match this host to give specific OS details Network Distance: 1 hop
TRACEROUTE HOP RTT ADDRESS 1 0.76 ms 192.168.4.119
Nmap scan report for 192.168.4.130 Host is up (0.00043s latency).
All 1000 scanned ports on 192.168.4.130 are filtered
MAC Address: 50:E5:49:FA:C9:36 (Giga-byte Technology Co.) Too many fingerprints match this host to give specific OS details Network Distance: 1 hop
TRACEROUTE HOP RTT ADDRESS 1 0.43 ms 192.168.4.130
Nmap scan report for 192.168.4.134 Host is up (0.00059s latency).
All 1000 scanned ports on 192.168.4.134 are filtered
MAC Address: 50:E5:49:FA:D8:21 (Giga-byte Technology Co.) Too many fingerprints match this host to give specific OS details Network Distance: 1 hop
HOP RTT ADDRESS 1 0.59 ms 192.168.4.134
Nmap scan report for 192.168.4.140 Host is up (0.00035s latency).
All 1000 scanned ports on 192.168.4.140 are filtered
MAC Address: 50:E5:49:F7:0B:54 (Giga-byte Technology Co.) Too many fingerprints match this host to give specific OS details Network Distance: 1 hop
TRACEROUTE HOP RTT ADDRESS 1 0.35 ms 192.168.4.140
Nmap scan report for 192.168.4.141 Host is up (0.000033s latency).
All 1000 scanned ports on 192.168.4.141 are filtered
MAC Address: 50:E5:49:F8:54:61 (Giga-byte Technology Co.) Too many fingerprints match this host to give specific OS details Network Distance: 1 hop
TRACEROUTE HOP RTT ADDRESS 1 0.03 ms 192.168.4.141
Host is up (0.00053s latency).
All 1000 scanned ports on 192.168.4.143 are filtered
MAC Address: 50:E5:49:FA:EE:EB (Giga-byte Technology Co.) Too many fingerprints match this host to give specific OS details Network Distance: 1 hop
TRACEROUTE HOP RTT ADDRESS 1 0.53 ms 192.168.4.143
Initiating SYN Stealth Scan at 20:27 Scanning 192.168.4.102 [1000 ports]
Completed SYN Stealth Scan at 20:27, 0.01s elapsed (1000 total ports) Initiating Service scan at 20:27
Initiating OS detection (try #1) against 192.168.4.102 Retrying OS detection (try #2) against 192.168.4.102 NSE: Script scanning 192.168.4.102.
Initiating NSE at 20:27
Completed NSE at 20:27, 0.00s elapsed Nmap scan report for 192.168.4.102 Host is up (0.0000080s latency).
All 1000 scanned ports on 192.168.4.102 are closed
Too many fingerprints match this host to give specific OS details Network Distance: 0 hops
