REF.
NO. QJ CODE.
HUSQVARNA PART

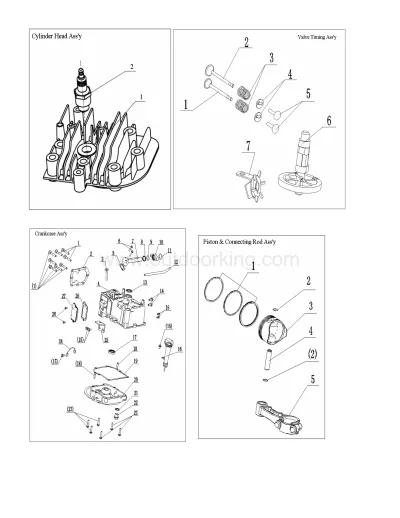

NO. DESCRIPTION QTY DIAGRAM SECTION
1 30000001K16F000 522256801 Cover,Cylinder 1 Cylinder Head Ass'y 2 30506K04F000 522262101 Spark Plug 1 Cylinder Head Ass'y 1 30103K04F000 522257201 Exhaust Valve 1 Valve Timing Ass'y 2 30201K04F000 522258401 Inlet Valve 1 Valve Timing Ass'y 3 30101K04F000 522256901 Valve Spring 2 Valve Timing Ass'y 4 30106K04F000 522257701 Valve Spring Seat 2 Valve Timing Ass'y 5 30312K04F000 522260501 Valve Lifter 2 Valve Timing Ass'y 6 30600K04F000 522263301 Camshaft Assembly 1 Valve Timing Ass'y 7 30500K04F000 522261401 Set Assy,Oil Gear 1 Valve Timing Ass'y 1 26620K04F930 522255101 Bolt, M8×48.5 8 Crankcase Ass'y 2 15503K04F000 522234001 Gasket,Cylinder 1 Crankcase Ass'y 3 26626K04F920 522255401 Bolt, M4×24.5 1 Crankcase Ass'y 4 165020010200 #N/A Top Crankcase Assy 1 Crankcase Ass'y
5 32207K04F000 522266001 Gasket 1 Crankcase Ass'y
6 26627K04F920 522255501 Bolt, M4×28 2 Crankcase Ass'y 7 26000001K16F000 522249701 Tube,Admission 1 Crankcase Ass'y 8 32013K04F000 #N/A Seal,Carburetor 1 Crankcase Ass'y 9 26209K04F000 522253501 O-Ring,18.5*2.5 1 Crankcase Ass'y 10 26000004K16F000 522250001 Flange Plate,Carburetor 1 Crankcase Ass'y 11 26000007K16F000 522250201 O-Ring,23.3*2.4 1 Crankcase Ass'y 12 26105K04F000 522250701 Tube,Ventilation 1 Crankcase Ass'y 13 26129K04F000 #N/A Oil Seal,21.5*32*5 1 Crankcase Ass'y 14 26000006K16F000 522250101 Bolt, M8×12 2 Crankcase Ass'y 15 30502K04F930 522261601 Bolt, M6×12 6 Crankcase Ass'y 16 26200000K16F000 #N/A Pipe Assy,Oil Filler 1 Crankcase Ass'y 17 26130K04F000 #N/A Oil Seal,21.5*35*8 1 Crankcase Ass'y 18 26208K04F000 522253401 Pin, Dowel 2 Crankcase Ass'y
19 26201K04F000 522252301 Gasket 1 Crankcase Ass'y
20 26200K04F000 522252201 Bottom Crankcase 1 Crankcase Ass'y 21 18105K04F000 522242401 Washer, 16×24×1.4 1 Crankcase Ass'y 22 26202K04F000 522252701 Oil Drain Plug 1 Crankcase Ass'y 23 26621K04F000 522255201 Bolt, M6×29 6 Crankcase Ass'y 24 26000028K55F000 522250301 Clip 1 Crankcase Ass'y 25 26600000K16F000 522255001 Bracket 1 Crankcase Ass'y
26 26243K04F000 522254301 Gasket 1 Crankcase Ass'y
27 26235K04F000 522254201 Breather Valve Assy 1 Crankcase Ass'y 28 26625K04F000 522255301 Bolt, M5×10 2 Crankcase Ass'y
1 165020010500 #N/A Piston Ring Assy 1 Piston & Con Rod Ass'y 2 165020180100 #N/A Clip, Piston Pin 2 Piston & Con Rod Ass'y 3 165020470000 #N/A Piston 1 Piston & Con Rod Ass'y 4 141121C03000 522227201 Piston Pin 1 Piston & Con Rod Ass'y 5 165020410000 #N/A Connecting Rod Assy 1 Piston & Con Rod Ass'y 1 15230K04F910 522232801 Nut,M16*1.5 1 Crankshaft Ass'y
2 15116K04F000 #N/A Key 1 Crankshaft Ass'y
3 165020400100 #N/A Crankshaft Assy 1 Crankshaft Ass'y 4 15245K04F000 #N/A Washer 22.3*35*0.9 1 Crankshaft Ass'y 1 22000002K34F000 522248401 Plate,Fixing Ignition Coil 1 Governor Ass'y 2 22000004K16F000 522248801 Governor Vane 1 Governor Ass'y 3 22000001K34F000 522248201 Governor Spring 1 Governor Ass'y 4 22000005K16F000 522249001 Governor Link 1 Governor Ass'y 5 22200001K34F000 522249501 Bracket, Stop Switch 1 Governor Ass'y 6 17571K04F000 522238601 Stop Switch Plate 1 Governor Ass'y 7 22100000K34F000 522249201 Governor Assy 1 Governor Ass'y 8 22000003K34F100 #N/A Cable Holder 1 Governor Ass'y 9 B02210501225 522382901 Screw,M5*12 1 Governor Ass'y 1 39100009K16F000 522277201 Nut 3 Engine Starter Ass'y 2 17100000K16F002 573979301 Starter Assy (PP, 116C) 1 Engine Starter Ass'y 2 17100000K16F003 573979401 Starter Assy (PP, RED GLM461) 1 Engine Starter Ass'y 3 164039980002 522216601 Spacer 3 Engine Starter Ass'y 4 39200000K34F000 522277401 Fan Cover,Assy 1 Engine Starter Ass'y 5 39000001K16F000 522276101 Wind Shield,Right 1 Engine Starter Ass'y 6 17403K04F000 522237601 Canister,Starter 1 Engine Starter Ass'y 7 39100005K34F000 522277001 Double End Stud 1 Engine Starter Ass'y 8 17449K04F000 522238101 Shroud 1 Engine Starter Ass'y 9 17441K04F000 522237901 Shield 1 Engine Starter Ass'y 10 39100008K16F000 522277101 Double End Stud 1 Engine Starter Ass'y 11 39100003K16F000 522276801 Double End Stud 1 Engine Starter Ass'y 12 39000002K16F000 522276401 Wind Baffle (Left) 1 Engine Starter Ass'y 1 164032060000 522216101 Fan 1 Ignition System Ass'y 2 164030960000 522216001 Fly Wheel Assy 1 Ignition System Ass'y 3 164030022200 522215801 Ignition Coil Assy 1 Ignition System Ass'y 4 24584L01F930 #N/A Washer (6×11.2×1.5) 1 Ignition System Ass'y 5 164030022300 #N/A Cut Out Lead 1 Ignition System Ass'y 1 34200002K16F000 522269901 Paper Gasket (I) 1 Carburetor Ass'y 2 34100000K34F000 522269401 Carburetor Assy 1 Carburetor Ass'y 3 331051C03000 522268801 Paper Gasket (III) 1 Carburetor Ass'y 4 32002J02F000 522265401 6.5 Clip,Tube 2 Carburetor Ass'y 5 34000001K34F000 522269201 Fuel Pipe 1 Carburetor Ass'y 6 B04190600000 522384101 Nut,M6 2 Carburetor Ass'y 7 34200000K16F000 522269701 Fuel Primer Assy 1 Carburetor Ass'y 1 47000K04F000 522278301 Muffler Assy 1 Muffler Ass'y 1 37000004K34F000 522273401 Double End Stud 2 Air Filter Ass'y 2 37000006K16F000 522273501 Tie-In,Tube 1 Air Filter Ass'y 3 24585L01F930 #N/A Washer (6.5×12.8×1) 1 Air Filter Ass'y 4 B01210603065 #N/A Bolt M6×30 1 Air Filter Ass'y 5 B07000006002 #N/A Spring Washer 6 2 Air Filter Ass'y
6 B04200600042 #N/A Nut, M6 2 Air Filter Ass'y
7 15105A43F000 #N/A Plane Washer 2 Air Filter Ass'y 8 37100000K34F000 522273901 Air Filter Ass'y 1 Air Filter Ass'y
1 29200000K16F000 522256501 Fuel Tank Cap 1 Fuel Tank Ass'y 2 29100000K34F000 522256201 Fuel Tank Assy 1 Fuel Tank Ass'y 3 29000002K34F000 522255901 Cushion, Fuel Tank 1 Fuel Tank Ass'y 4 29000003K34F000 522256001 Bracket, Fuel Tank 1 Fuel Tank Ass'y 5 29300000K55F000 #N/A Fuel Tap Assy 1 Fuel Tank Ass'y 6 29000005K16F000 522256101 Hose Clamp 2 Fuel Tank Ass'y 7 29000001K34FA00 #N/A Fuel Pipe 1 Fuel Tank Ass'y 8 361051C03000 522272801 Washer 6.5x15x1 2 Fuel Tank Ass'y
9 B01310601622 #N/A Bolt, M6x16 2 Fuel Tank Ass'y
