Indústria de Móveis Bechara Nassar Eireli.

Av. Bechara Nassar Frange, 113 | Jd. Brasília | CEP 15170-000

17 3272 9900 | 17 3272 9919 | Tanabi - São Paulo - Brasil

www.moveisbechara.com.br

Estante/Home theater stand 1905 x 1800 x 450mm

PRESTIGE

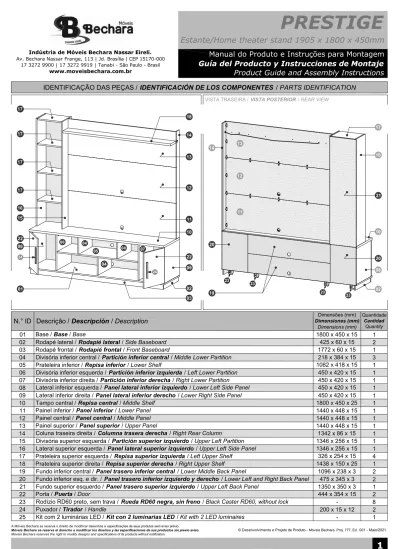

IDENTIFICAÇÃO DAS PEÇAS / IDENTIFICACIÓN DE LOS COMPONENTES / PARTS IDENTIFICATION

Manual do Produto e Instruções para Montagem

Guía del Producto y Instrucciones de Montaje

Product Guide and Assembly Instructions

N.° ID

Quantidade

Cantidad Quantity

Descrição / Descripción / Description

Dimensões (mm)

Dimensiones (mm)

Dimensions (mm)

Base / Base / Base

1800 x 450 x 15

1

01

1350 x 350 x 3

Fundo superior esquerdo / Panel trasero superior izquierdo / Upper Left Back Panel

A Móveis Bechara se reserva o direito de modificar desenhos e especificações de seus produtos sem aviso prévio. Móveis Bechara se reserva el derecho a modificar los diseños y las especificaciones de sus productos sin previo aviso. Móveis Bechara reserves the right to modify designs and specifications of its products without notification.

© Desenvolvimento e Projeto de Produto - Móveis Bechara. Proj. 777, Ed. 001 - Maio/2021.

VISTA TRASEIRA / VISTA POSTERIOR / REAR VIEW

Lateral inferior esquerda / Panel lateral inferior izquierdo / Lower Left Side Panel

Tampo central / Repisa central / Middle Shelf

1800 x 450 x 25

Porta / Puerta / Door

444 x 354 x 15

450 x 420 x 15

-Rodízio RD60 preto, sem trava / Rueda RD60 negra, sin freno / Black Caster RD60, without lock

Painel inferior / Panel inferior / Lower Panel

1440 x 448 x 15

1

02

03

04

2

05

06

07

1

08

1

09

1

10

11

12

13

8

14

15

16

17

18

19

20

Painel central / Panel central / Middle Panel

1440 x 448 x 15

1

Painel superior / Panel superior / Upper Panel

1440 x 448 x 15

1

Prateleira superior direita / Repisa superior derecha / Right Upper Shelf

1438 x 150 x 25

1

01

21

22

200 x 15 x 12

2

Puxador / Tirador / Handle

475 x 345 x 3

Fundo inferior esq. e dir. / Panel trasero inferior izquierdo y derecho / Lower Left and Right Back Panel

2

Prateleira inferior / Repisa inferior / Lower Shelf

1082 x 418 x 15

1

Divisória inferior direita / Partición inferior derecha / Right Lower Partition

450 x 420 x 15

1

Lateral inferior direita / Panel lateral inferior derecho / Lower Right Side Panel

450 x 420 x 15

1

23

23

24

25

Kit com 2 luminárias LED / Kit con 2 luminarias LED / Kit with 2 LED luminaires

-

1

1096 x 238 x 3

Fundo inferior central / Panel trasero inferior central / Lower Middle Back Panel

2

Prateleira superior esquerda / Repisa superior izquierda / Left Upper Shelf

326 x 254 x 15

4

Lateral superior esquerda / Panel lateral superior izquierdo / Upper Left Side Panel

1346 x 256 x 15

1

Divisória superior esquerda / Partición superior izquierdo / Upper Left Partition

1346 x 256 x 15

1

Coluna traseira direita / Columna trasera derecha / Right Rear Column

1342 x 86 x 15

1

Divisória inferior esquerda / Partición inferior izquierda / Left Lower Partition

450 x 420 x 15

1

Divisória inferior central / Partición inferior central / Middle Lower Partition

218 x 384 x 15

3

Rodapé lateral / Rodapié lateral / Side Baseboard

425 x 60 x 15

2

Rodapé frontal / Rodapié frontal / Front Baseboard

1772 x 60 x 15

1

02 03 04 04 04 05 07 06 09 10 11 12 13 14 15 16 17 17 17 17 18 19 20 20 21 22 08 22 23 23 23 24 24 11 12 13 14 16 17 08 02 10

(2)

C

KIT DE ACESSÓRIOS E PARAFUSOS / KIT DE ACCESORIOS Y TORNILLOS / ACCESSORY AND BOLTS

10

0

20

30

40

50

mm

!

IMPORTANTE! Verificar as medidas dos parafusos na escala ao lado ou com uma trena antes de aplicá-los nas peças.

iIMPORTANTE! Verificar las medidas de los tornillos en la escala o con una cinta métrica antes de aplicarlos en las partes. IMPORTANT! Check the measures of the bolts on the scale or with a measuring tape before applying them in parts.

Cavilha Ø6 x 30mm.

Clavija Ø6 x 30mm. Dowel Ø6 x 30mm.

56 un.

Parafuso 5,0 x 50mm cab. chata phs.

Tornillo 5,0 x 50mm cab. plana phs.

Bolt 5.0 x 50mm flat head phs.

34 un.

Prego 10 x 10. Clavo 10 x 10. Nail 10 x 10.

100 un.

E

F

8 un.

B

Tapa-furo adesivo (cor principal).

Capa adhesiva (color principal). Adhesive Cover (main color).

M

Parafuso Minifix simples.

Tornillo Minifix simples. Simple Minifix Bolt.

19 un.

Tambor Minifix Ø12mm. Tuerca Minifix Ø12mm. Minifix Drum Ø12mm.

19 un.

G

!

IMPORTANTE! Ferramentas necessárias ou recomendadas para a montagem não inclusas e não fornecidas com o produto.

iIMPORTANT! Herramientas necesarias o recomendadas para la montaje no incluidas y no suministradas con el producto. IMPORTANT! The required or recommended tools for assembly not included and not supplied with the product.

Parafusadeira com ponteiras fenda philips.

Atornillador eléctrico con puntas philips. Electric screwdriver with philips tips.

Trena ou fita métrica

Cinta métrica. Measuring tape.

Martelo comum.

Martillo común. Simple hammer.

Chave de fenda simples e philips.

Atornillador simples y philips. Simple and philips screwdriver.

•Ler atentamente e considerar todas as instruções antes e durante a montagem e guardar este manual para consultas futuras. Recomenda-se duas pessoas para a montagem. Para movimentar a estante montada, retirar equipamentos e objetos instalados no tampo, nas prateleiras e nos painéis da estante, aliviando o peso e evitando danos ao móvel e aos objetos. Pisos desnivelados e irregulares comprometem a estabilidade e o esquadro do móvel, podendo danificar os rodízios e causar empenamento, deformação e outros problemas nas peças. Certificar-se do nivelamento e da regularidade do piso em que o móvel será instalado, assegurando adequação de funcionalidade e de uso e a manutenção das condições de garantia do produto. Não expor o produto à luz solar direta e à umidade. Para limpeza, utilizar flanela seca ou levemente umedecida em água. Não utilizar produtos químicos, abrasivos e solventes. Não utilizar o móvel como assento ou como apoio para escalar o próprio móvel ou a parede. A Estante/Home Prestige é adequada para TV LCD/LED/Smart de até 60" e peso de até 22kg, desde que observadas as especificações próprias destes aparelhos (suportes e parafusos não inclusos para fixação da TV no painel). Pesos máximos recomendados : 20 kg na base; 20 kg no tampo; 10 kg na prateleira inferior central; 4 kg nas prateleiras superiores; e até 22kg para TV no painel (considerando pesos estáticos, distribuídos uniformemente pela superfície das peças).

GARANTIA (Brasil): este produto tem garantia de 90 dias contra eventuais defeitos de fabricação, conforme Art. 26, inc. II do Código de Defesa do Consumidor. O direito à assistência técnica ou à substituição do produto ou de partes dele, dentro do período de garantia, é assegurado desde que observadas as instruções de montagem, instalação e conservação constantes deste manual e mediante a apresentação da Nota Fiscal de compra. O desgaste natural do móvel e problemas decorrentes de montagem incorreta e de uso inadequado não são cobertos pela garantia .

•Lea atentamente y considere todas las instrucciones antes y durante la montaje y guarde este guía del producto para futuras consultas. Se recomienda 2 personas para la montaje. Para mover la estante, sacar objetos y equipos colocados en el interior o en la parte superior y repisas, reduciendo el peso y evitando daños al producto y equipos. Pisos fuera de nivel y irregulares ponga en peligro la estabilidad y lo ángulo recto de la estante, o que puede dañar las ruedas y causar deformación y otros problemas en las piezas del producto. Asegúrese de la nivelación y regularidad de la superficie en que el mueble será instalado, lo que garantiza adecuación de funcionalidad y uso y el mantenimiento de las condiciones de garantía. No exponga el producto directamente a la luz solar y la humedad. Para la limpieza, utilice paño seco o ligeramente humedecido. No utilice productos químicos, abrasivos y solventes. No utilice la estante como asiento o como soporte para escalar el propio mueble o la pared. Estante Prestige es adecuada para TV LCD/LED/Smart de hasta 60" y peso de hasta 22 kg a fijar en el panel (soportes y tornillos para TV no incluidos). Pesos máximos recomendados: 20 kg en la base; 20 kg en la repisa central; 10kg en la repisa inferior; 4 kg en cada repisa superior; y hasta 22 kg para TV en el panel (los valores indicados consideran pesos estáticos, distribuidos uniformemente por la superficie de las piezas).

•Read carefully and consider all instructions before and during the assembly and keep this product guide for future reference. Two people are recommended for assembly. To move the assembled furniture, remove the materials and equipments put inside or on the middle board, the shelves or in the panels, decreasing weight and preventing damage to the product. Irregular or unleveled floors can leave the furniture to instability, which can damage the casters and maybe cause warping, distortion and others problems in the product parts. Make surre the leveling and regularity of the surface on which the product will be installed, ensuring accurancy and appropriateness of functionality and usage and maintaining warranty conditions. Don't expose the product to direct sunlight and humidity. For cleaning, use dry or slightly humid cloth. Don't use chemicals and abrasive products. Don't use the furniture as a seat or as steps to climb the furniture itself or the wall. Recommended maximum weights : 20kg on the base; 20kg on the middle shelf; 10kg on the lower shelf; 4kg on each upper shelf; and up to 22kg for TV on the panel. Supports and bolts for fixing the TV to the panel not included.

!

A

Cantoneira metálica com 3 furos.

Soporte de metal com 3 orificios.

Metal bracket with 3 holes.

18 un.

4 un.

J

Parafuso 3,5x25mm cab. flangeada phs.

Tornillo 3,5 x 25mm phs.

Bolt 3.5 x 25mm phs.

Tampa passa-fios Ø40mm. Pieza de plástico Ø40mm para cables.

Plastic part Ø40mm for wires.

2 un.

FERRAMENTAS RECOMENDADAS / HERRAMIENTAS RECOMENDADAS / RECOMMENDED TOOLS

6 un.

Junção/Chapa de aço 13 x 50mm.

Placa de acero 13 x 50mm. Junction/Steel plate 13 x 50mm.

Dobradiça Ø26mm Baixa c/ Calço 5mm .

Bisagra 26mm Baja con Cuña 5mm. Low Hinge 26mm with 5mm Shim.

4 un.

114 un.

Parafuso 4,0 x 14mm cab. chata phs.

Tornillo 4,0 x 14mm cab. plana phs.

Bolt 4.0 x 14mm flat head phs.

Chapinha metálica para fundos.

Placa metalica para fijar fondos. Metal plate for fixing the back panels.

16 un.

Estante/Home theater stand 1905 x 1800 x 450mm

PRESTIGE

VÍDEO DE MONTAGEM VÍDEO DE MONTAJE ASSEMBLY VIDEO

D

11 un.

Tapa-furo adesivo (cor secundária).

Capa adhesiva (color secundária). Adhesive Cover (secondary color).

H

I

K

L

(3)

PASSO 1 / PASO 1 / STEP 1

PASSO 3 / PASO 3 / STEP 3

DETALHE 1

DETALLE 1 DETAIL 1

Estante/Home theater stand 1905 x 1800 x 450mm

PRESTIGE

01

Face inferior.Face inferior. Lower face.

02

02

03

15mm BORDA TRASE

IRA / BORDE POSTER

IOR / REAR EDGE

• Fixar os Rodapés (02) e (03) na face inferior da Base (01) posicionando-os conforme o desenho e aplicando cantoneiras metálicas (B) com parafusos (A).

Fijar Rodapiés (02) y (03) en la face inferior de la Base (01), posicionandolos como en el deseño y aplicando soportes metálicos (B) con tornillos (A).

Fix the Baseboards (02) and (03) in the lower face of the Base (01) positioning them as shown in the drawing and applying the metal brackets (B) with bolts (A).

PASSO 2 / PASO 2 / STEP 2

DETALHE 2

DETALLE 2 DETAIL 2

01

Face inferior.Face inferior. Lower face.

02

03

BORDA TRASE

IRA / BORDE POSTER IOR / REAR ED

GE

• Fixar os rodízios (23) na face inferior da Base (01), nas posições indicadas. Aplicar quatro parafusos (A) em cada um dos rodízios.

Fijar las ruedas (23) en la face inferior de la Base (01), en las posiciones mostradas en el deseño. Aplicar cuatro tornillos (A) en cada rueda.

Fix the casters (23) in the lower face of the Base (01), in the indicated positions. Apply four bolts (A) to each caster.

23

23

23

23

23

23

23

23

23

DETALHE 3 DETALLE 3 DETAIL 3

• Fixar duas das Divisórias inferiores centrais (04) sobre a Prateleira inferior (05) com cavilhas (C) e parafusos 5,0 x 50mm (D). Fijar dos de las Particiones inferiores

centrales (04) en la Repisa inferior (05) con clavijas (C) y tornillos 5,0x50mm (D). Fix two of the Middle Lower Partitions (04) on the Lower Shelf (05) with dowels (C) and bolts 5.0 x 50mm (D).

• Fixar a Divisória inferior esquerda (06) e a Divisória inferior direita (07) na Prateleira inferior (05) com cavilhas (C) e parafusos 5,0 x 50mm (D).

Fijar la Partición inferior izquierda (06) y

la Partición inferior derecha (07) en la Repisa inferior (05) con clavijas (C) y tornillos 5,0 x 50mm (D).

Fix the Left Lower Partition (06) and the Right Lower Partition (07) in the Lower Shelf (05) with dowels (C) and bolts 5.0 x 50mm (D).

• Fixar uma Divisória inferior central (04) embaixo da Prateleira inferior (05) com cavilhas (C) e dispositivos Minifix (E + F), aplicando-os conforme o DETALHE 3. Fijar una Partición inferior central (04)

debajo de la Repisa inferior (05) con clavijas (C) y dispositivos Minifix (E+F), aplicandolos según el DETALLE 3. Fix a Middle Lower Partition (04) under the Lower Shelf (05) with dowels (C) and Minifix hardware (E + F), applying them as shown in the DETAIL 3.

05

Face inferior.Face inferior. Lower face.

04

04

04

06

07

05

Face inferior.Face inferior. Lower face.

(4)

PASSO 4 / PASO 4 / STEP 4

PASSO 5 / PASO 5 / STEP 5

Estante/Home theater stand 1905 x 1800 x 450mm

PRESTIGE

• Fixar os calços metálicos para dobradiças (L) nas Laterais inferiores esquerda (08) e direita (09) com parafusos 4,0 x 14mm (A), como mostrado no DETALHE 4.

Fijar cuñas metálicas para bisagras (L) en los Paneles laterales inferiores izquierdo (08) y derecho (09) con tornillos (A), como se muestra en el DETALLE 4. Fix the metallic shims for hinges (L) in the Lower Left

and Right Side Panels (08) and (09) with bolts 4.0 x 14mm (A), as shownin the DETAIL 4 .

• Fixar as Divisórias inferiores (04), (06) e (07) e as Laterais inferiores (08) e (09) na Base (01) com cavilhas (C) e parafusos 5,0 x 50mm (D). Fijar las Particiones inferiores (04), (06) y (07) y los Paneles laterales

inferiores (08) y (09) en la Base (01) con clavijas (C) y tornillos 5,0 x 50mm (D). Fix the Lower Partitions (04), (06) and (07) and Lower Side Panels (08) and (09) on the Base (01) with dowels (C) and bolts 5.0 x 50mm (D).

DETALHE 4

DETALLE 4 DETAIL 4

01

Face inferior.Face inferior. Lower face. 02 03

08

06

04

04

04

07

09

05

Face traseira Face posterior Rear face

13

• Juntar os Painéis (11), (12) e (13), verificando

corretamente a posição de cada um conforme os furos e o desenho e alinhando suas bordas, e fixá-los entre si com as chapas metálicas (K) e parafusos (A).

Unir los Paneles (11), (12) y (13), comprobando

correctamente la posición de cada uno de acuerdo con los orifícios y con el diseño y alineando sus bordes, y fijarlos con las placas de acero (K) y tornillos (A). Joining the Panels (11), (12) and (13), correctly checking the position of each part according to the holes and the drawing and aligning their edges, and fix them with the steel plates (K) and bolts (A).

• Posicionar a Coluna traseira direita (14), verificando corretamente a sua posição, e fixá-la atrás e junto à borda direita dos Painéis (11), (12) e (13) com as cantoneiras metálicas (B) e parafusos (A), conforme o DETALHE 5. Posicionar la Columna trasera derecha (14),

comprobando correctamente su posición, y fijarla detrás y cerca del borde derecho de los Paneles (11), (12) y (13) con soportes metálicos (B) y tornillos (A), como se muestra en el DETALLE 5.

Place Right Rear Column (14), correctly checking its position, and fix it behind and next to the right edge of the Panels (11), (12) and (13) with metal brackets (B) and bolts (A), as shown in the DETAIL 5.

• Fixar a Divisória superior esquerda (15) nos Painéis (11), (12) e (13) com parafusos 5,0 x 50mm (D).

Fijar la Partición superior izquierda (15) en los

Paneles (11), (12) y (13) con tornillos 5,0 x 50mm (D).

Fix the Upper Left Partition (15) to the Panels (11), (12) and (13) with bolts 5.0 x 50mm (D) .

• Fixar a Prateleira superior (18) no Painel (13) e na Divisória (15) com cavilhas (C) e parafusos 5,0 x 50mm (D).

Fijar la Repisa superior (18) en el Panel (13) y en la Partición (15) con clavijas (C) y tornillos 5,0 x 50mm (D).

Fix the Right Upper Shelf (18) to the Panel (13) and to the Partition (15) with dowels (C) and bolts 5.0 x 50mm (D).

Face traseira Face posterior Rear face

12

Face traseira Face posterior Rear face

11

15

18

14

DETALHE 5 DETALLE 5 DETAIL 5

Furo para interruptor das luminárias LED.

Orificio para interruptor de las luminarias LED.

(5)

PASSO 6 / PASO 6 / STEP 6

PASSO 7 / PASO 7 / STEP 7

Estante/Home theater stand 1905 x 1800 x 450mm

PRESTIGE

DETALHE 6 DETALLE 6 DETAIL 6 • Fixar as Prateleiras (17) na Divisória superior (15) e na Lateral superior esquerda (16) com cavilhas (C) e dispositivos Minifix (E + F), aplicando-os conforme o DETALHE 5. Fijar las Repisas (17) en

la Partición superior (15) y en el Panel lateral superior izquierdo (16) con clavijas (C) y dispositivos Minifix (E + F), aplicandolos según el DETALLE 5. Fix the Shelves (17) to the Upper Partition (15) and to the Upper Side Panel (16) with dowels (C) and Minifix hardware (E + F), applying them as shown in the DETAIL 5.

Face frontal Face frontal Front face

11

Face frontal Face frontal Front face

12

Face frontal Face frontal Front face

13

18

14

DETALHE 5 DETALLE 5 DETAIL 5

15

16

17

17

17

17

• Fixar o Tampo central (10) sob o Painel inferior (11), na Divisória superior (15) e na Lateral superior esquerda (16) com cavilhas (C) e parafusos 5,0 x 50mm (D).

Fijar la Repisa central (10) debajo del Panel

inferior (11), en la Partición superior (15) y en el Panel lateral superior izquierdo (16) con clavijas (C) y tornillos 5,0 x 50mm (D). Fix the Middle Shelf (10) under the Panel (11) and in the Upper Partition (15) and in the Upper Left Side Panel (16) with dowels (C) and bolts 5.0 x 50mm (D).

• Fixar a extremidade inferior da Coluna traseira direita (14) no Tampo central (10) aplicando dois parafusos 5,0 x 50mm (D), conforme mostrado no DETALHE 6. Fijar la extremidad inferior de la

Columna trasera derecha (14) en la Repisa central (10) aplicando dos tornillos 5,0x50mm (D), como se muestra en el DETALLE 6. Fix the lower end of the Right Rear Column (14) on the Middle Shelf (10) applying two bolts 5.0 x 50mm (D), as shown in the DETAIL 6.

• Aplicar os parafusos Minifix (E) nos furos Ø5mm indicados na face inferior do Tampo (10) para posterior fixação sobre as Divisórias inferiores (04), (06) e (07) e sobre as Laterais inferiores (08) e (09).

Aplicar los tornillos Minifix (E)

en los orificios Ø5mm indicados debajo de la Repisa central (10) para su posterior fijación en las Particiones inferiores (04), (06) y (07) y en los Paneles laterales inferiores (08) y (09).

Apply the Minifix bolts (E) in the

indicated holes Ø5mmunder the Middle Shelf (10), for later fixation on the Lower Partitons (04), (06) and (07) and on the Lower Side Panels (08) and (09).

Face frontal Face frontal Front face

13

Face frontal Face frontal Front face

12

Face frontal Face frontal Front face

11

18

14

10

Face inferiorFace inferior Lower face

17

17

17

17

15

16

(6)

PASSO 8 / PASO 8 / STEP 8

PASSO 9 / PASO 9 / STEP 9

10

• Aplicar cavilhas (C) no topo superior das Divisórias (04), (06) e (07) e das Laterais inferiores (08) e (09). Aplicar clavijas (C) en el borde superior de las

Particiones (04), (06) y (07) y de los Paneles laterales inferiores (08) y (09).

Apply dowels (C) in the upper edge of the Partitions (04), (06) and (07) and of the Lower Side Panels (08) and (09).

• Com todo o conjunto formado pelas peças (10), (11), (12), (13), (14), (15), (16), (17) e (18) já montado e com os parafusos Minifix (E) já aplicados nos furos indicados debaixo do Tampo central (10) conforme o PASSO 7, posicioná-lo sobre as Divisórias (04), (06) e (07) e sobre as Laterais inferiores (08) e (09), encaixando-os através das cavilhas (C) e fixando-os com a aplicação dos tambores Minifix (F).

Con todo el conjunto formado por las partes (10), (11), (12), (13), (14), (15), (16), (17) y (18) ya montado y con tornillos Minifix (E) ya aplicados en los orificios indicados bajo la Repisa central (10), según el PASO 7, posicionarlo encima de las Particiones (04), (06) y (07) e de los Paneles laterales inferiores (08) y (09), encajándolos a través de las clavijas (C) y fijándolos con la aplicación de los tambores Minifix (F).

With the whole set formed by the parts (10), (11), (12), (13), (14), (15), (16), (17) and (18) already assembled and with the Minifix bolts (E) already applied in the holes indicated under the Middle Shelf (10) according to STEP 7, position it on top of the Partitions (04), (06) and (07) and on the Lower Side Panels (08) and (09), fitting them through the dowels (C) and fixing them with the application of the Minifix drums (F).

• Após a fixação, aplicar os tapa-furos adesivos (G) e (H). Después de la fijación, aplicar capas adhesivas

(G) y (H).

At the end the fixation, apply the adhesive covers (G)

and (H).

03

VISTA TRASEIRA VISTA TRASERA REAR VIEW

• Fixar os Fundos (19), (20) e (21) com pregos (I) e chapinhas metálicas (J), aplicando-os nas posições indicadas no desenho.

Fijar los Paneles traseros (19), (20)

y (21) con clavos (I) y placas metálicas (J), aplicándolos en las posiciones indicadas en el deseño.

Fix the Back Panels (19), (20) and (21)

with nails (I) and metal plates (J), applying them in the positions indicated in the drawing.

Estante/Home theater stand 1905 x 1800 x 450mm

PRESTIGE

13

14

15

12

11

17 17 17 17

16

08

06

04

04

07

09

05

04

01

02

19

20

20

21

11

12

13

14

16

17

08

02

10

(7)

PASSO 8 / PASO 8 / STEP 8

PASSO 9 / PASO 9 / STEP 9

PREPARAÇÃO DAS PORTAS (22):

• Fixar as dobradiças (L) nas duas Portas (22) com os parafusos 4,0 x 14mm (A), conforme o DETALHE 7.

• Fixar puxador (24) nas Portas (22) com parafusos 3,5 x 25mm (M).

PREPARACIÓN DE LAS PUERTAS (22):

• Fijar las bisagras (L) en las dos Puertas (22) con los tornillos 4,0 x 14mm (A), como se muestra en el DETALLE 7.

• Fijar tirador (24) en las Puertas (22) con tornillos 3,5 x 25mm (M). PREPARING THE DOORS (22):

• Fix the hinges (L) in the two Doors (22) with bolts 4.0 x 14mm (A), as shown in the DETAIL 7.

• Fix the handle (24) in the Doors (22) with bolts 3,5 x 25mm (M). DETALHE 7 DETALLE 7 DETAIL 7

22

24

Parafuso fixador Tornillo fijador Fixer bolt Parafuso regulador Tornillo de ajuste Adjustment bolt

14

01

DETALHE 8 DETALLE 8 DETAIL 8

Estante/Home theater stand 1905 x 1800 x 450mm

PRESTIGE

22

22

08

09

10

11

12

13

18

06

04

04

07

04

15

16

17

17

17

17

Luminárias LED Luminarias LED LED Luminaires

Interruptor para luminárias LED Interruptor para luminarias LED Switch for LED luminaires

• Instalar as luminárias LED nos furos sob a Prateleira (18), seguindo as instruções do próprio kit de luminárias. Instalar las luminarias LED

en los orifícios debajo de la Repisa (18), siguiendo las instrucciones del propio kit de luminarias.

Install the LED luminaires in the holes under the Shelf (18), following the instructions of the luminaire kit itself.

• Aplicar tampas passa-fios (N) nos furos nos Painéis inferior (11) e central (12). Insertar las capas (N) en

los orificios en los Paneles inferior (11) y central (12). Insert the plastic cover (N) into the holes in the Lower and Middle Panels (11) and (12).

• Instalação das Portas (22): encaixar/fixar as dobradiças nos calços metálicos através dos parafusos fixador e regulador das dobradiças.

Se necessário, ajustar o alinhamento das portas através do parafuso regulador, conforme o DETALHE 8. Instalación de las Puertas (22): colocar y fijar las bisagras en las cuñas metálicas a través de

los tornillos de fijación y de ajuste de las bisagras.

Si necesario, ajustar la alineación de las puertas por el tornillo de ajuste, como en DETALLE 8.

Installing the Doors (22): insert and fix the hinges on the metal shims through the fixer and adjustment

bolts. If necessary, adjust the alignment of the doors by adjustment bolt, as shown in the DETAIL 8.

(8)

Referências

Documentos relacionados

são jorge não ficaria indiferente às preces, à repentina e comovente religio- sidade dos coronéis e ao dinheiro por eles prometido para a igreja matriz, aos pés nus das

§ Gerar conhecimento para a plataforma § Apoiar na busca de solucoes para problemas encontrados na pratica § Desenvolver um projeto piloto de investimento de

Tem como objetivo analisar, qualitativamente, se e como as crianças compreendem os anúncios veiculados nos sites de jogos, bem como a percepção delas sobre as influências

• Pode ainda ajustar esta função seleccionando o botão Poupança de Energia no controlo remoto. • Quando seleccionar Auto, Luz de Fundo é automaticamente ajustado através do

Quando Dolby Digital está disponível, seleccionar Auto no menu Digital Audio Out define a saída SPDIF (Sony Philips Digital Interface) para Dolby Digital. Se for seleccionado Auto

N OTA : Antes de mudar o aparelho de local, para.. HYLWDU DFLGHQWHV RX GHIHLWRV DR SURGXWR GHVIDoD

ySubtitle Language [In Digital Mode Only] : Use the Subtitle function when two or more subtitle languages are broadcast. ܩIf subtitle data in a selected language is not

A LG Electronics do Brasil Ltda., através de sua Rede de Serviços Autorizados, garante ao usuário deste produto os serviços de Assistência Técni- ca para substituição de
