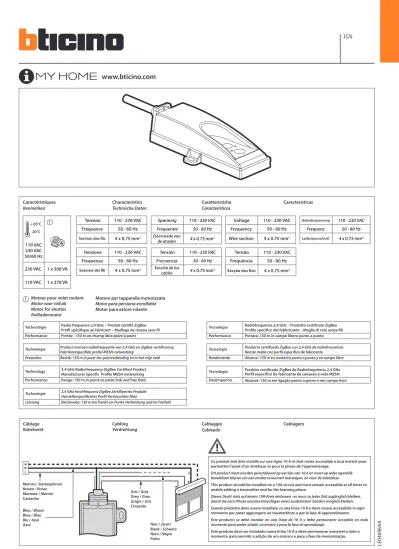

3576
LE04096AA
110 VAC 230 VAC 50/60 Hz 230 VAC 1 x 500 VA 110 VAC 1 x 270 VAMoteur pour volet roulant Motor voor rolluik Motor for shutter Rollladenmotor
Motore per tapparella motorizzata Motor para persiana enrollable Motor para estore rolante Tension 110 - 230 VAC Fréquence 50 - 60 Hz Section des fils 4 x 0,75 mm2
Tensione 110 - 230 VAC Frequenza 50 - 60 Hz Sezione dei fili 4 x 0,75 mm2
Tensión 110 - 230 VAC Frecuencia 50 - 60 Hz Sección de los cables 4 x 0,75 mm2 Spanning 110 - 230 VAC Frequentie 50 - 60 Hz Doorsnede van de draden 4 x 0,75 mm2 Tensão 110 - 230 VAC Frequência 50 - 60 Hz Secção dos fios 4 x 0,75 mm2
Voltage 110 - 230 VAC Frequency 50 - 60 Hz Wire section 4 x 0.75 mm2 Betriebsspannung 110 - 230 VAC Frequenz 50 - 60 Hz Leiterquerschnitt 4 x 0,75 mm2 + 65°C - 20°C Caractéristiques Kenmerken Characteristics Technische Daten Caratteristiche Características Características
Technologie Radio fréquence 2,4 GHz – Produit certifié ZigBeeProfil spécifique au fabricant – Maillage de réseau sans fil Performance Portée : 150 m en champ libre point à point
Tecnologia Radiofrequenza 2,4 GHz – Prodotto certificato ZigBeeProfilo specifico del fabbricante – Maglie di rete senza fili Performance Portata: 150 m in campo libero punto a punto
Tecnologia Produto certificado ZigBee de Radiofrequência 2,4 GHzPerfil específico do fabricante de conexão à rede MESH Desempenho Alcance: 150 m em ligação ponto a ponto e em campo livre
Technologie 2,4 GHz Hochfrequenz ZigBee Zertifiziertes Produkt Herstellerspezifisches Profil Vermaschtes Netz
Leistung Reichweite: 150 m bei Punkt-zu-Punkt-Verbindung und im Freifeld
Technology 2.4 GHz Radiofrequency ZigBee Certified ProductManufacturer Specific Profile MESH networking Performance Range: 150 m in point-to-point link and free field
Tecnología Producto certificado ZigBee con 2,4 GHz de radiofrecuenciaRed de malla con perfil específico de fabricante Rendimiento Alcance: 150 m en conexión punto a punto y en campo libre Technologie Product met een radiofrequentie van 2,4 GHz en ZigBee-certificeringFabrikantspecifiek profiel MESH-netwerking
Prestaties Bereik: 150 m in punt-tot-puntverbinding en in het vrije veld
L N
Câblage
Kabelwerk CablingVerdrahtung CablaggioCableado
Cablagem
Ce produit doit être installé sur une ligne 10 A et doit rester accessible à tout instant pour permettre l’ajout d’un émetteur et pour la phase de l’apprentissage.
Dit product moet worden geïnstalleerd op een lijn van 10 A en moet op ieder ogenblik bereikbaar blijven om een zender te kunnen toevoegen, en voor de inleesfase.
This product should be installed on a 10A circuit and must remain accessible at all times to enable adding a transmitter and for the learning phase.
Dieses Gerät stets auf einem 10A-Kreis einbauen ; es muss zu jeder Zeit zugänglich bleiben, damit die Lern-Phase und das Hinzufügen eines zusätzlichen Senders möglich bleiben.
Questo prodotto deve essere installato su una linea 10 A e deve essere accessibile in ogni momento per poter aggiungere un trasmettitore e per la fase di apprendimento.
Este producto se debe instalar en una línea de 10 A y debe permanecer accesible en todo momento para poder añadir un emisor y para la fase de aprendizaje.
Este produto deve ser instalado numa linha 10 A e deve permanecer acessível a todo o momento para permitir a adição de um emissor e para a fase de memorização. Marron / Kastanjebruin Brown / Braun Marrone / Marrón Castanho Bleu / Blauw Blue / Blau Blu / Azul
Azul Noir / Zwart
Black / Schwarz Nero / Negro Preto Gris / Grijs Grey / Grau Grigio / Gris Cinzento
Conditions d’utilisation
Gebruiksvoorwaarden Instructions for useFunktionsbedingungen Condizioni di utilizzoCondiciones de uso Condições de utilização
L N L N LEARN NE TW.
+
OK
NO
LED témoin d’APPRENTISSAGE LEARN Led «LEARN»-led LEARN-Leuchtdiode LED APPRENDIMENTO LED LEARN Led LEARN
Bouton mode APPRENTISSAGE «LEARN»-knop
LEARN Button LEARN-Taste
Pulsante modalità APPRENDIMENTO Botón LEARN Botão LEARN LED RÉSEAU «NET»-led NETWORK Led NETZWERK-Leuchtdiode LED RETE LED de RED Led “REDE” Bouton RÉSEAU «NET»-knop NETWORK Button NETZWERK-Taste Pulsante RETE Botón de RED Botão “REDE” Consignes de sécurité
Avant toute intervention, couper le courant.
Respecter strictement les conditions d’installation et d’utilisation. Veiligheidsvoorschriften
Onderbreek voor enige ingreep de stroom.
Neem de installatie- en gebruiksvoorwaarden nauwgezet in acht.
Safety instructions
Make sure the power supply is disconnected before any intervention. Strictly comply with instructions for installation and use.
Sicherheitshinweise
Vor jeglichem Eingriff die Spannungsfreiheit sicherstellen. Einbau- und Gebrauchsanleitungen sind genau zu beachten.
Istruzioni di sicurezza
Prima di qualsiasi intervento, interrompere l’alimentazione. Rispettare scrupolosamente le condizioni d’installazione e uso.
Consignas de seguridad
Antes de realizar cualquier intervención, cortar la corriente eléctrica. Respetar estrictamente las condiciones de instalación y uso.
Instruções de segurança
Antes de qualquer intervenção, desligar a corrente.
3
LEARN NET W. LEARN NE TW. L N L NB
B
3s
A
A
Cr
ea
ted
OFF ON SLOW FLASHING (1s) QUICK FLASHING (0.25s) FLASHING MODE (60ms) 3 PULSE / 3s
L N L N
10s
C
C
LEARN NET W. LEARN NE TW. L N LEARN NETW. L N+
LEARN+
. . . . .
NETW. LEARN NETW. LEARN NETW.A
C
A
C
Network
Push and Learn
L N L NA
L N L N LEARN NE TW. LEARN NETW. LEARN NETW. L NB
OK
NO
A
A
B
B
Binding «K
ey
s»
OFF ON SLOW FLASHING (1s) QUICK FLASHING (0.25s) FLASHING MODE (60ms) 3 PULSE / 3s
Pour plus de détails sur les fonctions disponibles avec ce produit et listées ci-dessous, merci de vous reporter au guide technique My Home.
Wilt u meer bijzonderheden over de functies die bij dit product verkrijgbaar zijn en hieronder opgesomd worden, raadpleeg dan de technische handleiding My
Home.
For more details on the functions available with this product, listed below, please refer to the My Home technical guide.
Weitere Einzelheiten zu den mit diesem Gerät verfügbaren, nachstehend aufgelisteten Funktionen finden Sie im My Home technischen Handbuch.
Per maggiori dettagli sulle funzioni elencate qui di seguito e disponibili con questo prodotto, fare riferimento alla guida tecnica My Home.
Para más detalles sobre las funciones disponibles de este producto y que se enumeran a continuación, rogamos consulte la guía técnica My Home.
5
Push and Learn
Binding
OFF ON SLOW FLASHING (1s) QUICK FLASHING (0.25s) FLASHING MODE (60ms) 3 PULSE / 3s
LEARN NETW. LEARN NETW. LEARN NET W. LEARN NETW. LEARN NETW. L N
B
LEARN NETW. L NB
L NB
L N LEARN NE TW. L N LEARN NETW.+
. . .
A
A
A
Push and Learn
LEARN NETW. LEARN NETW. LEARN NET W. L NC
LEARN NETW. LEARN NE TW. L NC
L NC
LEARN NETW.A
A
A
OFF ON SLOW FLASHING (1s) QUICK FLASHING (0.25s) FLASHING MODE (60ms) 3 PULSE / 3s
L N
C
L NC
7
The directive 1999/5/CE of the european parliamentand of the council of March 9th, 1999
EN 301 489 EN 300 328 EN 60669-2-1
CONFORMITY DECLARATION
We declare that the products satisfy the provisions of :
On condition that they are used in the manner intented and/or in accordance with the current installation standards and/or with the manufacturers recommandations
These provisions are ensured for directive 1999/5/CEE by conformity to the following standards :
Channel availability depends on local country regulations. Wireless LAN system administrator must choose correct country of operation. Channels are then automatically configured to comply with specified country's regulations.
