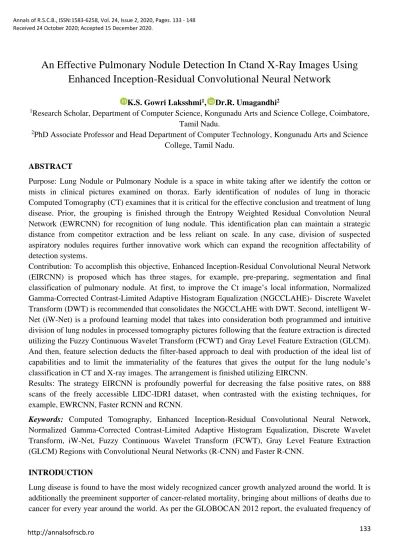

An Effective Pulmonary Nodule Detection In Ctand X-Ray Images Using Enhanced Inception-Residual Convolutional Neural Network
K.S. Gowri Laksshmi1, Dr.R. Umagandhi2
1Research Scholar, Department of Computer Science, Kongunadu Arts and Science College, Coimbatore, Tamil Nadu.
2PhD Associate Professor and Head Department of Computer Technology, Kongunadu Arts and Science College, Tamil Nadu.
ABSTRACT
Purpose: Lung Nodule or Pulmonary Nodule is a space in white taking after we identify the cotton or mists in clinical pictures examined on thorax. Early identification of nodules of lung in thoracic Computed Tomography (CT) examines that it is critical for the effective conclusion and treatment of lung disease. Prior, the grouping is finished through the Entropy Weighted Residual Convolution Neural Network (EWRCNN) for recognition of lung nodule. This identification plan can maintain a strategic distance from competitor extraction and be less reliant on scale. In any case, division of suspected aspiratory nodules requires further innovative work which can expand the recognition affectability of detection systems.
Contribution: To accomplish this objective, Enhanced Inception-Residual Convolutional Neural Network (EIRCNN) is proposed which has three stages, for example, pre-preparing, segmentation and final classification of pulmonary nodule. At first, to improve the Ct image’s local information, Normalized Gamma-Corrected Contrast-Limited Adaptive Histogram Equalization (NGCCLAHE)- Discrete Wavelet Transform (DWT) is recommended that consolidates the NGCCLAHE with DWT. Second, intelligent W- Net (iW-Net) is a profound learning model that takes into consideration both programmed and intuitive division of lung nodules in processed tomography pictures following that the feature extraction is directed utilizing the Fuzzy Continuous Wavelet Transform (FCWT) and Gray Level Feature Extraction (GLCM).
And then, feature selection deducts the filter-based approach to deal with production of the ideal list of capabilities and to limit the immateriality of the features that gives the output for the lung nodule’s classification in CT and X-ray images. The arrangement is finished utilizing EIRCNN.
Results: The strategy EIRCNN is profoundly powerful for decreasing the false positive rates, on 888 scans of the freely accessible LIDC-IDRI dataset, when contrasted with the existing techniques, for example, EWRCNN, Faster RCNN and RCNN.
Keywords: Computed Tomography, Enhanced Inception-Residual Convolutional Neural Network, Normalized Gamma-Corrected Contrast-Limited Adaptive Histogram Equalization, Discrete Wavelet Transform, iW-Net, Fuzzy Continuous Wavelet Transform (FCWT), Gray Level Feature Extraction (GLCM) Regions with Convolutional Neural Networks (R-CNN) and Faster R-CNN.
INTRODUCTION
Lung disease is found to have the most widely recognized cancer growth analyzed around the world. It is additionally the preeminent supporter of cancer-related mortality, bringing about millions of deaths due to cancer for every year around the world. As per the GLOBOCAN 2012 report, the evaluated frequency of
lung cancer growth in India was 70,275 in all ages and both genders1. In Chennai2, the overall disease trouble is anticipated to increment by 32% by 2012-16 when contrasted with 2002-06, with 19% because of in cancer growth development and an additional 13% because of the effect of demographic developments. The frequency of tumour in the cervical part is anticipated to go down by 46% in 2015 when contrasted with the existing levels; at the same time as a 100% expansion in upcoming thyroid disease occurrence is anticipated. Amid the male population, a 21% decrease in the rate of oesophageal cancer by the year 2016 diverges from the 42% anticipated increment in prostate cancer. Also, the yearly cancer trouble anticipated for Chennai for the period 2012-16 is 6100, meaning 55, 000 fresh cases for each year state-wide (in our state). Breast cancer in the cervical part gets the top-positioning disease in the state, whereas lung, stomach and large bowel cancers would outperform in positioning the cancer at cervical part in Chennai by 2016. So as to handle the anticipated increments in this issue, coordinated endeavours are required to survey and plan the framework for managing and controlling this disease, and guarantee adequate assignment of assets.
Recently, Clinical imaging methods have been a significant innovation in screening of lung disease. CT check turns into a benchmark methodology for recognizing as well as surveying cancer in lungs3. The majority of the lung nodules are normally benign. In any case, a few nodules, for example, calcified, swollen, and hard can likewise be resolved favourably. Essentially, a hard nodule for the most part is destructive (threatening), however it might be considered as benign case at times4. Moreover, clinical images of CT can be analyzed by radiologists.
As of late, numerous CAD frameworks dependent on profound learning are suggested for recognizing the programmed lung cancer. For instance, ZNET (gzuidhof) utilizes U-Net5 completely convolutional network architecture for candidate selection on pivotal cuts. For the resulting false positive decrease, three symmetrical slices of every competitor were taken care of to the equivalent extensive residual system. Resnet (QiDou)6 suggested a nodule discovery structure dependent on 3D CNN that covers the competitors of the network which is convolutional, and recovers the high-likelihood areas as applicants.
In false positive decrease, they utilize the leftover system that can facilitate the slopes stream inside the system. Despite the fact that preparing utilizing 3D structure of CT scan mirrors the entire data about the nodules, it will likewise necessitate additional network for training network and extra space. Furthermore, the CT scans as a rule have distinctive cut thicknesses (0.6–5 mm), that can’t be prescribed to be consistently utilized in the detection of3D nodule, and the pre-preparing of 3D lung CT pictures is increasingly convoluted7. In actuality, a 2D lung CT image doesn’t get impacted by the thickness of slice, and both training time as well as assets required for handling under 3D CT images. Subsequently, utilizing 2D image data is a progressively perfect approach to recognize the lung nodules. There are sure perspectives that despite everything require consideration, for example, expanding algorithm affectability, decreasing the false positive count, enhancing and advancing the algorithm location of different varieties of nodules with various dimensions and structure and, at long last, the capacity to incorporate with the Electronic Medical Record Systems and Picture Archiving and Communication Systems. In light of this examination, further research is expected to create existing methods and that new algorithms are expected to defeat the distinguished disadvantages. Right now, novel robotized pulmonary nodule detection system is proposed with 2D CNN to help the CT understanding procedure. The basically commitments of this research work are as per the following:
• This analysis provides a novel image upgrade technique, called normalized gamma-corrected contrast-limited adaptive histogram equalization (NGCCLAHE)-Discrete Wavelet Transform (DWT), which combines the NGCCLAHE with DWT.
• Then iW-Net, a profound learning model that takes into account equal amount of programmed and intelligent division of lung nodules in figured tomography pictures. In the next step, the feature extraction is directed utilizing the Fuzzy Continuous Wavelet Transform (FCWT) and Gray Level Feature Extraction (GLCM).
• Following this progression, feature selection utilizing filter-based approach way to deal with creating the set of optimum feature and to limit the superfluity of the features that given appropriate output for the lung nodule classification in CT and X-ray images.
• The classification is finished through the Enhanced Inception-Residual Convolutional Neural Network (EIRCNN).
The other sections of paper is sorted out as given, Section 2 depicts the relevant work on the lung nodule identification and segment 3 portrays the proposed strategy for automated detection and classification of pulmonary nodules from lung CT Images, test results and their check procedure is talked about in Section 4 and lastly end with some future recommendation is given in segment 5.
RELATED WORK
As of late, various strategies, particularly works according to the deep learning with Convolutional neural network (CNN), have been created to consequently distinguish and group pulmonary nodules in clinical pictures. Right now, exhaustive investigation of these techniques and their exhibitions are introduced. In8 the author suggests a novel methodology for fast candidate detection from volumetric chest CT scans that helps in limiting the false negatives (FNs) and false positives (FPs). The center of the system is, in fact, a nodule-sized adaptive deep model, which can distinguish the nodule of different kinds, areas, and dimensions from 3D pictures. Following the applicant recognition, each outcome is situated with bounding cubes that gives rough dimension of data of the identified articles. Moreover, we suggest a basic yet viable CNN-based classifier for FP reduction, which, in turn, profits by the candidatedetection9. In9 the discussed design involves numerous flow of 2-D ConvNets, for which the yields are joined through a devoted combination technique for acquiring the last classification. Information enlargement and failures were enforced to stay away from over fitting. In10 proposed a new CADe framework dependent on a various levelled vector quantization (VQ) conspire. As for equivalent CADe frameworks, the proposed framework shows surpassed output and exhibits its prospective for quick and versatile discovery of pulmonary nodules via CT imaging. In11 the author proposed a model to construct troupe students during blending various deep CNN students for the classification of pulmonary nodules. It is discovered that the group students accomplish higher forecast precision (84.0% versus 81.7%) than single CNN student.
In12 developed3multi-task learning (MTL) approaches to use heterogeneous computational features, which is acquired from deep learning models comprising of stacked Denoising auto encoder (SDAE) and convolutional neural system (CNN), just like hand-created Haar-like and HoG features, for the depiction of nine semantic features for lung nodule in CT images. In13 the author gave a modified random forest (RF) algorithm for arrangement of benign and threatening pulmonary nodules found in thoracic figured tomography pictures. Initial, a modified random walk algorithm is introduced to naturally fragment pulmonary nodules. At that point, power, geometric and surface features dependent on the grey-level co- occurrence matrix, rotation invariant uniform local binary pattern and Gabor filter strategies are consolidated to create a viable as well as segregating component vector. Common data is utilized to
diminish the spatial data. At long last, a modified RF classifier is prepared to categorize the benign and harmful nodules.
In14 proposed a CNN-based methodology, which considers MIP pictures of various slab thicknesses (5 mm, 10 mm, 15 mm) and 1 mm axial section slices in the form of input. This, as a methodology expands the two-dimensional (2-D) CT slice pictures with increasingly delegate spatial data, which separates nodules as of vessels by their morphologies. In15 developed the causal disclosure dependent on the streaming feature algorithm and fundamental revelation with symmetrical uncertainty dependent on the streaming feature algorithm. Not quite the same as the customary learning strategies that generally get every single computational feature ahead of time and afterward choose the features which have optimal subset from the computational features, the discussed technique coordinates internet streaming feature determination amid learning of structure learning casually. In16 proposed strategy works in the miserliness of model speaking to the sharpness of margin. The latest strategy on the calculation of sharpness of margin of aspiratory knobs considers an agent slice of the nodule’s size as well as it relies upon nodule’s manual division by a prepared radiologist.
In17 Radiomics is the way toward separating and breaking down image-based, quantitative features from a region-of-interest which at that point helps in analysis, for creating the decision support tools for enhancing protection of the lung disease. Albeit earlier distributed research works has demonstrated that delta radiomics (i.e., modifications in features after some time) have efficacy in foreseeing reaction of the diagnosis, restricted work has been led utilizing delta radiomics in protection of the lung disease. In18 an option Multi-ringed (MR) - Forest framework, beside resource-depleting neural networks (NN)-based frameworks, was given for false positive decrease in pulmonary nodule detection.
PROPOSED METHOD
Right now, the CT and X-ray image’s input is Contrast limited adaptive histogram equalisation (CLAHE) is truly a powerful algorithm to upgrade the neighbourhood subtleties of a picture. In any case, it encounters the complexity overstretching and issue of noise enhancement. To tackle these issues, this investigation gives a novel image enhancement method, called normalized gamma-corrected contrast- limited adaptive histogram equalization (NGCCLAHE)-Discrete Wavelet Transform (DWT), which associates the NGCCLAHE with DWT. The new technique incorporates three principle steps: Initially, the first picture is deteriorated into low- frequency and high- frequency parts by DWT. At that point, the creators upgrade the low- frequency coefficients utilizing CLAHE and maintain the high-recurrence coefficients unaltered to constrain improvement of noise.
IniW-Net, a deep learning model that takes into consideration in cooperation of programmed and intelligent division of lung nodules in the images of figured tomography.
Next, the extraction of feature is led utilizing the Fuzzy Continuous Wavelet Transform (FCWT) and Gray Level Feature Extraction (GLCM). And then, feature selection utilizing knockoff filter-based technique in order to fabricate the set of optimum features and to limit the superfluity of the output features for the order of lung nodule found in CT images. The characterization is finished through the Enhanced Inception-Residual Convolutional Neural Network (EIRCNN). Trial results show that the structured EIRCNN organize and the FP reduction plot are viable in the lung nodule’s detection and FP reduction for CT pictures. The proposed EIRCNN design graph is shown in Fig.1.
Fig.1: Pulmonary Nodule Detection in Computed Tomography Images Employing EIRCNN Dataset
The information utilized here is the Lung Image Database Consortium picture assortment (LIDC-IDRI), which comprises of symptomatic and lung cancer screening thoracic registered tomography (CT) scans with marked-up annotated lesions and X-ray images, Fig.2 a and b outlines the input original image of CT and X-ray image. It is a web-based elaborate benefit for upgrading, preparation, and appraisal of computer-assisted diagnostic (CAD) techniques for detection of lung cancer and determination. It is started by the National Cancer Institute (NCI), further progressed by the Foundation for the National Institutes of Health (FNIH), and joined by the Food and Drug Administration (FDA) through dynamic investment; this public-private partnership shows the achievement of an association established on an agreement-based framework.
(a) CT image
LIDC-IDRI dataset
Image enhancement using NGCCLAHE with DWT
Image segmentation using iW-net
FCWT and GLCM based feature extraction
Feature selection using knockoff filter Classification using
Enhanced Inception- Residual Convolutional
Neural Network
Detection results
(b) X-ray Image Fig.2: Input Original Image
Image Enhancement
Another technique which makes use of NGCCLAHE-DWT is proposed here. Right now, first it provides the fundamental strides of our new NGCCLAHE-DWT. To become progressively justifiable, we at that point additionally clarify the DWT and loading activity in our proposed strategy. NGCCLAHE is an exemplary strategy for improving the neighbourhood complexity of a picture, however it encounters the over-upgrade and noise improvement issues in certain segments of the picture. To defeat these issues, we propose a novel picture improvement strategy, which means, NGCCLAHE-DWT where it joins NGCCLAHE with DWT.
The systems of the NGCCLAHE-DWT are explained further and the after-effect of picture upgrade is given in Fig.3.
Stage 1: Putrefy the underlying picture into low- frequency and high- frequency components with N-level DWT utilizing Haar wavelet. It is basic as well as reasonable for execution of hardware. The decision of parameter N is talked in later part.
Stage 2: Augment the low- frequency coefficients utilizing NGCCLAHE19 and leave the high- frequency coefficients unaltered.
Stage 3: Renovate the picture using the new coefficient’s inverse DWT. At last, consider thebiased normal of the reproduced and unique pictures. The initially proposed weighting coefficient makes the location suitably with various luminance's improved and subsequently lessens over-upgrade adequately.
Normalized Gamma-Corrected Contrast-Limited Adaptive Histogram Equalization
Step 1:Exploit the NGC function in condition 4 towardsregulating the contrast of image to be a first-level processing step.
Step 2:Segregate the regulated image into an equal-sized numbers and non-overlapping regions named as tiles, having the size of M × N each
Step 3:Resolve the local histogram of the region Step 4: The snip limit ß can be determined19.
Step 5:The histogram’s snip surpass its allied clip limit: This step change the histogram according to the acquired boundaryof the clip by restraining the maximum counts, for every pixel to ß. This can be achieved by maintaining the histograms, which are less or equivalent to ß, while clipping the ones exceedingß.
Step 6:Reorganize the snipped histogram’s esteem to all the histogram bins
Step 7:Compute the new pixel values with the help of mapping functions according to the new histogram redistribution
Step 8: Finally, the recently acquired values of pixel are reserved in a new array that the dimension which is identical to the original image in structuring the new image that is enhanced and is illustrated in Fig.3.
for CT image.
Fig.3; Enhanced Image of CT Scan DWT
Utilizing DWT break down the info picture into four sub band pictures, which can be characterized as Low-Low(LL), Low-High (LH), HighLow (HL), and High-High (HH). Sub groups with its rate of recurrence segments spread the full frequency range of the first (original) picture. Hypothetically, so as to create distinctive sub band frequency pictures, a filter bank has to be used here. For evaluating edges in higher filter bank sub bands, it helps to prepare the model, distinguished in the sub bands with lower frequency as well as just the coefficients with critical qualities are considered as the development of the wavelet coefficient. To confine the upgrade of noise and stay away from fabrication of the detailed data, the high frequency segments are reserved unaltered and just the low- frequency segment is improved by NGCCLAHE in the proposed NGCCLAHE-DWT.
Fig.4: Overall flow NGCCLAHE-DWT Based Image Enhancement Method Lung Nodule Segmentation
Lung Nodule
Stroke the diameter
Initial Pre segmentation
Corrected Final segmentation
Here an end-to-end deep learning approach, iW-Net (interactive W-Net) is proposed, that takes into account both programmed and discretionary intelligent lung nodule division, since recommended in Fig.520 and the outcome is given in Fig.6. Cube of fixed dimensions is given as input to the network, which centroid is shown by the client, or by a framework with programmed detection of nodule, and proposes a comparing division. The division can be remedied through the end-points of a physically embedded fondles of the nodule’s width, if in case the user is not fulfilled. So, we utilize a second segmentation network, which incorporates the nodule’s lung picture, the underlying division and end- points directions. To be specific, our work confirms that the end-points can be spoken using a physics- inspired weight map M , when utilized in the form of a map of the feature and as misfortune work term, permits agreement of the inter-observer in the public LIDC-IDRI dataset. This methodology permits a basic as well as quick division remedy when that data is accessible exclusive of presenting a critical over- head in contrast with the model ‘sun guided rendition.
Fig.5: Automated and Interactive Lung Nodule Segmentations Employing iW-Net [20]
Fig.6: The Output of Image Segmentation of Lung Nodule of CT Scan
Fig.7: The Output of Image Segmentation of Lung Nodule of X-Ray Scan
Feature Extraction using FCWT and GLCM
Right now, new approach for programmed feature extraction from biomedical pictures and resulting arrangement is introduced. The methodology develops the spatial direction of high- frequency textural features of the handled picture as controlled by a two-step procedure. Initially, the Fuzzy Continuous Wavelet Transform is applied to acquire the HH high- frequency sub band picture. Second, GLCM is applied to sub-band pictures to remove the texture features.
Enhanced image image Segmented lung image
Extract FCWT high frequency
Feature Extraction
Feature Vector for further classification
The GLCM algorithm is enforced on sub-pictures of 3 × 3 divisions. The seven features removed from the GLCM include Contrast, Inverse Difference Moment, Entropy, Energy, Sum normal and two estimations of Homogeneity utilizing mat lab as well as utilizing the condition21. The all out number of features "values" per picture in GLCM technique is registered utilizing the accompanying condition:
Number of features (GLCM) = number of directions (directions = 3) × 0.5 × d × number of extracted features (GLCM) × numberof subimages.
Consequently produce either Feature Vector (FV) is hence taken care of the proposed classifier to group typical versus neurotic pictures. The feature extraction organize is obviously appeared in Fig.8.
Fig.8.The Structure of feature extraction method
Feature Selection using Knockoff Filter-based Approach
Right now, knockoff filter-based technique is given to deliver the set of optimum feature as well as to limit the unimportance of the output features for CT image’s lung cancer classification.
The new strategy of feature selection cannot exclusively create the subset of optimal feature, yet in addition oblige the false discovery rate of the unessential features under a configuration of predetermined bound. Ten-fold leave-one-out cross-validation as well as the zone under the beneficiary working trademark bend are both embraced in the examinations to assess the exhibition of the newly introduced strategy. The zones below bend of 0.86 ± 0.02 is accomplished when the help vector machine classifier is prepared on the features controlled by the discussed feature selection mechanism22.
Proposed Enhanced Inception-Residual Convolutional Neural Network for Lung Nodule Detection (EIRCNN)
Right now, new Deep Convolutional Neural Networks (DCNN) model known as the Inception Recurrent Residual Convolutional Neural Network (IRCNN), which uses the intensity of the Recurrent Convolutional Neural Network (RCNN), the Inception arranges, and the Residual system. This methodology enhances the exactness acknowledgment of the Inception-remaining system with identical number of system parameters. Likewise, this novel design sums up the Inception network, the RCNN, and the Residual network achieving considerably improved training precision.
Right now, inception-residual units used depend on Inception-v422,23. It is organize by Szeged al et. in 2015 is a deep learning model that connects the outputs of the convolution tasks with various measured convolution kernels in the commencement segment. Initiation v4 is an improved form of Inception-v3 enclosing huge origin component utilizing channels with lower rank.
Moreover, Incpetion-v4 involves a remaining idea for the inception network named as the Inception-v4 Residual Network, which, in general helps improve the precision of acknowledgment assignments. In the
Enhanced image
Segmented lung
Extract FCWT high frequency
GLCM Feature Extraction GLCM
Feature Vector for further classification
Inception-Residual system, the yields of the initiation blocks are joined towards the contributions of the particular blocks.
From the figure, it very well may be plainly observed, that the general model comprises of a few convolution layers, EIRCNN squares, transition blocks, and a Softmax at the output unit.
The majority of the critical piece of this work involves the EIRCNN layer, which incorporates RCLs, inception layers, and residual layers. The sources of given into the information layer, at that point went through inception units where RCLs were enforced, lastly the output of the inception units were joined towards the contributions of the IRCNN-square.
The recurrent convolution activities carry out the kernels of different dimensions in the inception layer.
Because of the recurrent structure inside the convolution unit, the outputs right now step are included with the yields of past time step.
The outputs at current time step are utilized like the contributions for next time step. Similar tasks were done concerning the time steps that are thought of.
In the IRCNN-segment, the dimensions of input and output don't vary; this is just an aggregation of features maps regarding the time steps. Accordingly, the more beneficial features guarantee that superior acknowledgment precision is accomplished with a similar system parameter’s count.
The tasks of the RCL are done regarding the discrete time steps that are communicated by the RCNN19. How about we consider the 𝑥𝑙 input test in the 𝑙𝑡ℎ layer of the EIRCNN-square as well as the pixel situated at (𝑖,) in an input lung pictures on the kth feature map (fm) in the RCL. Moreover, how about we expect the output of the network𝑂𝑢𝑡𝑖𝑗𝑘𝑙 (𝑡)is at the time step t. The output can be communicated as below:
𝑂𝑢𝑡𝑖𝑗𝑘𝑙 (𝑡) = (𝑤𝑘𝑓𝑚)𝑇∗ 𝑥𝑙𝑓𝑚(𝑖,𝑗)(𝑡) + (𝑤𝑘𝑟)𝑇∗ 𝑥𝑙𝑟(𝑖,𝑗)(𝑡 − 1) + 𝑏𝑘
Here 𝑥𝑙𝑓𝑚(𝑖,𝑗)(𝑡)and 𝑥𝑙𝑟(𝑖,𝑗)(𝑡 − 1)refer to the inputs for the standard convolution layers and for the 𝑙𝑡ℎ RCL separately. The 𝑤𝑘𝑓𝑚and 𝑤𝑘𝑟values stand for the loads for the standard convolutional layer and the RCL of the 𝑘th feature map respectively, and 𝑏𝑘indicates the bias.
𝑦 = 𝑎𝑓 (𝑂𝑢𝑡𝑖𝑗𝑘𝑙 (𝑡)) = 𝑚𝑎𝑥(0, 𝑂𝑢𝑡𝑖𝑗𝑘𝑙 (𝑡))
Here 𝑎𝑓stands for the standard Rectified Linear Unit (ReLU) initiation work. Likewise investigated the exhibition of this model with the Exponential Linear Unit (ELU) initiation work in the accompanying examinations.
The outputs𝑦 of the origin units for the distinctive kernels dimension and normal pooling layer are characterized as 𝑦1×1 (𝑥), 𝑦3×3 (𝑥), and 𝑦1×1𝑝 (𝑥) respectively. The last yield of Inception Recurrent Convolutional Neural Networks (IRCNN) unit are characterized as 𝔉(𝑥𝑙 , 𝑤𝑙)which can be communicated as
𝔉(𝑥𝑙 , 𝑤𝑙) = 𝑦1×1 (𝑥)⨀𝑦3×3 (𝑥)⨀𝑦1×1𝑝 (𝑥)
Here ⨀ speaks to the link activity as for the channel or feature map pivot. Then the yield of the IRCNN- unit are then included by means of the contributions of the EIRCNN-square. The leftover activity of the EIRCNN-square can be communicated by the accompanying condition.
𝑥𝑙+1= 𝑥𝑙+ 𝔉(𝑥𝑙 , 𝑤𝑙)
Where x_( l+1) points to the contributions for the instantaneous next transition block, 𝑥𝑙speaks to the information picture tests of the EIRCNN-square, 𝑤𝑙speaks to the part loads of the 𝑙 th EIRCNN-block, and 𝔉(𝑥𝑙 , 𝑤𝑙)speaks to the output from of 𝑙 th layer of the IRCNN-unit.
Be that as it may, the quantity of features maps and the dimensions of the feature maps for the residual layers are equivalent to in the EIRCNN-square. Batch normalization is enforced to the yields of the IRCNN-square.
In the long run, the yields of this EIRCNN-square are given to the contributions of the instantaneous next transition unit.
In the transition unit, various tasks are performed along with the convolution, pooling, and dropout, contingent taking place in the position of the transition block in the system.
As the dimensions of the input and output features doesn't transform in the IRCNN squares, it is only a linear projection on a similar measurement and non-linearity is connected to the RELU and ELU initiation capacities.
We utilized 0.5 failures after every convolution layer in the transition unit. At last, we utilized a Softmax, or normalized exponential function layer towards the finish of the design. For input lung sample sample 𝑥, weight vector 𝑊, and 𝐾 distinct linear functions, the Softmax operation can be determined for the𝑖𝑡ℎ class as below:
𝑃(𝑦 = 𝑖|𝑥) = 𝑒𝑥𝑇𝑤𝑖
∑𝐾𝑘=1𝑒𝑥𝑇𝑤𝑘
This proposed EIRCNN form were examined from end to end with lot of trials on various standard datasets as well as analyzed across various models.
EXPERIMENTAL RESULTS AND DISCUSSION
Right now, execution of new EIRCNN is assessed as well as the presentation results are contrasted and existing EWRCNN, Faster RCNN and RCNN image compression approaches.
The ongoing Lung Image Database Consortium picture assortment (LIDC-IDRI) comprises of problem- solving and protecting the lung cancer thoracic computed tomography (CT) scans with marked-up annotated lesions.
Seven scholarly focuses as well as eight clinical imaging organizations teamed up towards this informational index which comprises of 1018 cases.
Each subject incorporates pictures from a clinical thoracic CT scan as well as an allied XML file, which records the after effects of a two-stage picture explanation method conducted by four skilled thoracic radiologists.
The given underneath figures shows that the proposed framework has achieved better execution as far as far as exactness, precision, f-measure, recall and accuracywhere the numerical outcomes are given in Table.1.
Table.1:Numerical Results
Comparison of Precision Result
Fig.9: Precision Performance Comparison in Different Compression Approaches
Fig.9 exhibits that the relationship traits show between the new EIRCNN, and current EWRCNN, Faster RCNN and RCNN. The figure shows that the discussed technique EIRCNN can get elevated precision rate when contrasted with existing strategies, which is a viable method for getting the lung nodule precisely with the high precision rate of 62.8421. When looking at the accuracy among the current techniques, for example, EWRCNN, Faster RCNN and RCNN are giving acceptable exactness precision rate of 59.2646, 56.6256 and 53.6971 separately, anyway these worth are a lot of lower than EIRCNN strategy.
F-Measure Result Comparison
Fig.10: F-Measure Performance Comparison in Different Compression Approaches
Fig.10 exhibits that the F-measure examination shows between the new EIRCNN, and existing EWRCNN, Faster RCNN and RCNN. The proposed technique EIRCNN has elevated estimation of F- measure 75.4431. From the outcomes, it is understand that the new EIRCNN get elevated F-measure showing the detection of good lung nodule. Since, the newscheme depends on extraction of fantastic feature and the entropy weighted based idea be improving the learning productivity. Whilst looking at the F-measure rate amid the current techniques, for example, EWRCNN, Faster RCNN and RCNN gives
fewer rates of 72.0201, 68.9734 and 64.4507 respectively, which show the proposed work provides preferable identification results over the current strategies.
Comparison of Recall Result
Fig.11: Recall Performance Comparison in Different Compression Approaches
Fig.11 exhibits that the review correlation shows between the new EIRCNN, and the available EWRCNN, Faster RCNN and RCNN. The proposed EIRCNN technique has high estimation of review pace of 94.3651.
From the outcomes, it is surely understand that the novel EWRCNN acquire a much better review rate esteem demonstrating the great detection rate. Since, the new approach has the viable picture upgrade phase and feature extraction, which diminish the noise. When looking at the review rate amid the current techniques, for example, EWRCNN, Faster RCNN and RCNN, giving review pace of 91.7720, 88.2080 and 80.5898 individually, which exhibits the proposed work, can give preferred recognition marks over the current strategies.
Comparison of Accuracy Result
Fig.12: Accuracy Performance Comparison in Different Compression Methods
Fig.12 exhibits that the accuracy correlation marks amid the new EIRCNN, and existing EWRCNN, Faster RCNN and RCNN. From the figure, the proposed technique be able to acquire high precision when contrasted with existing strategies. It is a successful method for getting the lung nodule precisely with a higher accuracy pace of 94.5084. On looking at the accuracy among the current techniques, for example, EWRCNN, Faster RCNN and RCNN giving fewer rate of 91.9346, 88.6204 and 81.0307 separately.
Through the outcomes, it tends to be observed that the novel work is far better than the current strategies.
CONCLUSION AND FUTURE WORK
This investigation presents a novel picture improvement technique, named normalized gamma-corrected contrast-limited adaptive histogram equalization (NGCCLAHE)-Discrete Wavelet Transform (DWT), which combines the NGCCLAHE with DWT. The novel strategy incorporates three principle steps:
Initially, the first picture is decayed into low-frequency and high-frequency components by DWT. At that point, the creators upgrade the coefficients of low-frequency utilizing CLAHE and maintain the coefficients of high- frequency unaltered to restrain noise improvement. At that point iW-Net, a deep learning model, which takes into account both programmed as well as intelligent division of lung nodules in registered tomography pictures. Next, the extraction of feature is led utilizing the Fuzzy Continuous Wavelet Transform (FCWT) and Gray Level Feature Extraction (GLCM). And then, feature selection utilizing knockoff filter-based approach helps in the set of optimal feature and to limit the unimportance of the features of output for the characterization of lung nodule in CT images. The grouping is finished utilizing the Enhanced Inception-Residual Convolutional Neural Network (EIRCNN). Trial results exhibit that the planned EIRCNN network and the FP reduction Sdesign are powerful in lung nodule recognition and FP reduction for CT and X-ray pictures. There is a proposal that, notwithstanding structure more grounded models and algorithms; a cozy connection among specialists and clinicians is required for better understanding and translation. Furthermore, to enforce a powerful division methods of lung volumes for expelling out-of-lung zones from extricated patches. Including such strategies in data pre-processing step can additionally support classification accuracy of the proposed deep learning.
