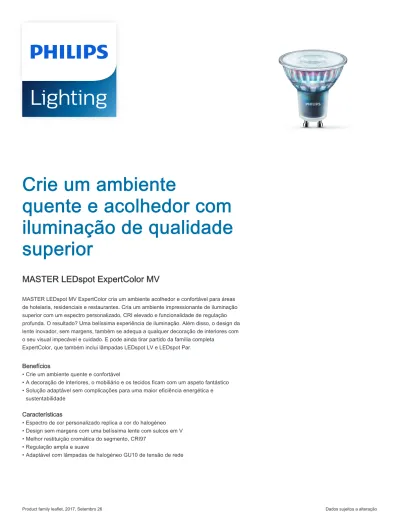

Crie um ambiente quente e acolhedor com iluminação de qualidade superior

(1)

Crie um ambiente

quente e acolhedor com

iluminação de qualidade

superior

MASTER LEDspot ExpertColor MV

MASTER LEDspot MV ExpertColor cria um ambiente acolhedor e confortável para áreas

de hotelaria, residenciais e restaurantes. Cria um ambiente impressionante de iluminação

superior com um espectro personalizado, CRI elevado e funcionalidade de regulação

profunda. O resultado? Uma belíssima experiência de iluminação. Além disso, o design da

lente inovador, sem margens, também se adequa a qualquer decoração de interiores com

o seu visual impecável e cuidado. E pode ainda tirar partido da família completa

ExpertColor, que também inclui lâmpadas LEDspot LV e LEDspot Par.

Benefícios

(2)

Aplicação

• Hotelaria: quarto de hóspede de hotel, corredores, átrio, área de receção, restaurantes,

bares, cafés

• Habitação: salas de estar, quartos, hall de entrada

• Retalho: exposições, expositores, lojas, provadores

Versions

Desenho dimensional

D

C

Product D C

MASTER LED ExpertColor 3.9-35W GU10 930 36D 50 mm 54 mm MASTER LED ExpertColor 3.9-35W GU10 940 36D 50 mm 54 mm MASTER LED ExpertColor 3.9-35W GU10 940 25D 50 mm 54 mm MASTER LED ExpertColor 3.9-35W GU10 930 25D 50 mm 54 mm MASTER LED ExpertColor 3.9-35W GU10 927 25D 50 mm 54 mm MASTER LED ExpertColor 5.5-50W GU10 940 36D 50 mm 54 mm MASTER LED ExpertColor 5.5-50W GU10 930 36D 50 mm 54 mm MASTER LED ExpertColor 5.5-50W GU10 940 25D 50 mm 54 mm MASTER LED ExpertColor 5.5-50W GU10 927 36D 50 mm 54 mm MASTER LED ExpertColor 5.5-50W GU10 930 25D 50 mm 54 mm MASTER LED ExpertColor 5.5-50W GU10 927 25D 50 mm 54 mm MASTER LED ExpertColor 3.9-35W GU10 927 36D 50 mm 54 mm

(3)

Aprovação e aplicação

Etiqueta de Eficiência Energética (EEL) A+

Dados elétricos e de funcionamento

Frequência de entrada 50 a 60 Hz

Tensão (Nom.) 220-240 V

Tempo de arranque (Nom.) 0.5 s

Informações gerais

Casquilho GU10

Vida útil nominal (Nom.) 40000 h Vida útil nominal (horas) 40000 h

Ciclo de comutação 50000X

Dados técnicos de luminosidade

Índice de restituição cromática (Nom.) 97 Llmf no final da vida útil nominal (Nom.) 70 %

Dados mecânicos e de revestimento

Forma da lâmpada PAR16

Temperatura

Máxima na caixa em T (Nom) 80 °C

Aprovação e aplicação

Order Code Full Product Name Consumo de energia kWh/1000 h

70749400 MASTER LED ExpertColor 3.9-35W GU10 927 25D 4 kWh 70751700 MASTER LED ExpertColor 3.9-35W GU10 930 25D 4 kWh 70753100 MASTER LED ExpertColor 3.9-35W GU10 940 25D 4 kWh 70755500 MASTER LED ExpertColor 3.9-35W GU10 927 36D 4 kWh 70757900 MASTER LED ExpertColor 3.9-35W GU10 930 36D 4 kWh 70759300 MASTER LED ExpertColor 3.9-35W GU10 940 36D 4 kWh 70761600 MASTER LED ExpertColor 5.5-50W GU10 927 25D 6 kWh 70763000 MASTER LED ExpertColor 5.5-50W GU10 930 25D 6 kWh 70765400 MASTER LED ExpertColor 5.5-50W GU10 940 25D 6 kWh 70767800 MASTER LED ExpertColor 5.5-50W GU10 927 36D 6 kWh 70769200 MASTER LED ExpertColor 5.5-50W GU10 930 36D 6 kWh 70771500 MASTER LED ExpertColor 5.5-50W GU10 940 36D 6 kWh

Controles e regulação

Order Code Full Product Name Regulável

70749400 MASTER LED ExpertColor 3.9-35W GU10 927 25D true 70751700 MASTER LED ExpertColor 3.9-35W GU10 930 25D Sim 70753100 MASTER LED ExpertColor 3.9-35W GU10 940 25D true 70755500 MASTER LED ExpertColor 3.9-35W GU10 927 36D true 70757900 MASTER LED ExpertColor 3.9-35W GU10 930 36D Sim 70759300 MASTER LED ExpertColor 3.9-35W GU10 940 36D true

Order Code Full Product Name Regulável

70761600 MASTER LED ExpertColor 5.5-50W GU10 927 25D true 70763000 MASTER LED ExpertColor 5.5-50W GU10 930 25D true 70765400 MASTER LED ExpertColor 5.5-50W GU10 940 25D Sim 70767800 MASTER LED ExpertColor 5.5-50W GU10 927 36D true 70769200 MASTER LED ExpertColor 5.5-50W GU10 930 36D Sim 70771500 MASTER LED ExpertColor 5.5-50W GU10 940 36D true

Dados elétricos e de funcionamento

Order Code Full Product Name

Potência equivalente

Potência (Nominal) (Nom.) 70749400 MASTER LED ExpertColor 3.9-35W

GU10 927 25D

35 W 3.9 W

Potência equivalente

Potência (Nominal) (Nom.) 70761600 MASTER LED ExpertColor 5.5-50W

GU10 927 25D

(4)

Order Code Full Product Name Ângulo do feixe (Nom.) Código da cor Temperatura de cor correlacionada (Nom.) Fluxo luminoso (Nom.) 70749400 MASTER LED ExpertColor 3.9-35W GU10 927 25D 25 ° 927 2700 K 265 lm 70751700 MASTER LED ExpertColor 3.9-35W GU10 930 25D 25 ° 930 3000 K 280 lm 70753100 MASTER LED ExpertColor 3.9-35W GU10 940 25D 25 ° 940 4000 K 300 lm 70755500 MASTER LED ExpertColor 3.9-35W GU10 927 36D 36 ° 927 2700 K 265 lm 70757900 MASTER LED ExpertColor 3.9-35W GU10 930 36D 36 ° 930 3000 K 280 lm 70759300 MASTER LED ExpertColor 3.9-35W GU10 940 36D 36 ° 940 4000 K 300 lm

Ângulo do feixe (Nom.) Código da cor Temperatura de cor correlacionada (Nom.) Fluxo luminoso (Nom.) 70761600 MASTER LED ExpertColor 5.5-50W GU10 927 25D 25 ° 927 2700 K 355 lm 70763000 MASTER LED ExpertColor 5.5-50W GU10 930 25D 25 ° 930 3000 K 375 lm 70765400 MASTER LED ExpertColor 5.5-50W GU10 940 25D 25 ° 940 4000 K 400 lm 70767800 MASTER LED ExpertColor 5.5-50W GU10 927 36D 36 ° 927 2700 K 355 lm 70769200 MASTER LED ExpertColor 5.5-50W GU10 930 36D 36 ° 930 3000 K 375 lm 70771500 MASTER LED ExpertColor 5.5-50W GU10 940 36D 36 ° 940 4000 K 400 lm

Dados técnicos de luminosidade (2/2)

Fluxo luminoso (nominal) (Nom.) Intensidade luminosa (Nom.) Ângulo do feixe nominal 70749400 MASTER LED ExpertColor

3.9-35W GU10 927 25D

265 lm 700 cd 25 °

70751700 MASTER LED ExpertColor 3.9-35W GU10 930 25D

280 lm 750 cd 25 °

300 lm 800 cd 25 °

265 lm 540 cd 36 °

280 lm 560 cd 36 °

300 lm 600 cd 36 °

Fluxo luminoso (nominal) (Nom.) Intensidade luminosa (Nom.) Ângulo do feixe nominal 70761600 MASTER LED ExpertColor

5.5-50W GU10 927 25D

355 lm 1000 cd 25 °

375 lm 1000 cd 25 °

400 lm 1050 cd 25 °

355 lm 800 cd 36 °

375 lm 800 cd 36 °

(5)

Light Distribution Diagrams

(cd) 0o o ₁₈₀o 30o o 30 60o o 60 90o o 90 120o 120 200 400 600 800 1000

MASTER LEDspot ExpertColor MV 35W GU10 927 25D (cd) 0o o ₁₈₀o 30o o 30 60o o 60 90o o 90 120o 120 250 500 750 1000 1250 1500

MASTER LEDspot ExpertColor MV 35W GU10 940 25D (cd) 0o o ₁₈₀o 30o o 30 60o o 60 90o o 90 120o 120 150 300 450 600 750

MASTER LEDspot ExpertColor MV 50W GU10 940 25D

(6)

Light Distribution Diagrams

(cd) 0o o ₁₈₀o 30o o 30 60o o 60 90o o 90 120o 120 200 400 600 800 1000

MASTER LEDspot ExpertColor MV 50W GU10 927 36D (cd) 0o 30o o 30 60o o 60 90o o 90 200 400 600 800 1000

MASTER LEDspot ExpertColor MV 50W GU10 940 36D

Accent Diagrams

Accent factor 2 5 10 15 30 50 100 250 500 1000 Eh(lx) 25 50 100 4m 3m 2m 1m Accent factor 2 5 10 15 30 50 100 250 500 1000 Eh(lx) 25 50 100 4m3m 2m 1m Accent factor 2 5 10 15 30 50 100 250 500 1000 Eh(lx) 25 50 100 4m3m 2m 1m Accent factor 2 5 10 15 30 50 100 250 500 1000 Eh(lx) 25 50 100 4m3m 2m 1m Accent factor 2 5 10 15 30 50 100 250 500 1000 Eh(lx) 25 50 100 4m3m 2m 1m Accent factor 2 5 10 15 30 50 100 250 500 1000 Eh(lx) 25 50 100 4m3m 2m 1m Accent factor 2 5 10 15 30 50 100 250 500 1000 Eh(lx) 25 50 100 4m3m 2m 1m Accent factor 2 5 10 15 30 50 100 250 500 1000 Eh(lx) 25 50 100 4m3m 2m 1m Accent factor 2 5 10 15 30 50 100 250 500 1000 Eh(lx) 25 50 100 4m3m 2m 1m

(7)

Accent Diagrams

Accent factor 2 5 10 15 30 50 100 250 500 1000 Eh(lx) 25 50 100 4m3m 2m 1m Accent factor 2 5 10 15 30 50 100 250 500 1000 Eh(lx) 25 50 100 4m 3m 2m 1m Accent factor 2 5 10 15 30 50 100 250 500 1000 Eh(lx) 25 50 100 4m 3m 2m 1m

Beam Diagrams

h h(m) (m) (lx) VBA1/2Imax 1/2E0 E0 d(m) 1.0 2.0 3.0 4.0 5.0 3.0 2.0 1.0 0.0 1.0 2.0 3.0 (m) 1.0 978 0.43 0.43 1.5 435 0.640.64 2.0 245 0.85 0.85 2.5 157 1.06 1.06 3.0 109 1.28 1.28 3.5 80 1.49 1.49 4.0 61 1.70 1.70 4.5 48 1.91 1.91 o 2 x 12 /2Imax 1 h h(m) (m) (lx) VBA1_/ 2Imax 1/2E0 E0 d(m) 1.0 2.0 3.0 4.0 5.0 3.0 2.0 1.0 0.0 1.0 2.0 3.0 (m) 1.01029 0.43 0.43 1.5 457 0.64 0.64 2.0 257 0.85 0.85 2.5 165 1.06 1.06 3.0 114 1.28 1.28 3.5 84 1.49 1.49 4.0 64 1.70 1.70 4.5 51 1.91 1.91 o 2 x 12 /2Imax 1 _h h(m) (m) (lx) VBA1/2Imax 1/2E0 E0 d(m) 1.0 2.0 3.0 4.0 5.0 3.0 2.0 1.0 0.0 1.0 2.0 3.0 (m) 1.0 1096 0.43 0.43 1.5 487 0.640.64 2.0 274 0.850.85 2.5 175 1.06 1.06 3.0 122 1.28 1.28 3.5 89 1.49 1.49 4.0 69 1.70 1.70 4.5 54 1.91 1.91 o 2 x 12 /2Imax 1 h h(m) (m) (lx) VBA1_/ 2Imax 1/2E0 E0 d(m) 1.0 2.0 3.0 4.0 5.0 3.0 2.0 1.0 0.0 1.0 2.0 3.0 (m) 1.0 641 0.61 0.57 1.5 285 0.92 0.86 2.0 160 1.22 1.15 2.5 103 1.53 1.43 3.0 71 1.83 1.72 3.5 52 2.14 2.01 4.0 40 2.45 2.29 4.5 32 2.75 2.58 o 2 x 17 /2Imax 1 _h h(m) (m) (lx) VBA1/2Imax 1/2E0 E0 d(m) 1.0 2.0 3.0 4.0 5.0 3.0 2.0 1.0 0.0 1.0 2.0 3.0 (m) 1.0 675 0.61 0.57 1.5 300 0.92 0.86 2.0 169 1.22 1.15 2.5 108 1.53 1.43 3.0 75 1.83 1.72 3.5 55 2.14 2.01 4.0 42 2.45 2.29 4.5 33 2.75 2.58 o 2 x 17 /2Imax 1 _h h(m) (m) (lx) VBA1/2Imax 1/2E0 E0 d(m) 1.0 2.0 3.0 4.0 5.0 3.0 2.0 1.0 0.0 1.0 2.0 3.0 (m) 1.0 719 0.61 0.57 1.5 319 0.92 0.86 2.0 180 1.22 1.15 2.5 115 1.53 1.43 3.0 80 1.83 1.72 3.5 59 2.14 2.01 4.0 45 2.45 2.29 4.5 35 2.75 2.58 o 2 x 17 /2Imax 1 h h(m) 1 1 E0 d(m) o 2 x 13 /2Imax 1 _h h(m) 1 1 E0 d(m) o 2 x 13 /2Imax 1 _h h(m) 1 E0 d(m) o 2 x 13 /2Imax 1
