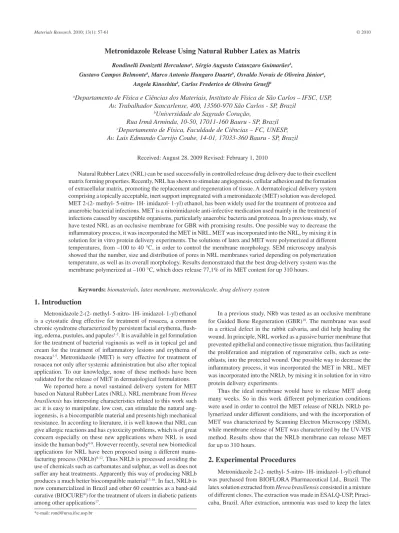

Metronidazole Release Using Natural Rubber Latex as Matrix
Rondinelli Donizetti Herculanoa, Sérgio Augusto Catanzaro Guimarãesb,
Gustavo Campos Belmonteb, Marco Antonio Hungaro Duarteb, Osvaldo Novais de Oliveira Júniora,
Angela Kinoshitab, Carlos Frederico de Oliveira Graeffc
a
Departamento de Física e Ciências dos Materiais, Instituto de Física de São Carlos – IFSC, USP,
Av. Trabalhador Sancarlense, 400, 13560-970 São Carlos - SP, Brazil
b
Universidade do Sagrado Coração,
Rua Irmã Arminda, 10-50, 17011-160 Bauru - SP, Brazil
c
Departamento de Física, Faculdade de Ciências – FC, UNESP,
Av. Luis Edmundo Carrijo Coube, 14-01, 17033-360 Bauru - SP, Brazil
Received: August 28, 2009 Revised: February 1, 2010
Natural Rubber Latex (NRL) can be used successfully in controlled release drug delivery due to their excellent matrix forming properties. Recently, NRL has shown to stimulate angiogenesis, cellular adhesion and the formation of extracellular matrix, promoting the replacement and regeneration of tissue. A dermatological delivery system comprising a topically acceptable, inert support impregnated with a metronidazole (MET) solution was developed. MET 2-(2- methyl- 5-nitro- 1H- imidazol- 1-yl) ethanol, has been widely used for the treatment of protozoa and anaerobic bacterial infections. MET is a nitroimidazole anti-infective medication used mainly in the treatment of infections caused by susceptible organisms, particularly anaerobic bacteria and protozoa. In a previous study, we have tested NRL as an occlusive membrane for GBR with promising results. One possible way to decrease the inflammatory process, it was incorporated the MET in NRL. MET was incorporated into the NRL, by mixing it in solution for in vitro protein delivery experiments. The solutions of latex and MET were polymerized at different temperatures, from –100 to 40 °C, in order to control the membrane morphology. SEM microscopy analysis showed that the number, size and distribution of pores in NRL membranes varied depending on polymerization temperature, as well as its overall morphology. Results demonstrated that the best drug-delivery system was the membrane polymerized at –100 °C, which does release 77,1% of its MET content for up 310 hours.
Keywords: biomaterials, latex membrane, metronidazole, drug delivery system
1. Introduction
Metronidazole 2-(2- methyl- 5-nitro- 1H- imidazol- 1-yl) ethanol is a cytostatic drug effective for treatment of rosacea, a common chronic syndrome characterized by persistent facial erythema, flush-ing, edema, pustules, and papules1-2. It is available in gel formulation for the treatment of bacterial vaginosis as well as in topical gel and cream for the treatment of inflammatory lesions and erythema of rosacea3-5. Metronidazole (MET) is very effective for treatment of rosacea not only after systemic administration but also after topical application. To our knowledge, none of these methods have been validated for the release of MET in dermatological formulations.
We reported here a novel sustained delivery system for MET based on Natural Rubber Latex (NRL). NRL membrane from Hevea brasiliensis has interesting characteristics related to this work such as: it is easy to manipulate, low cost, can stimulate the natural ang-iogenesis, is a biocompatible material and presents high mechanical resistance. In according to literature, it is well known that NRL can give allergic reactions and has cytoxicity problems, which is of great concern especially on these new applications where NRL is used inside the human body6-8. However recently, several new biomedical applications for NRL have been proposed using a different manu-facturing process (NRLb)9-12. Thus NRLb is processed avoiding the use of chemicals such as carbamates and sulphur, as well as does not suffer any heat treatments. Apparently this way of producing NRLb produces a much better biocompatible material13-16. In fact, NRLb is now commercialized in Brazil and other 60 countries as a band-aid curative (BIOCURE®) for the treatment of ulcers in diabetic patients among other applications17.
In a previous study, NRb was tested as an occlusive membrane for Guided Bone Regeneration (GBR)18. The membrane was used in a critical defect in the rabbit calvaria, and did help healing the wound. In principle, NRL worked as a passive barrier membrane that prevented epithelial and connective tissue migration, thus facilitating the proliferation and migration of regenerative cells, such as oste-oblasts, into the protected wound. One possible way to decrease the inflammatory process, it was incorporated the MET in NRL. MET was incorporated into the NRLb, by mixing it in solution for in vitro protein delivery experiments.
Thus the ideal membrane would have to release MET along many weeks. So in this work different polymerization conditions were used in order to control the MET release of NRLb. NRLb po-lymerized under different conditions, and with the incorporation of MET was characterized by Scanning Electron Microscopy (SEM), while membrane release of MET was characterized by the UV-VIS method. Results show that the NRLb membrane can release MET for up to 310 hours.
2. Experimental Procedures
liquid, and this material was centrifuged at 8000 g. The centrifugation was employed to reduce the protein content of NRLb 15.
In this work, membranes with 2 mL of natural rubber + 1 mL of metronidazole solution (10 mg.mL–1) were produced. These mem-branes were prepared by pouring the latex+MET (NRLbMET) solu-tion in a stainless steel plate with 5.00 ± 0.05 cm diameter, and left at different temperatures for polymerization: –100, –10, 27 °C (Room Temperture) and 40 °C during 2 hours. The temperatures chosen are known to change the porosity of the membranes19-21. After this, the solution was left in air for 2 day to complete the polymerization proc-ess resulting in an elastic membrane. Finally, the NRLb membrane is sterilized using ethylene oxide.
For the drug release study NRLbMET membranes were placed in 200 mL of aqueous solution, where the release behavior was observed. Aliquots of this solution were collected during an interval ranging from 10 to 24,000 minutes. The MET release as a function of time was determined using the UV-VIS method. The morphol-ogy of membrane surface was observed using a Scanning Electron Microscocopy (SEM) model Zeiss® EVO 50 (15 KV) and X-ray diffraction and Energy Dispersive X-ray spectroscopy (EDS-SEM) with take off angle of 35°.
3. Results
According to Herculano et al.21, Thermally Induced Phase Separation (TIPS) is a method to make microporous membrane22-24. This procedure is perhaps the most versatile and simplest membrane preparation technique. In this work, NRLb membranes were prepared in four different polymerization temperatures: –100, –10, 27 °C (RT) and 40 °C. Figure 1 shows typical SEM images of membranes polymerized at different temperatures. As can be seen, the pore sizes and density vary with polymerization temperature. NRLb polymerized at –100 °C (Figure 1a), –10 °C (Figure 1b) and RT (Figure 1c) have pores, while those membranes polymerized at RT 40 °C almost do not have. The density of pores is higher as the polymerization tem-perature diminishes. Pore sizes with diameters ranging from 0.49 to 5.12 µm were observed on the NRLb+MET membrane polymerized at –100 °C (Figure 1a), while the membrane polymerized at –10 °C displayed pore sizes of dimensions from 1.17 to 3.16 μm (Figure 1b) and membrane polymerized at RT displayed pores size of similar dimensions (1.03 ± 0.28) µm (Figure 1c).
In Figure 2 shows the absorbance intensity as a function of MET concentration in solution. This calibration curve is important
Figure 1. SEM images (magnification: × 10,000) of NRLb membranes with MET: a) Polymerized at –100 °C, (b) Polymerized at –10 °C, c) Polymerized at RT and d) Polymerized at 40 °C. Notice the difference in the pores density.
in a colloidal state, in order to create a membrane that works as a delivery system.
Several procedures are used to control the release of substances by polymers. For example Woo et al.26 used a combination of 3 dif-ferent biodegradable microspheres of poly(D,L,-lactide-co-glycolide (PLGA)), using different molecular weight and terminal endings of the polymeric chain (hydrophilic or hydrophobic) to determine the best delivery system of BMP. They conclude that the best bone because to make one relationship between absorbance and the MET
concentration. For this experiment several MET concentrations from 0.3 to 33 µg.mL–1 were made. After this, it was measurement your absorbance. Using a calibration curve, an unknown concentration can be derived from a sample by measuring it’s response and then finding the corresponding y-axis intercept. Note that the insert graph shows a typical spectrum of MET. The MET solution absorbs at 330 nm.
In Figure 3 MET release as a function of time is presented for membranes polymerized in similar conditions to the ones presented in Figure 1. The release from the membrane polymerized at –100 °C is higher than other membranes. The membrane polymerized at –1 °C not is presented because your pore density and consequently MET release rate is similar than membrane polymerized at –10 °C. The 4 membranes reach saturation at different concentrations. In other words, the total amount of MET released by the membrane depends on the latex polymerization temperature. The uncertainties of MET re-lease as a function of time (Figure 3) measurements were of 2-5%.
The experimental data in Figure 3 were fitted using a bi-exponen-tial function y(t) = y0 +A1e–t/τ
1 + A2e -t/τ
2, where y(t) was the amount of MET in the NRL at a given time, t, y0 is the initial content of MET, A1 and A2 are constants and the are τ1 and τ2 are characteristic times. The Table 1 show the constants A1 and A2, and the characteristic times τ1 and τ2 of the natural rubber membranes polymerized at different temperatures.
After integration of these curves until 310 hours, the total amount of MET released by the three membranes in 200 mL aqueous solution were: 15.41 mg (77.1% of the MET used in the starting material) for membrane polymerized at –100 °C and 11.86 mg (59.00%) for –10 °C, 10.63 mg (53.15%) for RT and 9.40 mg (47.02%) for 40 °C membranes respectively.
4. Discussion
In this work, it was used the method proposed by Langer & Folkman25, that is, to mix the protein (MET) with the polymer (latex)
Figure 3. MET release as a function of time for NRL membrane prepared at different temperatures: 100 °C, –10 °C, RT and 40 °C.
Table 1. A1 and A2 are constants and the τ1 and τ2 are characteristic times of the NRLb membranes prepared at different polymerization temperatures: –100, –10, 27 (RT) and 40 °C.
Natural rubber membranes A1 A2 τ1 τ2
Polymerized at –100 °C –2.199 –3.559 0.655 24.766
Polymerized at –10 °C –1.610 –0.816 29.941 3.581
Polymerized at RT –1.210 –0.699 2.788 58.066
Polymerized at 40 °C –0.359 –1.095 0.062 19.340
References
1. Martindale WH. The Extra Pharmacopoeia. 27 ed. London: The Pharmaceutical Press; 1977. p. 1570.
2. Cosar C, Julon L and Ganter P. Experimental study on metronidazole (8823 RP) – trichomonacid and amaebicid activites – toxicity and chomonacid and amaebicid activities – toxicity and general pharmacologic properties.
Presse Medicale. 1961; 69(24):1069-1072.
3. Cosar C and Julon L. Activity of (Hydroxy-2’ Ethyl)-1 Methyl-2 Nitro-5 Imidazole (8823 RP) in experimental trichomonas-vaginalis infections.
Annales del’Institut Pasteur. 1959; 96(2):238-241.
4. Erk N and Altun ML. Spectrophotometric resolution of metronidazole and miconazole nitrate in ovules using ratio spectra derivative spectrophotometry and RP-LC. Journal of Pharmaceutical and Biomedical Analysis. 2001; 25(1):115-122.
5. Dinesh ND, Nagaraja P and Rangappa KS. A sensitive spectrophotometric assay for tinidazole and metronidazole using a Pd-C and formic acid reduction system. Turkish Journal of Chemistry. 2004; 28(3):335-343.
6. Nutter AF. Contact urticaria to rubber. British Journal of Dermatology.
1979; 101(5):597-598.
7. de Silva HD, Gardner LM, Drew AC, Beezhold DH, Rolland JM and O’Hehir RE. The hevein domain of the major latex-glove allergen Hev b 6.01 contains dominant T cell reactive sites. Clinical & Experimental Allergy. 2004; 34(4):611-618.
8. Smith AM, Amin HS, Biagini RE, Hamilton RG, Arif SA, Yeang HY et al. Percutaneous reactivity to natural rubber latex proteins persists in health-care workers following avoidance of natural rubber latex. Clinical & Experimental Allergy. 2007; 37(9):1349-1356.
9. Neves-Junior WFP, Graeff CFO, Ferreira M, Mulato M, Bernardes MS and Coutinho-Netto J. Elastic properties of natural rubber tubes produced by dip-coating. Journal of Applied Polymer Science. 2006; 100(1):702-707.
10. Herculano RD, Brunello CA and Graeff CFO. Solid state Nitric Oxide sensor using a latex rubber matrix. Macromolecular Symposia. 2006; 245-246(1):529-532.
11. Neves-Junior WFP, Ferreira M, Alves MCO, Graeff CFO, Bernardes MS, Coutinho-Netto J et al. Influence of fabrication process on the final properties of natural-rubber latex tubes for vascular prosthesis. Brazilian Journal of Phyics. 2006; 36(2B):586-591.
12. Herculano RD, Brunello CA and Graeff CFO. Optimization of a novel Nitric Oxide Sensor using a latex rubber matrix. Journal of Applied Science. 2007; 7(23):3801-3805.
13. Balabanian CACA, Coutinho Netto J, Lamano-Carvalho TL, Lacerda AS and Brentegani LG. Biocompatibility of natural latex implanted into dental alveolus of rats. Journal of Oral Science. 2006; 48(4):201-205.
14. Frade MAC, Valverde RV, Assis RVC, Coutinho-Netto J and Foss NT. Chronic phlebopathic cutaneous ulcer: a therapeutic proposal.
International Journal of Dermatology. 2001; 40(3):237-240.
15. Mrué F, Coutinho-Netto J, Ceneviva R, Lachat JJ, Thomazini JA and Tambelini H. Evaluation of the biocompatibility of a new biomembrane.
Materials Research. 2004; 7(2):277-283.
16. Ciapetti G, Stea S, Pizzoferrato A, Checchi L and Pelliccioni GA. A latex membrane, as an alternative device in the GTR technique: preliminary report on its biocompatibility. Journal of Materials Science: Materials in Medicine. 1994; 5(9-10):647-650.
17. Pele Nova. Biocure. [on-line]. Available from: http://www.pelenova.com. br/site. Access in: July 2009.
18. Ereno C, Catanzaro-Guimarães SA, Pasetto S, Holgado L, Herculano RD, Silva CP et al. Latex use as an occlusive membrane for guided bone regeneration. Journal of Biomedical Materials Research. Part A, (paper submitted).
19. Lloyd DR, Kinzer KE and Tseng HS. Microporous membrane formation via thermally induced phase separation. I. Solid-liquid phase separation.
Journal of Membrane. Science. 1990; 52(3):239-261.
healing results were achieved using high dose and slow delivery rate systems. They used animal models in their study.
In this work, as already mentioned different polymerization tem-perature was used in order to control the MET release rate. The SEM images (Figure 1) shows that polymerization temperature determines the morphology of the surface, producing pores and controlling the pores density. The pores density for membranes polymerized at –100, –10 °C are higher compared at RT and 40 °C. Almost no pores were observed in membranes polymerized at 40 °C.
The release profile for MET in a NRL matrix in Figure 3 shows that the first, fast step of burst release corresponded to the MET near or on the surface of the NRL membrane. The slower release process would be associated with MET diffusing slowly through the matrix. Thus, the drug is not found in the more inner portion of the polymeric matrix, as can be inferred from Figure 4. Thus the MET release depends mainly on the amount of encapsulated material on surface (as a reservoir) and not on diffusion.
The release rate was also affected by temperature (Figure 3). It was observed that the NRL membrane polymerized at –100 °C presented the highest MET release. These results are in good agree-ment with those by Wang et al.27. They used different amounts of glutaraldehyde in chitosan synthesis in micro sphere form to obtain different cross-linking degrees, and monitored its effect on BSA release. They found that as cross-linking increases the release rate becames slower.
Notice that the molecule release after 310 hours, was 77.1% of the MET initially incorporated in the membrane polymerized at the –100 °C, 59.00% for the membrane polymerized at –10 °C, 53.15% for the membrane polymerized at RT and 47.02% for the membrane polymerized at 40 °C.
As mentioned earlier the controlled release of proteins is of inter-est for medical applications, since the dose can be adjusted according to the application envisaged. Our results indicate that with very simple changes in NRL preparation it is possible to control MET release up to 15 days, thus making them promising materialsfor protein release in in vivo applications.
All sample of NRL aggregate with MET, has the best potential for MET release, according to the Woo et al.26 results. It was shown that these membranes delivered the incorporated MET in 310 hours, or in other words with a slow release rate.
5. Conclusion
The sustained delivery system for MET has been successfully developed based on NRLb. The rate release of MET was controlled varying the polymerization temperature of the latex matrix. It was shown that polymerization temperature determines the morphology of the surface, producing pores and controlling the pores density. Results indicate that with very simple changes in NRLb preparation it is possible to control MET release up to 310 hours, thus making them promising materials for protein release in in vivo applications. Particularly the NRLb polymerized at –100 °C has the best potential for MET release. For this membrane 77.1% of the initial MET content inside NRL was released in 310 hours, or in other words with a slow release rate. The SEM-EDS and the release behavior indicated that MET remains close or on the surface of the membrane. The drug is not found in the inner portion of the membrane.
Acknowledgements
20. Lloyd DR, Kim SS and Kinzer KE. Microporous membrane formation via thermally-induced phase separation. II. Liquid—liquid phase separation.
Journal of Membrane Science. 1991; 64(1-2):1-11.
21. Herculano RD, Pereira CP, Ereno C, Catanzaro-Guimarães SAC, Kinoshita A and Graeff CFO. Natural rubber latex used as drug delivery system in guided bone regeneration (GBR). Materials Research. 2009; 12(2):253-256.
22. Matsuyama H, Yuasa M, Kitamura Y, Teramoto M and Lloyd DR. Structure control of anisotropic and asymmetric polypropylene membrane prepared by thermally induced phase separation. Journal of Membrane Science. 2000; 179(1-2):91-100.
23. Yave W, Quijada R, Ulbricht M and Benavente R. Syndiotactic polypropylene as potential material for the preparation of porous membranes via thermally induced phase separation (TIPS) process.
Polymer. 2005; 46(25):11582-11590.
24. Graham PD, Pervan AJ and McHugh AJ.The dynamics of thermal-induced phase separation in PMMA Solutions. Macromolecules. 1997, 30(6):1651-1655.
25. Folkman J and Langer R. Polymers for the sustained release of proteins and other macromolecules. Nature. 1976; 263(5580):797-800.
26. Woo BH, Fink BF, Page R, Schrier JA, Woo Jo Y, Jiang G et al. Enhancement of bone growth by sustained delivery of recombinant human bone morphogenetic protein-2 in a polymeric matrix. Pharmaceutical Research. 2001; 18(12):1747-1753.
