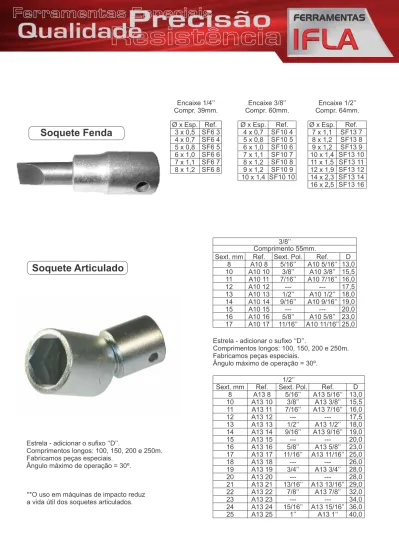

Soquete Fenda
Encaixe 1/4’’ Compr. 39mm. Ref. SF6 3 SF6 4 SF6 5 SF6 6 SF6 7 SF6 8 Ø x Esp. 3 x 0,5 4 x 0,7 5 x 0,8 6 x 1,0 7 x 1,1 8 x 1,2 Encaixe 3/8’’ Compr. 60mm. Ref. SF10 4 SF10 5 SF10 6 SF10 7 SF10 8 SF10 9 SF10 10 Ø x Esp. 4 x 0,7 5 x 0,8 6 x 1,0 7 x 1,1 8 x 1,2 9 x 1,2 10 x 1,4 Encaixe 1/2’’ Compr. 64mm. Ref. SF13 7 SF13 8 SF13 9 SF13 10 SF13 11 SF13 12 SF13 14 SF13 16 Ø x Esp. 7 x 1,1 8 x 1,2 9 x 1,2 10 x 1,4 11 x 1,5 12 x 1,9 14 x 2,3 16 x 2,5Mudar foto
Soquete Articulado
Estrela - adicionar o sufixo ‘‘D’’.
Comprimentos longos: 100, 150, 200 e 250m. Fabricamos peças especiais.
Ângulo máximo de operação = 30º.
Estrela - adicionar o sufixo ‘‘D’’.
Comprimentos longos: 100, 150, 200 e 250m. Fabricamos peças especiais.
Ângulo máximo de operação = 30º.
**O uso em máquinas de impacto reduz a vida útil dos soquetes articulados.
1/2’’ Sext. mm 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 Ref. A13 8 A13 10 A13 11 A13 12 A13 13 A13 14 A13 15 A13 16 A13 17 A13 18 A13 19 A13 20 A13 21 A13 22 A13 23 A13 24 A13 25 Sext. Pol. 5/16’’ 3/8’’ 7/16’’ ---1/2’’ 9/16’’ ---5/8’’ 11/16’’ ---3/4’’ ---13/16’’ 7/8’’ ---15/16’’ 1’’ Ref. A13 5/16’’ A13 3/8’’ A13 7/16’’ ---A13 1/2’’ A13 9/16’’ ---A13 5/8’’ A13 11/16’’ ---A13 3/4’’ ---A13 13/16’’ A13 7/8’’ ---A13 15/16’’ A13 1’’ D 13,0 15,5 16,0 17,5 18,0 19,0 20,0 23,0 25,0 26,0 28,0 28,0 29,0 32,0 34,0 36,0 40,0 3/8’’ Comprimento 55mm. Sext. mm 8 10 11 12 13 14 15 16 17 Ref. A10 8 A10 10 A10 11 A10 12 A10 13 A10 14 A10 15 A10 16 A10 17 Sext. Pol. 5/16’’ 3/8’’ 7/16’’ ---1/2’’ 9/16’’ ---5/8’’ 11/16’’ Ref. A10 5/16’’ A10 3/8’’ A10 7/16’’ ---A10 1/2’’ A10 9/16’’ ---A10 5/8’’ A10 11/16’’ D 13,0 15,5 16,0 17,5 18,0 19,0 20,0 23,0 25,0
Soquete Allen
Soquete para montar prisioneiro
Com esfera fixa no fundo da rosca ou opcional com parafuso limitador, que permite a regulagem do comprimento da rosca.
Fabricamos com roscas especiais sob encomenda.
Encaixe 3/8’’ 1/2’’ Rosca 6x1,0 7x1,0 8x1,25 10x1,5 12x1,75 6x1,0 7x1,0 8x1,25 10x1,5 12x1,75 14x2,0 16x2,0 Compr. 35 35 38 45 45 38 38 38 45 45 Ref. FP10 6 FP10 7 FP10 8 FP10 10 FP10 12 FP13 6 FP13 7 FP13 8 FP13 10 FP13 12 FP13 14 FP13 16 Encaixe 3/4’’ Compr. 50mm. Allen 12 13 14 15 16 17 18 19 20 22 24 25 7/16’’ 1/2’’ 9/16’’ 5/8’’ 11/16’’ 3/4’’ 13/16’’ 7/8’’ 15/16’’ 1’’ Ref. SA1912 SA1913 SA1914 SA1915 SA1916 SA1917 SA1918 SA1919 SA1920 SA1922 SA1924 SA1925 SA19 7/16 SA19 1/2 SA19 9/16 SA19 5/8 SA19 11/16 SA19 3/4 SA19 13/16 SA19 7/8 SA19 15/16 SA19 1 Encaixe 1/4’’ Compr. 37mm. Allen 2,5 3 4 5 6 1/8’’ 5/32’’ 3/16’’ 7/32’’ 1/4’’ Ref. SA6 2.5 SA6 3 SA6 4 SA6 5 SA6 6 SA6 1/8 SA6 5/32 SA6 3/16 SA6 7/32 SA6 1/4 Encaixe 3/8’’ Compr. 48mm. Allen 4 5 6 7 8 10 1/8’’ 5/32’’ 3/16’’ 7/32’’ 1/4’’ 5/16’’ 3/8’’ Ref. SA10 4 SA10 5 SA10 6 SA10 7 SA10 8 SA10 10 SA10 1/8 SA10 5/32 SA10 3/16 SA10 7/32 SA10 1/4 SA10 5/16 SA10 3/8 Encaixe 1/2’’ Compr. 50mm. Allen 8 10 11 12 13 14 15 16 17 18 19 20 22 24 25 Ref. SA13 8 SA13 10 SA13 11 SA13 12 SA13 13 SA13 14 SA13 15 SA13 16 SA13 17 SA13 18 SA13 19 SA13 20 SA13 22 SA13 24 SA13 25 Até 12 mm são intercambiáveis. A partir de 13 mm são inteiriços. Encaixe 1’’ Compr. 90mm. Allen 17 18 19 20 22 24 25 27 30 32 34 36 38 40 42 44 46 48 11/16 3/4 13/16 7/8 1’’ 1.1/8’’ 1.1/4’’ 1.5/16’’ 1.3/8’’ 1.7/16’’ 1.1/2’’ 1.9/16’’ 1.5/8’’ 1.3/4’’ 1.7/8’’ Ref. SA25 17 SA25 18 SA25 19 SA25 20 SA25 22 SA25 24 SA25 25 SA25 27 SA25 30 SA25 32 SA25 34 SA25 36 SA25 38 SA25 40 SA25 42 SA25 44 SA25 46 SA25 48 SA25 11/16 SA25 3/4 SA25 13/16 SA25 7/8 SA25 1 SA25 1.1/8 SA25 1.1/4 SA25 1.5/16 SA25 1.3/8 SA25 1.7/16 SA25 1.1/2 SA25 1.9/16 SA25 1.5/8 SA25 1.3/4 SA25 1.7/8 Encaixe 1.1/2’’ Compr. 100mm. Allen 32 34 36 38 40 42 44 46 48 50 52 55 58 60 65 70 1.1/4’’ 1.5/16’’ 1.3/8’’ 1.7/16’’ 1.1/2’’ 1.9/16’’ 1.5/8’’ 1.3/4’’ 1.7/8’’ 2’’ 2.1/4’’ 2.3/8’’ 2.1/2’’ 2.5/8’’ 2.3/4’’ Ref. SA38 32 SA38 34 SA38 36 SA38 38 SA38 40 SA38 42 SA38 44 SA38 46 SA38 48 SA38 50 SA38 52 SA38 55 SA38 58 SA38 60 SA38 65 SA38 70 SA38 1.1/4’’ SA38 1.5/16’’ SA38 1.3/8’’ SA38 1.7/16’’ SA38 1.1/2’’ SA38 1.9/16’’ SA38 1.5/8’’ SA38 1.3/4’’ SA38 1.7/8’’ SA38 2’’ SA38 2.1/4’’ SA38 2.3/8’’ SA38 2.1/2’’ SA38 2.5/8’’ SA38 2.3/4’’ Fabricamos medidas especiais.
Não utilizar com máquina de impacto. É importante verificar para que o torque não seja excessivo. Até 12 mm é intercambiável. À partir de 13 mm é inteiriço.
* Com imã - adicionar o sufixo ‘‘M’’ Fabricamos peças especiais
Soquete de Impacto 1/4’’
Soquete de Impacto 1/4’’
Normal - Comprimento 25 mm.* Com imã - adicionar o sufixo ‘‘M’’ Fabricamos peças especiais Longo - Comprimento 45 mm. Medida 4 4,5 5 6 7 8 9 10 11 12 13 14 5/32’’ 3/16’’ 7/32’’ 1/4’’ 5/16’’ 3/8’’ 7/16’’ 1/2’’ Prof. 3,0 3,0 4,0 4,0 5,0 5,0 6,0 7,0 7,0 8,0 8,5 10,0 3,0 3,0 4,0 5,0 5,0 7,0 7,0 8,5 D1 8,0 8,5 9,5 11,0 12,0 12,7 14,0 15,5 17,0 18,0 20,0 21,0 8,5 9,0 10,0 11,6 12,7 15,5 17,0 19,0 D2 12,7 12,7 12,7 12,7 12,7 12,7 14,0 15,5 17,0 18,0 20,0 21,8 12,7 12,7 12,7 12,7 12,7 15,5 17,0 19,0 Sextavado 6129 4 6129 4.5 6129 5 6129 6 6129 7 6129 8 6129 9 6129 10 6129 11 6129 12 6129 13 6129 14 6129 5/32 6129 3/16 6129 7/32 6129 1/4 6129 5/16 6129 3/8 6129 7/16 6129 1/2 Estrela 6129 8D 6129 9D 6129 10D 6129 11D 6129 12D 6129 13D 6129 14D 6129 5/16D 6129 3/8D 6129 7/16D 6129 1/2D Medida 4 4,5 5 6 7 8 9 10 11 12 13 14 5/32’’ 3/16’’ 7/32’’ 1/4’’ 5/16’’ 3/8’’ 7/16’’ 1/2’’ Prof. 3,0 3,0 4,0 4,0 5,0 5,0 6,0 7,0 7,0 8,0 8,5 10,0 3,0 3,0 4,0 5,0 5,0 7,0 7,0 8,5 D1 8,0 8,5 9,5 11,0 12,0 12,7 14,0 15,5 17,0 18,0 20,0 21,0 8,5 9,0 10,0 11,6 12,7 15,5 17,0 19,0 D2 12,7 12,7 12,7 12,7 12,7 12,7 14,0 15,5 17,0 18,0 20,0 21,8 12,7 12,7 12,7 12,7 12,7 15,5 17,0 19,0 Sextavado 6129 4L 6129 4.5L 6129 5L 6129 6L 6129 7L 6129 8L 6129 9L 6129 10L 6129 11L 6129 12L 6129 13L 6129 14L 6129 5/32L 6129 3/16L 6129 7/32L 6129 1/4L 6129 5/16L 6129 3/8L 6129 7/16L 6129 1/2L Estrela 6129 8LD 6129 9LD 6129 10LD 6129 11LD 6129 12LD 6129 13LD 6129 14LD 6129 5/16LD 6129 3/8LD 6129 7/16LD 6129 1/2LD SEXTAVADO ESTRELA SEXTAVADO ESTRELA Ø D1 Ø D2 45 ØD1 ØD2 25
Soquete de Impacto 3/8’’
Curto - Comprimento 25 mm.* Com imã - adicionar o sufixo ‘‘M’’ Fabricamos peças especiais
O perfil convexo é utilizado em máquinas múltiplas, não recomendado para máquinas de impacto.
Medida 6 7 8 9 10 11 12 13 14 1/4’’ 5/16’’ 3/8’’ 7/16’’ 1/2’’ 9/16’’ Prof. 4,0 5,0 6,0 6,5 7,0 7,5 8,0 9,0 10,0 4,0 6,0 6,5 7,0 8,0 9,0 D1 11,0 12,8 14,0 15,3 16,6 18,0 19,0 20,3 22,0 11,0 14,0 15,6 18,0 20,3 22,0 D2 19,0 19,0 19,0 19,0 19,0 19,0 19,0 22,0 22,0 19,0 19,0 19,0 19,0 22,0 22,0 Sextavado 101296C 101297C 101298C 101299C 1012910C 1012911C 1012912C 1012913C 1012914C 101291/4C 101295/16C 101293/8C 101297/16C 101291/2C 101299/16C Estrela 101298CD 101299CD 1012910CD 1012911CD 1012912CD 1012913CD 1012914CD 101295/16CD 101293/8CD 101297/16CD 101291/2CD 101299/16CD Convexo 10C8C 10C9C 10C10C 10C11C 10C12C 10C13C 10C14C 10C5/16C 10C3/8C 10C7/16C 10C1/2C 10C9/16C
SEXTAVADO ESTRELA CONVEXO
ØD1
ØD2
25
Soquete de Impacto 1/4’’
Extra-Longo - Comprimento 75 mm.
* Com imã - adicionar o sufixo ‘‘M’’ Fabricamos peças especiais
Medida 4 4,5 5 6 7 8 9 10 11 12 13 14 5/32’’ 3/16’’ 7/32’’ 1/4’’ 5/16’’ 3/8’’ 7/16’’ 1/2’’ Prof. 3,0 3,0 4,0 4,0 5,0 5,0 6,0 7,0 7,0 8,0 8,5 10,0 3,0 3,0 4,0 5,0 5,0 7,0 7,0 8,5 D1 8,0 8,5 9,5 11,0 12,0 12,7 14,0 15,5 17,0 18,0 20,0 21,0 8,5 9,0 10,0 11,6 12,7 15,5 17,0 19,0 D2 12,7 12,7 12,7 12,7 12,7 12,7 14,0 15,5 17,0 18,0 20,0 21,8 12,7 12,7 12,7 12,7 12,7 15,5 17,0 19,0 Sextavado 6129 4X 6129 4.5X 6129 5X 6129 6X 6129 7X 6129 8X 6129 9X 6129 10X 6129 11X 6129 12X 6129 13X 6129 14X 6129 5/32X 6129 3/16X 6129 7/32X 6129 1/4X 6129 5/16X 6129 3/8X 6129 7/16X 6129 1/2X Estrela 6129 8XD 6129 9XD 6129 10XD 6129 11XD 6129 12XD 6129 13XD 6129 14XD 6129 5/16XD 6129 3/8XD 6129 7/16XD 6129 1/2XD SEXTAVADO ESTRELA Ø D1 Ø D2 75
Soquete de Impacto 3/8’’
Soquete de Impacto 3/8’’
* Com imã - adicionar o sufixo ‘‘M’’ Fabricamos peças especiais
O perfil convexo é utilizado em máquinas múltiplas, não recomendado para máquinas de impacto.
* Com imã - adicionar o sufixo ‘‘M’’ Fabricamos peças especiais
O perfil convexo é utilizado em máquinas múltiplas, não recomendado para máquinas de impacto.
Normal - Comprimento 34 mm. Longo - Comprimento 50 mm. Medida 8 9 10 11 12 13 14 15 16 17 18 19 1/4’’ 5/16’’ 3/8’’ 7/16’’ 1/2’’ 9/16’’ 5/8’’ 11/16’’ 3/4’’ Prof. 6,0 6,5 7,0 7,5 8,0 9,0 10,0 10,5 11,0 11,0 12,0 13,0 4,0 6,0 6,5 7,0 8,0 9,0 10,5 11,0 13,0 D1 14,0 15,3 16,6 18,0 19,0 20,3 22,0 23,0 24,0 25,3 26,5 28,0 11,0 14,0 15,6 18,0 20,3 22,0 24,0 25,3 28,0 D2 19,0 19,0 19,0 19,0 19,0 22,0 22,0 22,0 22,0 22,0 22,0 22,0 19,0 19,0 19,0 19,0 22,0 22,0 22,0 22,0 22,0 Estrela 101298D 101299D 1012910D 1012911D 1012912D 1012913D 1012914D 1012915D 1012916D 1012917D 1012918D 1012919D 101291/4D 101295/16D 101293/8D 101297/16D 101291/2D 101299/16D 101295/8D 1012911/16D 101293/4D Sextavado 101298 101299 1012910 1012911 1012912 1012913 1012914 1012915 1012916 1012917 1012918 1012919 101291/4 101295/16 101293/8 101297/16 101291/2 101299/16 101295/8 1012911/16 101293/4 Convexo 10C8 10C9 10C10 10C11 10C12 10C13 10C14 10C15 10C16 10C17 10C18 10C19 10C1/4 10C5/16 10C3/8 10C7/16 10C1/2 10C9/16 10C5/8 10C11/16 10C3/4 Medida 8 9 10 11 12 13 14 15 16 17 18 19 1/4’’ 5/16’’ 3/8’’ 7/16’’ 1/2’’ 9/16’’ 5/8’’ 11/16’’ 3/4’’ Prof. 6,0 6,5 7,0 7,5 8,0 9,0 10,0 10,5 11,0 11,0 12,0 13,0 4,0 6,0 6,5 7,0 8,0 9,0 10,5 11,0 13,0 D1 14,0 15,3 16,6 18,0 19,0 20,3 22,0 23,0 24,0 25,3 26,5 28,0 11,0 14,0 15,6 18,0 20,3 22,0 24,0 25,3 28,0 D2 19,0 19,0 19,0 19,0 19,0 22,0 22,0 22,0 22,0 22,0 22,0 22,0 19,0 19,0 19,0 19,0 22,0 22,0 22,0 22,0 22,0 Estrela 101298LD 101299LD 1012910LD 1012911LD 1012912LD 1012913LD 1012914LD 1012915LD 1012916LD 1012917LD 1012918LD 1012919LD 101291/4LD 101295/16LD 101293/8LD 101297/16LD 101291/2LD 101299/16LD 101295/8LD 1012911/16LD 101293/4LD Sextavado 101298L 101299L 1012910L 1012911L 1012912L 1012913L 1012914L 1012915L 1012916L 1012917L 1012918L 1012919L 101291/4L 101295/16L 101293/8L 101297/16L 101291/2L 101299/16L 101295/8L 1012911/16L 101293/4L Convexo 10C8L 10C9L 10C10L 10C11L 10C12L 10C13L 10C14L 10C15L 10C16L 10C17L 10C18L 10C19L 10C1/4L 10C5/16L 10C3/8L 10C7/16L 10C1/2L 10C9/16L 10C5/8L 10C11/16L 10C3/4L
SEXTAVADO ESTRELA CONVEXO
SEXTAVADO ESTRELA CONVEXO
ØD1 ØD2 34 ØD1 ØD2 50
Soquete de Impacto 3/8’’
Soquete de Impacto 3/8’’
* Com imã - adicionar o sufixo ‘‘M’’ Fabricamos peças especiais
O perfil convexo é utilizado em máquinas múltiplas, não recomendado para máquinas de impacto.
* Com imã - adicionar o sufixo ‘‘M’’ Fabricamos peças especiais
O perfil convexo é utilizado em máquinas múltiplas, não recomendado para máquinas de impacto.
Normal - Comprimento 34 mm. Longo - Comprimento 50 mm. Medida 8 9 10 11 12 13 14 15 16 17 18 19 1/4’’ 5/16’’ 3/8’’ 7/16’’ 1/2’’ 9/16’’ 5/8’’ 11/16’’ 3/4’’ Prof. 6,0 6,5 7,0 7,5 8,0 9,0 10,0 10,5 11,0 11,0 12,0 13,0 4,0 6,0 6,5 7,0 8,0 9,0 10,5 11,0 13,0 D1 14,0 15,3 16,6 18,0 19,0 20,3 22,0 23,0 24,0 25,3 26,5 28,0 11,0 14,0 15,6 18,0 20,3 22,0 24,0 25,3 28,0 D2 19,0 19,0 19,0 19,0 19,0 22,0 22,0 22,0 22,0 22,0 22,0 22,0 19,0 19,0 19,0 19,0 22,0 22,0 22,0 22,0 22,0 Estrela 101298D 101299D 1012910D 1012911D 1012912D 1012913D 1012914D 1012915D 1012916D 1012917D 1012918D 1012919D 101291/4D 101295/16D 101293/8D 101297/16D 101291/2D 101299/16D 101295/8D 1012911/16D 101293/4D Sextavado 101298 101299 1012910 1012911 1012912 1012913 1012914 1012915 1012916 1012917 1012918 1012919 101291/4 101295/16 101293/8 101297/16 101291/2 101299/16 101295/8 1012911/16 101293/4 Convexo 10C8 10C9 10C10 10C11 10C12 10C13 10C14 10C15 10C16 10C17 10C18 10C19 10C1/4 10C5/16 10C3/8 10C7/16 10C1/2 10C9/16 10C5/8 10C11/16 10C3/4 Medida 8 9 10 11 12 13 14 15 16 17 18 19 1/4’’ 5/16’’ 3/8’’ 7/16’’ 1/2’’ 9/16’’ 5/8’’ 11/16’’ 3/4’’ Prof. 6,0 6,5 7,0 7,5 8,0 9,0 10,0 10,5 11,0 11,0 12,0 13,0 4,0 6,0 6,5 7,0 8,0 9,0 10,5 11,0 13,0 D1 14,0 15,3 16,6 18,0 19,0 20,3 22,0 23,0 24,0 25,3 26,5 28,0 11,0 14,0 15,6 18,0 20,3 22,0 24,0 25,3 28,0 D2 19,0 19,0 19,0 19,0 19,0 22,0 22,0 22,0 22,0 22,0 22,0 22,0 19,0 19,0 19,0 19,0 22,0 22,0 22,0 22,0 22,0 Estrela 101298LD 101299LD 1012910LD 1012911LD 1012912LD 1012913LD 1012914LD 1012915LD 1012916LD 1012917LD 1012918LD 1012919LD 101291/4LD 101295/16LD 101293/8LD 101297/16LD 101291/2LD 101299/16LD 101295/8LD 1012911/16LD 101293/4LD Sextavado 101298L 101299L 1012910L 1012911L 1012912L 1012913L 1012914L 1012915L 1012916L 1012917L 1012918L 1012919L 101291/4L 101295/16L 101293/8L 101297/16L 101291/2L 101299/16L 101295/8L 1012911/16L 101293/4L Convexo 10C8L 10C9L 10C10L 10C11L 10C12L 10C13L 10C14L 10C15L 10C16L 10C17L 10C18L 10C19L 10C1/4L 10C5/16L 10C3/8L 10C7/16L 10C1/2L 10C9/16L 10C5/8L 10C11/16L 10C3/4L
SEXTAVADO ESTRELA CONVEXO
SEXTAVADO ESTRELA CONVEXO
ØD1 ØD2 34 ØD1 ØD2 50
Soquete de Impacto 1/2’’
Longo - Comprimento 50 mm.
* Com imã - adicionar o sufixo ‘‘M’’ - até 13 mm ou 1/2’’ Fabricamos peças especiais
O perfil convexo é utilizado em máquinas
múltiplas, não recomendado para máquinas de impacto.
Extra-Longo - Comprimento 80 mm. Sextavado 131298X 1312910X 1312911X 1312912X 1312913X 1312914X 1312915X 1312916X 1312917X 1312918X 1312919X 1312922X 1312924X 1312925X 1312927X 1312930X 1312932X 131295/16X 131293/8X 131297/16X 131291/2X 131299/16X 131295/8X 1312911/16X 131293/4X 1312913/16X 131297/8X 1312915/16X 131291X 131291 1/16X 131291 1/8X 131291 3/16X 131291 1/4X Estrela 131298XD 1312910XD 1312911XD 1312912XD 1312913XD 1312914XD 1312915XD 1312916XD 1312917XD 1312918XD 1312919XD 1312922XD 1312924XD 1312925XD 1312927XD 1312930XD 1312932XD 131295/16XD 131293/8XD 131297/16XD 131291/2XD 131299/16XD 131295/8XD 1312911/16XD 131293/4XD 1312913/16XD 131297/8XD 1312915/16XD 131291XD 131291 1/16XD 131291 1/8XD 131291 3/16XD 131291 1/4XD Convexo 13C8X 13C10X 13C11X 13C12X 13C13X 13C14X 13C15X 13C16X 13C17X 13C18X 13C19X 13C22X 13C24X 13C25X 13C27X 13C30X 13C32X 13C5/16X 13C3/8X 13C7/16X 13C1/2X 13C9/16X 13C5/8X 13C11/16X 13C3/4X 13C13/16X 13C7/8X 13C15/16X 13C1X 13C1 1/16X 13C1 1/8X 13C1 3/16X 13C1 1/4X D2 25,0 25,0 25,0 25,0 25,0 25,0 25,0 25,0 26,5 30,0 30,0 30,0 30,0 30,0 30,0 30,0 30,0 25,0 25,0 25,0 25,0 25,0 25,0 30,0 30,0 30,0 30,0 30,0 30,0 30,0 30,0 30,0 30,0 D1 15,3 17,8 19,0 20,3 21,5 22,8 24,0 25,0 26,5 28,0 29,0 32,8 35,3 38,0 39,0 42,8 43,0 15,3 17,8 19,0 21,0 23,5 25,0 28,0 30,0 32,0 34,0 37,0 37,3 39,0 41,0 42,8 43,0 Prof. 6,0 7,0 7,0 7,0 7,5 8,0 9,0 10,0 11,0 12,0 13,0 13,0 14,0 14,0 15,0 18,0 18 6,0 6,5 6,5 7,5 7,5 9,0 11,0 13,0 13,0 13,0 14,0 15,0 15,0 15,0 18,0 18 Medida 8 10 11 12 13 14 15 16 17 18 19 22 24 25 27 30 32 5/16’’ 3/8’’ 7/16’’ 1/2’’ 9/16’’ 5/8’’ 11/16’’ 3/4’’ 13/16’’ 7/8’’ 15/16’’ 1’’ 1 1/16’’ 1 1/8’’ 1 3/16’’ 1 1/4’’ Medida 8 10 11 12 13 14 15 16 17 18 19 22 24 25 27 30 32 5/16’’ 3/8’’ 7/16’’ 1/2’’ 9/16’’ 5/8’’ 11/16’’ 3/4’’ 13/16’’ 7/8’’ 15/16’’ 1’’ 1 1/16’’ 1 1/8’’ 1 3/16’’ 1 1/4’’ Prof. 6,0 7,0 7,0 7,0 7,5 8,0 9,0 10,0 11,0 12,0 13,0 13,0 14,0 14,0 15,0 18,0 18 6,0 6,5 6,5 7,5 7,5 9,0 11,0 13,0 13,0 13,0 14,0 15,0 15,0 15,0 18,0 18 D1 15,3 17,8 19,0 20,3 21,5 22,8 24,0 25,0 26,5 28,0 29,0 32,8 35,3 38,0 39,0 42,8 43,0 15,3 17,8 19,0 21,0 23,5 25,0 28,0 30,0 32,0 34,0 37,0 37,3 39,0 41,0 42,8 43,0 D2 25,0 25,0 25,0 25,0 25,0 25,0 25,0 25,0 26,5 30,0 30,0 30,0 30,0 30,0 30,0 30,0 30,0 25,0 25,0 25,0 25,0 25,0 25,0 30,0 30,0 30,0 30,0 30,0 30,0 30,0 30,0 30,0 30,0 Estrela 131298LD 1312910LD 1312911LD 1312912LD 1312913LD 1312914LD 1312915LD 1312916LD 1312917LD 1312918LD 1312919LD 1312922LD 1312924LD 1312925LD 1312927LD 1312930LD 1312932LD 131295/16LD 131293/8LD 131297/16LD 131291/2LD 131299/16LD 131295/8LD 1312911/16LD 131293/4LD 1312913/16LD 131297/8LD 1312915/16LD 131291LD 131291 1/16LD 131291 1/8LD 131291 3/16LD 131291 1/4LD Sextavado 131298L 1312910L 1312911L 1312912L 1312913L 1312914L 1312915L 1312916L 1312917L 1312918L 1312919L 1312922L 1312924L 1312925L 1312927L 1312930L 1312932L 131295/16L 131293/8L 131297/16L 131291/2L 131299/16L 131295/8L 1312911/16L 131293/4L 1312913/16L 131297/8L 1312915/16L 131291L 131291 1/16L 131291 1/8L 131291 3/16L 131291 1/4L Convexo 13C8L 13C10L 13C11L 13C12L 13C13L 13C14L 13C15L 13C16L 13C17L 13C18L 13C19L 13C22L 13C24L 13C25L 13C27L 13C30L 13C32L 13C5/16L 13C3/8L 13C7/16L 13C1/2L 13C9/16L 13C5/8L 13C11/16L 13C3/4L 13C13/16L 13C7/8L 13C15/16L 13C1L 13C1 1/16L 13C1 1/8L 13C1 3/16L 13C1 1/4L 50 Ø D1 Ø D2
SEXTAVADO ESTRELA CONVEXO
Soquete de Impacto 1/2’’
* Com imã - adicionar o sufixo ‘‘M’’ - até 13 mm ou 1/2’’. * Fabricamos peças especiais.
* O perfil convexo é utilizado em máquinas múltiplas, não recomendado para
máquinas de impacto.
SEXTAVADO ESTRELA CONVEXO
80 Ø D1
Soquete Longo Rebaixado - Quadrado 1/2
Soquete Longo Rebaixado - Quadrado 3/8
Comprimento Sext. 8 10 11 12 13 14 15 16 17 18 19
Com imã - adicionar a letra ‘‘M’’
Com imã retrátil - adicionar ‘‘MR’’ (Magnético Retrátil) 100 101298100RBX 1012910100RBX 1012911100RBX 1012912100RBX 1012913100RBX 1012914100RBX 1012915100RBX 1012916100RBX 1012917100RBX 1012918100RBX 1012919100RBX 150 101298150RBX 1012910150RBX 1012911150RBX 1012912150RBX 1012913150RBX 1012914150RBX 1012915150RBX 1012916150RBX 1012917150RBX 1012918150RBX 1012919150RBX 200 101298200RBX 1012910200RBX 1012911200RBX 1012912200RBX 1012913200RBX 1012914200RBX 1012915200RBX 1012916200RBX 1012917200RBX 1012918200RBX 1012919200RBX 250 101298250RBX 1012910250RBX 1012911250RBX 1012912250RBX 1012913250RBX 1012914250RBX 1012915250RBX 1012916250RBX 1012917250RBX 1012918250RBX 1012919250RBX 300 101298300RBX 1012910300RBX 1012911300RBX 1012912300RBX 1012913300RBX 1012914300RBX 1012915300RBX 1012916300RBX 1012917300RBX 1012918300RBX 1012919300RBX Ø D 14,0 16,6 18,0 19,0 20,3 21,8 23,0 24,0 25,2 26,5 28,0 Sext. 8 10 11 12 13 14 15 16 17 18 19 21 22 24 25 27 100 131298100RBX 1312910100RBX 1312911100RBX 1312912100RBX 1312913100RBX 1312914100RBX 1312915100RBX 1312916100RBX 1312917100RBX 1312918100RBX 1312919100RBX 1312921100RBX 1312922100RBX 1312924100RBX 1312925100RBX 1312927100RBX 150 131298150RBX 1312910150RBX 1312911150RBX 1312912150RBX 1312913150RBX 1312914150RBX 1312915150RBX 1312916150RBX 1312917150RBX 1312918150RBX 1312919150RBX 1312921150RBX 1312922150RBX 1312924150RBX 1312925150RBX 1312927150RBX 200 131298200RBX 1312910200RBX 1312911200RBX 1312912200RBX 1312913200RBX 1312914200RBX 1312915200RBX 1312916200RBX 1312917200RBX 1312918200RBX 1312919200RBX 1312921200RBX 1312922200RBX 1312924200RBX 1312925200RBX 1312927200RBX 250 131298250RBX 1312910250RBX 1312911250RBX 1312912250RBX 1312913250RBX 1312914250RBX 1312915250RBX 1312916250RBX 1312917250RBX 1312918250RBX 1312919250RBX 1312921250RBX 1312922250RBX 1312924250RBX 1312925250RBX 1312927250RBX 300 131298300RBX 1312910300RBX 1312911300RBX 1312912300RBX 1312913300RBX 1312914300RBX 1312915300RBX 1312916300RBX 1312917300RBX 1312918300RBX 1312919300RBX 1312921300RBX 1312922300RBX 1312924300RBX 1312925300RBX 1312927300RBX Ø D 15,3 17,8 19,0 20,3 21,5 22,8 24,0 25,0 26,5 28,0 29,0 31,5 31,5 35,3 37,3 39,0 Comprimento
Com imã - adicionar a letra ‘‘M’’
Com imã retrátil - adicionar ‘‘MR’’ (Magnético Retrátil)
Sext. mm 7 8 9 10 11 12 13 Compr. mm 45 45 45 45 45 45 45 Ref. 61297MR 61298MR 61299MR 612910MR 612911MR 612912MR 612913MR Ø D 11,5 12,7 13,5 14,3 17,0 18,0 18,5 Sext. Pol. 5/16 3/8 7/16 1/2 Compr. mm 45 45 45 45 Ref. 61295/16MR 61293/8MR 61297/16MR 61291/2MR Ø D 12,7 14,3 17,0 18,5 1/4 3/8 Sext. mm 8 9 10 11 12 13 Sext. Pol 5/16 3/8 7/16 1/2 Compr. mm 50 50 50 50 50 50 Compr. mm 50 50 50 50 Ref. 101298MR 101299MR 1012910MR 1012911MR 1012912MR 1012913MR Ref. 101295/16MR 101293/8MR 101297/16MR 101291/2MR Ø D 14,0 14,0 15,0 17,0 18,5 18,7 Ø D 14,0 15,0 17,0 18,7
Soquete com Imã Retrátil
Normal
Medidas maiores, sob consulta.
Medida 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 32 33 34 35 36 37 38 39 40 41 42 44 45 46 48 49 50 11/16’’ 3/4’’ 13/16’’ 7/8’’ 15/16’’ 1’’ 1 1/16’’ 1 1/8’’ 1 3/16’’ 1 1/4’’ 1 5/16’’ 1 3/8’’ 1 7/16’’ 1 1/2’’ 1 9/16’’ 1 5/8’’ 1 11/16’’ 1 3/4’’ 1 7/8’’ 1 13/16’’ 2’’ Prof. 7,5 8 9 10 10 12 12 13 13 13 13 13 13 13 13 15 17 17 17 17 18 19 19 19 20 22 22 22 22 22 22 26 22 22 26 10 12 13 13 13 13 13 15 17 17 17 19 19 20 22 22 22 26 26 22 26 D2 34,0 34,0 34,0 34,0 38,0 38,0 38,0 38,0 38,0 38,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 54,0 44,0 38,0 38,0 38,0 38,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 D1 22,0 23,0 25,0 27,0 31,0 32,4 33,6 34,5 36,1 37,4 38,5 39,9 41,0 41,0 43,6 45,0 44,0 47,4 49,9 49,9 52,4 55,0 54,9 56,0 58,0 59,0 59,0 61,1 63,0 63,0 63,0 67,4 66,0 70,0 75,4 31,0 33,6 34,5 37,4 39,9 41,0 43,6 45,0 47,4 49,9 50,0 54,9 56,0 58,0 59,0 61,1 63,0 67,4 73,0 66,0 75,4 Compr. 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 54 54 54 56 56 56 56 56 56 56 58 58 58 58 63 63 63 63 64 63 50 50 50 50 50 50 50 54 54 56 56 56 56 56 58 58 63 63 63 64 63 Estrela 2012913D 2012914D 2012915D 2012916D 2012917D 2012918D 2012919D 2012920D 2012921D 2012922D 2012923D 2012924D 2012925D 2012926D 2012927D 2012928D 2012929D 2012930D 2012932D 2012933D 2012934D 2012935D 2012936D 2012937D 2012938D 2012939D 2012940D 2012941D 2012942D 2012944D 2012945D 2012946D 2012948D 2012949D 2012950D 2012911/16D 201293/4D 2012913/16D 201297/8D 2012915/16D 201291D 201291 1/16D 201291 1/8D 201291 3/16D 201291 1/4D 201291 5/16D 201291 3/8D 201291 7/16D 201291 1/2D 201291 9/16D 201291 5/8D 201291 11/16D 201291 3/4D 201291 7/8D 201291 13/16D 201292D Sextavado 2012913 2012914 2012915 2012916 2012917 2012918 2012919 2012920 2012921 2012922 2012923 2012924 2012925 2012926 2012927 2012928 2012929 2012930 2012932 2012933 2012934 2012935 2012936 2012937 2012938 2012939 2012940 2012941 2012942 2012944 2012945 2012946 2012948 2012949 2012950 2012911/16 201293/4 2012913/16 201297/8 2012915/16 201291 201291 1/16 201291 1/8 201291 3/16 201291 1/4 201291 5/16 201291 3/8 201291 7/16 201291 1/2 201291 9/16 201291 5/8 201291 11/16 201291 3/4 201291 7/8 201291 13/16 201292 Convexo 20C13 20C14 20C15 20C16 20C17 20C18 20C19 20C20 20C21 20C22 20C23 20C24 20C25 20C26 20C27 20C28 20C29 20C30 20C32 20C33 20C34 20C35 20C36 20C37 20C38 20C39 20C40 20C41 20C42 20C44 20C45 20C46 20C48 20C49 20C50 20C11/16 20C3/4 20C13/16 20C7/8 20C15/16 20C1 20C1 1/16 20C1 1/8 20C1 3/16 20C1 1/4 20C1 5/16 20C1 3/8 20C1 7/16 20C1 1/2 20C1 9/16 20C1 5/8 20C1 11/16 20C1 3/4 20C1 7/8 20C1 13/16 20C2
SEXTAVADO ESTRELA CONVEXO
Soquete de Impacto 3/4’’
Ø D2 Ø D1
Soquete de Impacto 3/4’’
LongoMedidas maiores, sob consulta. Medida 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 32 33 34 35 36 37 38 39 40 41 42 44 45 46 48 49 50 11/16’’ 3/4’’ 13/16’’ 7/8’’ 15/16’’ 1’’ 1 1/16’’ 1 1/8’’ 1 3/16’’ 1 1/4’’ 1 5/16’’ 1 3/8’’ 1 7/16’’ 1 1/2’’ 1 9/16’’ 1 5/8’’ 1 11/16’’ 1 3/4’’ 1 7/8 ’’ 1 13/16’’ 2’’ Prof. 10 10 12 12 13 13 13 13 13 13 13 13 15 17 17 17 17 18 19 19 19 20 22 22 22 22 22 22 22 22 22 26 10 12 13 13 13 13 13 15 17 17 17 19 19 20 22 22 22 26 26 22 26 D1 27,0 31,0 32,4 33,8 34,5 36,1 37,4 38,5 39,9 41,0 41,0 43,6 45,0 44,0 47,4 49,9 50,0 52,4 55,0 54,9 56,0 58,0 59,0 59,0 61,1 63,0 63,0 63,0 63,0 66,0 70,0 75,4 31,0 33,6 34,5 37,4 39,9 41,0 43,6 45,0 47,4 49,9 50,0 54,9 56,0 58,0 59,0 61,1 63,0 67,4 73,0 66,0 75,4 D2 34,0 38,0 38,0 38,0 38,0 38,0 38,0 38,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 54,0 44,0 38,0 38,0 38,0 38,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 44,0 Sextavado 2012916L 2012917L 2012918L 2012919L 2012920L 2012921L 2012922L 2012923L 2012924L 2012925L 2012926L 2012927L 2012928L 2012929L 2012930L 2012932L 2012933L 2012934L 2012935L 2012936L 2012937L 2012938L 2012939L 2012940L 2012941L 2012942L 2012944L 2012945L 2012946L 2012948L 2012949L 2012950L 2012911/16L 201293/4L 2012913/16L 201297/8L 2012915/16L 201291L 201291 1/16L 201291 1/8L 201291 3/16L 201291 1/4L 201291 5/16L 201291 3/8L 201291 7/16L 201291 1/2L 201291 9/16L 201291 5/8L 201291 11/16L 201291 3/4L 201291 7/8L 201291 13/16L 201292L Estrela 2012916LD 2012917LD 2012918LD 2012919LD 2012920LD 2012921LD 2012922LD 2012923LD 2012924LD 2012925LD 2012926LD 2012927LD 2012928LD 2012929LD 2012930LD 2012932LD 2012933LD 2012934LD 2012935LD 2012936LD 2012937LD 2012938LD 2012939LD 2012940LD 2012941LD 2012942LD 2012944LD 2012945LD 2012946LD 2012948LD 2012949LD 2012950LD 2012911/16LD 201293/4LD 2012913/16LD 201297/8LD 2012915/16LD 201291LD 201291 1/16LD 201291 1/8LD 201291 3/16LD 201291 1/4LD 201291 5/16LD 201291 3/8LD 201291 7/16LD 201291 1/2LD 201291 9/16LD 201291 5/8LD 201291 11/16LD 201291 3/4LD 201291 7/8LD 201291 13/16LD 201292LD Convexo 20C16L 20C17L 20C18L 20C19L 20C20L 20C21L 20C22L 20C23L 20C24L 20C25L 20C26L 20C27L 20C28L 20C29L 20C30L 20C32L 20C33L 20C34L 20C35L 20C36L 20C37L 20C38L 20C39L 20C40L 20C41L 20C42L 20C44L 20C45L 20C46L 20C48L 20C49L 20C50L 20C11/16L 20C3/4L 20C13/16L 20C7/8L 20C15/16L 20C1L 20C1 1/16L 20C1 1/8L 20C1 3/16L 20C1 1/4L 20C1 5/16L 20C1 3/8L 20C1 7/16L 20C1 1/2L 20C1 9/16L 20C1 5/8L 20C1 11/16L 20C1 3/4L 20C1 7/8L 20C1 13/16L 20C2L
SEXTAVADO ESTRELA CONVEXO
Ø D2 Ø D1
90
Ø D1
Medidas maiores, sob consulta. Medida 19 20 21 22 23 24 25 26 27 28 29 30 32 33 34 35 36 37 38 40 41 42 44 45 46 48 49 50 3/4’’ 13/16’’ 7/8’’ 15/16’’ 1’’ 1 1/16’’ 1 1/8’’ 1 3/16’’ 1 1/4’’ 1 5/16’’ 1 3/8’’ 1 7/16’’ 1 1/2’’ 1 9/16’’ 1 5/8’’ 1 11/16’’ 1 3/4’’ 1 13/16’’ 1 15/16’’ 1 7/8’’ 2’’ Prof. 12 13 14 14 15 15 16 16 16 16 18 18 20 20 20 20 20 20 20 20 20 22 22 22 23 23 23 26 12 13 14 14 15 15 16 16 16 16 18 18 20 20 20 22 22 23 23 26 26 D1 34,0 35,0 36,0 38,0 39,0 41,0 42,0 42,0 43,0 44,0 47,0 50,0 50,0 52,0 54,0 54,0 56,0 57,0 59,0 60,0 63,0 64,0 66,0 66 70,0 70,0 70,0 75,4 34,0 36,0 38,0 41,0 42,0 43,0 47,0 50,0 50,0 52,0 54,0 57,0 59,0 60,0 63,0 64,0 70,0 70,0 70,0 73,0 75,4 D2 50,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 64,0 64,0 64,0 64,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 64,0 64,0 64,0 64,0 64,0 Sextavado 112919 112920 112921 112922 112923 112924 112925 112926 112927 112928 112929 112930 112932 112933 112934 112935 112936 112937 112938 112940 112941 112942 112944 112945 112946 112948 112949 112950 11293/4 112913/16 11297/8 112915/16 11291 11291 1/16 11291 1/8 11291 3/16 11291 1/4 11291 5/16 11291 3/8 11291 7/16 11291 1/2 11291 9/16 11291 5/8 11291 11/16 11291 3/4 11291 13/16 11291 15/16 11291 7/8 11292 Compr. 55 55 55 55 55 55 55 55 55 55 62 62 62 62 62 62 62 62 64 64 64 64 64 64 69 69 69 70 55 55 55 55 55 55 62 62 62 62 62 62 64 64 64 64 69 69 69 70 70 Estrela 112919D 112920D 112921D 112922D 112923D 112924D 112925D 112926D 112927D 112928D 112929D 112930D 112932D 112933D 112934D 112935D 112936D 112937D 112938D 112940D 112941D 112942D 112944D 112945D 112946D 112948D 112949D 112950D 11293/4D 112913/16D 11297/8D 112915/16D 11291D 11291 1/16D 11291 1/8D 11291 3/16D 11291 1/4D 11291 5/16D 11291 3/8D 11291 7/16D 11291 1/2D 11291 9/16D 11291 5/8D 11291 11/16D 11291 3/4D 11291 13/16D 11291 15/16D 11291 7/8D 11292D Convexo 1C19 1C20 1C21 1C22 1C23 1C24 1C25 1C26 1C27 1C28 1C29 1C30 1C32 1C33 1C34 1C35 1C36 1C37 1C38 1C40 1C41 1C42 1C44 1C45 1C46 1C48 1C49 1C50 1C3/4 1C13/16 1C7/8 1C15/16 1C1 1C1 1/16 1C1 1/8 1C1 3/16 1C1 1/4 1C1 5/16 1C1 3/8 1C1 7/16 1C1 1/2 1C1 9/16 1C1 5/8 1C1 11/16 1C1 3/4 1C1 13/16 1C1 15/16 1C1 7/8 1C2 SEXTAVADO ESTRELA CONVEXO
Ø D2 Ø D1
L
Soquete de Impacto 1’’
O perfil convexo é utilizado em máquinas múltiplas, não recomendado para máquinas de impacto.
Sextavado 112919L 112920L 112921L 112922L 112923L 112924L 112925L 112926L 112927L 112928L 112929L 112930L 112932L 112933L 112934L 112935L 112936L 112937L 112938L 112940L 112941L 112942L 112944L 112945L 112946L 112948L 112949L 112950L 11293/4L 112913/16L 11297/8L 112915/16L 11291L 11291 1/16L 11291 1/8L 11291 3/16L 11291 1/4L 11291 5/16L 11291 3/8L 11291 7/16L 11291 1/2L 11291 9/16L 11291 5/8L 11291 11/16L 11291 3/4L 11291 13/16L 11291 15/16L 11291 7/8L 11292L Estrela 112919LD 112920LD 112921LD 112922LD 112923LD 112924LD 112925LD 112926LD 112927LD 112928LD 112929LD 112930LD 112932LD 112933LD 112934LD 112935LD 112936LD 112937LD 112938LD 112940LD 112941LD 112942LD 112944LD 112945LD 112946LD 112948LD 112949LD 112950LD 11293/4LD 112913/16LD 11297/8LD 112915/16LD 11291LD 11291 1/16LD 11291 1/8LD 11291 3/16LD 11291 1/4LD 11291 5/16LD 11291 3/8LD 11291 7/16LD 11291 1/2LD 11291 9/16LD 11291 5/8LD 11291 11/16LD 11291 3/4LD 11291 13/16LD 11291 15/16LD 11291 7/8LD 11292LD Convexo 1C19L 1C20L 1C21L 1C22L 1C23L 1C24L 1C25L 1C26L 1C27L 1C28L 1C29L 1C30L 1C32L 1C33L 1C34L 1C35L 1C36L 1C37L 1C38L 1C40L 1C41L 1C42L 1C44L 1C45L 1C46L 1C48L 1C49L 1C50L 1C3/4L 1C13/16L 1C7/8L 1C15/16L 1C1L 1C1 1/16L 1C1 1/8L 1C1 3/16L 1C1 1/4L 1C1 5/16L 1C1 3/8L 1C1 7/16L 1C1 1/2L 1C1 9/16L 1C1 5/8L 1C1 11/16L 1C1 3/4L 1C1 13/16L 1C1 15/16L 1C1 7/8L 1C2L D1 34,0 35,0 36,0 38,0 39,0 41,0 42,0 42,0 43,0 44,0 47,0 50,0 50,0 52,0 54,0 54,0 56,0 57,0 59,0 60,0 63,0 64,0 66,0 66 70,0 70,0 70,0 75,4 34,0 36,0 38,0 41,0 42,0 43,0 47,0 50,0 50,0 52,0 54,0 57,0 59,0 60,0 63,0 64,0 70,0 70,0 70,0 73,0 75,4 D2 50,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 64,0 64,0 64,0 64,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 50,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 64,0 64,0 64,0 64,0 64,0 Medida 19 20 21 22 23 24 25 26 27 28 29 30 32 33 34 35 36 37 38 40 41 42 44 45 46 48 49 50 3/4’’ 13/16’’ 7/8’’ 15/16’’ 1’’ 1 1/16’’ 1 1/8’’ 1 3/16’’ 1 1/4’’ 1 5/16’’ 1 3/8’’ 1 7/16’’ 1 1/2’’ 1 9/16’’ 1 5/8’’ 1 11/16’’ 1 3/4’’ 1 13/16’’ 1 15/16’’ 1 7/8’’ 2’’ Prof. 12 13 14 14 15 15 16 16 16 16 18 18 20 20 20 20 20 20 20 20 20 22 22 22 23 23 23 26 12 13 14 14 15 15 16 16 16 16 18 18 20 20 20 22 22 23 23 26 26
SEXTAVADO ESTRELA CONVEXO
Ø D2 Ø D1
90
Ø D1
Soquete de Impacto 1’’ 1/2
Medida Sext. 38 41 42 45 46 47 48 50 51 55 57 60 63 65 67 68 70 71 73 75 76 78 79 80 81 82 85 90 95 98 100 105 106 110 115 120 125 130 135 140 145 150 Compr. 80 80 80 85 85 85 85 90 90 90 90 95 95 100 100 100 105 105 105 105 110 110 110 115 115 115 120 120 120 120 120 120 120 120 120 120 125 125 125 125 125 125 Referência mm 3812938 3812941 3812942 3812945 3812946 3812947 3812948 3812950 3812951 3812955 3812957 3812960 3812963 3812965 3812967 3812968 3812970 3812971 3812973 3812975 3812976 3812978 3812979 3812980 3812981 3812982 3812985 3812990 3812995 3812998 38129100 38129105 38129106 38129110 38129115 38129120 38129125 38129130 38129135 38129140 38129145 38129150 Medida pol. 1.5/8 1.3/4 1.7/8 2’’ 2.1/8 2.3/16 2.1/4 2.3/8 2.1/2 2.9/16 2.5/8 2.11/16 2.3/4 2.13/16 2.7/8 2.15/16 3’’ 3.1/16 3.1/8 3.3/16 3.1/4 3.3/8 3.1/2 3.5/8 3.3/4 3.7/8 4’’ 4.1/8 4.3/16 4.1/4 4.3/8 4.1/2 4.3/4 4.5/8 4.7/8 5’’ 5.1/8 5.1/4 Compr. 80 80 80 90 85 85 90 90 95 100 100 100 105 105 105 100 110 110 110 110 110 110 120 120 120 120 120 120 120 120 120 120 120 120 120 120 125 125 Referência pol. 381291.5/8 381291.3/4 381291.7/8 381292’’ 381292.1/8 381292.3/16 381292.1/4 381292.3/8 381292.1/2 381292.9/16 381292.5/8 381292.11/16 381292.3/4 381292.13/16 381292.7/8 381292.15/16 381293’’ 381293.1/16 381293.1/8 381293.3/16 381293.1/4 381293.3/8 381293.1/2 381293.5/8 381293.3/4 381293.7/8 381294’’ 381294.1/8 381294.3/16 381294.1/4 381294.3/8 381294.1/2 381294.3/4 381294.5/8 381294.7/8 381295’’ 381295.1/8 381295.1/4Soquete de Impacto 2’’ 1/2
Medida Sext. 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 Compr. 90 95 100 105 105 100 115 120 120 120 120 120 137 137 137 137 137 142 142 142 142 142 Referência mm 6412950 6412955 6412960 6412965 6412970 6412975 6412980 6412985 6412990 6412995 64129100 64129105 64129110 64129115 64129120 64129125 64129130 64129135 64129140 64129145 64129150 64129155 Medida pol. 2 2.1/8 2.1/4 2.3/8 2.7/16 2.1/2 2.9/16 2.5/8 2.11/16 2.3/4 2.13/16 2.7/8 2.15/16 3 3.1/4 3.5/16 3.3/8 3.7/16 3.1/2 3.9/16 3.5/8 3.3/4 3.7/8 4 4.1/2 Compr. 90 90 95 100 100 100 100 105 105 105 105 105 105 110 110 110 110 110 120 120 120 120 120 120 137 Referência pol. 641292’’ 641292.1/8 641292.1/4 641292.3/8 641292.7/16 641292.1/2 641292.9/16 641292.5/8 641292.11/16 641292.3/4 641292.13/16 641292.7/8 641292.15/16 641293’’ 641293.1/4 641293.5/16 641293.3/8 641293.7/16 641293.1/2 641293.9/16 641293.5/8 641293.3/4 641293.7/8 641294’’ 641294.1/2Encaixe 1/2’’
Soquete Torx Interno
Encaixe 1/4’’ Encaixe 3/8’’ Não utilizar com máquina de impacto.
Soquete Torx 55 x 100 - Ref.: ST 13 55 100 - Usado no cabeçote do motor Ford Zetec.
Soquete Torx 55 x 180 - Ref.: ST 13 55 180 - Usado no cabeçote do motor GM, Citroen e Ford Zetec. É importante verificar que o torque aplicado seja correto para cada tipo de parafuso.
A marca Torx é propriedade da Camcar Textron - USA
Soquete Torx 1/2 x 40 x 180 - Ref.: ST 13 40 180 - Usado para parafusos dianteiros do cabeçote do motor Ford Zetec Rocam 1.0 e 1.6 8V. É importante verificar que o torque aplicado seja correto para cada tipo de parafuso.
Tx E 4 5 6 7 8 10 Ref. STI6 4 STI6 5 STI6 6 STI6 7 STI6 8 STI6 10 A 3,84 4,72 5,69 6,17 7,47 9,37 Tx E 5 6 7 8 10 11 12 14 Ref. STI10 5 STI10 6 STI10 7 STI10 8 STI10 10 STI10 11 STI10 12 STI10 14 A 4,72 5,69 6,17 7,47 9,37 10,05 11,13 12,95 Encaixe 3/8’’ Tx nº 10 15 20 25 27 30 40 45 50 55 A 2,71 3,25 3,83 4,38 4,95 5,48 6,60 7,77 8,78 11,17 Ref. ST10 10 ST10 15 ST10 20 ST10 25 ST10 27 ST10 30 ST10 40 ST10 45 ST10 50 ST10 55 Compr. 48 55 Encaixe 1/4’’ Tx nº 6 7 8 9 10 15 20 25 27 30 40 Ref. ST6 6 ST6 7 ST6 8 ST6 9 ST6 10 ST6 15 ST6 20 ST6 25 ST6 27 ST6 30 ST6 40 A 1,67 1,95 2,28 2,46 2,71 3,25 3,83 4,38 4,95 5,48 6,60 Tx nº 20 25 27 30 40 45 50 55 60 70 55 55 60 70 Ref. ST1320 ST1325 ST1327 ST1330 ST1340 ST1345 ST1350 ST1355 ST1360 ST1370 ST1355 100 ST1355 180 ST1360 100 ST1370 100 Compr. 52 59 75 100 180 100 100 ØA 3,83 4,38 4,95 5,48 6,60 7,77 8,78 11,17 13,21 15,49 11,17 11,17 13,21 15,55 ØA ØA
Soquete Torx
Encaixe 3/4’’ Compr. 60mm Tx E 20 24 28 Ref. STI 1920 STI 1924 STI 1928 Ø A 18,41 22,10 24,50 Encaixe 1/2’’ Ref. STI13 6 STI13 7 STI13 8 STI13 10 STI13 11 STI13 12 STI13 14 STI13 16 STI13 18 STI13 20 STI13 24 Ref. STI13 6L STI13 7L STI13 8L STI13 10L STI13 11L STI13 12L STI13 14L STI13 16L STI13 18L STI13 20L STI13 24L Tx E 6 7 8 10 11 12 14 16 18 20 24 A 5,69 6,17 7,47 9,37 10,05 11,13 12,85 14,71 16,64 18,41 22,10 Compr.38 Compr.60A marca Torx é propriedade da Camcar Textron - USA
Soquete Multidente
Encaixe 1/2’’ Dentado 10 Comprim. 140 Ref.: SD10140 AplicaçãoCabeçote Golf 1.8 e A3 1.8 acima de 98 Multidente 6 8 9 10 12 14 14 16 16 Comprim. 70 70 140 140 100 70 100 70 80 Ref. SMD13 6 70 SMD13 8 70 SMD13 9 140 SMD13 10 140 SMD13 12 100 SMD13 14 70 SMD13 14 100 SMD13 16 70 SMD20 16 80 Aplicação Homocinética VW - Ford Cabeçote do automóvel Toyota
Dobr. Portas Passat-Audi-Golf ; Cubo tras. Omega; Cabeçote Audi A3 1.8 até 98Aplicação
Cabeçote motor VW AP ; Gol 1.6 ; Golf e A3 1.6 Volante do Mercedes eletrônico
Polia do virabrequim F 1000 Volante do Mercedes eletrônico (1/2’’) Volante do Mercedes eletrônico (3/4’’) Mult. 6 8 8 9 10 10 12 12 14 14 16 Ref. SMD 13 6 70 SMD 13 8 70 SMD 13 8 100 SMD 13 9 140 SMD 13 10 100 SMD 13 10 140 SMD 13 12 100 SMD 13 12 150 SMD 13 14 70 SMD 13 14 100 SMD 13 16 70 Compr. 70 70 100 140 100 140 100 150 70 100 70 Encaixe 3/4’’ Encaixe 3/8’’ Mult. 5 6 8 Ref. SMD10 5 SMD10 6 SMD10 8 Mult. 16 Ref. SMD20 16 80 Compr. 80
Soquete Dentado 10mm
Não utilizar com máquina de impacto.
Consulte as normas de procedimento FIAT para a substituição dos parafusos, torques e ângulos de aperto.
Soquete Ribe
Ribe 6 6 8 R 8 S 8 R 12 12-5º 14 Comp. 85 200 100 75 240 140 100 140 Ref. SR13 6 85 SR 13 6 200 SR 8R 100 SR 8S 75 SR 13 8R 240 SR13 12 140 SR12-5º SR13 14 140 AplicaçãoMotor de partida e embreagem Palio - Tampa de válvulas, tampa da bobina e cárter Alfa 145 e 155
Tampa do óleo do Marea. Cabeçote Superior FIRE 16V Cabeçote Inferior FIRE 16V Tampa do óleo do Marea. Tampa de cilindros Tempra.
Cabeçote FIRE 8 V - Coroa do diferencial. Cabeçote da linha Marea.
