Grain Refinement of Al-5Ti-0.62C-0.2Nd Grain Refiner for Commercial Pure Aluminum
and Its Effect on Mechanical Properties
Wanwu Dinga,b* , Changfeng Lia,b, Taili Chena,b , Wenjun Zhaoa,b, Tingbiao Guoa,b, Jisen Qiaoa,b,
Tiandong Xiaa,b
Received: April 25, 2018; Revised: August 19, 2018; Accepted: October 25, 2018
It is well known that the mechanical properties of commercial pure Al are influenced by size of α-Al dendrites. In the present work, Al-5Ti-0.62C-0.2Nd grain refiner was prepared by a pure molten aluminum thermal explosion reaction, and its effect on grain refinement and mechanical properties of commercial pure Al was investigated. Microstructure and phase composition show that Al-5Ti-0.62C-0.2Nd grain refiner consists of α-Al, granular TiC, lump-like TiAl3, and block-like Ti2Al20Nd. Grain-refining tests on commercial pure Al show that an Al-5Ti-0.62C-0.2Nd grain refiner has better refining performance compared with Al-5Ti-0.62C grain refiner. With addition of 0.2-wt.%-Al-5Ti-0.62C-0.2Nd grain refiner, the average grain size of commercial pure Al can be refined from roughly 2800 to 155±5 µm effectively, and it has higher resistance to grain-refinement fading. On account of the grain refinement, the tensile strength and elongation are increased by approximately 18.3% and 83.5%, respectively.
Keywords: commercial pure aluminum, Al-5Ti-0.62C-0.2Nd grain refiner, grain refinement, mechanical properties.
* e-mail: dingww@lut.cn
1. Introduction
Grain refinement of aluminum and its alloys can improve
their mechanical properties, casting properties, deformation
treatment properties, and surface quality 1,2. Therefore, grain refinement is an important research topic in the modern aluminum processing industry. In the past two decades, aluminum grain refinement is mainly accomplished by a Al-Ti-B grain refiner 3-5. However, there are many problems in
the application of Zr/Cr alloys and boride agglomeration 6-8. As a result, some alternative choices were studied, such
as Al-Ti-C and Al-Ti-C-B grain refiners 8-11. However,
due to the poor wettability between liquid aluminum and graphite, Al-Ti-C grain refiner production is still a key problem in the aluminum industry 12,13. It is reported 13 that rare-earth (RE) elements have a grain effect as well. In the process of preparing an Al-Ti-C grain refiner, adding REs can facilitate the formation of tiny TiC particles and improve the grain-refining performance. Therefore, different Al-Ti-C-RE 13-15 grain refiners were prepared by the fluorine salt
and doping methods. However, current preparation methods
still have the problems of complex production steps and
high production cost.
RE oxides have been widely used as reaction promoters
in the preparation of composite materials 16,17, but there are
few studies on the application of RE oxides in the synthesis
of Al-Ti-C grain refiners. Wang et al. 18 have studied the effect of Ce2O3 on the thermodynamics of Al-Ti-C-RE prepared by the fluorine salt method. The results show that Ce2O3 not only reduces the reaction temperature, but also improves the wettability of C and Al melts, and promotes the formation of TiC particles. In the present work, Al-Ti-C-Nd grain refiner was synthesized by adding Nd2O3 in the thermal explosion reaction of pure molten aluminum. The grain refinement and its influence on mechanical capacities of commercial pure Al were investigated.
2. Experimental Procedures
The main raw materials for preparation of Al-5Ti-0.62C and Al-5Ti-0.62C-0.2Nd grain refiners include Al powder (99.6%, 61-74 µm in size), Ti powder (99.3%, 38-44 µm in size), C powder (99.8%, 11-30 µm in size), Nd2O3 powder (99.9%, 40-50 nm in size), and commercial pure Al (99.7%).
First, major start materials are converted into precast blocks
(Φ 25 mm×50 mm) by ball mixing and cold pressing under a pressure of 50-60 MPa. The molar ratio of Al, Ti, and C powder is 5:2:1 in the prefabricated blocks, while the content of Nd2O3 is 2 wt.%. Second, the pure aluminum ingot was melted in a resistance furnace at 800 ºC, and then the prefabricated blocks were added. About 3~5 min later, the melt was stirred by a graphite rod, and the melt
aState Key Laboratory of Advanced Processing and Recycling of Nonferrous Metals, Lanzhou 730050,
Gansu, China
bSchool of Materials Science and Engineering, Lanzhou University of Technology, Lanzhou 730050,
Ding et al.
2 Materials Research
temperature was again kept at 800ºC for 5 min. After purified and deslagged with C2C16, the melt was finally cast into a steel mould (Φ 50× 30 mm).
The grain-refinement test was carried out by adding Al-5Ti-0.62C and Al-5Ti-0.62C-0.2Nd grain refiners into commercial pure Al melt separately. First, the commercial pure Al was melted and heated to 730ºC. After that, a different amount of grain refiner (0.15 wt.%, 0.2 wt.%) was added to the molten aluminum, stirring thoroughly and maintaining the temperaturefor 5 min to ensure the homogeneity of the composition. After purified and deslagged with C2C16, the alloy melt was cast into a steel mold (Φ 50 mm×30 mm). To investigate the resistance to grain-refinement fading, different grain refiners were added to the melted aluminum and held for different time (10, 30, 60, 90, and 120 min) at 730ºC.
The phase composition of 0.62C and Al-5Ti-0.62C-0.2Nd grain refiners was identified using a Rigaku D/ max-A X-ray diffractometer (XRD, PW 3040/60, PANalytical, Rotterdam, The Netherlands) with a range of 0.02º for each step, 2θ, and 20º-90º for Cu K radiation, and an image plate
detector. The composition of the grain refiner was measured using inductively coupled plasma atomic-emission spectrometry (ICP-AES, HK-8100, Beijing Huake Yi Tong Analytical Instrument Co. Ltd.) and an infrared carbon apparatus (CS-320C, Chongqing Research Rui Instrument Co. Ltd.). The microstructure of the samples was characterized by large optical microscope (OM, MEF3, Leica, Inc., Vienna, Austria) and a JSM-7500 scanning electron microscope (SEM, SSX-550 fitted with energy-dispersive spectroscopy (EDS) equipment, Shimadzu Corp., Kyoto, Japan) after rough grinding, finishing of the grinding, and electrolytic polishing (10% HClO3 + 90% absolute alcohol, electrolyte composition in volume fraction, 20 V voltage). The refined samples were corroded by a specific reagent (60% HCl + 30% HNO3+ 5% HF +5% H2O, in volume fraction), and the grain size was determined by the linear intercept method.
According to GB/T 228-2002, the tensile test bars with 40 mm length and 8 mm diameter were processed from the
cast round bars to evaluate the mechanical properties of the
samples. Tensile tests were carried out under the condition of room temperature and strain rate of 0.5mm/min by using an MTS810 machine (MTS System Company, Eden Prairie, MN, USA). The tensile strength and elongation data of each alloy reported below are average values of three tensile specimens.
3. Results and Discussion
3.1. Microstructure of 0.62C and
Al-5Ti-0.62C-0.2Nd grain refiners
Figure 1 shows XRD patterns of the prepared Al-5Ti-0.62C and Al-5Ti-Al-5Ti-0.62C-0.2Nd grain refiners. It can be seen that, compared with Al-5Ti-0.62C, the Al-5Ti-0.62C-0.2Nd
grain refiner not only contains α-Al, TiAl3, and TiC, but also contains Ti2Al20Nd phase. In addition, the diffraction peaks of TiAl3 and TiC in Al-5Ti-0.62C-0.2Nd are obviously higher than those of the Al-5Ti-0.62C grain refiner, indicating that the addition of Nd2O3 can promote the synthesis of TiAl3 and TiC.

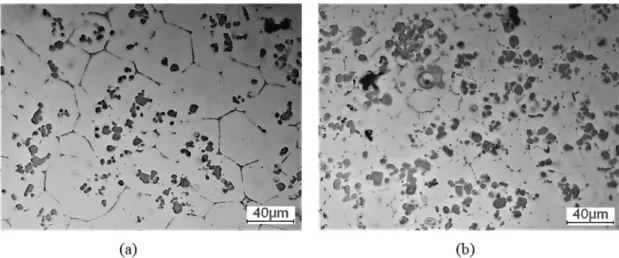

Figure 2 shows the optical microstructure of Al-5Ti-0.62C and Al-5Ti-0.62C-0.2Nd grain refiners. They are mainly composed of block-like particles and granular particles in the aluminum matrix, while the particles in Al-5Ti-0.62C-0.2Nd are obviously greater in number than those in the Al-5Ti-0.62C grain refiner. Figure 3 shows the magnification inverse scattering SEM images of Al-5Ti-0.62C and Al-5Ti-0.62C-0.2Nd grain refiners. From Fig. 3(a), it can be seen that there are a large number of block-like TiAl3 particles and granular TiC particles on the aluminum matrix of the Al-5Ti-0.62C grain refiner. In Fig. 3(b), a considerable number of
block-like particles are distributed on the aluminum substrate, and
most of the block-like particles are gray, while some of them are light white. In order to identify the phases, EDS analyses were performed on the different particles. Based on the energy-spectrum analysis of Figs. 4(a)-4(c)and analyzing the XRD pattern, the gray lump-like particles were determined to be TiAl3 and the granular particles were TiC, while the bright-white block-like particles were Ti2A120Nd.
Compared with the Al-5Ti-0.62C grain refiner, there is a new phase named Ti2Al20Nd that appeared in the Al-5Ti-0.62C-0.2Nd grain refiner. The reaction mechanism might be as follows: In the reaction process, the addition of Nd2O3 improved the wettability of Al powder, Ti powder, C powder, and aluminum melt. Firstly, the TiAl3 phase was formed by the reaction of Al with Ti at high temperature. Then, under the energy supply of aluminothermic reaction, a very high
temperature can be produced in the local high temperature microregion of melt, which causes the carbothermal
reaction (2) between Nd2O3 and C at high temperature,
and produces the gas CO, which makes the melt appear to be boiling intensively. As long as T>1920K (1647 ºC), the reaction can occur spontaneously. Once the reaction (2) begins, reaction (3) can easily start and produce TiC particles
because of △G3≦0, and [Nd] produced by the reaction has
higher chemical activity and is a very strong surfactant. It is mainly adsorbed on TiAl3 phase to form a new rare-earth composite phase Ti2Al20Nd. In addition, the heat produced by the continuous reaction of Al with Ti and the active [Nd] produced by reaction (3) are also beneficial to the occurrence of reaction (4) and the formation of TiC particles.
(1)
(2)
(3)
(4)
From the above analysis, we can see that Nd2O3 is the promoter of reactants and reactions. However, these theories are preliminary speculation, which is consistent with that reported by Wang et al. 18. Since there are few published reports on the formation mechanism of Ti2Al20Nd during in situ reaction synthesis of the Al-5Ti-0.62C grain refiner by adding Nd2O3 to the thermal explosion reaction of pure molten aluminum, further in-depth study and analysis of its thermodynamics and dynamics are needed in the future.
Figure 2. Optical microstructures of (a) Al-5Ti-0.62C and (b) Al-5Ti-0.62C-0.2Nd grain refiners.
Figure 3. Magnification images of (a) Al-5Ti-0.62C and (b) Al-5Ti-0.62C-0.2Nd grain refiners.
,
.
.
/
Ti
Al
TiAl
G
T
J mol
3
0 03432
152 445
3
1
D
+
=
=
-
Q
V
,
.
.
/
Nd O s
C s
NdC s
CO g
G
T
J mol
7
2
3
0 80324
1323 858
2 3 2
2
-D
+
=
+
=-
+
Q
Q
Q
Q
RV
V
V
V
W,
.
.
/
NdC s
Ti s
TiC
Nd
G
T
J mol
2
2
0 1507
294 859
2
3
D
+
=
+
=
-Q
Q
Q
V
V
V
! $
.
.
.
/
C s
Ti s
TiC
G
40 01091
T
184 058
J mol
D
+
=
=
-Q
Q
Q
V
V
Ding et al.
4 Materials Research
Figure 4. EDS composition analysis of points A, B and C in Fig 3(b): (a) point A; (b) point B; (c) point C.
3.2 Grain refinement of 0.62C and
Al-5Ti-0.62C-0.2Nd grain refiners on commercial
pure Al
Figure 5 shows the macroscopic structure of commercial
pure Al after adding Al-5Ti-0.62C and Al-5Ti-0.62C-0.2Nd grain refiners for 5 min separately. It can be observed from Fig. 5(a) , the macrostructure of unrefined Al is composed
of outer columnar grains and coarse equiaxed central grains,
with an average grain size of approximately 2800±5 µm. After adding a 0.15-wt.%-Al-5Ti-0.62C grain refiner, the macrocrystalline grains were obviously refined, and the columnar and coarse equiaxed grains were replaced by the equiaxed grains, as shown in Fig. 5(b). Upon increasing the addition level to 0.2 wt.%, an obvious change was found on the finer equiaxed grains, and the average grain sizes were approximately 190±5 µm, as shown in Fig. 5(c). Compared
with the Al-5Ti-0.62C grain refiner, when the addition of the Al-5Ti-0.62C-0.2Nd grain refiner was increased from 0.15 to 0.2 wt.%, the average grain size of pure Al decreased from 215±5 to 155±5 µm, as shown in Figs. 5(d) and 5(e). This proves that the grain-refinement performance of the Al-5Ti-0.62C-0.2Nd grain refiner is better than that of the Al-5Ti-0.62C grain refiner for the same addition amount.
refiner attenuates obviously with increasing refinement time, as shown in Figs. 6(d)-6(f).
Although there are still some differences in the grain-refinement mechanism of the Al-Ti-C grain refiner 19,20, it has been recognized that TiC can serve as a good nucleating agent for α-Al because of its low lattice mismatch with α-Al 21,22. As shown in Fig. 7, after adding the 0.2-wt.% Al-TiC grain refiner and holding for 5 min, the average grain size of commercial pure aluminum was approximately 325±5 µm. However, the refining effect of the Al-TiC grain refiner is obviously weakened with the prolongation of holding time. The reason may be that when TiC itself is used as a nucleus most of the TiC particles are pushed by the dendrites into the grain boundary, and the nucleation is limited 23. The quantity and activity of TiC particles have an important effect on the refining effect of the grain refiner. The Al-5Ti-0.62C grain refiner shows a better grain-refinement effect than the Al-TiC refiner, as shown in Fig. 7, the main reason being that the Al-5Ti-0.62C grain refiner not only contains a large number of fine and evenly distributed TiC particles, but also that these TiC particles are active and stable during the refining process due to the assistance of TiAl3 (i.e., the formation of the Ti-rich layer 23,24).
Compared with Al-5Ti-0.62C, the Al-5Ti-0.62C-0.2Nd grain refiner not only contains more TiC and TiAl3 particles, but also contains Ti2A120Nd. When the Al-5Ti-0.62C-0.2Nd grain refiner is added to the aluminum melt, the Ti2A120Nd will dissolve preferentially into TiAl3 as the temperature of
the melt is prolonged 13. The dissolution of Ti
2A120Nd can release the free Ti atoms early and provide a large amount of free Nd atoms for the aluminum melt. Owing to the high activity of Ti atoms and RE Nd atoms, they will form a composite protective layer of Ti and RE Nd atoms near TiC particles. The protective layer can promote the adaptability of TiC and α-Al structures 24, protect the TiC transformation into Al4C314,25, enhance their wettability, and improve the
heterogeneous nuclear potential of TiC particles. On the other side, the layer guarantees that even tiny TiC particles cannot easily precipitate together. The uniform distribution of TiC in the aluminum melt in a suspended state not only can fully undertake the role of the nucleation core, but can also provide a good grain-refinement recession and guarantee a long-term refining effect 26,27.
In addition, the released Nd atoms combine with dissociative atoms to form binary or multi-component compounds with high melting point and low density in aluminum melt,
Ding et al.
6 Materials Research
Figure 6. Effects of holding time on refinement effect of pure Al refined by different grain refiners (adding 0.2 wt.%): (a) Al-5Ti-0.62C-0.2Nd, 10 min; (b) Al-5Ti-0.62C-Al-5Ti-0.62C-0.2Nd, 30 min; (c) Al-5Ti-0.62C-Al-5Ti-0.62C-0.2Nd, 60 min; (d) Al-5Ti-0.62C, 10 min; (e) Al-5Ti-0.62C, 30 min; (f) Al-5Ti-0.62C, 60 min.
Figure 7. Relation curve between holding time and average size of solidified commercial pure Al samples refined by 0.2-wt.%-Al-TiC, Al-5Ti-0.62C and Al-5Ti-0.62C-0.2Nd grain refiners.
providing a heterogeneous nucleus for α-Al 28. Furthermore, the accumulation of RE elements at grain boundaries can effectively inhibit α-Al columnar crystal growth and promote the formation of finer equiaxed grains 29. Therefore, the grain-refinement efficiency of Al-5Ti-0.62C-0.2Nd is better than that of the Al-5Ti-0.62C grain refiner, as shown in Fig. 7.
3.3.Effects of different grain refiners on
mechanical properties of commercial pure Al
Figure 8 shows the mechanical properties of commercial
pure aluminum refined by different grain refiners at room temperature after holding for 5 min. As shown in Fig. 8, the tensile strength and elongation of unrefined pure aluminum are 55.7 MPa and 24.3%, respectively. After addition of 0.2-wt.%-Al-TiC and Al-5Ti-0.62C grain refiners, the tensile
strength and elongation reached 58.1 and 62.2 MPa, and 36.6% and 41.5%, respectively. Compared with the Al-5Ti-0.62C grain refiner, the tensile strength and elongation of the refined samples with the 0.2-wt.%-Al-5Ti-0.62C-0.2Nd grain refiner were increased by 5.9% and 7.5%, respectively, and reached 65.9 MPa and 44.6%, respectively, which were 18.3% and 83.5% higher than those of unrefined pure aluminum, respectively.
Following the Hall-Petch type equation :
where 𝜎s is the yield stress, 𝜎0 is the force needed to move a single dislocation to overcome the lattice friction,
k is a constant, and d is the average grain diameter. It can be seen that the yield strength of the material is proportional to the square root of the reciprocal of the grain size. Therefore, grain refinement can not only improve the strength of the material, but also improve the plasticity of the material. In addition, the Nd and Ti combine with dissociative atoms to form binary or multi-component compounds with high melting point and low density in aluminum melt, can lead to
Orowan strengthening and thermal mismatch strengthening
if they are distributed in α-Al grain boundaries and fine grain strengthening if they are distributed at α-Al grain boundaries.
The results show that Al-5Ti-0.62C-0.2Nd is an excellent grain refiner, which can refine grain and improve tensile strength and elongation of commercial pure Al. In addition, the grain refinement efficiency of Al-5Ti-0.62C-0.2Nd is better than that of Al-5Ti-0.62C grain refiner. Therefore, a new method of preparing Al-5Ti-0.62C-0.2Nd grain refiner by adding Nd2O3 in the thermal explosion reaction of pure aluminum is proposed, which provides the possibility for industrial application.
4. Conclusions
A novel Al-5Ti-0.62C-0.2Nd grain refiner was prepared, and its effect on the grain refinement and mechanical properties of commercial pure Al was studied. The following
conclusions were drawn:
1. Al-5Ti-0.62C-0.2Nd grain refiner containing A1, TiAl3, TiC and Ti2A120Nd phase was successfully prepared by adding Nd2O3 in the thermal explosion reaction of pure molten aluminum.
2. Al-5Ti-0.62C-0.2Nd grain refiner has better refining performance compared with an Al-5Ti-0.62C grain refiner. With addition of 0.2-wt.%-Al-5Ti-0.62C-0.2Nd grain refiner, the average grain size of commercial pure Al can be refined from roughly 2800 to 155±5 µm effectively, and it has higher resistance to grain-refinement fading.
3. When 0.2-wt.%-Al-5Ti-0.62C-0.2Nd grain refiner
was added, the tensile strength and elongation
reached 65.9 MPa and 44.6%, an increase of 18.3% and 83.5%, respectively.
5. Acknowledgments
We would like to thank LetPub (www.letpub.com) for
providing linguistic assistance during the preparation of
this manuscript. This research was financially supported by the National Natural Science Foundation of China (No. 51661021; 51665033). The authors would like to acknowledge the financial support of the Natural Science Foundation of Gansu Province in China (No. 1606RJZA161) and Gansu key research and development program (18YF1GA061).
Conflicts of Interest: The authors declare no conflict of interest.
6. References
1. Wang TM, Chen ZN, Fu HW, Gao L, Li T. Grain refinement mechanism of pure aluminum by inoculation with Al-B master alloys. Materials Science and Engineering: A. 2012;549:136-143. 2. Gezer BT, Toptan F, Daglilar S, Kerti I. Production of Al-Ti-C
grain refiners with the addition of elemental carbon. Materials & Design. 2010;31(Supp 1):S30-S35.
3. Zhao HL, Yue JS, Gao Y, Weng KR. Grain and dendrite refinement of A356 alloy with Al-Ti-C-RE master alloy. Rare Metals. 2013;32(1):12-17.
4. Liu XF, Bian XF, Qi XG, Thompson M, Ma JJ. Study of the nucleation mechanism of a-Al grains after addition of Al-Ti-B master alloys. Acta Metallurgica Sinica (English Letters). 1998;11(3):157-162.
5. Vinod Kumar GS, Murty BS, Chakraborty M. Development of Al-Ti-C grain refiners and study of their grain refining efficiency on Al and Al-7Si alloy. Journal of Alloys and Compounds. 2005;396(1-2):143-150.
6. Lu L, Dahle AK. Effect of combined additions of Sr and AlTiB grain refiners in hypoeutectic Al-Si foundry alloys. Materials
Science and Engineering: A. 2006;(435-436):288-296.
7. Moldovan P, Popescu G. The grain re?nement of 6063 aluminium using Al-5Ti-1B and Al-3Ti-0.15C grain re?ners. JOM. 2004;56(11):59-61.
8. Nie JF, Ma XG, Li PT, Liu XF. Effect of B/C ratio on the microstructure and grain refining efficiency of Al-Ti-C-B master alloy. Journal of Alloys and Compounds. 2011;509(4):1119-1123. 9. Tian WJ, Li PT, Gao T, Nie JF, Liu XF. Transformation from
Al3BC phase to doped TiB2 or TiC particles in Al-Ti melts.
Journal of Alloys and Compounds. 2013;561:48-53.
10. Li PT, Ma XG, Li YG, Nie JF, Liu XF. Effects of trace C addition on the microstructure and refining efficiency of Al-Ti-B master alloy. Journal of Alloys and Compounds. 2010;503(2):286-290. 11. An XG, Liu Y, Ye JW, Wang LZ, Wang PY. Grain refining
efficiency of SHS Al-Ti-B-C master alloy for pure aluminum and its effect on mechanical properties. Acta Metallurgica
Sinica (English Letters). 2016; 29(8):742-747.
kd
s 0
1 2
-Ding et al.
8 Materials Research
12. Nie JF, Ding HM, Wu YY, Liu XF. Fabrication of titanium diboride-carbon core-shell structure particles and their application as high-efficiency grain refiners of wrought aluminum alloys.
Scripta Materialia. 2013;68(10):789-792.
13. Xu C, Xiao WL, Zhao WT, Wang WH, Shuji H, Hiroshi Y, et al. Microstructure and formation mechanism of grain-refining particles in Al-Ti-C-RE grain refiners. Journal of Rare Earths. 2015;33(5):553-560.
14. Wang ZJ, Si NC. Synthesis and Refinement Performance of the Novel Al-Ti-B-RE Master Alloy Grain Refiner. Rare Metal
Materials and Engineering. 2015;44(12):2970-2975.
15. Zhao HL, Song Y, Li M, Guan SK. Grain refining efficiency and microstructure of Al-Ti-C-RE master alloy. Journal of
Alloys and Compounds. 2010;508(1):206-211.
16. Liu YM, Xu BF, Cai X, Li LH, Chen QL. The preparation of in situ TiC/Al composite by additive CeO2. Journal of
Shanghai Jiaotong University. 2004;38(7):1122-1125.
17. Wu QL, Sun YS, Xue F, Zhuo J. Effect of CeO2 Addition on Microstructure and Properties of In-Situ TiC Strengthened Steel. Journal of Chinese Rare Earth Society. 2008;26(1):92-96.
18. Wang LD, Wei ZL, Yang XB, Zhu DY, Chen X, Chen YL, et al. Thermodynamic analysis of Al-Ti-C-RE prepared by rare earth oxide Ce2O3. The Chinese Journal of Nonferrous
Metals. 2013;23(10):2928-2935.
19. Ma Q. Heterogeneous nucleation on potent spherical substrates during solidification. Acta Materialia. 2007;55(3):943-953. 20. Greer AL, Bunn AM, Tronche A, Evans PV, Bristow DJ.
Modelling of inoculation of metallic melts: application to grain refinement of aluminium by Al-Ti-B. Acta Materialia. 2000;48(11):2823-2835.
21. Small C, Prangnell P, Hayes F, Hardman A. Microstructure and grain refining efficiency of TiC particles in Al-Ti-C grain refining
master alloys. In: ICAA-6: 6th International Conference on
Aluminium Alloys; 1998 Jul 5-10; Toyohashi, Japan.
22. Banerji A, Reif W. Development of Al-Ti-C grain refiners containing TiC. Metallurgical Transactions A. 1986;17(12):2127-2137. 23. Xia TD, Ding WW, Zhao WJ, Wang XJ, Xu YT. Effect of TiAl3
on distribution of TiC particles in aluminum matrix and nucleation of a(Al) grain. The Chinese Journal of Nonferrous Metals. 2009;19(11):1948-1955.
24. Ding WW, Zhao WJ, Xia TD. Grain refining action of Al-5Ti-C and Al-TiC master alloys with Al-5Ti master alloy addition for commercial purity aluminium. International Journal of Cast
Metals Research. 2014;27(3):187-192.
25. Yu LN, Liu XF. The relationship between viscosity and refinement efficiency of pure aluminum by Al-Ti-B refiner. Journal of Alloys
and Compounds. 2006;425(1-2):245-250.
26. Ding WW, Xu C, Zhang HX, Zhao WJ, Guo TB, Xia TD. Effect of Al-5Ti-0.62C-0.2Ce Master Alloy on the Microstructure and Tensile Properties of Commercial Pure Al and Hypoeutectic Al-8Si Alloy. Metals. 2017;7(6):227-240.
27. Yang YF, Xu CL, Wang HY, Liu C, Jiang QC. Effect of Y2O3 on microstructure and mechanical properties of hypereutectic Al-20%Si alloy. Transactions of Nonferrous Metals Society of
China. 2006;16:1332-1335.
28. Nie RN, Jin TN, Fu JB, Xu GF, Yang JJ, Zhou JX, et al. Research on Rare Earth in Aluminum. Materials Science Forum. 2002;396-402:1731.
