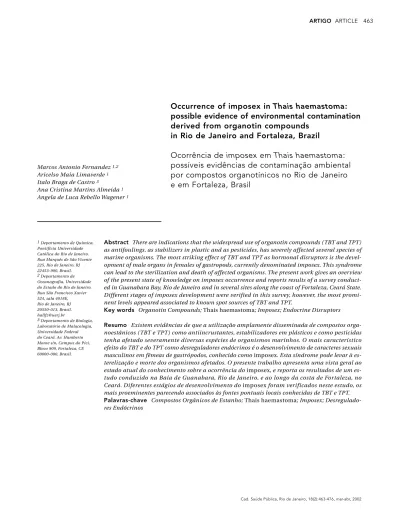

Occurrence of imposex in
Thais haemastoma
:
possible evidence of environmental contamination
derived from organotin compounds
in Rio de Janeiro and Fortaleza, Brazil
Ocorrência de
imposex
em
Thais haemastoma
:
possíveis evidências de contaminação ambiental
por compostos organotínicos no Rio de Janeiro
e em Fortaleza, Brasil
1 Departamento de Química, Pontifícia Universidade Católica do Rio de Janeiro. Rua Marquês de São Vicente 225, Rio de Janeiro, RJ 22453-900, Brasil. 2 Departamento de Oceanografia, Universidade do Estado do Rio de Janeiro. Rua São Francisco Xavier 524, sala 4018E, Rio de Janeiro, RJ 20550-013, Brasil. [email protected]
3 Departamento de Biologia, Laboratório de Malacologia, Universidade Federal do Ceará. Av. Humberto Monte s/n, Campus do Pici, Bloco 909, Fortaleza, CE 60000-000, Brasil.
Marcos Antonio Fernandez 1,2 Aricelso Maia Limaverde 1 Italo Braga de Castro 3
Ana Cristina Martins Almeida 1 Angela de Luca Rebello Wagener 1
Abstract There are indications that the widespread use of organotin compounds (TBT and TPT) as antifoulings, as stabilizers in plastic and as pesticides, has severely affected several species of marine organisms. The most striking effect of TBT and TPT as hormonal disruptors is the devel-opment of male organs in females of gastropods, currently denominated imposex. This syndrome can lead to the sterilization and death of affected organisms. The present work gives an overview of the present state of knowledge on imposex occurrence and reports results of a survey conduct-ed in Guanabara Bay, Rio de Janeiro and in several sites along the coast of Fortaleza, Ceará State. Different stages of imposex development were verified in this survey, however, the most promi-nent levels appeared associated to known spot sources of TBT and TPT.
Key words Organotin Compounds;Thais haemastoma; Imposex; Endocrine Disruptors
Resumo Existem evidências de que a utilização amplamente disseminada de compostos orga-noestânicos ( TBT e TPT) como antiincrustantes, estabilizadores em plásticos e como pesticidas tenha afetado severamente diversas espécies de organismos marinhos. O mais característico efeito do TBT e do TPT como desreguladores endócrinos é o desenvolvimento de caracteres sexuais masculinos em fêmeas de gastrópodos, conhecido como imposex. Esta síndrome pode levar à es-terelização e morte dos organismos afetados. O presente trabalho apresenta uma vista geral ao estado atual do conhecimento sobre a ocorrência do imposex, e reporta os resultados de um es-tudo conduzido na Baía de Guanabara, Rio de Janeiro, e ao longo da costa de Fortaleza, no Ceará. Diferentes estágios de desenvolvimento do imposexforam verificados neste estudo, os mais proeminentes parecendo associados às fontes pontuais locais conhecidas de TBT e TPT.
Introduction
Organotin compounds have been in use since the 1960s. Due to its powerful antifouling effect tributyltin (TBT) has been utilized as an addi-tive in paintings applied to ships, fishing nets, marine installations and cooling systems based on seawater (Bacci & Gaggi, 1989; Fent, 1996; Horiguchi et al., 1994; Short & Thrower, 1986). Triphenyltin (TPT) has been used in associa-tion with TBT in antifouling paintings but is al-so effectively applied as acaricide and fungi-cide in agriculture and for wood preservation (Favoreto, 2000; Fent, 1996; Mensink et al., 1997). Di-substituted organotin compounds are used as plastic stabilizers in PVC production and as catalysts in some industrial processes.
Environmental problems derived from the use of organotin compounds as antifouling agents were first reported by the end of the 1970s after a sharp decline in oyster produc-tion was observed in the Basin d’Arcachon, France (Alzieu et al., 1986, 1989). The main bio-logical alterations initially ascribed to the wide-spread use of organotins were balling in oysters (Alzieu et al., 1986, 1989; Axiak et al., 1995; Dyrinda, 1992), death of mollusk larvae (Hori-gushi et al., 1998) and imposition of male sexu-al characteristics to femsexu-ales of gastropods (El-lis & Pattisina, 1990; Fioroni et al., 1991; Gibbs & Bryan, 1987). This last effect, denominated imposex is induced in several gastropod species both in the field and in laboratory studies at very low concentrations of TBT (imposex is ini-tiated at less than 1ng/L-1TBT in Nucella la-pilus, and at 3-5ng/L-1all females may be ster-ilized (Gibbs & Bryan, 1994; concentrations of 1ng/L-1can induce imposex development in
Thais clavigera, Horiguchi et al., 1995). This wide-ly observed effects suggests that TBT and TPT may also act as endocrinal disruptors (Horiguchi et al., 1995, 1997a; Liu & Suen, 1996; Math-iessen & Gibbs, 1998; Oehlmann et al., 1996).
The detrimental effects of TBT and TPT up-on nup-on-target organisms led to restrictiup-ons to the use, first in France in 1982, where antifoul-ing paintantifoul-ings containantifoul-ing TBT were prohibited for boats of less than 25m length (Sarradin et al., 1991; Waite et al., 1991), and then in many other countries, such as the United Kingdom (1987), United States (1988), Sweden, New Zealand (1989), Australia, Japan (1990) and Denmark (1991) (Champ & Pugh, 1987; de Mora et al., 1989; Horiguchi et al., 1994; Kure & Depledge, 1994; May et al., 1993; Stewart & de Mora, 1990; Stuer-Lauridsen & Dahl, 1995). Germany and Switzerland imposed restrictions also for fresh-water environments (Champ, 1986). Recently
the International Maritime Organization (IMO) recommended the global banning of organotin compounds as antifoulings by 2008 and the prohibition of new application in boats by 2003 (Champ, 1999; ten Hallers-Tjabbes, 1997). In Brazil, however, there is no legislation impos-ing restriction or addressimpos-ing permissible levels, and up to very recently no investigations have been conducted to evaluate possible environ-mental impacts.
By the beginning of the last decade, restric-tions imposed to the use of TBT and TPT in de-veloped countries had led to the decrease in concentration of the parent compounds and decay products, both in waters and organisms. Recoveries were observed in oyster popula-tions of Basin d’Arcachon (Alzieu, 1986) and in gastropods from coastal environments in Unit-ed Kingdom (Evans et al., 1996; Tester et al., 1996; Tester & Ellis, 1995). However, Kure & De-pledge (1994) reported that in Denmark, high concentrations could still be observed in filter feeders years after establishment of the re-stricted use.
Although TBT and TPT can be decomposed in the water column rather fast (half life time ~ 7-15 days) (Foale, 1993), estimated half life of the order of 1 year for toxic sediments, to decades for anoxic sediments, are indicative of relatively high persistence in these environ-ments, specially in the absence of oxygen (Dow-son et al., 1996). In environments with high particulate loads where photochemical reac-tions are less active and transport to sediments may occur before extensive degradation in the water column takes place, sediments are a po-tential source of TBT and TPT even after the use has been interrupted (Dowson et al., 1993, 1996; Langston & Pope, 1995; Sarradin et al., 1991, 1994). The tendency to accumulate in sediments becomes evident from the levels of TBT reported for contaminated sediments that may range from 300ng.g-1up to 1,000ng.g-1or
more, when compared to slightly contaminat-ed scontaminat-ediments, where levels are in the range of 10 to 50ng.g-1(Waite et al., 1991). Values as high as 4,500ng.g-1TBT in sediments where
Little is known about the behavior of organ-otin compounds in tropical marine environ-ments. Imposex has been observed in several species of gastropod on the coast of India ( Cro-nia konkanensis– Vishwa-Kiran & Anil, 1999); New Zealand (Lepsiella scobina, Thais orbita, Haustrum haustorium, Xymene ambiguus, Taron dubius, Cominella virgata, Amalda (Ba-ryspira) australis– Stewart et al., 1992); Aus-tralia (Lepsiella vinosa– Nias et al., 1993; T. or-bita – Foale, 1993); Thailand (Thais distin-guenda, Thais bitubercularis, Morula musiva– Bech, 1999a, 1999b; Phalium bisulcatum, Dis-torsio reticularis, Murex occa, Murex trapa, Murex tribulus, Chicoreus capucinus, Thais gra-data, Thais lacera, Babylonia areolata, Nassar-ius livescens, NassarNassar-ius stolatus, Hemifusus ter-natanus, Voluma conchlidium, Cymbiola no-bilis, Melo melo– Swennen et al., 1997); Indone-sia (Thais kieneri, Thais savignyi, Vasum tur-binellus– Evans et al., 1995); Malaysia (T. gra-data, C. capucinus, T. clavigera, Thais jubilaea, T. bitubercularis– Tan, 1997, 1999) and Hong Kong (T. clavigera– Blackmore, 2000). In South America, imposex occurrence is reported in Chile (Chorus giganteus, Xanthochorus cassidi-formis, Nucella crassilabrum– Gooding et al., 1999) and Brazil (Castro et al., 2000; Fernandez et al., 1998; Magalhães et al., 1997). Information on concentration in waters (Hashimoto et al., 1998; Malaca straits), sediments (Kan-Atireklap et al., 1997a – Thailand; Ko et al., 1995 – Hong Kong; Stewart & de Mora, 1992 – Fiji Island; King et al., 1989 – New Zealand) and organisms (bivalves, Perna viridis– Kan-Atireklap et al., 1997b; Mytidus edulis andAequipecten irradi-ans– Guolan & Yong, 1995; gastropods, T. clav-igera, Thais tuberosa andMorula granulata– Liu et al., 1997) are scarce, although reported levels specially in areas including intensive navigation and harbor installations have been high (over 1,000ng.g-1) and of the same order as those available for temperate climate areas (Morgan et al., 1998; Ruiz et al., 1998; Swennen et al., 1997; ten Hallers-Tjabbes et al., 1994). As for the effect on humans, although organotin compounds are considered extremely toxic, environmental routes of exposure are usually not considered very critical (Schweinfurth & Günzel, 1987; Tsuda et al., 1995). However, the proved accumulation in filter feeders may be an important pathway to consumers (Guolan & Yong, 1995).
Besides causing hormonal disruption, evi-dences that organotins seem to act upon the immune system of mammals (cetacean, rab-bits, rats and sheep) (Dacasto et al., 1994a, 1994b; Kannan & Falandysz, 1997; Kannan et
al., 1997) and invertebrates (mollusks and tuni-cates) (Cima et al., 1995; Morcillo & Porte, 1997) call for epidemiological investigations focused upon sensitive populations.
In Brazil, imposex in Thais haemastoma
was first reported by Magalhães et al. (1997), in Santos Bay, São Paulo, by Fernandez et al. (1998), in Guanabara Bay, Rio de Janeiro and by Castro et al. (2000), in Fortaleza, Ceará.
The present work reports recent findings on possible TBT related effects in two of these ar-eas of the Brazilian coast.
Methodology
The development of imposex in T. haemastoma
was used as a tool to search for indications of biological stress derived from TBT and TPT in Guanabara Bay and in coastal areas of Fort-aleza. The bioindicator was selected based on the following properties: (1) ubiquity along the Brazilian coast (Leal, 1984); (2) tendency to im-posex development (Spence et al., 1990); (3) ex-isting scientific evidences of imposex related to TBT and TPT for organisms of the same genus (T. clavigeraand Thais bronni) (Horiguchi et al., 1997a; Liu & Suen, 1996).
Figures 1 and 2 show the sampling stations from which 20 to 50 specimens of T. haemas-toma were collected. Once in the laboratory, the specimens were narcotized by immersion in a 1:1 solution of local seawater and MgCl2 7%. Shell length was measured with the aid of a vernier calliper and after removing the soft parts from the shell, sex was determined based on the presence (female) or absence (male) of albumen and sperm ingestion glands (Figure 3) (Gibbs & Bryan, 1987; Horiguchi et al., 1994; Spence et al., 1990). Penis length was also mea-sured in males and imposexed females as in Axiak et al. (1995) e Stewart et al. (1992).
where CFIis the average penis length in impo-sexed females and CM is the average penis length in males at each sampled station.
The first index is a good indicator of impo-sex response at low environmental expositions, when not all females show male attributes (Curtis, 1994; Gibbs & Bryan, 1994). The penis development indexes, RPLI and RPSI, are more adequate for medium (RPLI) or high (RPSI) im-posex levels.
In this last situation, penis length of impo-sexed females approaches those of males, and the RPLI index becomes less effective in
dis-criminating between different levels of alter-ations. VDSI is the only index that responds ef-fectively over a broad range of imposex. It is useful in assessing the reproductive capacity of the studied population; populations with a mean VDSI above IV are comprised of sterile females, and show reduced reprodutive capac-ity (Gibbs & Brian, 1994; Oehlmann et al., 1996, 1998; Stroben et al., 1995).
VDSI was obtained through two different approaches: (1) by using the scale of Gibbs (Gibbs & Bryan, 1987), and (2) by using a modi-fied scale of seven levels of imposex, developed by Fernandez et al. (1998). The development of a modified scale was required because of the difficulty to discriminating among initial stages of the Gibbs scale without using microscopy and histological analysis. The new scale pro-vided an easy field method for assessing vas deferens sequence using only a magnifying glass. In this scale, level I of imposex was deter-mined as in Solé et al. (1998) while discrimina-tion between level III and IV was set according to Horiguchi et al. (1994). The other imposex levels were determined following the original scale of Gibbs. It should be emphasized that this scale was originally developed for N. la-pilus. The same approach, however, could be adapted for other genera with little modifica-tions (Fioroni et al., 1991; Horiguchi et al., 1994; Solé et al., 1998; Stewart et al., 1992; Stroben et al., 1995). The modified scale shows a slight tendency to underestimated results, however, there is in general, general agreement with the Gibbs scale (Table 1). The more de-tailed VDSI development scheme proposed by Fioroni et al. (1991) and Stroben et al. (1995), was tested, but histological analyses are re-quired for its application.
Results and discussion
Imposex in Guanabara Bay, Rio de Janeiro
The results for the biomonitoring in Guana-bara Bay are shown in Table 2. Figures 2 and 4 show a comparison of the actual distribution of T. haemastoma with that in the 1960s, and the geographic incidence of imposex, respec-tively. The potential sources of TBT and TPT are depicted in Figure 3.
As can be observed from Figure 2, the actu-al distribution of T. haemastomadiffers signifi-cantly from that reported for the 1960s when the use of TBT in several areas of the globe was initiated. The species nowadays is absent in all stations at the inner areas of the bay (stations
Atlantic Ocean
Fortaleza
Mucuripe Harbor
Ceará River
Coco River
Pacoti River
1 2
3 4
5
6
7 8
9
10
0 2 4 km
35’ 38o30’
03o45’
Guanabara Bay
Guaratiba Point
Atlantic Ocean Sepetiba Bay
Cagarras Islands
44o00’ W 43o00’ W
N
23o00’ S •••
•••• Figure 1
1, 2, 3 and 4) even though the past occurrence of T. haemastoma in stations 2, 3 and 4 have been reported by Leal (1984). In the sampling of August 1999, only empty shells were found in station 1.
Organisms were not found during the sam-pling campaigns of February and August 1999 in station 5, located under the central part of the Rio-Niterói Bridge, and in station 9 (1998) located in a sewage contaminated area near a marina. However, while in all these areas T. haemastoma was absent, the mussell Perna perna,a common prey for the gastropod, was abundant, unless for the bridge site where mussel is frequently harvested for human con-sumption. The same feature was observed in stations 6 (presence of only one juvenile speci-men), 8 (presence of only two young organ-isms) and 12, which are located near a harbor and two marinas. The presence of young or-ganisms may indicate that a recolonization of the areas is possible, as reported by Spence et al. (1990) and Blackmore (2000) for species having planktonic larvae. It should be noted that stations 9 and 12 are in sites of restricted water circulation, a condition that favors the build up of critical TBT levels in the water (Gibbs & Bryan, 1994; Horiguchi et al., 1994, 1997b; Nicholson et al., 1998).
Imposex indexes were generally high in the stations located inside Guanabara Bay (Figure 4). The relative abundance of imposexed fe-males in a certain site is a tool for impact as-sessment when concentrations of TBT in water are relatively low and only a fraction of the fe-males is masculinized (Curtis, 1994; Gibbs & Bryan, 1994). For all sites inside Guanabara Bay 100% of the analyzed females showed some de-gree of sexual alteration, and only in four sta-tions outside the bay, normal and less impo-sexed females were present (Ponta do Arpoa-dor, Itacoatiara, Cagarras Island and the con-trol station at Barra de Guaratiba) (Figure 4).
RPLI and RPSI levels are shown in Figure 4. Except for some stations (RPLI: 17b, 19 and 20; RPSI: 15, 17b, 18, 19 and 20) where due to the small penis size in the females, indexes could not be determined, all other stations inside Guanabara Bay showed measurable indexes. RPSI and RPLI values above 30 and 70, respec-tively, obtained for some inner sites of the bay have been considered high in other regions known as polluted by TBT. For instance, values ranging from 60.9 to 127.3 for RPLI and from 22.2 to 206.2 for RPSI were recorded in T. clav-igera and T. bronni (Horiguchi et al., 1994, 1997b) from the most polluted sites in Japan, around Aburatsubo in the Miura Peninsula.
Values over 100 indicate that imposexed fe-males mean penis lenghts (RPLI), or volumes (RPSI) are greater than those of males from the same locations. Nicholson et al. (1998) reported that values of RPSI in N. lapilus were in the range 37.9 to 44.8 near Sollun Voe, an oil tanker port, and Spence et al. (1990) recorded values as high as 48.3 to 81.7 in T. haemastomacollected from harbors and marinas in the Azores.
An increasing gradient in imposex intensity towards inner areas can be observed both in the western (RPLI from N.A. to 106.3 and RPSI from N.A. to 107.6 in stations 11, 13, 15, 17, 20) and eastern (RPLI from N.A. to 107.6 and RPSI from N.A. to 125 in stations 7, 14, 16, 19) sides of the bay entrance. Those gradients include all impo-sex levels so far detected in Guanabara Bay.
Figure 2
Map showing the sampling stations and main sources of TBT and TPT in Guanabara Bay.
Guanabara Bay
M CT
NB
SA
NB
NB S
M
M
M
SA
Itacoatiara 2Km >>
<< 60km Barra de Guaratiba 1960
1999 Leal, 1984 This study Stations TBT/TPT sources
43 15’ 43 05’
22 40’
22 50’
23 00’
The penis length is a better tool to charac-terize the first and medium stages of imposex development than the penis volume, therefore, RPLI values seems to be more adequate for dis-criminating between stations than RPSI, in Guanabara Bay. Similar findings were reported by Horiguchi et al. (1994), in T.clavigeraand T. bronnialong the Japanese coast.
The observed VDSI values and existing im-posex gradients (Figure 4) confirmed the ob-servations given above. In stations 6 and 11 sterile organisms with VDSI levels V and VI were found. In station 6 in Boa Viagem, Niterói, only a female was found amongst 15 adults
harvested during February 1999 while in Au-gust 1999 only a few young organisms were available for sampling. In station 11, organisms of VDSI V and VI were found in 1997 and in Jan-uary 2000, only a single female amongst 18 adults was present showing VDSI of IV. The un-balanced sex distribution in those stations may result from selective extinction of females due to the blockage of capsule glands, a phenome-non observed in other regions and described by Spence et al. (1990), Nicholson et al. (1998) and Blackmore (2000).
Based on the results obtained for the sever-al indexes given above, we inferred that three
Table 1
Comparison between the Gibbs scale and the adapted scale for vas deferens sequence index (VDSI).
Gibbs scale Characteristics of imposex development Modified scale
0 Normal Female 0
I Beginning of penis formation (A),
Beginning of vas deferens formation (G) I
II Formed penis, length < 2mm II
III Formed penis, length > 2mm, distal vas deferens present (G) III (RPLIi < 0.5) IV Completely developed vas deferens IV (RPLIi > 0.5) V Vulva blocked by growth of vas deferens tissues V
VI Dark mass of aborted capsules in capsule gland VI
RPLIi = Relative Penis Length Index of female i = [CFI i/ CM] * 100 (adapted from Gibbs & Bryan, 1987). ts
sd k
pt os
dg cm
me
tn pn foot op
ov k
ag
sig cg os
me tn
dg cm
v foot op
ov k
ag sig
cg os
me tn
dg cm
pn
foot
op
1 3 cm
B
A C
Figure 3
Schematic representation of T. haemastoma. (A) male; (B) healthy female; (C) imposexed female.
regions, with different degrees of impact exist in Guanabara Bay: (1) the region extending from the Rio-Niterói Bridge to the northern area of the bay (stations 1 to 4) where presently the bioindicator is not available. Here, at the present stage of knowledge, it is difficult to at-tribute the absence of organisms to TBT or TPT contamination because this region receives heavy loads of other pollutants derived from domestic and industrial sources; (2) the region between the Rio-Niterói Bridge and the mouth of the bay (stations 5 to 14) where high indexes of imposex and strong imposex gradients were found, and (3), regions outside of Guanabara Bay (stations 15 to 20) in which only organisms with low imposex levels were found, and lesser impact is to be expected.
The results of the two samplings in Arpoa-dor (station 17) showed a wide range of
vari-ability that can be ascribed to the difference in size and sexual development of the organisms available for sampling. This was the greatest variability observed in repeated sampling of the same station.
The water circulation pattern and the prox-imity to possible sources of TBT seem to be im-portant factors controlling the degree of impo-sex in the studied area. This trend to higher im-posex indexes (RPSI > 10; RPLI >30; VDSI ≥II) with increasing boat traffic or anchoring and water stagnation is a typical feature of TBT contamination (Axiak et al., 1995; Smith & McVeagh, 1991; Spence et al., 1990; Stewart et al., 1992) that has been used to map zones of influence in a regional (Minchin et al., 1996; Minchin & Minchin, 1997) and national scale (Horiguchi et al., 1994, 1997b; ten Hallers-Tjabbes et al., 1994, 1996). A few authors
Table 2
Results of biological monitoring in Guanabara Bay.
Station Date Location n (males/females) % imposex RPLI RPSI VDSI
1 August 1999 Paquetá Island (*) NF NA NA NA NA
2 March 1998 Valente Inlet (*) NF NA NA NA NA
3 March 1998 Zumbi Beach (*) NF NA NA NA NA
4 March 1998 Matoso Point (*) NF NA NA NA NA
5a February 1999 Rio-Niterói Bridge (*) NF NA NA NA NA
5b August 1999 Rio-Niterói Bridge (*) NF NA NA NA NA
6 February 1999 Feiticeiras Rocks 1 (NA) NA NA NA NA
7a February 1999 Boa Viagem Island (*) 15 (14/1) 100.0 107.6 125.0 V
7b August 1999 Boa Viagem Island (*) 10 (NA) NA NA NA NA
8 September 1997 Glória Marine (*) 2 (1/1) NA NA NA NA
9 March 1998 São Francisco Inlet (*) NF NA NA NA NA
10 September 1997 Flamengo Beach 8 (5/3) 100.0 106.3 120.0 IV
11a April 1997 Urca, São João Fortress (*) 27 (18/9) 100.0 90.3 79.0 IV 11b July 1997 Urca, São João Fortress (*) 29 (15/14) 100.0 90.8 75.0 V 11c January 2000 Urca, São João Fortress (*) 18 (17/1) 100.0 81.6 54.4 IV 11X January 2000 Urca, São João Fortress, internal area 21 (9/12) 100.0 21.8 1.1 I-III
12a April 1997 Rio de Janeiro Yatch Club NF NA NA NA NA
12b January 2000 Rio de Janeiro Yatch Club 1 (1/0) NA NA NA NA
13 May 1998 – March 2000 Vermelha Beach 188 (120/68) 100.0 44.0 13.0 III
14 July 1998 Adão Beach (*) 17 (12/5) 100.0 83.1 57.0 IV
15 July 1997 Leme Beach 17 (11/6) 100.0 8.5 < 0.1 I
16a July 1998 Itaipú Point (*) 15 (10/5) 100.0 32.7 1.4 II
16b July 1998 Itaipú Point (*) 17 (11/6) 100.0 37.6 13.0 II
17a May – August 1998 Arpoador Point (*) 26 (16/10) 30.0 44.1 8.6 II 17b January 2000 Arpoador Point (*) 20 (11/9) 22.2 < 0.1 < 0.01 I-II 18 May 1997 Barra de Guaratiba Beach 51 (26/25) 19.0 5.6 <0.1 I 19 March 2000 Itacoatiara Beach (*) 30 (15/15) 53.3 < 0.1 < 0.01 0-I 20 April 2000 Cagarras Islands 27 (12/15) 40.0 < 0.1 < 0.01 0-I
NF = Animal not found; NA = Not analyzed; (*) = Animal reported before in this station;
Glória Marine Flamengo Beach
Rio de Janeiro Yatch Club
São Francisco Inlet
Adão Beach Vermelha Beach
Leme Beach Urca
Itaipu Point N.E.
N.E. N.E.
N.E.
N.A. N.A. – 44.1
106.3
107.6
90.8
44.0 83.1
8.5 37.6
N.A. 2km
5.6 60km
Glória Marine Flamengo Beach
Rio de Janeiro Yatch Club
São Francisco Inlet
Adão Beach Vermelha Beach
Leme Beach Urca
Itaipu Point N.E.
N.E. N.E.
N.E.
N.A. N.A. – 8.6
120
125
79
13 57
< 0.1 13
N.A. 2km
< 0.1 60km Figure 4a
Intensity of imposex in Guanabara Bay as determined according to RPLI index.
Displayed area corresponds to the actual area where T. haemastomais still found in the bay.
Figure 4b
Intensity of imposex in Guanabara Bay as determined according to RPSI index.
(Davies et al., 1987; Evans, 1999; Nicholson et al., 1998) based on experimental observations have proposed that TBT impact would be re-stricted to sites directly under influence of spe-cific sources showing, therefore, little tendency to migrate over long distances from the input area. Our results seems to confirm this obser-vation. In Guanabara Bay the actual absence of the organism in previously reported sites is an additional evidence of impact (Huet et al., 1996; Minchin & Minchin, 1997; Smith, 1996) that may be derived from TBT, especially when mussels are abundant (Morcillo & Porte, 1997).
Imposex in the coast area of Fortaleza, Ceará
Imposex was registered in several of the sam-pling sites (Figure 1 and Table 3) and the higher indexes were found in females collected from areas near the Mucuripe Harbor. In the Pache-co Beach and in Titanzinho, Caça e Pesca and Sabiaguaba, beaches where boat cruises are virtually absent, no imposex or related anom-alies were observed. The absence of imposex in the last three beaches located east of Mucuripe Harbor is due to the water circulation in the re-gion that prevents contamination predomi-nantly flowing from east to west (Maia, 1998). In station 2 (Dois Coqueiros Beach) evidence
of imposex in stage I (VDSI) was observed in females that showed a small protuberance as a first step towards penis development. Because in this initial stage, the penis dimensions can-not be measured, RPSI was can-not determined for this station, neither was it for Formosa and Poço da Draga, where females displayed simi-lar alterations. In station 3 (Barra do Ceará), advanced stages of imposex were found with VDSI ranging between II and III, a RPLI of 31.9 and a RPSI of 3.2. In this area there is a small shipyard and boat cruising is intensive. In Mu-curipe Beach (station 6), near MuMu-curipe Har-bor and Mansa Beach (station 7), also close to the harbor, where boat traffic associated to fishing and tourism as well as large ship traffic are very intense, VDSI was V, except for a single female in Mansa Beach that had VDSI equal to IV. The values of the RPLI and RPSI obtained for both station 6 (RPLI 63.6 and RPSI 25.7) and station 7 (RPLI 82.8 and RPSI 61.7) are compa-rable to those found in Guanabara Bay and elsewhere, and support the conclusions drawn from the vas deferens index.
Contrary to the observations of Bryan et al. (1986) in N. lapilluswhose populations had se-verely decreased prior to the establishment of restrictions to TBT use, populations of T. hea-mastomain Fortaleza were apparently stable and abundant in all sampling sites. The
intra-Glória Marine Flamengo Beach
Rio de Janeiro Yatch Club
São Francisco Inlet
Adão Beach Vermelha Beach
Leme Beach Urca
Itaipu Point N.E.
N.E. N.E.
N.E.
0 – I 0 – II
IV
125
IV
III
IV
I II
0 – I 2km
I 60km Figure 4c
Intensity of imposex in Guanabara Bay as determined according to VDSI index.
capsular development of N. lapillus(Bauchet, 1989; Feare, 1970) seems to favor population decline in polluted sites because organisms are directly exposed to the contaminant since the early stages of life. As T. haemastoma develop-ment presents a stage of planktonic larvae, ar-eas can be re-colonized by organisms import-ed from uncontaminatimport-ed sites (Spence et al., 1990) promoting constant provision of healthy individuals.
T. haemastoma spawning was observed even in sites where stage IV of VDSI occurred, both in Fortaleza and in Guanabara Bay. A sim-ilar observation was reported by Gibbs & Bryan (1986), Fioroni et al. (1991) and Oehlmann et al. (1996) that concluded reproductive failure will only occur in organisms displaying VDSI above V, a limit above which blockage of the fe-male genitals initiates. In Mansa Beach, how-ever, the majority of the sampled organisms showed VDSI V with penis and vas deferens completely formed and blocked genital cavity. In this case spawning was not observed, sug-gesting that affected females were unable to re-produce.
Conclusions
In the present investigation, sexual alterations leading to imposex in females of neogastropod
T. Haemastoma were observed in Rio de Janeiro and in Ceará coastal areas. This reprodutive anomaly has been attributed to the presence of TBT and TPT in the water (Gibbs & Bryan, 1994; Horiguchi et al., 1997a, 1997b; ten Hallers-Tjabbes et al., 1994). Although concentration levels in water are not yet available for the
ob-served sites, the distribution of imposex levels points towards a possible cause-effect relation with TBT and/or TPT.
The biomonitoring results for Guanabara Bay and Fortaleza show that higher imposex indexes are occurring in areas of harbor and marina activities, confirming the trend ob-served by other authors in several regions of the globe. Because Guanabara Bay is subjected to various sources of organic and inorganic pollutants, it is difficult to establish unambigu-ous cause-effect relationships. However, the actual absence of T. Haemastoma in areas where it was commonly found in the past, rais-es concern on the extension of possible effects of TBT contamination in the bay.
All sampled females from Guanabara Bay displayed some level of imposex. Differently, in Fortaleza some sites were unaffected and, pos-sibly due to the lower level of contamination of the marine environment, no evidence of ex-tinction were registered.
The wide distribution of T. haemastoma
along the Brazilian coast makes the species a good candidate for large scale biological screening of “hot spots” of TBT and TPT pollu-tion, although further laboratory and field studies are required to establish a quantitative relation between imposex level and concentra-tion of TBT and/or TPT in the marine environ-ment.
Table 3
Results of biological monitoring in Fortaleza, Ceará.
Station Date Location n (males/females) % imposex RPLI RPSI VDSI
1 March 2000 Pacheco Beach 27/23 0.0 0.0 0 0
2 March 2000 Dois Coqueiros Beach 20/30 100.0 < 0.1 < 0.01 I-II
3 October 2000 Barra do Ceará Beach 15/35 100.0 31.9 3.2 III
4 November 1999 Formosa Beach 26/24 100.0 < 0.1 < 0.01 I
5 December 1999 Poço da Draga Beach 32/18 100.0 < 0.1 < 0.01 I
6 September 1999 Mucuripe Beach 36/14 100.0 63.6 25.7 IV
7 March 2000 Mansa Beach 32/18 100.0 82.8 61.7 V
8 January 2000 Titanzinho Beach 25/25 0.0 0.0 0.0 0
9 January 2000 Caça e Pesca Beach 22/28 0.0 0.0 0.0 0
10 December 1999 Sariguaba Beach 20/30 0.0 0.0 0.0 0
Acknowledgements
The authors are grateful to Fundação de Amparo à Pesquisa do Estado do Rio de Janeirofor financial sup-port and to L. Gebara, G. Telles, L. Bispo, P. Miyamo-to, P. Nogueira, L. Varoveska, G. Uller, C. A. Meirelles and to Projeto Maqua/Universidade do Estado do Rio de Janeirofor the collaboration in the field work. L. P. Maia, from Departamento de Geologia, Universidade Federal do Ceará, kindly furnished information on coastal currents in Fortaleza. We also thank J. Oehl-mann, M. Bech and M. Solé for very useful discus-sions about the development of this work.
References
ALZIEU, C., 1986. TBT detrimental effects in oyster culture in France – Evolution since antifouling paint regulation. In: Oceans 1986 International Organotin Symposium, Proceedings, v. 4, pp. 1130-1134. Washington, DC: Marine Technology Society.
ALZIEU, C.; SANJUAN, J.; DELTREIL, J. P. & BOREL, M., 1986. Tin contamination in Arcachon bay: Ef-fects in oyster shell anomalies. Marine Pollution Bulletin, 20:22-26.
ALZIEU, C.; SANJUAN, J.; MICHEL, P.; BOREL, M. & DRENO, J. P., 1989. Monitoring and assessment of butyltins in Atlantic coastal waters. Marine Pollu-tion Bulletin, 17:494-498.
AXIAK, V.; VELLA, A. J.; MICALLEF, D.; CHIRCOP, P. & MINTOFF, B., 1995. Imposex in Hexaplex truncu-lus(Gastropoda: Muricidae): First results from biomonitoring of tributyltin contamination in the Mediterranean. Marine Biology, 121:685-691. BACCI, E. & GAGGI, C., 1989. Organotin compounds
in harbor and marina waters from the northern Tyrrhenian sea. Marine Pollution Bulletin, 20: 290-292.
BAUCHET, P. A., 1989. A review of poecilogony in gas-tropods. Journal of Molluscan Studies,55:67-78. BECH, M., 1999a. Increasing levels of
tributyltin-in-duced imposex in muricid gastropod at Phuket Island, Thailand. Applied Organometallic Chem-istry,13:1-6.
BECH, M., 1999b. Sensivity of different gastropod to tributyltin contamination. Phuket Marine Biolog-ical Center Special Publication,19:1-6.
BLACKMORE, G., 2000. Imposex in Thais clavigera
(neogastropoda) as an indicator of TBT (trib-utyltin) bioavailability in coastal waters of Hong Kong. Journal of Molluscan Studies, 66:1-8. BRYAN, G. W.; GIBBS, P. E. & HUMERSTONE, L. G.,
1986. The decline of the gastropod Nucella lapil-lus around southwest England: Evidence for trib-utyltin from antifouling paints. Journal of the Ma-rine Biological Association of the UK, 66:611-640.
CASTRO, I. B.; CASCON, H. M. & FERNANDEZ, M. A., 2000. Imposex em Thais heamastoma(Linnaeus, 1767) (Mollusca:Gastropoda). Uma indicação da contaminação por organoestânicos na costa do Município de Fortaleza-Ceará-Brasil. Arquivos de Ciências do Mar, 33:51-56.
CHAMP, M. A., 1986. The science of the total environ-ment. In: Oceans 1986 International Organotin Symposium, Proceedings, v. 4, pp. 1093-1100. Washington, DC: Marine Technology Society. CHAMP, M. A., 1999. The need for the formation of an
independent, international marine coatings board.
Marine Pollution Bulletin, 38:239-246.
CHAMP, M. A. & PUGH, W. L., 1987. Tributyltin an-tifouling paints: Introduction and overview. In: Oceans 1987 International Organotin Symposium,
Proceedings, v. 4, pp. 1296-1308. Halifax: Marine Technology Society.
CIMA, F.; BALLARIN, L.; BRESSA, G. & SABBADIN, A., 1995. Immunotoxicity of butyltins in tunicates.
Applied Organometallic Chemistry, 9:567-572. CURTIS, L. A., 1994. A decade long perspective on a
bioindicator of pollution: Imposex on Ilyanassa obsoletaon cape henlopen, Delaware bay. Marine Environmental Research, 38:291-302.
DACASTO, M.; ABATE, O. & NEBBIA, C., 1994b. Tossi-cità subacuta dell’acetato di trifenil-stagno (TPTA) nel coniglio: Osservazioni cliniche ed alterazioni ematologiche, ematochimiche ed enzimatiche.
Schweizer Archiv für Tierheilkunde, 136:111-115. DACASTO, M.; VALENZA, F.; NEBBIA, C.; RE, G.;
COR-NAGLIA, E. & SOFFIETTI, M. G., 1994a. Patholog-ical findings in rabbits and sheep following the subacute administration of triphenyltin acetate.
Veterinary and Human Toxicology, 36:300-304. DAVIES, I. M.; BAILEY, S. K. & MOORE, D. C., 1987.
Tributyltin in scottish sea lochs, as indicated by degree of imposex in the dogwhelk, Nucella lapil-lus(L.). Marine Pollution Bulletin, 18:400-404. DE MORA, S. J.; KING, N. G. & MILLER, M. C., 1989.
Profiles and the apparent rate of TBT degrada-tion. Environmental Technology Letters ,10:901-908.
DIRYNDA, E., 1992. Incidence of abnormal shell thick-ening in the pacific oyster Crassostrea gigasin poole harbour (UK), subsequent to the 1987 TBT restrictions. Marine Pollution Bulletin, 24:156-163.
DOWSON, P. H.; BUBB, J. M. & LESTER, J. N., 1996. Persistence and degradation pathways of trib-utyltin in freshwater and estuarine sediments. Es-tuarine, Coastal and Shelf Science, 42:551-562. DOWSON, P. H.; BUBB, J. M.; WILLIANS, T. P. &
LESTER, J. N., 1993. Degradation of tributyltin in freshwater and estuarine marina sediments. Wa-ter Science and Technology, 28:133-137.
ELLIS, D. V. & PATTISINA, L. A., 1990. Widespread neogastropod imposex: A biological indicator of global TBT contamination? Marine Pollution Bul-letin, 21:248-253.
EVANS, S. M., 1999. Tributyltin pollution: The cata-strophe that never happened.Marine Pollution Bulletin, 38:629-636.
EVANS, S. M.; DAWSON, M.; DAY, J.; FRID, C. L. J.; GILL, M. E.; PATTISINA, L. A. & PORTER, J., 1995. Domestic waste and TBT pollution in coastal ar-eas of Ambon island (ar-eastern Indonesia). Marine Pollution Bulletin, 30:109-115.
EVANS, S. M.; EVANS, P. M. & LEKSONO, T., 1996. Widespread recovery of dogwhelks,Nucella lapi-dus (L.), from tributyltin contamination in the North Sea and Clyde Sea. Marine Pollution Bul-letin, 32:263-269.
FAVORETO, R., 2000. Adaptação e Validação de
Metodologia Analítica para a Determinação de Resíduos de Pesticidas Organoestânicos em Solo. Dissertação de Mestrado, Araraquara: Instituto de Química, Universidade Estadual Paulista. FEARE, C. J., 1970. The reproductive cycle of the dog
whelk Nucella lapillus. Proceedings of the Mala-cological Society of London, 39:125-137.
FENT, K., 1996. Ecotoxicology of organotin com-pounds. Critical Reviews in Toxicology, 26:1-117. FERNANDEZ, M. A.; GEBARA, L.; TELLES, G.; BISPO,
L. & WAGENER, A. R., 1998. Imposex em Thais (stramonita) haemastomana Baía da Guanabara, Rio de Janeiro: Possível impacto do uso de tribu-tilestanho como antiincrustante. In: 5oEncontro Brasileiro de Ecotoxicologia, Anais, p. 45. Itajaí: Centro de Educação Superior em Ciências Tec-nológicas, da Terra e do Mar, Universidade do Vale do Itajaí.
FIORONI, P.; OEHLMANN, J. & STROBEN, E., 1991. The pseudohermaphoditism of prosobanchs: Morfo-logical aspects. Zoollogischer Anzeiger,286:1-26. FOALE, S., 1993. An evaluation of the potential of
gas-tropod imposex as a bioindicator of tributyltin pollution in Port Phillip Bay, Victoria. Marine Pol-lution Bulletin, 26:546-552.
GIBBS, P. E. & BRYAN, G. W., 1986. Reprodutive failure in populations of the dog-whelk Nucella lapillus, ceased by imposex induced by tributyltin from antifouling paints. Journal of the Marine Biologi-cal Association of the UK,66:767-777.
GIBBS, P. E. & BRYAN, G. W., 1987. In: Oceans 1987 In-ternational Organotin Symposium, Proceedings,
v. 4, pp. 1296-1308. Halifax: Marine Technology Society.
GIBBS, P. E. & BRYAN, G. W., 1994. Biomonitoring of tributyltin (TBT) pollution using the imposex re-sponse of neogastropod molluscs. In: Biomoni-toring of Coastal Waters and Estuaries( J. Kess & M. Kramer, ed.), pp. 205-226, Boca Raton: CRC Press.
GOODING, M.; GALLARDO, C. & LEBLANC, G., 1999. Imposex in three marine gastropod species in Chile and potential impact on muriciculture. Ma-rine Pollution Bulletin, 38:1227-1231.
GUOLAN, H. & YONG, W., 1995. Effects of tributyltin chroride on marine bivalve mussels. Water Re-search, 29:1877-1884.
GURUGE, K. S.; IWATA, H.; TANAKA, H. & TANABE, S., 1997a. Butyltin accumulation in the liver and kid-ney of seabirds. Marine Environmental Research, 44:191-199.
GURUGE, K. S.; TANABE, S.; FUKUDA, M.; YAMAG-ISHI, S. & TATSUKAWA, R., 1997b. Comparative distribution of butyltin compounds in commom cormorants (Phalacrocorax carbo) from Japan.
Toxicological and Environmental Chemistry, 58:197-208.
HASHIMOTO, S.; WATANABE, M.; NODA, Y.; HAYASHI, T.; KURITA, Y.; TAKASU, Y. & OTSUKI, A., 1998. Concentration and distribution of butyltin compounds in a heavy tanker route in the strait of Malacca and in Tokyo bay. Marine Environmental Research, 45:169-177.
HORIGUCHI, T.; IMAI, T.; CHO, H. S.; SHIRAISHI, H.; SHIBATA, Y.; MORITA, M. & SHIMIZU, M., 1998. Acute toxicity of organotin compounds to the lar-vae of the rock shell, Thais clavigera, the disk abalone, Haliotis discusand the giant abalone,
Haliotis madaka. Marine Environmental Re-search, 46:469-473.
HORIGUCHI, T.; SHIRAISHI, H.; SHIMIZU, M. & MORITA, M., 1994. Imposex and organotin com-pounds in Thais clavigerae T. bronniin Japan.
Journal of the Marine Biology Association of the UK, 74:651-669.
HORIGUCHI, T.; SHIRAISHI, H.; SHIMIZU, M. & MORITA, M., 1997a. Effects of triphenyltin chlo-ride and five other organotin compounds on the development of imposex in the rock shell, Thais clavigera. Environmental Pollution, 95:85-91. HORIGUCHI, T.; SHIRAISHI, H.; SHIMIZU, M. &
MORITA, M., 1997b. Imposex in sea snails, caused by organotin (tributyltin and triphenyltin) pollu-tion in Japan: A survey. Applied Organometallic Chemistry, 11:451-455.
HORIGUCHI, T.; SHIRAISHI, H.; SHIMIZU, M.; YA-MASAKI, S. & MORITA, M., 1995. Imposex in japanese gastropods (Neogastropoda and Meso-gastropoda): Effects of tributyltin and triph-enyltin from antifouling paints. Marine Pollution Bulletin,31:402-405.
HUET, M.; PAULET, Y. M. & GLÉMAREC, M., 1996. Tributyltin (TBT) pollution in the coastal waters of West Brittany as indicated by imposex in Nu-cella lapillus. Marine Environmental Research, 41:157-167.
in the blubber of marine mammals. Marine Pol-lution Bulletin, 28:607-612.
KAN-ATIREKLAP, S.; TANABE, S. & SANGUANSIN, J., 1997a. Contamination by butyltin compounds in sediments from Thailand. Marine Pollution Bul-letin, 34:894-899.
KAN-ATIREKLAP, S.; TANABE, S.; SANGUANSIN, J.; TABUCANON, M. S. & HUNGSPREUGS, M., 1997b. Contamination by butyltin compounds and organochlorine residues in green mussel (Perna viridis, L.) from Thailand coastal waters.
Environmental Pollution, 97:79-89.
KANNAN, K. & FALANDYSZ, J., 1997. Butyltin residues in sediment, fish, fish-eating birds, harbour por-poise and human tissues from the polish coast of the Baltic sea. Marine Pollution Bulletin, 34:203-207.
KANNAN, K.; SENTHILKUMAR, K.; LOGANATHAN, B. G.; TAKAHASHI, S.; ODELL, D. K. & TANABE, S., 1997. Elevated accumulation of tributyltin and its breakdown products in bottlenose dolphins (T ur-siops truncatus) found stranded along the U. S. Atlantic and gulf coasts. Environmental Science and Technology, 31:296-301.
KING, N.; MILLER, M. & DE MORA, S., 1989. Trib-utyltin levels for sea water, sediment and selected marine species in coastal Northland and Auck-land, New Zealand. New Zealand Journal of Ma-rine and Freshwater Research, 23:287-294. KO, M. M. C.; BRADLEY, G. C.; NELLER, A. H. &
BROOM, M. J., 1995. Tributyltin contamination of marine sediments of Hong Kong. Marine Pollu-tion Bulletin, 31:249-253.
KURE, L. K. & DEPLEDGE, M. H., 1994. Accumulation of organotin inLittorina littoreaand Mya arenar-iafrom Danish coastal waters. Environmental Pollution, 84:149-157.
LANGSTON, W. J. & POPE, N. D., 1995. Determinants of TBT adsorption and desorption in estuarine sediments. Marine Pollution Bulletin, 31:32-43. LEAL, J. H. N., 1984. Contribuição ao Conhecimento
da Taxonomia em Thais(stramonita) haemas-toma(Linnaeus, 1767) (Mollusca,Gastropoda,
Muricidae). Dissertação de Mestrado, Rio de Ja-neiro: Departamento de Zoologia, Universidade Federal do Rio de Janeiro.
LIU, L. L.; CHEN, S. J.; PENG, W. Y. & HUNG, J. J., 1997. Organotin concentrations in three inter-tidal neogastropods from the coastal waters of Taiwan. Environmental Pollution, 98:113-118. LIU, L. L. & SUEN, I. J., 1996.Organotins promoting
the development of imposex in the oyster drill
Thais clavigera.Journal of Fisheries Society of Tai-wan, 23:149-154.
MAGALHÃES, C. A.; STRUCHI, P. P. & ASBAHR, M., 1997. Evidências de imposex em populações de
Stramonita haemastoma (Gastropoda: Proso-branchia) em áreas portuárias do Estado de São Paulo. In: Congresso Latino-Americano de Ciên-cias do Mar, Anais, p. 282. Santos: Instituto Ocea-nográfico, Universidade de São Paulo/Associação Latino-americana de Investigadores em Ciências do Mar.
MAIA, L. P., 1998. Procesos Costeros y Balance Sedi-mentario a lo Largo de Fortaleza (NE-Brasil): Im-plicaciones para una Gestón Adecuada de la Zona
Litoral. Tesis de Doctorado, Barcelona: Universi-tad de Barcelona.
MATHISSEN, P. & GIBBS, P. E., 1998. Critical appraisal of the evidence for tributyltin-mediated en-docrine disruption in mollusks. Environmental Toxicology and Chemistry,17:37-43.
MAY, L.; WHALEN, D. & ENG, G., 1993. Interaction of triorganotin compounds with Chesapeake bay sediments and benthos. Applied Organometallic Chemistry, 7:437-441.
MENSINK, B. P.; VAN HATTUM, B.; ten HALLERS-TJABBES, C. C.; EVERAARTS, J. M.; KRALT, H.; VETHAAK, A. D. & BOON, J. P., 1997. Tributyltin Causes Imposex in the Common Whelk,Buccinum
undatum– Mechanism and Occurrence.
NIOZ-Rapport 1997-6. Texel: Netherlands Institute for Sea Research.
MINCHIN, A. & MINCHIN, D., 1997. Dispersal of TBT from a fishing port determined using the dog-whelk Nucella lapillusas an indicator. Environ-mental Technology,18:1225-1234.
MINCHIN, D.; STROBEN, E.; OEHLMANN, J.; BAUER, B.; DUGGAN, C. B. & KEATINGE, M., 1996. Bio-logical indicators used to map organotin conta-mination in Cork harbour, Ireland. Marine Pollu-tion Bulletin,32:188-195.
MORCILLO, Y. & PORTE, C., 1997. Interaction of trib-utyl-and triphenyltin with the microsomal monooxygenase system of molluscs and fish from the western Mediterranean. Aquatic Toxicology, 38:35-46.
MORGAN, E.; MURPHY, J. & LYONS, R., 1998. Imposex in Nucella lapillusfrom TBT contamination in south-west Wales: A continuing problem around ports. Marine Pollution Bulletin, 36:840-843. NIAS, D. J.; McKILLUP, S. C. & EDYVANE, K. S., 1993.
Imposex in Lepsiella vinosafrom southern Aus-tralia. Marine Pollution Bulletin, 26:380-384. NICHOLSON, G. J.; EVANS, S. M.; PALMER, N. &
SMITH, R., 1998. The value of imposex in the dog-whelk Nucella lapillusand the common whelk
Buccinum undatumas indicators of TBT contam-ination. Invertebrate Reproduction and Develop-ment, 34:289-300.
OEHLMANN, J.; BAUER, B.; MINCHIN, D.; SCHULTE-OEHLMANN, U.; FIORONI, P. & MARKERT, B., 1998. Imposex in Nucella lapillusand intersex in
Littorina littorea: Interspecific comparison of two TBT-induced effects and their geographical uni-formity. Hydrobiologia, 378:199-213.
OEHLMANN, J.; FIORONI, P.; STROBEN, E. & MARK-ERT, B., 1996. Tributyltin (TBT) effects on Ocineb-rina aciculata (Gastropoda: Muricidae): Imposex development, sterilization, sex change and popu-lation decline. Science of the Total Environment, 188:205-223.
SARRADIN, P.-M.; ASTRUC, A.; SABRIER, R. & AS-TRUC, M., 1994. Survey of butyltin compounds in Arcachon Bay sediments. Marine Pollution Bul-letin, 28:621-628.
SCHWEINFURTH, H. A. & GÜNZEL, P., 1987. The trib-utyltins: Mammalian toxicity and risk evaluation for humans. In: Oceans 1987 International Organ-otin Symposium, Proceedings, v. 4, pp. 1421-1431. Halifax: Marine Technology Society.
SHORT, J. W. & THROWER, F. D., 1986. Tri-n-butyltin caused mortality of chinook salmon, O ncorkin-chus ishaurytscha, on transfer to TBT-treated ma-rine net pen. In: Oceans 1986 International Organ-otin Symposium, Proceedings, v. 4, pp. 1202-1212, Washington, DC: Marine Technology Society. SMITH, P. J., 1996. Selective decline in imposex levels
in the dogwhelk Lepsiella scobinafollowing a ban on the use of TBT antifoulants in New Zealand.
Marine Pollution Bulletin, 32:362-365.
SMITH, P. J. & McVEAGH, M., 1991. Widespread organotin pollution in New Zealand coastal wa-ters as indicated by imposex in dogwhelks. Ma-rine Pollution Bulletin, 22:409-413.
SOLÉ, M.; MORCILLO, Y. & PORTE, C., 1998. Imposex in the commercial snail Bolinus brandarisin the northwestern Mediterranean. Environmental Pol-lution, 99:241-246.
SPENCE, S. K.; HAWKINS, S. J. & SANTOS, R. S., 1990. The mollusc Thais haemastoma– An exhibitor of imposex and potential biological indicator of tributyltin pollution. Marine Ecology, 11:147-156. STEWART, C. & DE MORA, S. J., 1990. A review of the degradation of tri(n-butyl)tin in the marine envi-ronment. Environmental Technology, 11:565-570. STEWART, C. & DE MORA, S. J., 1992. Elevated tri(n-butyl)tin concentrations in shellfish and sediments from Suva harbour, Fiji. Applied Organometallic Chemistry,6:507-512.
STEWART, C.; DE MORA, S. J.; JONES, M. R. L. & MILLER, M. C., 1992. Imposex in New Zealand neogastropods. Marine Pollution Bulletin, 24: 204-209.
STROBEN, E.; SCHULTE-OEHLMANN, U.; FIORONI, P. & OEHLMANN, J., 1995. A comparative method for easy assessment of coastal TBT pollution by the degree of imposex in Prosobranch species.
Haliotis, 24:1-12.
STUER-LAURIDSEN, F. & DAHL, B., 1995. Source of organotin at a marine water/sediment interface – A field study. Chemosphere, 30:831-845.
SWENNEN, C.; RUTTANADAKUL, S.; SINGH, H. R.; MENSINK, B. P. & ten HALLERS-TJABBES, C. C., 1997. Imposex in sublittoral and littoral gas-tropods from the gulf of Thailand and strait of Malacca in relation to shipping. Environmental Technology, 18:1245-1254.
TAKAHASHI, S.; MUKAI, H.; TANABE, S.; SAKAYAMA, K.; MIYAZAKI, T. & MASUNO, H., 1999. Butyltin residues in livers of humans and wild terrestrial mammals and in plastic products. Environmen-tal Pollution, 106:213-218.
TAN, K. S., 1997. Imposex in three species of Thais
from Singapore, with additional observations on
T. clavigera(Küster) from Japan. Marine Pollution Bulletin,34:577-581.
TAN, K. S., 1999. Imposex in Thais gradata and
Chicoreus capucinus(Mollusca, Neogastropoda, Muricidae) from the straits of Johor: A case study using penis length, area and weight as measures of imposex severity. Marine Pollution Bulletin, 39:295-303.
TANABE, S., 1999. Butyltin contamination in marine mammals – A review. Marine Pollution Bulletin, 39:62-72.
ten HALLERS-TJABBES, C. C., 1997. Tributyltin and polices for antifouling. Environmental Technolo-gy, 18:1265-1268.
ten HALLERS-TJABBES, C.; EVERAARTS, J. M.; MENSINK, B. P. & BOON, J. P., 1996. The decline of the North Sea whelk (Buccinum undatum l.) between 1970 and 1990: A natural or a man-in-duced event? Marine Ecology, 17:333-343. ten HALLERS-TJABBES, C.; KEMP, J. F. & BOON, J. P.,
1994. Imposex in whelks (Buccinum undatum) from the open North Sea: Relation to shipping traffic intensities. Marine Pollution Bulletin, 28: 311-313.
TESTER, M. & ELLIS, D., 1995. TBT controls and the recovery of whelks from imposex. Marine Pollu-tion Bulletin,30:90-91.
TESTER, M.; ELLIS, D. V. & THOMPSON, J. A. J., 1996. Neogastropod imposex for monitoring recovery from marine TBT contamination. Environmental Toxicology and Chemistry,15:560-567.
TSUDA, T.; INOUE, T.; KOJIMA, M. & AOKI, S., 1995. Daily intakes of tributyltin and triphenyltin com-pounds from meals. Journal of AOAC Internation-al, 78:941-943.
VISHWA-KIRAN, Y. & ANIL, A. C., 1999. Record of im-posex in Cronia konkanesis (Gastropoda, Murici-dae) from Indian waters. Marine Environmental Research, 48:123-130.
WAITE, M. E.; WALDOCK, M. J.; THAIN, J. E.; SMITH, D. J. & MILTON, S. M., 1991. Reductions in TBT concentrations in UK estuaries following legisla-tion in 1986 and 1987. Marine Environmental Re-search,32:89-111.
Submitted on 27 December 2000
