ContentslistsavailableatScienceDirect
Applied
Surface
Science
j o u r n a l ho me p ag e :w w w . e l s e v i e r . c o m / l o c a t e / a p s u s c
Antimicrobial
and
antioxidant
surface
modification
toward
a
new
silk-fibroin
(SF)-
l-Cysteine
material
for
skin
disease
management
Frederico
Nogueira
a,b,
Luíza
Granadeiro
a,
Claudia
Mouro
b,
Isabel
C.
Gouveia
b,∗aCICS-UBI–HealthSciencesResearchCentre,UniversityofBeiraInterior,Portugal
bFibEnTech–FiberMaterialsandEnvironmentalTechnologies,UniversityofBeiraInterior,Portugal
a
r
t
i
c
l
e
i
n
f
o
Articlehistory:
Received7September2015
Receivedinrevisedform1December2015 Accepted21December2015
Availableonline23December2015 Keywords:
l-Cysteine(l-Cys) Antimicrobialapplications Medicaltextiles Atopicdermatitis(AD) Staphylococcusaureus
a
b
s
t
r
a
c
t
Anoveldressingmaterial–silkfibroinfabric(SF)-l-Cysteine(l-Cys)–isheredevelopedtobeusedas
standardtreatmentforatopicdermatitis(AD),whichcombinescomfort,thermic,andtensilestrength
propertiesofsilkmaterialswithantioxidantandantimicrobialeffectsofl-Cys.Acareful
understand-ingaboutthelinkingstrategiesisneededinordernottocompromisethebioavailabilityofl-Cysand
deplenishitsbioactivity.Durabilitywasalsoaddressedthroughwashingcyclesandcomparedwith
hos-pitalrequirements,accordingtointernationalStandardENISO105-C06:2010.Thepresentresearchalso
analyzetheinteractionsbetweenStaphylococcusaureusandSF-l-CysundersimulatingconditionsofAD
anddemonstratedtheeffectivenessofadoublecovalentgrafting,withtheimportanceofSFtyrosine
(Tyr)covalentlinkagewithl-Cys(SF-g-l-Cys/Tyr-g-l-Cys)evenafterseveralwashingcycles,twentyfive,
whereasforadisposableapplicationasinglecovalentmechanismofgraftingl-Cysprovedtobe
suffi-cient(SF-g-l-Cys).Resultsshowedeffectiveantimicrobialactivitiesexhibitinghigherinhibitionratiosof
98.65%forSF-g-l-Cysafter5washingcycles,whereas97.55%forSF-g-l-Cys/Tyr-g-l-Cysafter25washing
cycles,bothatpH9.5graftingstrategy.Furthermore,itisalsoreportedanon-protumoraleffectofl-Cys.A
newadvanceishereinachievedattheworldofmedicalantimicrobialtextilestailoredtoaddresswound
moistureenvironmentandexudateself-cleaning,whichmayopennovelapplicationsascomplementary
therapyforADdisease.
©2015ElsevierB.V.Allrightsreserved.
1. Introduction
Silk,producedbysilkwormBombyxmorii,consistsoffibroinand
sericin.Fibroin,whichisthestructuralproteinofsilkfibers,comes
outfromthesilkwormglandintheformoffilamentsenclosedina
water-solublesericingluelikecoating[1].Silkfibroin(SF)is
com-posedofheavy (350kDa)and lightchain (25kDa)polypeptides
linkedbyadisulfidebond[2,3].Itsstructureismainlycomposed
bytheaminoacidsglycine(46%),alanine(29%),andserine(12%),
whichareaminoacidshavingsmallsidechains.Also,SFpresents
tyrosine(4.8%),whichhasanaromaticsidechain[4].Theyform
flexibleandstretchingresistantsecondarystructurebeta-sheets,
whichrendersilkitscharacteristicmechanicalstrength[5–7].Silk
isnon-toxic,non-immunogenic, biocompatible,andhydrophilic.
AlthoughitisstatedthattheitchingofADisexacerbatedbyspiky
∗ Correspondingauthorat:FibEnTechR&D–FiberMaterialsandEnvironmental Technologies,UniversityofBeiraInterior,RuaMarquêsd’ÁvilaeBolama,6201-001 Covilhã,Portugal.
E-mailaddress:igouveia@ubi.pt(I.C.Gouveia).
fibersofwoolandbythewildtextureofcotton[8,9],silk,onthe
otherhand,withitsextremelysmoothanditscomfortable
prop-ertiesreducestheseeffectsand thereforehasbeenincreasingly
researchedforapplicationsrelatedtoatopicdermatitis(AD).
Fur-thermore,Sugiharaetal.[10]postulatedthatwoundstreatedwith
asilkdressinghealed7daysfaster,bypromotingtheenhanced
synthesisofcollagenandepithelialization[10].
AD,alsoknownaseczema,isachronicandrecurrent
inflamma-torypruriticskindisorderwhichcauseslichenification,papules,
andexcoriations.ADhasbeenincreasingoverthepastdecades,
reachingprevalenceof about 20% in children and 3% in adults
worldwide [11]. A combination of genetic, environmental, and
immunologicalfactorsmaybethemaincausesforthe
develop-mentofAD,whoseconsequencescanbepsychologicallytraumatic,
leadingtoemotionalstressanddecreasingsubstantiallythequality
oflife.ADischaracterizedbyacombinationofT-helpertype(Th)
2immuneactivation,skininfection/colonizationby
Staphylococ-cusaureus,andskinbarrierdysfunction.ADprevalencerisemay
beexplainedbytoday’slifestyleand nutrition[11].Thecleaner
environmentinupbringingaswellasantibioticsabusingduring
earlychildhoodhasinducedmoreoftenTh2immuneresponses,
http://dx.doi.org/10.1016/j.apsusc.2015.12.174 0169-4332/©2015ElsevierB.V.Allrightsreserved.
aretriggeredbyS.aureusproducingtoxinsordirectinvasionand
destructionoftissues.Notwithstandingthatclinicalmanifestations
ofdiseaserelyalmostexclusivelyontoxinactivity,inminor
situa-tionsitcanalsobeduetobacterialproliferationthatformsabscess
andtissuedestruction.Italsopresentsresistanceagainstthe
cur-rentlyusedantimicrobials[18].
Inthepresentworkwehavechosenl-Cysteine(l-Cys),which
isa␣-aminoacidwithathiolgroupattheendofitsvariableside
group,whichisnucleophilicandhasawidespectrumofbioactivity
[19],relyingitsactivityonmetabolicdisturbanceandmembrane
depolarization[20].Ittargetsthebacterialmembraneandcauses
agreatdecreaseinenzymaticactivityandbacterialmetabolism.
Owingtoitsabilitytoformconjugateswithfreeradicalsortrace
elements[21],l-Cysmayalsorenderourfinalapplication
antioxi-dantproperties.
Thisresearchworkconsistedonthedevelopmentoftwo
pro-cesses that allowed the covalent grafting of l-Cys onto SF: (i)
functionalizationofSFcarboxylates(degradedamidegroups)and
cross-linkingwiththeaminecompoundsofl-Cys;(ii)
function-alizationofSFTyrwithl-Cys,withtheformationof Schiffbase
intermediatesthatwerechemicallystabilizedbyreductive
ami-nation.
Thisallowedtodrawimportantconclusionsregardingthebest
way to pursuit for a disposable application, as well as when
designed for a multi-patient withlaundry-resistant capabilities
(after25washingcycles).
2. Materialsandmethods
2.1. Materials
SilkwasobtainedfromthecocoonsoflarvaeofthesilkwormB.
morii(Brazil).Silkwasknittedatarectilinearneedleloom with
7Picks perinch,witha Jersey knitstructure anda linear
den-sityof21.68numbermetric(Nm).Itssericinwasremovedwith
dichloromethaneinasoxhletapparatus.Silkfibroin(SF)wasthen
functionalized in a l-Cysteine (l-Cys) (Sigma–Aldrich) solution
(ddH2O)atpH’s5.5and9.5.Covalentbondsattyrosine(Tyr)were
performedwithNaCNBH3dissolvedinNaOH:HClbuffers(Panreac).
S.aureus(ATCC6538)strainwasgrownonNutrientAgar(NA)and
NutrientBroth(NB)(Panreac).
2.2. Methods
2.2.1. Minimalinhibitoryconcentration(MIC)evaluation
Minimalinhibitoryconcentration(MIC)determinationwas
per-formedwiththemicrodilutionmethodinaccordancewithM07-A6
radicalthatcanacceptanelectronorhydrogenradicaltobecome
astablediamagneticmolecule.DPPH◦ bearsadeeppurplecolor,
butoverthecourseofthereactionbecomescolorless,whenthe
oddelectronofitsnitrogenatomisreducedbyreceivinga
hydro-genatomfromtheantioxidanttestingcompoundl-Cys.TheDPPH◦
assaywasadaptedaccordingtotheproceduredescribedby[22].
Briefly,thestocksolutionwaspreparedbydissolving4mgDPPH
with100mLmethanol.Thepercentage of remainingDPPH◦ for
eachconcentrationofl-Cys wasdeterminedusingtheequation
oftheobtainedcalibrationcurveandabsorbancevaluesmeasured
at517nm,at30mintimepoint:
%DPPH◦REM=[DPPH◦]T/[DPPH◦]T=0×100% (1)
Efficientconcentration(EC50g/mL)wasdefinedassubstrate
concentrationtoproduce50%reductionoftheDPPH◦.

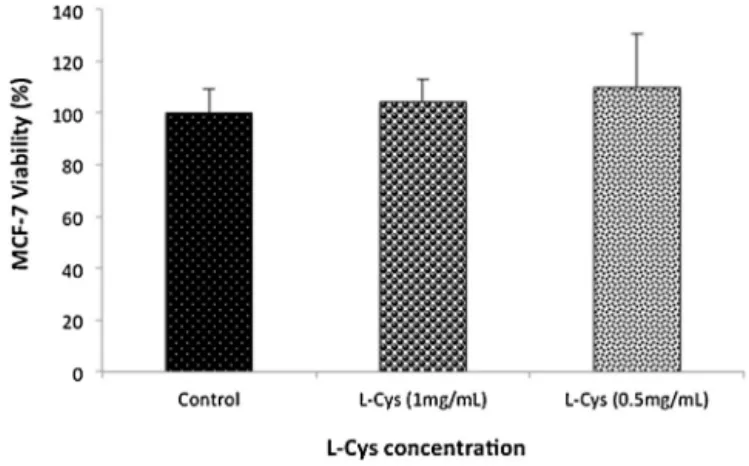

2.2.3. Tumoralactivityassay
Thecytotoxicityofl-Cyswasperformed,adaptingthe
proce-duresfromStandardEDINENISO10993-5.Itwasselectedthe
concentrationofl-Cyschosenforthiswork,1%,anditshalf0.5%,on
breastcancercellline(NCI-PBCF-HTB22(ATCC®HTB-22TM)).
Incu-bationwasdoneat37◦Cfor48hunderahumidifiedatmosphere
containing5%CO2.MTTviabilityassaywasperformed.Solvent,
positiveandnegativecontrolswereincluded.
2.2.4. Silksubstratepreparation
2.2.4.1. Silkmaterial. 20gofSFknittedfabricwasboiledfor4hin
dichloromethaneinasoxhletapparatustoextractresiduallipids,
andthenrinsedthoroughlywithdistilledwater.Itwasthenwashed
according toBS4923: 1991– methods for individualdomestic
washinganddryingforuseintextiletesting,ina4g/Lsolutionof
ECEReferenceDetergent(theformulationofthedetergentisgiven
inBS1006:CO6(ISO105:CO6))for60minat40◦C,rinsed,anddried
afterwardsat30◦Cuntilused,inordertoremoveimpuritiesand
soils.
2.2.4.2. Grafting/functionalizationprocesses. SFknittedfabric
sam-ples werefunctionalized bymeansof anexhaustion processat
90◦C,15rpm,inaMathis-BFA12finishingmachine.Single
cova-lentstrategy (SF-g-l-Cys):sampleswereimmersedina1%over
theweightofthefiber(owf)l-Cyssolution(ddH2O)adjustedto
pH’s5.5and9.5,for3h.Fig.1A.Doublecovalentstrategy(SF-g-
l-Cys/Tyr-g-l-Cys):sampleswereimmersedina1%overtheweight
ofthefiber(owf)l-Cyssolution(ddH2O)adjustedtopH’s5.5and
9.5,for3h,andwereadded0.3(w/V)NaCNBH3solutionfromthe
beginningofsecondhour.Sampleswererinsedthreetimeswith
Fig.1.Strategiesfortheactivationofsilkfibroin.(A)SF-g-l-Cys;(B)SF-g-l-Cys/Tyr-g-l-Cys.
Firstly,SFknittedfabricsampleswerefunctionalizedonits
car-boxylates(degradedamidegroups)andwerecross-linkedwiththe
aminecompoundspresentinl-Cyssolution(SF-g-l-Cys).Secondly,
SFknittedfabricsampleswerefunctionalizedonitsTyrketone
groups,withtheformationofSchiffbaseintermediatesthatwere
chemicallystabilizedbyreductiveamination,formingultimatelya
covalentbond(SF-g-l-Cys/Tyr-g-l-Cys).
2.2.4.3. Washingcyclesassay–resistancetolaundry.Sampleswere
(i)washedina4g/LsolutionofAATCC1993StandardReference
DetergentWOBfor 5washingcyclesperformedat40◦C during
30mineach, and(ii)washedin a 4g/Lsolutionof AATCC1993
Standard ReferenceDetergent WOB for 25 washing cycles
per-formedat40◦Cduring30mineach.Thesemethodswereadapted
fromtheinternationalstandardEN ISO105-C06:2010.Washing
cyclesweredonepriortoallstudiesinordertoassesstheresistance
towashingofl-CysbondsonSFsurface.
2.2.5. Grafted-silkcharacterization
SFsampleswerecharacterizedusingdifferentsurfaceanalyzing
techniquesagainstappropriatecontrols.
2.2.5.1. Contact angle. Contact angles were measured using an
OCAH-200set-upbyDataphysicsequippedwithahigh-speedvideo
systemwithCCDvideocamerawitharesolutionof752×484.
2.2.5.2. Fouriertransforminfraredspectroscopy(FT-IR).The
chemi-calcompositionofSF,SF-g-l-Cys,andSF-g-l-Cys/Tyr-g-l-Cyswas
analyzedbymeansofFT-IR.Afterthreerinses(nowashingcycles),5
washingcycles,and25washingcyclesFT-IRspectrawereanalyzed.
MeasurementsweredonewithaThermo-Nicoletis10FTIR
spec-trophotometer.Eachsamplewasscanned64times,withaspatial
frequencyresolutionof4cm−1.
2.2.5.3. Exhaustion rates: degree of functionalization.In order to
assesstheefficiencyofthefunctionalization,i.e.thequantityof
l-CysthatthesubstrateSFwasabletocrosslink,exhaustionrate
offunctionalizationassayswereperformedforeachcondition.
Ell-man’sreagent,(5,5-dithio-bis-(2-nitrobenzoicacid/DTNB)(Sigma)
produces a yellow color when bonded to free thiol groups in
solution.Afterreactingwithfreethiolgroups(ofl-Cys)thereis
formationofa dissulphydriccompoundand acoloredspecies–
2-nitro-5-thiobenzoicacid(TNB).Thiscolorimetricassaywas
per-formedbymeasuringandcomparingthefunctionalizationsolution
beforeandafterfunctionalization,afterdoingacalibrationwith
knownconcentrationsofl-Cys.Foreachsample250Lwasadded
toatesttubecontaining2.5mLofsodiumphosphate(pH8)and
50LofEllman’sreagent.Testtubeswerevortexedandwere
incu-batedfor15minutesbeforetheirabsorbancebeingreadat412nm.
2.2.5.4. Tensilestrengthassays. Inordertoevaluatethe
degrada-tioncausedonSFbythefunctionalizationprocesses,severalquality
controlassayswereperformed.Resistancetoruptureassayswere
doneinallsamples,withandwithoutl-Cys,tosubsequent
com-parison.AssayswereperformedonaDynamometer,accordingto
StandardENISO2062,at20±2◦C,under60%relativehumidity.
Sampleswerestrip-cut5cm×50cm,alsostringcut,andplaced
betweendynamometertweezers.Adefinedpre-tensionwassetin
thebeginning,andthetestendedupwithsamplesrupture.
2.2.6. Antimicrobialactivityassessment
TheantimicrobialbehaviorofSFsamplesfunctionalizedwith
l-Cys(-g-l-Cysand-g-l-Cys/Tyr-g-l-Cys)wastestedaccordingto
JapaneseIndustrialStandard JISL1902:2002,specificfortextile
samples.Gram-positiveS.aureus(ATCC6538)strainwaschosen
onceitplaysanimportantroleinatopicdermatitis(AD).Briefly,
inoculum of S. aureus was preparedwith a final concentration
of1–5×106,bacteria/mL.200LofS.aureuswereinoculatedon
0.4gsquaresamples.Sampleswereincubatedfor24h.
Antimicro-bialactivitywasassessedbyaquantitativemethodtodetermine
thepercentageofbacterialgrowthinhibition(%ofInhibition)at
24hours:
%Inhibition= C−A
C ×100
where C representstheaveragevalueof ColonyForming Units
(CFU-g/mL) ofnon-modifiedSF,and A representstheaverage
Imageswereformedthroughsecondaryelectronsusingahigh voltageof20kV.Fivefieldspersamplewereobtainedusinga mag-nificationof20000and75000×.
2.2.8. Transmissionelectronmicroscopy(TEM)
The morphology of adhered S. aureus on SF knitted fabric functionalizedwithl-Cys(-g-l-Cysand-g-l-Cys/Tyr-g-l-Cys)was addressedbyTEM.Bacteriawerestainedwith2%uranylacetatefor 5min,andmountedonameshwiththinbarcoppergridscovered withformvar.Eachsamplewasexaminedat30000×magnification usingHITACHIHT7700TEMatanacceleratingvoltageof80kV. 2.2.9. Statisticalanalysis
SPSSStatistics21.0softwarewasusedtoperformthestatistical analysisofthedatausingOne-WayANOVA,withTukeyasPostHoc testsforestablishingmultiplecomparisonsbetweensamplesinthis study.Valuesofp<0.05wereconsideredstatisticallysignificant. 3. Results
3.1. Minimalinhibitoryconcentration(MIC)ofl-Cys
Minimalinhibitory concentration(MIC)of l-Cysteine (l-Cys) againstS.aureuswasfoundtobe5mg/mL.
3.2. Antioxidantactivity
3.2.1. DeterminationofDPPH(2,2-diphenyl-1-picrylydrazyl) radicalscavengingactivity
ThereductioncapabilityoftheDPPH◦radicalwasdetermined bythedecreaseonitsabsorbanceat517nm,inducedbyCysteine. Table1showsthatastheconcentrationofCysteineincreased,the
percentageofremainingDPPH◦diminished.
Thepercentage ofremainingDPPH◦ wasproportional tothe
antioxidantconcentrationofl-Cys.Theconcentrationthatcaused
adecreaseintheinitialDPPH◦concentrationby50%(EC50)was
foundtobe0.029957g/mL,whichimpliesthatl-Cysteinehave
antioxidantactivity.
3.3. Tumoralactivityassay
Solublel-Cysdidnotshowanyeffectonbreastcancercellline
MCF-7.Valueswerenotsignificantlydifferentfromcontrol,with4%
and9%ofgrowthaboveatdosesof1and0.5mg/mLl-Cys,
respec-tively(Fig.2).Onlyanalterationabove30%incomparison with
controlsisconsideredpro-tumorigenic[23].
3.4. Silkcharacterization
3.4.1. Contactangle
Thewettabilityofsilkfibroin(SF)wasassessedbythe
measure-mentofthecontactanglebetweenthesurfaceandwaterusing
thesessiledroptechnique.Watercontactanglesmeasuredat10s
showedahydrophilicSFsurface;21.1±1.5◦.ThereforegraftedSF
samplesprovedtobeabletoabsorbexudatesandprovidewound
moisture,whichrenderthemusableashealingwounddressings
againstAD.
3.4.2. Fouriertransforminfraredspectroscopy(FT-IR)
TheinfraredspectraofunmodifiedSFisshowninFig.3a.Peaks
at3300cm−1and3100cm−1areassociatedwithamidesAandB,
respectively.At1650cm−1 vibrationsaredue toC Ostretching
vibrationsofamideI,andthepeakat1520cm−1isrelatedtoN H
inplanebendingtogetherwiththeout-of-phaseC Nstretchingof
amideII.
SFcovalentstructuralmodificationafter25washingcycleswas
alsoassessedbyFT-IR.IRspectraconfirmedl-CysbondedonSF
surface,asshownbytheincreaseofpeaksassociatedwithl-Cys
immobilizationonasurface,around3300,3100and1650cm−1,
asshowninFig.3B.AmideIisrelated tovibrationsofthe
pep-tidebonds.However,thepeakat1520cm−1 related toamideII
diminishes,whichtells theinformation ofSFproteinsecondary
structuremodified/unfoldingbasedontheextentofl-Cys
cross-linkingtoSF.Furthermore3300cm−1 isalsoassociatedwithOH
stretchingrelatedtofree OHinSFaromatictyrosine[24].When
covalent bond formedat Tyr residue thevibration assigned to
OHdecreased.Thismightbethereasonwhythesample
SF-g-l-Cys/Tyr-g-l-CysatpH9.590◦C(spectrume)showedsignificant
decreaseoftheabsorptionbandat3300cm−1.
3.4.3. Efficiencyoffunctionalization/grafting
Theexhaustion efficiencyofl-Cys onSFfabricwasassessed
after 3h of functionalization at 90◦C. Allsamples gave rise to
figuresofover80%exhaustionrate,oncel-Cysreadilyadsorbed
toSFchemistry.SF-g-l-Cys/Tyr-g-l-Cysdoublecovalentbonding
showed80.35%(pH5.5)and80.71%(pH9.5),whereasSF-g-l-Cys
singlecovalentbondingrateswere87.09%(pH5.5)and85.94%(pH
9.5).
3.4.4. Tensilestrengthassays
Tensiletestsweredonetoevaluatetheeffectofsinglecovalent
anddoublecovalenttreatmentsonthemechanicalpropertiesof
samples,andareshowninTable2.
AworthymaximumstressandelongationwereobservedforSF
Fig.3. IRspectraofunmodified(a)andmodifiedsilkfibroinwithdifferentparametersofsurface-activationafter(A)0washing-cyclesand(B)25washing-cycles,with1% owfl-Cysfunctionalization.(b)SF-g-l-CysatpH5.590◦C;(c)SF-g-l-CysatpH9.590◦C;(d)SF-g-l-Cys/Tyr-g-l-CysatpH5.590◦C;(e)SF-g-l-Cys/Tyr-g-l-CysatpH9.590◦C.
Table2
Mechanicalcharacterization.Resistancetoruptureassaysinthreadandstrip.
Material Stressatbreak
(Newton) Elongation(%) Thread SF 31.08±4.06 15.37±4.15 pH5.5SF-g-l-Cys 28.59±4.28 13.69±3.45 pH5.5SF-g-l-Cys/Tyr-g-l-Cys 27.10±5.83 13.99±4.16 pH9.5SF-g-l-Cys 33.69±0.36 18.14±0.02 pH9.5SF-g-l-Cys/Tyr-g-l-Cys 31.15±12.7 16.49±6.72 Strip SF 620.7±54.9 57.49±4.75 pH5.5SF-g-l-Cys 640.6±55.2 59.15±4.47 pH5.5SF-g-l-Cys/Tyr-g-l-Cys 486.6±80.5 55.25±4.37 pH9.5SF-g-l-Cys 566.0±46.3 58.02±8.39 pH9.5SF-g-l-Cys/Tyr-g-l-Cys 709.3±52.2 64.13±6.24
werenot significantlydifferentfromcontrols, whichprovesthe covalentmodificationssetupinthisworkdidnotcompromiseSF.
3.5. Antimicrobialassays
3.5.1. Quantitativemethod(suspension)
SFactivatedsurfacesshowedgoodmicrobialinhibitionresults, asshowninFig.4.Followingthreerinsesafterfunctionalization,no
significantdifferences(p<0.05)betweencovalent/doublecovalent
treatmentscouldbeseenregardingmicrobialkilling,exceptthat
allofthemwerehighlymicrobicidal.After24hoursofincubation,
resultsofmicrobialreductionwerecloseto100%.
After5washingcycles,SF-g-l-CystreatmentatpH9.5showed
tobesignificantly(p<0.05)moremicrobicidalforS.aureus–98.65%
–against 89.33%of SF-g-l-Cys pH5.5.Also, SF-g-
l-Cys/Tyr-g-l-Cysmodificationswere77.38%forfunctionalizationatpH9.5,and
78.40%forpH5.5.
Ontheotherhand,after25washingcyclesSF-g-
l-Cys/Tyr-g-l-Cysdoublecovalentmodificationprovedtobeworthwhile,onceit
showedsuchagreatamountofmicrobialreduction,whichproved
toformbonds/structuralconformationsstrongenoughtoresistto
severalwashings.S.aureuswhenadsorbedtoSF-g-
l-Cys/Tyr-g-l-Cys,modifiedunderpH9.5with1%owfl-Cys,showedasignificant
CFUreductionof97.55%(p<0.05),whereaswhenadsorbedto
SF-g-l-Cys bacterialreduction was not soprominent, withresults
averaging67.39%.
3.6. Scanningelectronmicroscopy(SEM)
Foranyconditionafter25washingcycles,therewasadecrease
inthenumberofS.aureusadsorbed.However,forSF-g-
l-Cys/Tyr-g-l-CysfunctionalizedatpH9.5,anoutstandingkillingeffectshowed
almostnobacteriaadsorbedtofabricsurface(Fig.5).
3.7. Transmissionelectronmicroscopy(TEM)
Following25 washing cycles, Fig. 6shows that there was a
fiercedegradationofS.aureusmembranes,whenadheredtoSF-g-
l-Cys/Tyr-g-l-Cys,especiallyatpH9.5(Fig.6e).Consideringtheeffect
ofSF-g-l-Cys/Tyr-g-l-CysmodifiedatpH5.5(Fig.6c),itshowed
adhered bacteriawith theirmembranes slightly harmed, when
comparingtocontrols.
4. Discussion
Thisworkcompared singlecovalentagainstdouble covalent
immobilizationofabioactiveagentl-Cysteine(l-Cys)onsilkfibroin
(SF)knittedfabrictooriginateaneffectiveantimicrobialwound
dressing(bioactivematerial)againstatopicdermatitis (AD)
dis-ease.Furthermore,endapplicationsoflaundryresistanceversus
disposibility,arehereindiscussed.
l-Cys amino acid, which hasa wide spectrum of microbial
activity and well-known safety [10–12], wasfor the first time
functionalizedatitslowest concentration– 1%overtheweight
ofthefabric(wof).Inpreviousworkstheminimumamountused
withefficiencyof microbialkilling was5%owf,in combination
witheitherwool[23],orcotton[10,12].Thisl-Cysfallis
under-standable,inthatrecentlynewapproachesrelyingonremovalof
lipidsfromthesurfaceoffibershaveexposedtheirsurfacewith
avarietyofreactivemoieties.Inthissense,covalenttreatments
canbedirectedstraightforwardtothesereactivesites,ratherthan
physically-directed,whichoffershigherdurabilityandresistance
tolaundry[25].
Forl-CysimmobilizationontoSFfabrictwoprocesseswere
con-sideredinordertopotentiateitsactivity.Thefirstprocessrelied
onmodificationof87%ofSFstructure,namelythecovalent
bond-ingonglycine,alanine,andserineaminoacids.l-Cyswasblended
withSFatbothlowandhighpH’s.ThestrongacidHClplusheat
(90◦C),aswellasstrongbaseNaOHplusheat(90◦C),madeSF
Fig.5. SEMimagesofadsorbedS.aureusonsilkfibroinsurfaceatdifferentconditions.(a)Control;(b)SF-g-l-CysatpH5.590◦C;(c)SF-g-l-Cys/Tyr-g-l-CysatpH5.590◦C;
(d)SF-g-l-CysatpH9.590◦C;(e)SF-g-l-Cys/Tyr-g-l-CysatpH9.590◦C.
Fig.6.TEMimagesofdetachedS.aureusonsilkfibroinsurfaceatdifferentconditions.Magnificationof10000×.(a)Control;(b)SF-g-l-CysatpH5.590◦C;(c)
SF-g-l-Cys/Tyr-g-l-CysatpH5.590◦C;(d)SF-g-l-CysatpH9.590◦C;(e)SF-g-l-Cys/Tyr-g-l-CysatpH9.590◦C.
esterificationand“saponification”,respectively.Also,thepresence
offurthercarboxylatesinSFisalsodescribed inliterature[26].
Aminogroups ofl-Cys werethen covalentlylinkedbyreacting
withthesecarboxylicacidsbyaminolysis(SF-g-l-Cys).The
sec-ondprocessreliedoncovalentmodificationoffurther4.8%ofSF
structuraltyrosinearomaticsidechain.Aldehydesoftyrosineside
chainswereblendedwiththeaminesofl-Cys,formingunstable
Schiffbaseintermediates(orimines).Theseintermediateswere
chemicallystabilizedbyreductiveaminationwithNaCNBH3[27],
formingultimatelyacovalentbond.Inthefirstprocess,Schiffbase
intermediatesalsoformedatthesesitesbutreverted,oncethey
werenotstabilizedbyreduction.Furthermore,inthisprocessof
graftingl-CysonTyr,importantissuesasTyrlocalization,andits
influenceonbackboneconformationandpackingwereregarded
[4].l-Cyscarriesathiolategroupinitsmolecularstructurewhich
killsmicroorganismsthroughdisulfidebridgeestablishmentwith
somebacterialwallstructuralcomponents[28]oreven
intracellu-larcomponentsifinternalized.
Theabilityof l-Cystoinhibitthegrowthof microorganisms
insolutionwasgivenbyMinimalInhibitoryConcentration(MIC)
studiesofsolublel-CysagainstS.aureuswhichwas5mg/mL.This
valueishighwhencomparedwithchitosanpolymer(0.05mg/mL)
and, onthe otherside, lower than triclosan(6mg/mL) [29,30].
WhenwecomparetheseformerMICresultswithregardofsettling
thesamemolecule(l-Cys)onasurface,datademonstrated
immo-bilizationadvantageouswiththerequirementofloweramountof
l-Cys,namely1%owf(1%overtheweightofthefiber(owf)ina
ratioof1gfiber/50mLsolution;thus,0.2mg/mL).l-Cysmolecules
insolutionbindandgathereachotherthroughS-Sbonds,losing
theirmainreactivethiolates.Ontheotherside,immobilizingl-Cys
ontoasurfacepreventeditsagglomerationandallowedtheuse
oflesserquantitytocoatthesurface,inordertograntSFfibers
antibacterialactivity.
It hasalready beendemonstrated thattopical applicationof
antioxidantsdecreasedwoundhealingtime[31].Thetotal
antiox-idantcapacityofl-Cyswasassessedbyusingspectrophotometric
methodswithDPPH◦ (2,2-diphenyl-1-picrylydrazyl)[22].The
l-CysconcentrationthatcausedadecreaseintheinitialDPPH◦by50%
(EC50)wasfoundtobe0,029957g/mL.Theseresultsshowedthat
l-Cyshasantioxidantactivity.Sánchez-Moreno[32]showedEC50
valuesofafewotherantioxidants,asgallicacid(26g/mL),
queratin(84g/mL),BHA(93g/mL)andrutin(102g/mL).These
valuesshowthatalbeitl-Cysisantioxidant,itsantioxidantpower
islowbutcanbeincreasedbyrisingthel-Cys concentration,if
necessary(customized).
Theconcentrationofl-CysthatwasusedforSF
functionaliza-tiondidnotinterferewithtumoralcellsgrowthrate,whichproves
thesafetyofusingthisapplicationinneoplasticpatients.
Further-more,l-Cyshasalreadybeenstudiedforitscytotoxicityagainst
fibroblasts,provingtobesafe,hencenotcytotoxic[20].
SF hydrophilic surface, with a contact angle of 21.1±1.5◦,
besidesabsorbingADwoundexudateandprovidingwound
hydra-tionwhichopensthewaytoimportantfactorsforproperhealing,
showedtoattractS.aureuspresentinanADdiseaseenvironment,
allowingS.aureustocontactandbeeliminatedbythegrafted
l-Cys.J.JiandW.ZhangstatedthatahydrophilicsurfaceattractedS.
aureus[33]whereasH.YangandY.Dengindicatedthata
hydropho-bicsurfacereduceditsadhesion[34].
TheformationofsilkstructureisdrivenbyTyrresidues,which
have a strongeffectnot only locally but alsolong-range
inter-molecularinteractions[4].Uponitsdoublefunctionalizationwith
l-Cys,SF structure mighthave adoptedsuchan altered folding
duetocovalentbondingatTyrresidue.Thismightbethereason
whythesampleSF-g-l-Cys/Tyr-g-l-CysfunctionalizedatpH9.5
90◦CshowedsignificantdecreaseoftheFT-IRabsorptionbandat
3300cm−1.Nevertheless,itispossibletoconcludethatthe
diffus-ingcapacityofl-Cysinthefiberwashigh,>80%,whichmeansl-Cys
hastheabilitytobindcovalentlytothefibersurfaceeasilyand
strongly.Also,highexhaustionratesmeantalowquantityofl-Cys
requiredtoachieveaneffectiveantimicrobialactivity.
Accordingly,FT-IRresultsconfirmedthatl-Cyswaswell
immo-bilizedtoSFfibersatbothpH’soffunctionalization.Furthermore,
as washing cycles were performed, effects at 5 and 25
wash-ingcyclesshowedSF-g-l-Cys/Tyr-g-l-Cysgraftingtobemultiple
washing resistant along with SF-g-l-Cys grafting at pH 9.5. In
accordance withthe chemical surface analyses of SFfiber
sur-faces,microbiologicdata after24hof incubation,showedfor 5
washingcyclesthehighestkillingofbacteria(98.65%)happened
atpH9.5throughl-Cysgraftedona singlecovalentway
(SF-g-l-Cys)(p<0.05). Thishighmicrobicidalreduction mightbe due
tothestructural/conformationalaccessibilityofl-CysonSFwhen
comparingtoSF-g-l-Cys/Tyr-g-l-Cys.Furthermore,after25
wash-ingcyclestheoptimalbacterialkillingeffect(97.55%)happened
atpH9.5throughdoublecovalentgraftingSF-g-l-Cys/Tyr-g-l-Cys
(p<0.05).Thishighmicrobicidalreductionmightberelatedtothe
exposing of erstwhile structuralfolding-protected l-Cys due to
multiplewashingcycles.Aqualitativeanalysiswasalsoperformed
throughScanning ElectronMicroscopy (SEM) and Transmission
ElectronMicroscopy (TEM) by characterizing S. aureus
accord-ingtoitsshapewhen adsorbedonSFsurfaceafterit hadbeen
washed 25 times (25 washing cycles). Data demonstrated that
few bacteria adhered to the background fibers and the ones
adheredwereinabadshape/morphologyattheconditionof
SF-g-l-Cys/Tyr-g-l-CysfunctionalizedatpH9.5.Asexpected,acidic
conditions of functionalizationyielded poorer grafting of l-Cys
onSFfibers.Ontheotherhand,accordingtoHornseyand
Pep-per [35] the higher pH condition of functionalization led to
highereffectiveness ofgrafting [35]once protonatedamines of
l-CysweremoreattractedtotheSFnegativecarboxylategroups
whenunder thealkalinepH9.5. Also, SFhighexhaustion of
l-Cysisduetoitsstructuralreactivity,whichtranslatedinhigher
retentionafterseveralwashingcycles,leadingtoincreased
antimi-crobial properties of SF fibers, when compared to cotton [20].
Mechanical propertiesof SFshowed high,and were not
signif-icantlyalteredwithanytreatments inthis study,whichmeans
SF structure never got compromised by used functionalization
processes.
5. Conclusions
Thisresearchworkdescribesbothsinglecovalentanddouble
covalentgraftingmethodsforthefunctionalizationofsilkfibroin
(SF)withantibacterialandantioxidantagentl-Cysteine(l-Cys).The
developedSF-l-Cysmaterialshavethepotentialtoinhibit
medi-callyrelevantS.aureusbacterialspeciesandassuchtobeusedto
controlatopicdermatitissincenotoxicitywasfound.Moreover,the
durabilityofthefabricwassignificantlyimprovedwhentheactive
antibacterialagentl-CyswasdoublecovalentlyattachedtoSF
tyro-sine.Itwasdemonstratedtheeffectivenessofadoublecovalent
grafting,withtheimportanceofSFtyrosine(Tyr)covalent
link-ingwithl-Cys(SF-g-l-Cys/Tyr-g-l-Cys)forseveralwashingcycles,
whereasforadisposableapplicationasinglecovalentmechanism
ofgraftingl-Cysprovedtobesufficient(SF-g-l-Cys).
Acknowledgments
TheauthorswouldliketoacknowledgetheFundac¸ãopara a
CiênciaeTecnologia(FCT)forthefundinggrantedconcerningthe
project – PTDC/EBB-BIO/113671/2009
(FCOMP-01-0124-FEDER-014752) Skin2Tex and Fundo Europeu de Desenvolvimento
Regional(FEDER)throughCOMPETE–ProgramaOperacional
Fac-toresdeCompetitividade(POFC)fortheco-funding.
TheauthorswouldalsoliketoacknowledgetheFundac¸ãopara
a Ciência eTecnologia (FCT)for the fundingfor the PhD grant
SFRH/BD/91444/2012.
References
[1]Y.M.Magoshi,M.A.Becker,S.Nakamura,in:J.C.Salamone(Ed.),Biospinning (SilkFiberFormation,MultipleSpinningMechanisms),CRCPress,NewYork, 1996,p.667.
[2]K.Tanaka,N.Kajiyama,K.Ishikura,S.Waga,A.Kikuchi,K.Ohtomo,etal., Determinationofthesiteofdisulfidelinkagebetweenheavyandlightchains ofsilkfibroinproducedbyBombixmori,Biochim.Biophys.Acta1432(1) (1999)92–103.
[3]C.Z.Zhou,F.Confalonieri,N.Medina,Y.Zivanovic,C.Esnault,T.Yang,etal., FineorganizationofBombyxmorifibroinheavychaingene,NucleicAcidsRes. 28(12)(2000)2413–2419.
[4]T.Asakura,K.Suita,T.Kameda,S.Afonin,A.S.Ulrich,Structuralroleof tyrosineinBombyxmorisilkfibroin,studiedbysolid-stateNMRand molecularmechanicsonamodelpeptidepreparedassilkIandII,Magn. Reson.Chem.42(2004)258–266.
[5]S.J.He,R.Valluzzi,S.P.Gido,SilkIstructureinBombyxmorisilkfoams,Int.J. Biol.Macromol.24(2–3)(1999)187–195.
[6]T.Asakura,J.M.Yao,T.Yamane,K.Umemura,A.S.Ulrich,Heterogeneous structureofsilkfibersfromBombyxmoriresolvedbyC-13solid-stateNMR spectroscopy,J.Am.Chem.Soc.124(30)(2002)8794–8795.
[7]M.Lewin,HandbookofFiberChemistry,3rded.,CRC/Taylor&Francis,Boca Raton,2007.
[8]F.Arcangeli,M.Feliciangeli,M.Pierleoni,Indumentidisetanelladermatite atopica.VConvegno.NazionaleDermatologiaperilPediatra,Bellaria,2001, pp.100–101.
[9]N.Bendsoe,A.Bjornberg,H.Asnes,Itchingfromwoolfibresinatopic dermatitis,ContactDermat.17(1987)21–22.
[10]R.Sugihara,M.Yoshimura,M.Mori,N.Kanayama,M.Hikida,H.Ohmori, Preventionofcollagen-inducedarthritisinDBA/1micebyoraladministration ofAZ-9,abacterialpolysaccharidefromKlebsiellaoxytoca,
Immunopharmacology49(2000)325–333.
[11]D.Y.M.Leung,T.Bieber,Atopicdermatitis,Lancet361(9352)(2003)151–160. [12]S.Romagnani,Theroleoflymphocytesinallergicdisease,J.AllergyClin.
Immunol.105(2000)399–408.
[13]C.Hauser,etal.,TheimmuneresponsetoS.aureusinatopicdermatitis,Acta Derm.Venereol.Suppl.114(1985)101–104.
[14]J.C.Bystryn,C.Hyman,Skinbloodflowinatopicdermatitis,J.Investig. Dermatol.52(1969)189–192.
[15]U.C.Hipler,P.Elsner(Eds.),BiofunctionalTextilesandtheSkin,Curr.Probl. Dermatol.,vol.33,Karger,Basel,2006.
[16]C.Hauser,etal.,Staphylococcusaureusskincolonizationinatopicdermatitis patients,Dermatologica170(1985)35–39.
[17]S.1.Loncarevic,H.J.Jørgensen,A.Løvseth,T.Mathisen,L.M.Rørvik,Diversity ofStaphylococcusaureusenterotoxintypeswithinsinglesamplesofrawmilk andrawmilkproducts,J.Appl.Microbiol.98(2)(2005)344–350.
[18]M.1.Mempel,C.Schnopp,M.Hojka,H.Fesq,S.Weidinger,M.Schaller,H.C. Korting,J.Ring,D.Abeck,InvasionofhumankeratinocytesbyStaphylococcus aureusandintracellularbacterialpersistencerepresent
[26]H.A.Rutherford,W.I.Patterson,M.Harris,Reactionofsilkfibroinwith diazomethane,J.Res.Natl.Bur.Stand.25(1940)451–458.
[27]C.F.Lane,Sodiumcyanoborohydride–ahighlyselectivereducingagentfor organicfunctionalgroups,Synthesis3(1975)135–146.
