A total laparoscopic technique for endovascular
thoracic stent graft deployment
Ricardo Yoshida, MD,aRalf R. Kolvenbach, MD,bZhidong Ye, MD,b and Winston Yoshida, MD, PhD,aDusseldorf, Germany; and Botucatu, Brazil
Background:Limitations of endovascular thoracic aneurym treatment include small, tortuous, or severely calcified iliac arteries. We present our experience with a total laparoscopic access to deploy thoracic endografts.
Methods:A total laparoscopic left retrocolic approach was used in all cases. A Dacron conduit was laparoscopically sutured to either the iliac artery or to the aorta directly. The endograft was inserted through this conduit. After graft deployment, the Dacron prosthesis was tunneled to the groin and anastomosed with the femoral artery.
Results:The laparoscopic procedure could successfully be performed in 11 patients. In six cases, the aorta was used as an access and in five patients, the iliac arteries were preferred. In one of these cases, the right iliac artery was used for deployment of the endograft. After successful aorto- or ileo-femoral bypass grafting, all patients had an improvement of their ankle brachial index postoperatively. The mean operative time was almost four hours, including laparoscopy, laparoscopic anastomosis, endograft deployment, and femoral artery anastomosis or profundaplasty.
Conclusion:Totally laparoscopic assisted graft implantation in aorta or iliac arteries provides a safe and effective access for the endovascular delivery system. However, further evaluation and long follow-up are necessary to ensure the potential advantages of this technique. It is a less invasive option to overcome access-related problems with thoracic endograft deployment, giving the patient the advantage of a totally minimal invasive procedure. ( J Vasc Surg 2010;51:504-8.)
Thoracic aortic aneurysms (TAAs) are successfully treated by endovascular techniques (TEVAR),1-4
with the benefit of aneurysm exclusion without the invasiveness of prolonged proximal aortic clamping and direct surgical exposure. However, not all patients with TAAs are eligible for these less invasive endovascular procedures.2,3,5
Limitations include the anatomic morphology of the aneurysm and tortuous or stenotic access arteries.5-7
The femoral artery is the most commonly used access vessel, but the common iliac artery or abdominal aorta can be used in case of anatomic problems.5
The 21-22 F introducer sheaths make deployment in patients with aorto-iliac occlu-sive disease often difficult or impossible.2,8 An
extraana-tomic exposure of the aorta or iliac arteries significantly increases the invasiveness of the procedure.6
In the following, we describe our experience with a laparoscopic technique to deploy thoracic endografts. The video endoscopic technique is presented in detail.
MATERIALS AND METHODS
Using a regular bypass graft as a conduit, we wanted to obtain a safe and durable access to the iliac arteries or to the aorta as well as a bypass graft to treat the occlusive disease. This could easily be accomplished by tunneling the Dacron graft to the groin and subsequently performing an anasto-mosis with the femoral artery after introducing the stent graft.
Laparoscopic exposure. For all procedures involving the left iliac artery and the infrarenal aorta, the patient was positioned on a vacuum bag and could be tilted at a 70° slope (Fig 1). As previously described, we prefer a transperi-toneal left retrocolic approach similar to the one originally described by Dion as the “Apron technique.”9
Mobiliza-tion of the left hemicolon, as originally described by Mat-tox, was modified by Coggia to facilitate laparoscopic ex-posure of the aorta.10Mobilization of the left hemicolon
was initiated using the line of Toldt as a landmark. A retractor was inserted from the right side to retract the small bowel and the left kidney medially (Fig 2). The surgeon, first assistant, and second assistant, holding the
From the Department of Surgery and Orthopedics, Botucatu School of Medicine, São Paulo State Universityaand the Department of Vascular
Surgery and Endovascular Therapy, Augusta Hospital and Catholic Clin-ics.b
Competition of interest: none.
Reprint requests: Ralf Kolvenbach, MD, PhD, Department of Vascular Surgery, Augusta Hospital and Union of Catholic Clinics Duesseldorf, Amalien Str. 9, 40472 Duesseldorf (e-mail. Kolvenbach@VKKD-Kliniken.de).
The editors and reviewers of this article have no relevant financial relation-ships to disclose per the JVS policy that requires reviewers to decline review of any manuscript for which they may have a competition of interest.
0741-5214/$36.00
Copyright © 2010 by the Society for Vascular Surgery. doi:10.1016/j.jvs.2009.06.060
camera, all stood on the right side of the patient during the laparoscopic portion of the procedure (small diagram in Fig 3). A maximum number of six ports were required to expose the aorta or the iliac artery (Fig 3). As can be seen in

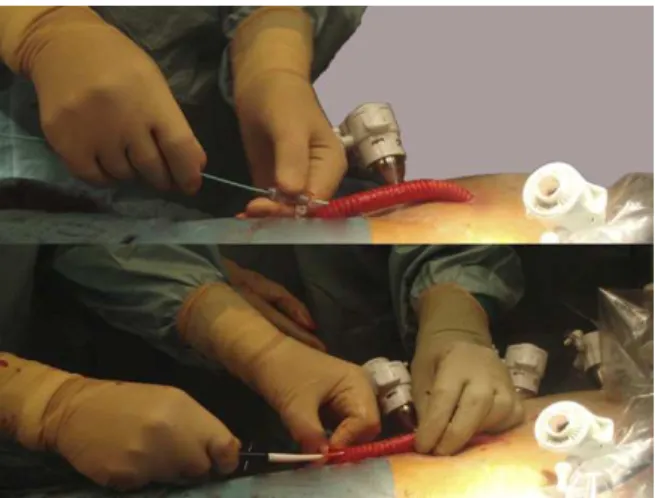

Fig 1, the Dacron graft was exteriorized through one of the
