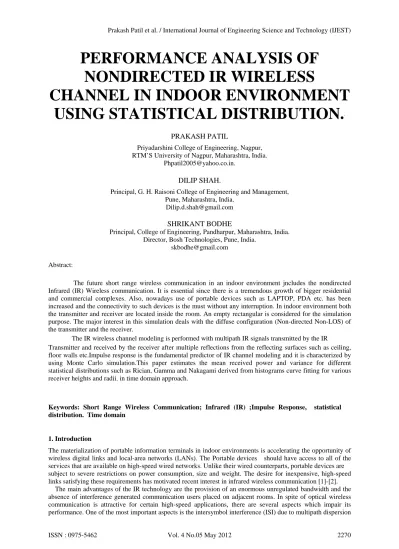

PERFORMANCE ANALYSIS OF NONDIRECTED IR WIRELESS CHANNEL IN INDOOR ENVIRONMENT USING STATISTICAL DISTRIBUTION..

(1)

PERFORMANCE ANALYSIS OF

NONDIRECTED IR WIRELESS

CHANNEL IN INDOOR ENVIRONMENT

USING STATISTICAL DISTRIBUTION.

.

PRAKASH PATIL

Priyadarshini College of Engineering, Nagpur, RTM’S University of Nagpur, Maharashtra, India.

Phpatil2005@yahoo.co.in.

DILIP SHAH.

Principal, G. H. Raisoni College of Engineering and Management, Pune, Maharashtra, India.

Dilip.d.shah@gmail.com

SHRIKANT BODHE

Principal, College of Engineering, Pandharpur, Maharashtra, India. Director, Bosh Technologies, Pune, India.

skbodhe@gmail.com

Abstract:

The future short range wireless communication in an indoor environment jncludes the nondirected Infrared (IR) Wireless communication. It is essential since there is a tremendous growth of bigger residential and commercial complexes. Also, nowadays use of portable devices such as LAPTOP, PDA etc. has been increased and the connectivity to such devices is the must without any interruption. In indoor environment both the transmitter and receiver are located inside the room. An empty rectangular is considered for the simulation purpose. The major interest in this simulation deals with the diffuse configuration (Non-directed Non-LOS) of the transmitter and the receiver.

The IR wireless channel modeling is performed with multipath IR signals transmitted by the IR Transmitter and received by the receiver after multiple reflections from the reflecting surfaces such as ceiling, floor walls etc.Impulse response is the fundamental predictor of IR channel modeling and it is characterized by using Monte Carlo simulation.This paper estimates the mean received power and variance for different statistical distributions such as Rician, Gamma and Nakagami derived from histograms curve fitting for various receiver heights and radii. in time domain approach.

Keywords: Short Range Wireless Communication; Infrared (IR) ;Impulse Response, statistical distribution. Time domain

1. Introduction

(2)

according to two criteria. This classification of IR link is shown in Fig.1 [5]

Fig. 1.Classification of IR Link.[4].

The first classification refers to the directionality of the transmitter and receiver. Directed links employ directional transmitters and receivers, which must be aimed in order to set up a link. Non- directed IR links employ wide-angle transmitters and receivers, alleviating the necessitate for pointing. Directed IR link design provides maximum power efficiency due to reduced path loss and reception of ambient noise. Conversely, non directed links may be more suitable to use, mostly for mobile terminals, since they do not require aiming to the transmitter or receiver. In case of hybrid link both transmitters and receivers are combined with different degrees of directionality.

The second classification refers to whether the link relies upon the survival of an uninterrupted LOS path between the transmitter and receiver. LOS IR links rely upon such a path, while non-LOS relies upon reflected paths of the light from the ceiling, walls or some other diffusely reflecting surface within a specific room. LOS link design offers maximum power efficiently and reduces the multi-path distortion. Non-LOS IR link design increases link stability and simplicity of use, allowing the link to operate even in presence of obstacles between the transmitter and receiver. Non -directed non-LOS link design provides the utmost stability and simplicity of use which is often referred to as diffuse link.[6].

(3)

Figure 2: Block Diagram of indoor infrared wireless channel

In the figure given below infrared Led is used as the transmitter which converts the input signal into corresponding infrared signal. It is further transmitted via free space medium. On the receiver side APD is used as the photodetector that converts the infrared signal into the corresponding photocurrent

3. Impulse response estimation

The equivalent baseband model of non-directed infrared wireless link can be summarized by the relation given below,

 

Y t = R X t



h t + N t

(1)

Where,



indicates the convolution

R is the photo detector responsively (in A/W), and h (t) is the channel impulse ambient light, can be modeled as white Gaussian noise [7].It cannot be negative and must satisfy eye safety regulations [7], and is given by,

The input signal X (t) is the instantaneous optical power of the transmitter. The output signals Y (t) is the instantaneous photo current delivered by the photodetector. It is the product of the photo detector responsivity (sensitivity) R in A/W and the integral over the surface of the photo detector of the instantaneous IR power at every location the signal propagates between the transmitter and the receiver through a room via probable reflections. The IR channel can be modeled as a baseband linear system characterized by the input power X (t), the output current Y (t), the additive white Gaussian noise N (t) and an impulse response h (t) as shown in figure 2.Different temporal or frequential impulse responses are considered as fixed for a specific physical configuration of transmitter, receiver and reflective surfaces in indoor environment. [6].With the movement of the transmitter, the receiver or the objects in the room, the impulse responses get changed. The impulse response is quasistatic because of high signaling rates, high order diversity of the large area receiver. In many applications, it is assumed that IR links are operated in the presence of intense infrared and visible background light that results in additive white nearly Gaussian noise N(t) which is the limiting factor in the signal to noise ratio (SNR) of a well designed receiver.

The channel model is characterized by two parameters, rms delay spread

D

rmsand optical path loss

(0)

H which cause Intersymbol interference (ISI) and signal attenuation, respectively. The impulse response of an infrared wireless link can be represented as

6

6 ( )

(0)

a

( )

(4)

Intensity modulation with direct detection (IM/DD) is the only feasible method of communication due to cost and complexity. [6].The transmitted optical power of the source X(t) is directly varied by changing the drive current according to the modulating signal. The receiver uses the photodetector wherein the photocurrent Y(t) is directly proportional to instantaneous power incident upon it. It means it is proportional to the square of the received electric field.

3.1 Algorithm and its implementation

The impulse response for line-of-sight (LOS) path is given by the relation

 



_t

_T

_R



_

h

0

;





 



 



,

/

2

1 cos

d

rect

FOV

t

d

c

n







_

_

_



₍₄₎

Similarly, the impulse response for the higher order reflections (i.e.

q



0

) is calculated recursively. with the help of an algorithm. From the equation (8), we can write:





 

_



























h

t

T

r

n



dA

R

T

t

h

S q

,

2 /

,

;

0





h

q1



























R

n

r

t

;

,

1 ,

   

       

d

n i 2 cos

cos

 



(5)

hence

h

 q

 

t

is described as follows.

 





 



_t

_T

 

_t

_R



h

R

T

t

h

i i

N i

q

_:

_,

_;

_,

_;

_,

1

0













   

rect





h

R

n

N q

i S n i 1 1 2

/

2 cos

cos

2

1

_ 

 













t

R

C

r

n

R





A























(5)

4. Simulation of Non- directed IR channel.

The simulation parameters required to perform the simulation are listed in the Table 1.shown below.

Table 1. Simulation parameters:

4.1 Simulation set up inside the room

This is totally novel system for the simulation analysis if nondirected indoor IR channel. We consider an empty rectangular room where the transmitter, receiver and the reflecting surfaces such as ceiling and floor are positioned.

To characterize the impulse response of nondirected IR channel using intensity modulation direct detection (IM/DD) in indoor environment, we have used the Monte-Carlo simulation

The simulation parameter details are as follows 1. Empty rectangular room with dimensions: (6,4,3) 2. Transmitter Position: Ceiling center.

3. Transmitter radiation pattern mode: Mode 1

4. Receiver Position: At a height of 1m and 2 m from floor and at the center of floor initially. 5. Variable Receiver height : 1m, 2m and 3m

6. Receiver is revolved around the transmitter with different radii varying from 1m to 2m in steps of 0.25

5. Simulation Results and discussion:

For the performance analysis of non-directed IR channel distribution plots from the histograms are obtained and those are listed in Fig. 3 as follows:

Parameter/configuration Room Environment

Rom Dimension

Length(X) Width Y) Height (Z)

6 4 3

Reflectivity(



)

Wall Ceiling,

Floor

0.6 0.6 0.6

Transmitter (Tx)

Mode X Y Z

1 3 2 3

Receiver (Rx)

Area FOV X Y Z

1 70

(6)

(a)Rx Ht 1m and Rx Rad. 1m (b) Rx Ht 1m and Rx Rad. 1.5m

( c) Rx Ht 1m and Rx Rad.2m (d) Rx Ht 2m and Rx Rad. 1m

(7)

(g) Rx Ht 3m and Rx Rad. 1m (h) Rx Ht 1m and Rx Rad. 1.5m

(i) Rx Ht 1m and Rx Rad. 2m.

Fig 3 : Distribution fit for Rician, Gamma and Nakagami distribution with Rx Ht1m, 2m and 3m For Rx radius varying from 1m to 3m in steps of 0.25 m.

From all the above plots we have analyzed the data which provides the mean received power and variance for different combinations of receiver heights and radii. Curve fitting gives all the above histograms are tested for the distributions such as Rician, Gamma and Nakagami. It is required to analyze the best possible fit of the histograms. Here we have considered upto third order reflections.

(8)

6. Conclusion:

From the above given results it has been observed that the Rician distribution is the best fit for the performance analysis of non-directed IR wireless communication in an indoor environment. The research further reveals that the IR channel can be modeled using the Rician distribution. From this outcome of the research we can suggest the received power distribution at certain fixed geometry of the transmitter and receiver in an empty rectangular room. This is the innovative approach of modeling the non-directed IR channel in the multipath

Indoor environment for the high speed secured communication with unlimited bandwidth providing the fruitful communication amongst various portable devices located inside the room.
