EVALUATION OF BER FOR VARIOUS
FADING CHANNEL IN DWT BASED
MIMO-OFDM SYSTEM
D. Meenakshi#1, S. Prabha#2, N. R. Raajan#3 #
School of Electrical & Electronics Engineering, SASTRA University, Tamil Nadu, India – 613401
1
d.meenakshi2310@gmail.com, 2prabhakumaresan@gmail.com, 3nrraajan@ece.sastra.edu,
Abstract— MIMO communication is mainly use in the OFDM to improve the communication
performance and capacity. DWT based MIMO-OFDM is used in this paper. Compare to the FFT based MIMO-OFDM it has lot advantages. There is no need for cyclic prefix, flexibility and optimal resolution. Ripple(Wavelet) concept has developed as a fresh scientific implement with the aim of preserve be functional in several applications such as processing of image, biomedical manufacturing, radar, physics, organize systems also message systems. The essential region of purpose of ripples in communication system: numerous accesses. A fresh modulation/multiplexing scheme consuming ripple transform remained planned for (3rd production organization project) 3GPP systems. This fresh modulation system implemented in (orthogonal frequency division multiplexing) OFDM scheme in addition to conventional based(FFT) transform blocks is replaced by wavelet transform blocks. There are many multiplicity of ripple transforms are offered, out of which four were chosen. They are Haar, Daubechies, Bi-orthogonal and reverse Bi-orthogonal transforms. Haar wavelet is best one of among all types of wavelet. The performance of DWT based MIMO-OFDM is calculated by bit error rate (BER) in various channel that is AWGN channel and Rayleigh channel. Using MATLAB-Simulation which channel is best for the DWT based MIMO-OFDM.
KEYWORDS: DWT,MIMO-OFDM,AWGN, Rayleigh channel.
I. INTRODUCTION
The 3rd Group Partnership Project (3GPP) is requiring the extended term growth of third generation mobile schemes to come across burdens for developed client bit rates. The 3GPP Long Term Evolution (LTE) denotes a major development in mobile tools. The petition for data also performing on the transfer has full-fledged enormously more than the centuries. Mobile TV, public networking, online betting, video conferencing, disaster management, rural education in addition remote medical assistance are some of the real time hypermedia solicitations.
The innovative possibility of 3GPP stayed to produce generally related Methodological Specifications then Methodical Information for a 3rd Generation cellular System constructed on progressed GSM core links also the radio contact knowledge that they provision (i.e., Universal Terrestrial Radio Access (UTRA) mutually Frequency Division Duplex (FDD) also Time Division Duplex (TDD) modes). The opportunity was consequently corrected to consist of the upkeep and improvement of the Global Scheme for Mobile communication (GSM) Methodological Specifications plus Methodical Reports together with progressed radio access equipment [(e.g. General Packet Radio Service (GPRS) too Enhanced Data rates for GSM Evolution (EDGE)].
The main involvement to the OFDM method come to execution after Weinstein as well as Ebert established the usage of the discrete Fourier transform (DFT) to achieve the stand band modulation too demodulation. The usage of the DFT vastly improved the effectiveness of the modulation as well as demodulation giving out. The usages of the guard space besides the raised cosine filtering solve the difficulties of ISI to a superior level. Although the scheme intended as such ensured not achieve the perfect orthogonality among sub carriers in a time -dispersive channel, nevertheless it remained still a main support to the development of OFDM schemes.
II. DISCRETE WAVELET TRANSFORM
The orthogonal sets of codes are functional for wavelet signaling and that one orthogonality remained broken over both time as well as scaling. The analyses of DWT signal through different resolution next to the different frequency through using the decomposition signal into an estimate comprising abrasive then in depth data. The ripple functions are denoted by low pass as well as high pass filter. The input signal is passed in to low pass in addition to high pass filter. The low pass filter is denoted by r[n]. The high pass filter is denoted by s[n]. the high pass filter allow all high frequency signal, the low pass filter allows below the highest frequency signal, the filter makes the determination half and also the mounting factor vestiges same. The splitting of filter, decomposition, reconstruction as shown in figure 1,2 and 3.To avoid redundant samples using down sampling by factor 2. The decomposition of the signal is expressed as
∑ 2 (1)
∑ 2 (2)
The time resolution is reduced by decomposition method by using the factor by 2. An overhead method is called as sub band coding.

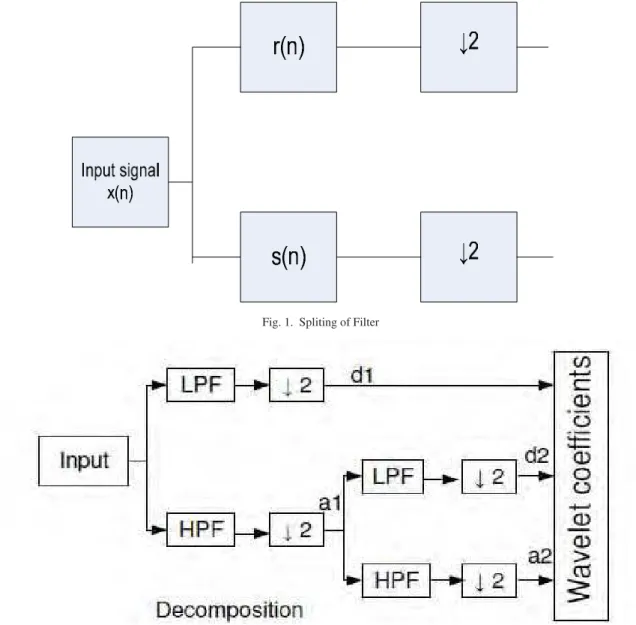

Fig. 1. Spliting of Filter
Fig. 3. Diagram for DWT transform
III. RIPPLES IN OFDM SYSTEM
Ripples remain exclusively skilled toward adjust the convergence of data plus message equipment. An opportunity of universal connectivity require pretended an experiment to increasing technologies as well as constructions accomplished of management enormous volumes of information lower than simple resource limitations such as control plus bandwidth. Meanwhile forthcoming air-free message is mostly emphases arranged the tractability in addition reworked copy of spectrum, in that case ripple has more tractability in addition reworked copy toward ensembles our requirements in upcoming wireless message. Another stage for substituting IFFT plus FFT remained prepared through wavelet transforms (DWT and IDWT). By way of this transform, it does not use CP (Cyclic Prefix), so the spectral suppression of the channels was improved. Some type of Ripple transform is specifically as per Discrete Wavelet Transform OFDM (DWT-OFDM). This one works Low Pass Filter (LPF) in addition to High Pass Filter (HPF) working as quadrature Mirror Filters adequate perfect reconstruction plus orthonormal bases properties. That filter coefficients are estimated too aspect in LPF plus HPF respectively.
That scaling constants is occasionally denoted to as approximated coefficients, while the complete is devoted to Ripple coefficients [11],.Biorthogonal wavelets , Morlet wavelets plus Daubechies wavelets, had an improved determination as soon as matched by others, but it is not cost operative when matched through Haar wavelet.
That goods of ripple then creates as a well-meaning choice aimed at many applications approximating image synthesis, nuclear engineering, biomedical engineering, magnetic resonance imaging, music, fractals, turbulence, pure mathematics, data compression, computer graphics and animation, human vision, radar, optics, astronomy, acoustics and seismology, then a deep description for other solicitations were presented in [1][2]
Fig. 4. Block diagram for wavelet based OFDM.
works Low Pass Filter (LPF) also High Pass Filter (HPF) working as quadrature Mirror Filters adequate perfect reconstruction in addition to orthonormal bases properties. Figure 4. Shows the block diagram for wavelet based OFDM.
IV. DWT BASED MIMO-OFDM SYSTEM
Discrete Wavelet Transform is planned as high presentation digital signal processing method for procedure in applying multicarrier modulation. The block diagram proposal of multicarrier transceiver arithmetical system constructed on DWT is shown in Fig. 5. The system project include of an inverse discrete wave-let transform (IDWT) as modulator at the transmitter as well as a discrete ripple transform (DWT) as demodulator at the side of receiver. The foremost plus the essential modification among the conventional OFDM as well as DWT multicarrier scheme is the elimination of the cyclic prefix blocks in the transmitter otherwise in the receiver parts .MIMO-DWT based OFDM have many number of antenna both the transmitting and receiving side. This is the interesting area in OFDM system. To increases the throughput of the data, to increases the link range without the need for additional bandwidth, to improve the spectral efficiency, to achieve the diversity gain and reduce the multipath fading effect. MIMO can be classified in to three categories (i) precoding (ii) spatial multiplexing (iii) diversity coding. Now MIMO scheme the spectral effectiveness is improved for a specified transmit power. The spectral effectiveness is the whole number of data bits per second per hertz communicated beginning one array to the further. This on successfully precedes an advantage of indiscriminate fading also multipath delay spread [3]. Subsequently it takes a number of transmitters as well as receiver antenna, it achievements spatial diversity. Therefore the capacity is improved by presenting additional spatial channel abused by with space-time coding. Meanwhile the various amount of antennas at the transmitter in addition to receiver are improved its computational complexity likewise rises thus the performance of the system is corrupted by the approximation error.
Fig. 5. Block diagram for DWT based MIMO-OFDM transmitter
In the situation of channel valuation for MIMO scheme, withNTtransmitters in addition toNRreceivers, there are NTXNR channels to be assessed. Symbols are transferred concurrently from all transmitters, that superposition of all the communicated signals are established by the receivers. Those symbols are slanted by the channel. The receiver sector excluding the source signal all other symbols are measured as interference through the receiver. If a pilot symbols are injected in the sub-carrier extra spreader doesn’t conduct everything in the sub-carrier. The figure6. Shows the transmitter sector, via digital modulation the basis bit stream is represented to a constellation then the encoded through MIMO encoder. At that time similar broadcast process is trailed by every parallel output pictogram corresponding to a definite conduct antenna. Now the receiver sector IF/RF constituents in excess of the receive antennas remains synchronized first. Formerly the OFDM symbols are demodulated. That frequency pilots as of all conventional antennas afterward demodulation exist for channel approximation. The channel medium assessed the MIMO decoder and decoding the sophisticated OFDM signals. Lastly data bit streams are communicated to the data linkage.
V. CHANNEL FADING
A Diminishing Channel has to expression dissimilar fading spectacle’s, through signal communication. In actual world atmosphere, the radio broadcast special possessions the signal and generated the multipath fading in the channel. Owing to many signal propagation paths, multiple signals are arrived at the by one or more number of paths. The original signal arrived at the receiver is calculated by vector summation of the signals. Those signals are occurrence as of some path or angle of arrival. Three types fading channel (i) AWGN (ii) Rayleigh (iii)Rician.
A. AWGN CHANNEL
In wireless communication system additive white Gaussian noise is simplest one. It does not version for fading frequency selectivity, intervention, dispersive. The AWGN is well suited for deep face communication link. It is not suited for multipath interference. Additive white Gaussian noise (AWGN) is typically used to communicate symbols though symbols portable as of the channel plus act out circumstantial noise of channel. The scientific expression in destination signal r(t) = s(t) + n(t) that approved over the AWGN channel wherever s(t) is communicated signal and n(t) is related noise.
B. RAYLEIGH CHANNEL:
The Rayleigh fading is mainly produced through multipath response [6]. Rayleigh fading stays a numerical model for that result of spread air on a radio signal. The sensible model for troposphere in addition to ionospheres signal broadcast as well as that outcome of severely developed town atmospheres on radio signals. Rayleigh fading [7] is maximum valid after there is no line of sight among the source and destination.
C. RICIAN CHANNEL:
The Ricean channel model [6] is related to the Rayleigh channel model, but in Ricean fading, a strong leading module is existing. This dominant module is an inactive (non fading) signal at that moment is frequentlycalled as the LOS (Line of Sight Component).
VI. SIMULATION RESULTS
By means of the MATLAB simulation the performance of the various channel is analyzed by bit error rate versus signal to noise ratio. The results are shown in the figure.
TABLE I
BER in AWGN and Rayleigh fading channel in BPSK modulation
BER in AWGN Channel BER
in Rayleigh Channel
-5:0 0.1060 0.1040
0:5 0.0972 0.0941
5:10 0.0581 0.0603
10:15 0.0222 0.0263
15:20 0.0077 0.01
Fig. 7. Modulated signal for AWGN and Rayleigh fading channel
Fig. 8. Output spectrum for destination signal
VII. CONCULSION
After the Simulink model results, the Bit Error Ratio of a numerical message scheme is a main amount of value usage to enumerate that reliability of data communicated over the scheme. Through applying the diverse channel methods, the standard is evaluation of the variant of BER for diverse SNR. It is experimental that the BER stays least possible aimed at AWGN as well as supreme for RAYLEIGH also RICIAN.
