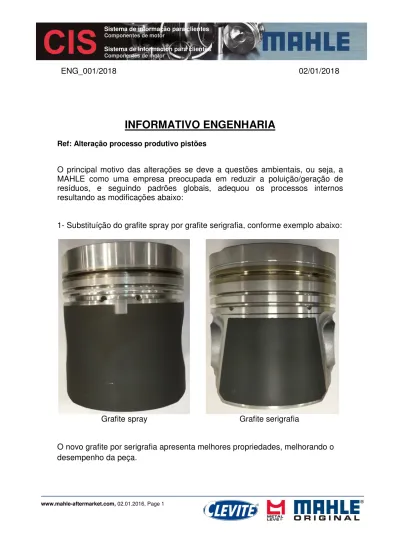

INFORMATIVO ENGENHARIA
Ref: Alteração processo produtivo pistões
O principal motivo das alterações se deve a questões ambientais, ou seja, a MAHLE como uma empresa preocupada em reduzir a poluição/geração de resíduos, e seguindo padrões globais, adequou os processos internos resultando as modificações abaixo:
1- Substituíção do grafite spray por grafite serigrafia, conforme exemplo abaixo:
Grafite spray Grafite serigrafia
O novo grafite por serigrafia apresenta melhores propriedades, melhorando o desempenho da peça.
