EFFICIENT ALGORITHM FOR RSA TEXT ENCRYPTION USING CUDA-C

Dhinaharan Nagamalai et al. (Eds) : ACITY, WiMoN, CSIA, AIAA, DPPR, NECO, InWeS - 2014

pp. 233–241, 2014. © CS & IT-CSCP 2014 DOI : 10.5121/csit.2014.4524

Sonam Mahajan

and Maninder Singh

1,2

Department of Computer Science Engineering, Thapar University, Patiala, India

sonam_mahajan1990@yahoo.in msingh@thapar.edu

A

Modern-day computer security relies heavily on cryptography as a means to protect the data that we have become increasingly reliant on. The main research in computer security domain is how to enhance the speed of RSA algorithm. The computing capability of Graphic Processing Unit as a co-processor of the CPU can leverage massive-parallelism. This paper presents a novel algorithm for calculating modulo value that can process large power of numbers which otherwise are not supported by built-in data types. First the traditional algorithm is studied. Secondly, the parallelized RSA algorithm is designed using CUDA framework. Thirdly, the designed algorithm is realized for small prime numbers and large prime number . As a result the main fundamental problem of RSA algorithm such as speed and use of poor or small prime numbers that has led to significant security holes, despite the RSA algorithm's mathematicalsoundness can be alleviated by this algorithm.

K

CPU, GPU, CUDA, RSA, Cryptographic Algorithm.

1.

I

RSA (named for its inventors, Ron Rivest, Adi Shamir, and Leonard Adleman [1] ) is a public key encryption scheme. This algorithm relies on the difficulty of factoring large numbers which has seriously affected its performance and so restricts its use in wider applications. Therefore, the rapid realization and parallelism of RSA encryption algorithm has been a prevalent research focus. With the advent of CUDA technology, it is now possible to perform general-purpose computation on GPU [2]. The primary goal of our work is to speed up the most computationally intensive part of their process by implementing the GCD comparisons of RSA keys using NVIDIA's CUDA platform.

234 Computer Science & Information Technology (CS & IT)

2.

T

RSA

A

[1]

RSA is an algorithm for public-key cryptography [1] and is considered as one of the great advances in the field of public key cryptography. It is suitable for both signing and encryption. Electronic commerce protocols mostly rely on RSA for security. Sufficiently long keys and up-to-date implementation of RSA is considered more secure to use.

RSA is an asymmetric key encryption scheme which makes use of two different keys for encryption and decryption. The public key that is known to everyone is used for encryption. The messages encrypted using the public key can only be decrypted by using private key. The key generation process of RSA algorithm is as follows:

The public key is comprised of a modulus n of specified length (the product of primes p and q), and an exponent e. The length of n is given in terms of bits, thus the term “8-bit RSA key" refers to the number of bits which make up this value. The associated private key uses the same n, and another value d such that d*e = 1 mod (n) where (n) = (p - 1)*(q - 1) [3]. For a plaintext M and cipher text C, the encryption and decryption is done as follows:

C= Me mod n, M = Cd mod n.

For example, the public key (e, n) is (131,17947), the private key (d, n) is (137,17947), and let suppose the plaintext M to be sent is: parallel encryption.

• Firstly, the sender will partition the plaintext into packets as: pa ra ll el en cr yp ti on. We

suppose a is 00, b is 01, c is 02, ... z is 25.

• Then further digitalize the plaintext packets as: 1500 1700 1111 0411 0413 0217 2415 1908 1413.

• After that using the encryption and decryption transformation given above calculate the

cipher text and the plaintext in digitalized form.

• Convert the plaintext into alphabets, which is the original: parallel encryption.

3. A

O

[4]

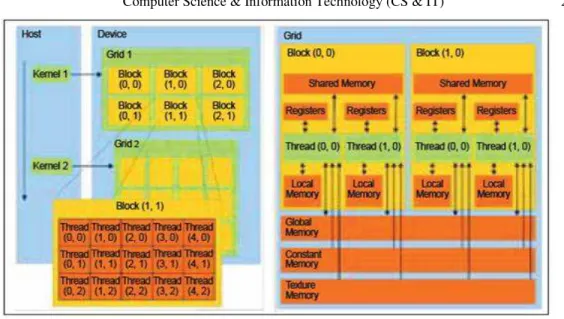

Figure 1. CUDA System Model

The platform allows various arrangements of threads to perform work, according to the developer's problem decomposition. In general, individual threads are grouped into up-to 3-dimensional blocks to allow sharing of common memory between threads. These blocks can then further be organized into a 2-dimensional grid. The GPU breaks the total number of threads into groups called warps, which, on current GPU hardware, consist of 32 threads that will be executed simultaneously on a single streaming multiprocessor (SM). The GPU consists of several SMs which are each capable of executing a warp. Blocks are scheduled to SMs until all allocated threads have been executed. There is also a memory hierarchy on the GPU. Three of the various types of memory are relevant to this work: global memory is the slowest and largest; shared memory is much faster, but also significantly smaller; and a limited number of registers that each SM has access to. Each thread in a block can access the same section of shared memory.

4. P

The algorithm used to parallelize the RSA modulo function works as follows:

• CPU accepts the values of the message and the key parameters.

• CPU allocates memory on the CUDA enabled device and copies the values on the device

• CPU invokes the CUDA kernel on the GPU

• GPU encrypts each message character with RSA algorithm with the number of threads equal to the message length.

• The control is transferred back to CPU

• CPU copies and displays the results from the GPU.

236 Computer Science & Information Technology (CS & IT)

power of numbers which are not supported by built in data types. The modulus value is calculated using the following principle:

• C = Me mod n

• C = (Me-x mod n * Mx mod n) mod n

Hence iterating over a suitable value of x gives the desired result.

4.1. Kernel code

As introduced in section 2, RSA algorithm divides the plaintext or cipher text into packets of same length and then apply encryption or decryption transformation on each packet. A question is how does a thread know which elements are assigned to it and are supposed to process them? CUDA user can get the thread and block index of the thread call it in the function running on device. In this level, the CUDA Multi-threaded programming model will dramatically enhanced the speed of RSA algorithm. The experimental results will be showed in section 5.

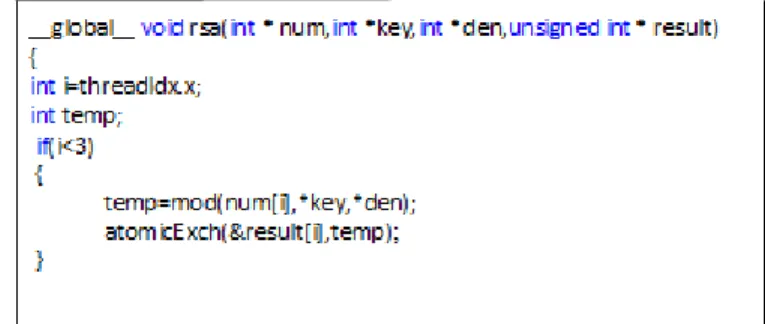

The kernel code used in our experiment is shown below. First CUDA user assign the thread and block index, so as to let each thread know which elements they are supposed to process. It is shown in Figure 2. Then it call for another device function to calculate the most intense part of the RSA algorithm. Note in the below figure2 and figure3, it works for 3 elements.

Figure 3. Kernel’s Device code

5. V

In this section we setup the test environment and design three tests. At first test, we develop a program running in traditional mode for small prime numbers (only use CPU for computing). And at the second test, we use CUDA framework to run the RSA algorithm for small prime numbers in multiple-thread mode. Comparison is done between the two test cases and speed up is calculated. In the third test we run the GPU RSA for large prime numbers that is not supported by the built-in data types of CPU RSA. The test result will be showed in this section

5.1. Test environment

The code has been tested for :

• Values of message between 0 and 800 which can accommodate the complete ASCII table

• 8 bit Key Values

238 Computer Science & Information Technology (CS & IT)

At the second stage, we also use Visual Studio 2010 for developing and testing parallelized RSA developed using CUDA v5.5 for small prime numbers. After that the results of stage one and stage second are compared and hence calculating the respective speedup.

In the third test we run the GPU RSA for large prime numbers that is not supported by the built-in data types of CPU RSA. The test result will be showed in this section. At present the calculation of Cipher text using an 8-bit key has been implemented parallel on an array of integers.

5.2 Results

In this part, we show the experiment results for GPU RSA and CPU RSA for small value of n.

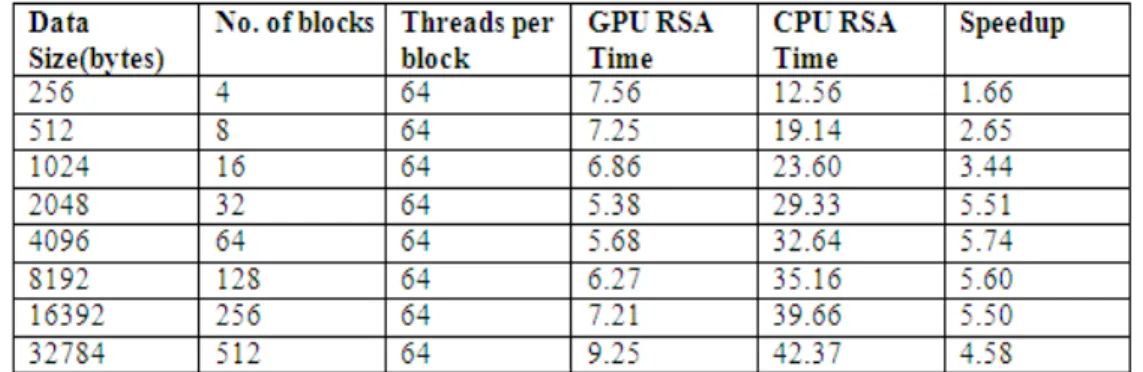

Table 1. Comparison of CPU RSA and GPU RSA for small prime numbers i.e (n=131*137)

Table 1 shows the relationship between the amount of data inputting to the RSA algorithm and the execution times (in seconds) in traditional mode and multiple thread mode. The first column shows the number of the data input to the algorithm, and the second column shows the number of blocks used to process the data input. In the above table 64 threads per block are used to execute RSA. The execution time is calculated in seconds. In the last column speed up is calculated. Above results are calculated by making average of the results so taken 20 times to have final more accurate and precise results.

The enhancement of the execution performance using CUDA framework can be visually demonstrated by Fig 4.

5.2.1 GPU RSA for large prime numbers

In this part, we show the experiment results for GPU RSA and CPU RSA for small value of n.

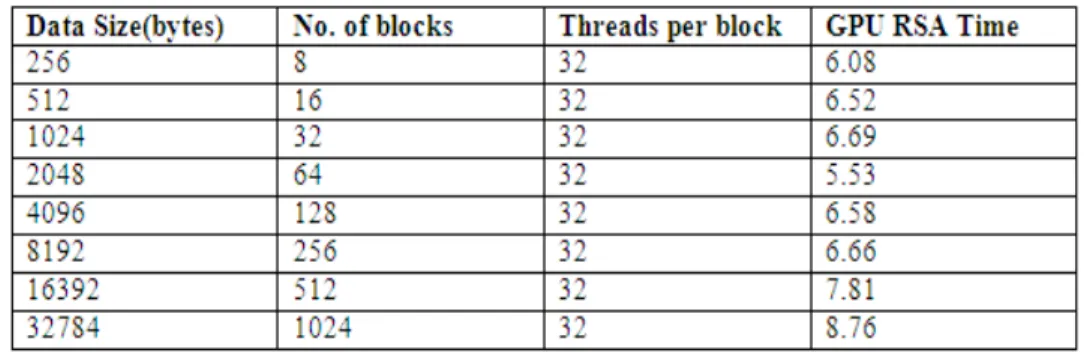

Table 2. GPU RSA for large prime numbers and large value of n (n = 1005 * 509)

From Table 2, we can see the relationship between the execution time in seconds and the input data amount (data in bytes) is linear for certain amount of input. When we use 256 data size to execute the RSA algorithm, the execution time is very short as compared to traditional mode which is clearly proved in the above section where the comparison is made for CPU RSA and GPU RSA for small prime numbers and hence for small value of n. So we can say when the data size increases, the running time will be significantly reduced depending upon the number of threads used. Furthermore, we also find that when the data size increases from 1024 to 8192, the execution time of 7168 threads almost no increase, which just proves our point of view, the more the data size is, the higher the parallelism of the algorithm, and the shorter the time spent. Execution time varies according the number of threads and number of blocks used for data input. In the above table threads per block are constant i.e we use 32 threads per block and number of blocks used are adjusted according to the data input.

The enhancement of the execution performance of data input in bytes using the large value of prime numbers (n=1009 * 509) and hence large value of n on CUDA framework can be visually demonstrated by Figure 5.

Figure 5. GPU RSA for large value of n (n=1009*509)

5.2.2. Execution time comparison of GPU RSA for large value of n (1009*509) with CPU RSA for small value of n(137*131)

240 Computer Science & Information Technology (CS & IT)

numbers and large value of n (513581). The enhancement of the GPU execution performance of data input in bytes using the large value of prime numbers (n=1009 * 509) on CUDA framework and CPU RSA using small value of prime numbers (n=137*131) can be visually demonstrated by Figure 6. Hence, we can leverage massive-parallelism and the computational power that is granted by today's commodity hardware such as GPUs to make checks that would otherwise be impossible to perform, attainable.

Figure 6. Comparison of CPU RSA for small prime numbers with GPU RSA for large prime numbers.

6.

RSA

D

U

C

-C

In this paper, we presented our experience of porting RSA encryption algorithm on to CUDA architecture. We analyzed the parallel RSA encryption algorithm. As explained above the encryption and decryption process is done as follows:

C= Me mod n, M = Cd mod n.

The approach used for encryption process is same for decryption too. Same kernel code will work for decryption too. The only parameters that will change is the private key (d) and ciphertext in place of message bits used during encryption.

7.

C

In this paper, we presented our experience of porting RSA algorithm on to CUDA architecture. We analyzed the parallel RSA algorithm. The bottleneck for RSA algorithm lies in the data size and key size i.e the use of large prime numbers. The use of small prime numbers make RSA vulnerable and the use of large prime numbers for calculating n makes it slower as computation expense increases. This paper design a method to computer the data bits parallel using the threads respectively based on CUDA. This is in order to realize performance improvements which lead to optimized results.

R

[1] R. L. Rivest, A. Shamir, and L. Adleman. A method for obtaining digital signatures and public-key cryptosystems. Communications of the ACM, 21(2):120{126, 1978.

[2] J. Owens, D. Luebke, N. Govindaraju.. A survey of general-purpose computation on graphics hardware. Computer Graphics Forum, 26(1): 80{113 , March 2007.

[3] N. Heninger, Z. Durumeric, E. Wustrow, and J. A. Halderman. Mining your Ps and Qs: detection of widespread weak keys in network devices. In Proceedings of the 21st USENIX conference on Security symposium, pages 205{220. USENIX Association, 2012 .

[4] NVIDIA|CUDA documents |Programming Guide |CUDA v5.5. http://docs.nvidia.com/cuda/pdf/CUDA_C_Programming_Guide.pdf
