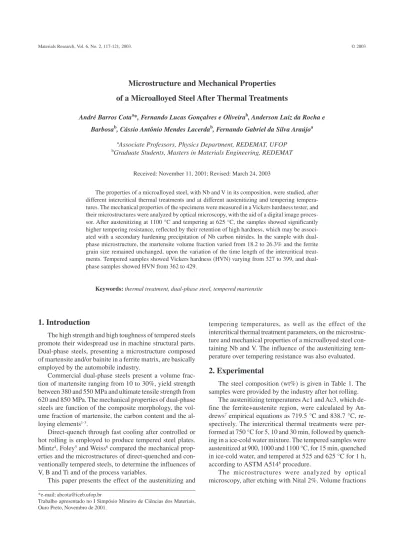

Microstructure and Mechanical Properties
of a Microalloyed Steel After Thermal Treatments
André Barros Cotaa*, Fernando Lucas Gonçalves e Oliveirab, Anderson Luiz da Rocha e Barbosab, Cássio Antônio Mendes Lacerdab, Fernando Gabriel da Silva Araújoa
a
Associate Professors, Physics Department, REDEMAT, UFOP
b
Graduate Students, Masters in Materials Engineering, REDEMAT
Received: November 11, 2001; Revised: March 24, 2003
The properties of a microalloyed steel, with Nb and V in its composition, were studied, after different intercritical thermal treatments and at different austenitizing and tempering tempera-tures. The mechanical properties of the specimens were measured in a Vickers hardness tester, and their microstructures were analyzed by optical microscopy, with the aid of a digital image proces-sor. After austenitizing at 1100 °C and tempering at 625 °C, the samples showed significantly higher tempering resistance, reflected by their retention of high hardness, which may be associ-ated with a secondary hardening precipitation of Nb carbon nitrides. In the sample with dual-phase microstructure, the martensite volume fraction varied from 18.2 to 26.3% and the ferrite grain size remained unchanged, upon the variation of the time length of the intercritical treat-ments. Tempered samples showed Vickers hardness (HVN) varying from 327 to 399, and dual-phase samples showed HVN from 362 to 429.
Keywords: thermal treatment, dual-phase steel, tempered martensite
1. Introduction
The high strength and high toughness of tempered steels promote their widespread use in machine structural parts. Dual-phase steels, presenting a microstructure composed of martensite and/or bainite in a ferrite matrix, are basically employed by the automobile industry.
Commercial dual-phase steels present a volume frac-tion of martensite ranging from 10 to 30%, yield strength between 380 and 550 MPa and ultimate tensile strength from 620 and 850 MPa. The mechanical properties of dual-phase steels are function of the composite morphology, the vol-ume fraction of martensite, the carbon content and the al-loying elements1-3.
Direct-quench through fast cooling after controlled or hot rolling is employed to produce tempered steel plates. Mintz4, Foley5 and Weiss6 compared the mechanical
prop-erties and the microstructures of direct-quenched and con-ventionally tempered steels, to determine the influences of V, B and Ti and of the process variables.
This paper presents the effect of the austenitizing and
tempering temperatures, as well as the effect of the intercritical thermal treatment parameters, on the microstruc-ture and mechanical properties of a microalloyed steel con-taining Nb and V. The influence of the austenitizing tem-perature over tempering resistance was also evaluated.
2. Experimental
The steel composition (wt%) is given in Table 1. The samples were provided by the industry after hot rolling.
The austenitizing temperatures Ac1 and Ac3, which de-fine the ferrite+austenite region, were calculated by An-drews7 empirical equations as 719.5 °C and 838.7 °C,
re-spectively. The intercritical thermal treatments were per-formed at 750 °C for 5, 10 and 30 min, followed by quench-ing in a ice-cold water mixture. The tempered samples were austenitized at 900, 1000 and 1100 °C, for 15 min, quenched in ice-cold water, and tempered at 525 and 625 °C for 1 h, according to ASTM A5148 procedure.
The microstructures were analyzed by optical microscopy, after etching with Nital 2%. Volume fractions
and grain sizes were determined with the aid of a digital image processor program, hooked to the microscope. The Vickers hardness tests were performed with a load of 50 N, 20 measurements per sample.
3. Results and Discussion
3.1 Microstructure
Figure 1 shows the influence of the periods of time of the intercritical thermal treatments on the martensite vol-ume fraction. The martensite volvol-ume fraction varies from 18.2 to 26.3%, between 300 and 1800 s of treatment.
Figure 2 shows the micrographs of samples submitted to the normalizing and intercritical thermal treatments. Fig-ure 2a shows that the microstructFig-ure of the normalized ple consists of ferrite and pearlite. The hardness of this sam-ple was measured as HV = 205 ± 1, for a pearlite volume fraction of 24.4%, and ferrite average grain size of 6.9 µm. The effect of the intercritical treatments on the microstruc-ture is shown in Fig. 2b-2d. Micrographs 2b-2d reveal martensite thin layers thickening on the ferrite grain bounda-ries with time, until it forms a continuous network around the ferrite grains. This is a result of the increase in the martensite volume fraction with intercritical treatment time. No variation of the ferrite grain size was observed, and its
average value stabilized at about 4.5 µm.
Figure 3 shows martensite structures in samples austenitized at different temperatures prior to quenching. The structure shows clusters of needles typical of low car-bon martensite. Figure 4 shows hardness and austenite grain size as functions of the austenitizing temperature.
The martensite hardness is usually expected to decrease as the austenite grain size increases9,10. However, Fig. 4
shows the opposite tendency, i.e., as the austenitizing tem-perature is raised, both the austenite grain size and the martensite hardness increase. This is probably due to the formation of small amounts of bainite during quenching of the samples austenitized at 900 and 1000 °C. Therefore, the microstructures in Figs. 3a and 3b consist of martensite and bainite, and the microstructure in Fig. 3c is mainly martensite.
3.2 Mechanical Properties
Figures 5 and 6 show the evolution of the Vickers hard-ness (HVN) with the time of intercritical treatment and with the martensite volume fraction, respectively. An increase in the intercritical treatment time leads to increase in the martensite volume fraction, which increases the steel hard-ness.
The values for the ultimate tensile strengths (TS) shown in Fig. 6 where calculated by the empirical Eq. 111:
TS (MPa) = - 32.0 + 3.0 x (HVN) (1)
Figure 7 shows the hardness of samples austenitized at different temperatures as a function of the tempering tem-perature. One can observe that the hardness after tempering, increases with the austenitizing temperature and decreases with the tempering temperature, exception made for the sam-ple austenitized at 1100 °C, which showed an increase in hardness when the tempering temperature was raised.
C Mn Si Al P S Nb V N
0.15 1.39 0.39 0.039 0.016 0.009 0.046 0.046 0.0042
Table 1. Chemical composition of the steel (wt%).
Figure 1. Martensite volume fraction as a function of the
inter-critical treatment times.
T (ºC) Nb (C, N) (wt%) % Nb dissolved
900 0.0020 4.3
1000 0.0057 12.4
1100 0.0139 30.2
1262 0.046 100
Table 2: Amount of Nb dissolved in the austenite as a function of
Figure 2. Optical micrographs (1000 ×) of samples after (a) normalization; intercritical at 750 °C for (b) 300s; (c) 600 s, (d) 1800 s.
Figure 3. Optical micrographs (1000 ×) of samples austenitized at different temperatures prior to quenching: (a) 900 °C; (b) 1000 °C;
Figure 4. Vickers hardness and austenite grain size as functions of
the austenitizing temperature. Standard deviations are below 10%.
Figure 5. Evolution of hardness with time of intercritical
treat-ment.
Figure 6. Evolution of hardness and ultimate tensile strength with
the martensite volume fraction.
This behavior is related to the dissolution of Nb in the austenite. Table 2 shows the increase in the percentage of Nb dissolved in the austenite with temperature. The nio-bium atoms dissolved during austenitizing are retained in the martensite, remaining available to produce precipita-tion hardening during tempering. Therefore, the higher the austenitizing temperature, the higher the retained Nb con-tent in the martensite, leading to a more pronounced pre-cipitation hardening effect. Tempering at higher tempera-tures usually leads to lower HVN values, however, the sam-ples austenitized at 1100 °C had such a large amount of Nb
retained in the martensite, that the treatment at 625 °C for 1 h probably caused the precipitation of niobium carbon nitrides, leading to further hardening. The precipitation of niobium carbon nitrides is reported to occur at tempera-tures between 525 and 625 °C12, and it should not affect the
sample tempered at 525 °C.
4. Conclusion
The increase in the time of intercritical treatment at 750 °C showed little effect on the ferrite grain size, but it raises the martensite volume fraction and, as a result, the Figure 7. Hardness of samples austenitized at different
hardness of the steel.
Lower austenitizing temperatures decrease the austenite grain size, but increase the presence of bainite, leading to lower HVN values of the dual phase steels.
Higher austenitizing temperatures increase the hardness of tempered samples, due to the higher dissolution of Nb in the martensite matrix, which precipitates during tempering. Sam-ples austenitized at 1100 °C and tempered at 625 °C may pre-cipitate niobium carbon nitrides, leading to further hardening.
References
1. Cai, X.L.; Feng, J.; Owen, W.S. Metall. Trans. A, v.16, p.1405-1415, 1985.
2. Huer, T. et al., ISIJ International, v. 39, p. 228, 1999. 3. Bag, A. et al., Metall. Trans. A, p. 1193-1202, 1999. 4. Mintz, B., Metall. Trans. A, v. 28, p. 2073-2084, 1997. 5. Foley, R.P. et al., Proc. International Symposium on
Low-carbon Steels for the 90’s, Pittsburgh, TMS, p. 243-256, 1993.
6. Weiss, R.K. et al., Proc. Physical Metallurgy of
Direct-quenched Steels, Warrendale, TMS, p. 107-138, 1993. 7. Andrews, K.W. JISI, v. 203, p. 721-727, 1965.
8. ASTM Designation A514. Standard Specification for High-Yield-Strength, Quenched and Tempered Alloy Steel Plate, Suitable for Welding. Annual Book of ASTM Standards. Philadelphia: ASTM, p.315-317, 1991. 9. Santos, D.B. Refinamento de Grão Ferrítico Através da
Laminação Controlada com Deformação na Região Bifásica (γ +α).Tese de Doutorado em Engenharia Metalúrgica. CPGEM-EEUFMG, p. 252, 1991. 10. Krauss, G. Steels: Heat Treatment and Processing
Prin-ciples. Colorado: ASM International, 2st ed., p. 496, 1990. 11. Cota, A.B. Simulação da Laminação Controlada e Resfriamento Acelerado em um Aço ARBL Bainítico de Baixo Carbono através de Ensaios de Torção. Tese Doutorado em Metalurgia Física. CPGEM-EEUFMG, p. 231, 1998.
12. Honeycombe, R.W.K.; Bhadeshia, H.K.D.H. Steels: Microstructure and Properties. London: Edward Arnold Ltd., 2nd ed., p. 330, 1995.
