* -> VER HOJA DE OBSERVACIONES

(1)

REV.: 3

FECHA: 20/03/2014

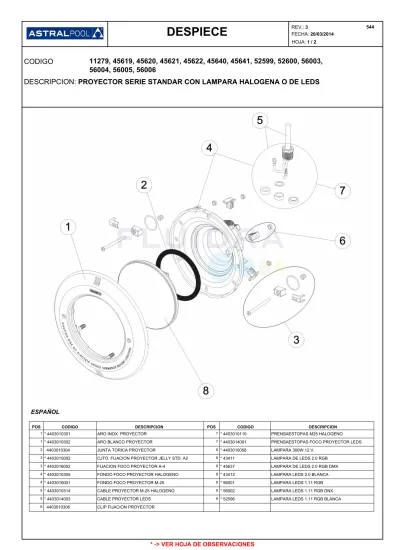

DESPIECE

⁵⁴⁴

HOJA: 1 / 2

CODIGO 11279, 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006

DESCRIPCION: PROYECTOR SERIE STANDAR CON LAMPARA HALOGENA O DE LEDS

ESPAÑOL

DESCRIPCION POS CODIGO DESCRIPCION

CODIGO POS

ARO INOX. PROYECTOR

* 4403010301 * 4403010110 PRENSAESTOPAS M25 HALOGENO

1 7

ARO BLANCO PROYECTOR

* 4403010302 * 4403014001 PRENSAESTOPAS FOCO PROYECTOR LEDS

1 7

JUNTA TORICA PROYECTOR

4403010304 * 4403010058 LAMPARA 300W.12.V.

2 8

CJTO. FIJACION PROYECTOR JELLY STD. A2

* 4403015002 * 43411 LAMPARA DE LEDS 2.0 RGB

3 8

FIJACION FOCO PROYECTOR A-4

* 4403016002 * 45637 LAMPARA DE LEDS 2.0 RGB DMX

3 8

FONDO FOCO PROYECTOR HALOGENO

* 4403010305 * 43412 LAMPARA LEDS 2.0 BLANCA

4 8

FONDO FOCO PROYECTOR M-25

* 4403016001 * 56001 LAMPARA LEDS 1.11 RGB

4 8

CABLE PROYECTOR M-25 HALOGENO

* 4403010314 * 56002 LAMPARA LEDS 1.11 RGB DNX

5 8

CABLE PROYECTOR LEDS

* 4403014003 * 52596 LAMPARA LEDS 1.11 RGB BLANCA

5 8

CLIP FIJACION PROYECTOR 4403010306

6

* -> VER HOJA DE OBSERVACIONES

(2)

REV.: 3

FECHA: 20/03/2014

DESPIECE

⁵⁴⁴

HOJA: 2 / 2

CODIGO 11279, 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006

DESCRIPCION: PROYECTOR SERIE STANDAR CON LAMPARA HALOGENA O DE LEDS

POS CODIGO OBSERVACIONES

OBSERVACIONES

4403010301

1 PARA: 45620, 45622, 45641, 52600, 56004, 56006 4403010302

1 PARA: 45619, 45621, 45640, 52599, 56003, 56005 4403015002

3 PARA: 11279

4403016002

3 PARA: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010305

4 PARA: 11279

4403016001

4 PARA: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010314

5 PARA: 11279

4403014003

5 PARA: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010110

7 PARA: 11279

4403014001

7 PARA: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 43411

8 PARA: 45619, 45620

43412

8 PARA: 45621, 45622

4403010058

8 PARA: 11279

45637

8 PARA: 45640, 45641

52596

8 PARA: 52599, 52600

56001

8 PARA: 56003, 56004

56002

8 PARA: 56005, 56006

(3)

REV.: 3 DATE: 20/03/2014

ÉCLATÉ

⁵⁴⁴

PAG.: 1 / 2

CODE 11279, 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006

DESCRIPTION: PROJECTEUR STANDARD AVEC LAMPE HALOGÈNE OU DE LEDS

FRANCAIS

DESCRIPTION POS CODE DESCRIPTION

CODE POS

ENJOLIVEUR INOX DE PROJECTEUR

* 4403010301 * 4403010110 PRESSE-ETOUPE M 25

1 7

ENJOLIVEUR BLANC DE PROJECTEUR

* 4403010302 * 4403014001 PRESSE ETOUPE FOND PROJECTEUR LEDS

1 7

JOINT TORIQUE PROJECTEUR

4403010304 * 4403010058 LAMPE

2 8

ENSEMBLE FIXATION PROJECTEUR JELLY STD. A2

* 4403015002 * 43411 LAMPE LEDS 2.0 RGB

3 8

PLATINE FIXATION A-4

* 4403016002 * 45637 LAMPE LEDS 2.0 RGB DMX

3 8

NICHE D'AMPOULE DE PROJECTEUR

* 4403010305 * 43412 LAMPE LEDS 2.0 BLANC

4 8

FOND PROJECTEUR M-25

* 4403016001 * 56001 LAMPE LEDS 1.11 RGB

4 8

CABLE PROJECTEUR M-25

* 4403010314 * 56002 LAMPE LEDS 1.11 RGB DNX

5 8

CABLE PROJECTOUR LEDS

* 4403014003 * 52596 LAMPE LEDS 1.11 RGB BLANC

5 8

CLIP FIXATION PROJECTEUR 4403010306

6

* -> VOIR FICHE D'OBSERVATIONS

(4)

REV.: 3 DATE: 20/03/2014

ÉCLATÉ

⁵⁴⁴

PAG.: 2 / 2

CODE 11279, 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006

DESCRIPTION: PROJECTEUR STANDARD AVEC LAMPE HALOGÈNE OU DE LEDS

POS CODE OBSERVATIONS

OBSERVATIONS

4403010301

1 POUR: 45620, 45622, 45641, 52600, 56004, 56006 4403010302

1 POUR: 45619, 45621, 45640, 52599, 56003, 56005 4403015002

3 POUR: 11279

4403016002

3 POUR: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010305

4 POUR: 11279

4403016001

4 POUR: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010314

5 POUR: 11279

4403014003

5 POUR: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010110

7 POUR: 11279

4403014001

7 POUR: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 43411

8 POUR: 45619, 45620

43412

8 POUR: 45621, 45622

4403010058

8 POUR: 11279

45637

8 POUR: 45640, 45641

52596

8 POUR: 52599, 52600

56001

8 POUR: 56003, 56004

56002

8 POUR: 56005, 56006

(5)

REV.: 3 DATE: 20/03/2014

PARTS BREAKDOWN

⁵⁴⁴

SHEET: 1 / 2

CODE 11279, 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006

DESCRIPTION: STANDARD PROJECTOR WITH HALOGEN OR LEDS LAMP

ENGLISH

DESCRIPTION POS CODE DESCRIPTION

CODE POS

S.S. FACEPLATE AND SECURING RING

* 4403010301 * 4403010110 PACKING GLAND M 25

1 7

WHITE FACEPLATE

* 4403010302 * 4403014001 PACKING GLANDUWL LEDS

1 7

LIGHT O RING

4403010304 * 4403010058 LIGHTBULB

2 8

FIXING SET UNDERWATER LIGHT JELLY STD. A2

* 4403015002 * 43411 LAMPELC LEDS 2.0 RGB

3 8

LIGHT FIXING FIXTURES A -4

* 4403016002 * 45637 LAMPELC LEDS 2.0 RGB DMX

3 8

BACK COVER

* 4403010305 * 43412 LAMPELC LEDS 2.0 WHITE

4 8

BACK COVER M-25

* 4403016001 * 56001 LIGHTBULB LEDS 1.11 RGB

4 8

LIGHT CABLE M-25

* 4403010314 * 56002 LIGHTBULB LEDS 1.11 RGB DNX

5 8

CABLE FOR UWL LEDS

* 4403014003 * 52596 LIGHTBULB LEDS 1.11 RGB WHITE

5 8

LIGHT FIXING CLIP 4403010306

6

* -> SEE OBSERVATIONS SHEET

(6)

REV.: 3 DATE: 20/03/2014

PARTS BREAKDOWN

⁵⁴⁴

SHEET: 2 / 2

CODE 11279, 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006

DESCRIPTION: STANDARD PROJECTOR WITH HALOGEN OR LEDS LAMP

POS CODE OBSERVATIONS

OBSERVATIONS

4403010301

1 FOR: 45620, 45622, 45641, 52600, 56004, 56006 4403010302

1 FOR: 45619, 45621, 45640, 52599, 56003, 56005 4403015002

3 FOR: 11279

4403016002

3 FOR: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010305

4 FOR: 11279

4403016001

4 FOR: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010314

5 FOR: 11279

4403014003

5 FOR: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010110

7 FOR: 11279

4403014001

7 FOR: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 43411

8 FOR: 45619, 45620

43412

8 FOR: 45621, 45622

4403010058

8 FOR: 11279

45637

8 FOR: 45640, 45641

52596

8 FOR: 52599, 52600

56001

8 FOR: 56003, 56004

56002

8 FOR: 56005, 56006

(7)

REV.: 3 DATA: 20/03/2014

ESPLOSO

⁵⁴⁴

PAG.: 1 / 2

CODICE 11279, 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006

DESCRIZIONE: PROIETTORE STANDARD CON LAMPADA ALOGENA O DI LEDS

ITALIANO

DESCRIZIONE POS CODICE DESCRIZIONE

CODICE POS

FLANGIA INOX FARO

* 4403010301 * 4403010110 PRESSACAVI M 25

1 7

FLANGIA BIANCA FARO

* 4403010302 * 4403014001 PRESSACAVI CALOTTA FARO LEDS

1 7

O-RING FARO

4403010304 * 4403010058 LAMPADINA

2 8

KIT FISSAGGIO PROIETTORE JELLY STD. A2

* 4403015002 * 43411 LAMPADA LEDS 2.0 RGB

3 8

FISSAGGIO FARO A-4

* 4403016002 * 45637 LAMPADA LEDS 2.0 RGB DMX

3 8

COPPA FARO

* 4403010305 * 43412 LAMPADA LEDS 2.0 BIANCO

4 8

CALOTTA FARO M-25

* 4403016001 * 56001 LAMPADINA LEDS 1.11 RGB

4 8

CABLE PROJECTEUR M-25

* 4403010314 * 56002 LAMPADINA LEDS 1.11 RGB DNX

5 8

CAVO FARO LEDS

* 4403014003 * 52596 LAMPADINA LEDS 1.11 RGB BIANCO

5 8

CLIP FISSAGGIO FARO 4403010306

6

* -> SI FACCIA RIFERIMENTO AL FOGLIO DELLE OSSERVAZIONI

(8)

REV.: 3 DATA: 20/03/2014

ESPLOSO

⁵⁴⁴

PAG.: 2 / 2

CODICE 11279, 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006

DESCRIZIONE: PROIETTORE STANDARD CON LAMPADA ALOGENA O DI LEDS

POS CODICE OSSERVAZIONI

OSSERVAZIONI

4403010301

1 PER: 45620, 45622, 45641, 52600, 56004, 56006 4403010302

1 PER: 45619, 45621, 45640, 52599, 56003, 56005 4403015002

3 PER: 11279

4403016002

3 PER: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010305

4 PER: 11279

4403016001

4 PER: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010314

5 PER: 11279

4403014003

5 PER: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010110

7 PER: 11279

4403014001

7 PER: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 43411

8 PER: 45619, 45620

43412

8 PER: 45621, 45622

4403010058

8 PER: 11279

45637

8 PER: 45640, 45641

52596

8 PER: 52599, 52600

56001

8 PER: 56003, 56004

56002

8 PER: 56005, 56006

(9)

ÜBER.: 3

DATUM: 20/03/2014

EINZELTEILE

⁵⁴⁴

BLATT: 1 / 2

CODE 11279, 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006

BESCHREIBURG: UWS SERIE STANDAR MIT HALOGENLAMPE ODER LED

DEUTSCH

BESCHREIBURG POS CODE BESCHREIBURG

CODE POS

BLENDE UWS EDELSTAHL

* 4403010301 * 4403010110 QUETSCHVERSCHRAUBUNG M 25

1 7

BLENDE WEISS UWS

* 4403010302 * 4403014001 QUETSCHDICHTUNG SCHEINWERFEREINSATZ LEDS

1 7

O-RING UWS

4403010304 * 4403010058 LAMPE

2 8

BEFESTIGUNGSSET SCHEINWERFER JELLY STD. A2

* 4403015002 * 43411 LAMPE LEDS 2.0 RGB

3 8

SCHRAUBE GEHÄUSE UWS A-4

* 4403016002 * 45637 LAMPE LEDS 2.0 RGB DMX

3 8

BEFESTIGUNGSRINGSATZ UWS

* 4403010305 * 43412 LAMPE LEDS 2.0 WHITE

4 8

LAMPENGEHÄUSE M-25

* 4403016001 * 56001 LAMPE LEDS 1.11 RGB

4 8

KABEL UWS M-25

* 4403010314 * 56002 LAMPE LEDS 1.11 RGB DNX

5 8

KABEL FÜR SCHEINWERFER LEDS

* 4403014003 * 52596 LAMPE LEDS 1.11 RGB WHITE

5 8

BEFESTIGUNGSCLIPSATZ UWS 4403010306

6

* -> SIEHE ANMERKUGSBLATT

(10)

ÜBER.: 3

DATUM: 20/03/2014

EINZELTEILE

⁵⁴⁴

BLATT: 2 / 2

CODE 11279, 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006

BESCHREIBURG: UWS SERIE STANDAR MIT HALOGENLAMPE ODER LED

POS CODE HINWEISE

HINWEISE

4403010301

1 FÜR: 45620, 45622, 45641, 52600, 56004, 56006 4403010302

1 FÜR: 45619, 45621, 45640, 52599, 56003, 56005 4403015002

3 FÜR: 11279

4403016002

3 FÜR: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010305

4 FÜR: 11279

4403016001

4 FÜR: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010314

5 FÜR: 11279

4403014003

5 FÜR: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010110

7 FÜR: 11279

4403014001

7 FÜR: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 43411

8 FÜR: 45619, 45620

43412

8 FÜR: 45621, 45622

4403010058

8 FÜR: 11279

45637

8 FÜR: 45640, 45641

52596

8 FÜR: 52599, 52600

56001

8 FÜR: 56003, 56004

56002

8 FÜR: 56005, 56006

(11)

REV.: 3 DATA: 20/03/2014

ITEM

⁵⁴⁴

FOLHA: 1 / 2

CODIGO 11279, 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006

DESCRIÇÃO: PROJETOR STANDARD COM LÂMPADA DE HALOGÊNEO OU DE LEDS

PORTUGUES

DESCRIÇÃO POS CODIGO DESCRIÇÃO

CODIGO POS

ARO INOX PROJECTOR

* 4403010301 * 4403010110 BUCIN M-25

1 7

ARO BRANCO PROJECTOR

* 4403010302 * 4403014001 PRENSAESTOPAS FOCO PROJECTOR LEDS

1 7

JUNTA TÓRICA PROJECTOR

4403010304 * 4403010058 BOMBILHA

2 8

C0NJUNTO FIXAÇÄO PROJECTOR JELLY STD. A2

* 4403015002 * 43411 LÂMPADA LEDS 2.0 RGB

3 8

FIXAÇÃO FOCO PROJECTOR A-4

* 4403016002 * 45637 LÂMPADA LEDS 2.0 RGB DMX

3 8

FUNDO FOCO PROJECTOR

* 4403010305 * 43412 LÂMPADA LEDS 2.0 BRANCO

4 8

FUNDO FOCO PROJECTOR M-25

* 4403016001 * 56001 BOMBILHA LEDS 1.11 RGB

4 8

CABO PROJECTOR M-25

* 4403010314 * 56002 BOMBILHA LEDS 1.11 RGB DNX

5 8

CABO PROJECTOR LEDS

* 4403014003 * 52596 BOMBILHA LEDS 1.11 RGB BRANCO

5 8

CLIP FIXAÇÃO PROJECTOR 4403010306

6

* -> VEJA A FICHA DE OBSERVAÇÕES

(12)

REV.: 3 DATA: 20/03/2014

ITEM

⁵⁴⁴

FOLHA: 2 / 2

CODIGO 11279, 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006

DESCRIÇÃO: PROJETOR STANDARD COM LÂMPADA DE HALOGÊNEO OU DE LEDS

POS CODIGO OBSERVAÇÕES

OBSERVAÇÕES

4403010301

1 PARA: 45620, 45622, 45641, 52600, 56004, 56006 4403010302

1 PARA: 45619, 45621, 45640, 52599, 56003, 56005 4403015002

3 PARA: 11279

4403016002

3 PARA: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010305

4 PARA: 11279

4403016001

4 PARA: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010314

5 PARA: 11279

4403014003

5 PARA: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 4403010110

7 PARA: 11279

4403014001

7 PARA: 45619, 45620, 45621, 45622, 45640, 45641, 52599, 52600, 56003, 56004, 56005, 56006 43411

8 PARA: 45619, 45620

43412

8 PARA: 45621, 45622

4403010058

8 PARA: 11279

45637

8 PARA: 45640, 45641

52596

8 PARA: 52599, 52600

56001

8 PARA: 56003, 56004

56002

8 PARA: 56005, 56006
