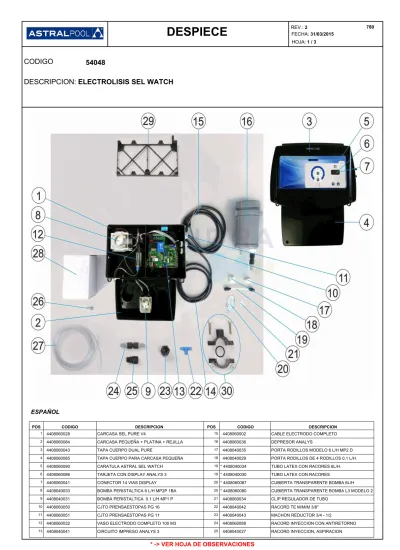

REV.: 2 FECHA: 31/03/2015 HOJA: 1 / 3 DESPIECE CODIGO DESCRIPCION: ELECTROLISIS SEL WATCH ESPAÑOL * -> VER HOJA DE OBSERVACIONES

REV.: 2

FECHA: 31/03/2015

DESPIECE

HOJA: 1 / 3

CODIGO ₅₄₀₄₈

DESCRIPCION: ELECTROLISIS SEL WATCH

ESPAÑOL

DESCRIPCION POS CODIGO DESCRIPCION

CODIGO POS

CARCASA SEL PURE V4

4408060028 4408060002 CABLE ELECTRODO COMPLETO

1 15

CARCASA PEQUEÑA + PLATINA + REJILLA

4408060084 4408060036 DEPRESOR ANALYS

2 16

TAPA CUERPO DUAL PURE

4408060043 4408040035 PORTA RODILLOS MODELO 6 L/H MP2 D

3 17

TAPA CUERPO PARA CARCASA PEQUEÑA

4408060085 4408040029 PORTA RODILLOS DE 4 RODILLOS 0,1 L/H.

4 18

CARATULA ASTRAL SEL WATCH

4408060090 * 4408040034 TUBO LATEX CON RACORES 6L/H.

5 19

TARJETA CON DISPLAY ANALYS 3

4408060086 * 4408040030 TUBO LATEX CON RACORES

6 19

CONECTOR 14 VIAS DISPLAY

4408060041 * 4408060087 CUBIERTA TRANSPARENTE BOMBA 6L/H

7 20

BOMBA PERISTALTICA 6 L/H MP2P 1BA

4408040033 * 4408060080 CUBIERTA TRANSPARENTE BOMBA L3 MODELO 2

8 20

BOMBA PERISTALTICA 0.1 L/H MP1 P

4408040031 4408060034 CLIP REGULADOR DE TUBO

9 21

CJTO PRENSAESTOPAS PG 16

4408060050 4408040042 RACORD TE M/M/M 3/8"

10 22

CJTO PRENSAESTOPAS PG 11

4408060051 4408040043 MACHON REDUCTOR 3/4 - 1/2

11 23

VASO ELECTRODO COMPLETO 100 M3

4408060032 4408060088 RACORD INYECCION CON ANTIRETORNO

12 24

CIRCUITO IMPRESO ANALYS 3

4408040041 4408040027 RACORD INYECCION, ASPIRACION

13 25

* -> VER HOJA DE OBSERVACIONES

REV.: 2

FECHA: 31/03/2015

DESPIECE

HOJA: 2 / 3

CODIGO ₅₄₀₄₈

DESCRIPCION: ELECTROLISIS SEL WATCH

CABLE ALIMENTACION 2X1,5MM2 2.1M

4408040040 4408060035 CONECTOR BOLSA REACTIVO DYOPACK

14 26

TUBO PVC TRANSPARENTE 4X6MM L=4M

4408040028 * 4408060119 COLLARIN DE CARGA 50

27 30

REACTIVO CLORO 1 L.

4408040036 * 4408060024 COLLARIN CARGA 63

28 30

SOPORTE MURAL 4408040037

29

* -> VER HOJA DE OBSERVACIONES

REV.: 2

FECHA: 31/03/2015

DESPIECE

HOJA: 3 / 3

CODIGO ₅₄₀₄₈

DESCRIPCION: ELECTROLISIS SEL WATCH

POS CODIGO OBSERVACIONES

OBSERVACIONES

4408040034 PARA: LA BOMBA 4408040033 19

4408040030 PARA: LA BOMBA 4408040031 19

4408060087 PARA: LA BOMBA 4408040033 20

4408060080 PARA: LA BOMBA 4408040031 20

4408060119 PARA: D50

30

4408060024 PARA: D63

30

REV.: 2

DATE: 31/03/2015

ÉCLATÉ

PAG.: 1 / 3

CODE ₅₄₀₄₈

DESCRIPTION: ÉLECTROLYSE SEL WATCH

FRANCAIS

DESCRIPTION POS CODE DESCRIPTION

CODE POS

CARCASSE SEL PURE V4

4408060028 4408060002 CABLE ELECTRODE

1 15

PETIT COFFRE + PLATINE + GRILLE

4408060084 4408060036 DÉPRESSEUR ANALYS

2 16

COUVERCLE DUAL PURE

4408060043 4408040035 GALET POMPE MODELE 6 L/H MP2 D

3 17

CAPOT PETIT COFFRE

4408060085 4408040029 GALET POMPE (4GALETS) 0,1 L/H.

4 18

COUVERCLE ASTRAL SEL WATCH

4408060090 * 4408040034 LATEX 6 L/H. COMPLET

5 19

CARTE AFFICHEUR ANALYS 3

4408060086 * 4408040030 LATEX COMPLET

6 19

CONNECTEUR 14 VIAS DISPLAY

4408060041 * 4408060087 CAPOT TRANSPARENT POMPE 6L/H

7 20

CHAMBRE D'ANALYSE NU ANALYS 3

4408040033 * 4408060080 CAPOT TRANSPARENT POMPE L3 MODELE 2

8 20

POMPE PERI_STAT 0.1 L/H MP1 P

4408040031 4408060034 PINCE DE RÉGLAGE DU TUYAU

9 21

ENS. PRESSE-ÉTOUPES PG16

4408060050 4408040042 RACCORD TE M/M/M 3/8"

10 22

ENS. PRESSE-ÉTOUPES PG11

4408060051 4408040043 MACHON REDUIT TARAUDER FF. 3/4 - 1/2

11 23

RÉSERVOIR ÉLECTRODE COMPLET 100 M3

4408060032 4408060088 CANNE D'INJECTION CLAPET ANTIRETOUR

12 24

CARTE ANALYS 3

4408040041 4408040027 CANNE INJECTION ASPIRATION, DÉPRESSION

13 25

* -> VOIR FICHE D'OBSERVATIONS

REV.: 2

DATE: 31/03/2015

ÉCLATÉ

PAG.: 2 / 3

CODE ₅₄₀₄₈

DESCRIPTION: ÉLECTROLYSE SEL WATCH

CÂBLE ALIMENTATION 2X1,5MM2 2.1M

4408040040 4408060035 CONNECTEUR SAC RÉACTIF DYOPACK

14 26

TUBE PVC COLIBRI TRNSPARENT COUPE 4X6MM L=4M

4408040028 * 4408060119 COLLIER PRISE CHARGE D.50

27 30

REACTIF CLORO 1 L.

4408040036 * 4408060024 COLLIER DE PRISE EN CHARGE D. 63

28 30

SUPPORT MURAL 4408040037

29

* -> VOIR FICHE D'OBSERVATIONS

REV.: 2

DATE: 31/03/2015

ÉCLATÉ

PAG.: 3 / 3

CODE ₅₄₀₄₈

DESCRIPTION: ÉLECTROLYSE SEL WATCH

POS CODE OBSERVATIONS

OBSERVATIONS

4408040034 POUR: LA BOMBA 4408040033 19

4408040030 POUR: LA BOMBA 4408040031 19

4408060087 POUR: LA BOMBA 4408040033 20

4408060080 POUR: LA BOMBA 4408040031 20

4408060119 POUR: D50

30

4408060024 POUR: D63

30

REV.: 2

DATE: 31/03/2015

PARTS BREAKDOWN

SHEET: 1 / 3

CODE ₅₄₀₄₈

DESCRIPTION: ELECTROLYSIS SEL WATCH

ENGLISH

DESCRIPTION POS CODE DESCRIPTION

CODE POS

SEL PURE V4 SHELL

4408060028 4408060002 ELECTRODE CABLE

1 15

SMALL SHELL + PLATE + GRILLE

4408060084 4408060036 DEPRESSOR ANALYS

2 16

COVER DUAL PURE

4408060043 4408040035 MODEL 6 L/H MP2 D ROLLER HOLDER

3 17

COVER FOR SMALL SHELL

4408060085 4408040029 0.1 L/H. ROLLER HOLDER FOR 4 ROLLERS

4 18

COVER ASTRAL SEL WATCH

4408060090 * 4408040034 6L/H. LATEX TUBING WITH COUPLINGS

5 19

ANALYS 3 VIEWER CARD

4408060086 * 4408040030 LATEX TUBING WITH COUPLINGS

6 19

CONNECTOR 14 VIAS DISPLAY

4408060041 * 4408060087 6L/H PUMP TRANSPARENT COVER

7 20

6 L/H MP2P 1BA PERISTALTIC PUMP

4408040033 * 4408060080 L3 PUMP MOD. 2 TRANSPARENT COVER

8 20

0.1 L/H MP1 P PERISTALTIC PUMP

4408040031 4408060034 TUBE REGULATOR CLIP

9 21

PG16 PACKING GLAND UNIT

4408060050 4408040042 3/8" M/M/M T COUPLIN "

10 22

PG11 PACKING GLAND UNIT

4408060051 4408040043 3/4 - 1/2 REDUCING NIPPLE

11 23

FULL ELECTRODE TANK 100 M3

4408060032 4408060088 INJECTION COUPLING WITH CHECK VALVE

12 24

ANALYS 3 PRINTED CIRCUIT

4408040041 4408040027 INJECTION COUPLING, SUCTION

13 25

* -> SEE OBSERVATIONS SHEET

REV.: 2

DATE: 31/03/2015

PARTS BREAKDOWN

SHEET: 2 / 3

CODE ₅₄₀₄₈

DESCRIPTION: ELECTROLYSIS SEL WATCH

2X1,5MM2 2.1M SUPPLY CABLE

4408040040 4408060035 REACTIVE BAG CONNECTOR DYOPACK

14 26

4X6MM L=4M TRANSPARENT PVC TUBING

4408040028 * 4408060119 50 CLAMP SADDLE

27 30

1 L. CHLORINE REAGENT

4408040036 * 4408060024 63 CLAMP SADDLE

28 30

WALL BRACKET 4408040037

29

* -> SEE OBSERVATIONS SHEET

REV.: 2

DATE: 31/03/2015

PARTS BREAKDOWN

SHEET: 3 / 3

CODE ₅₄₀₄₈

DESCRIPTION: ELECTROLYSIS SEL WATCH

POS CODE OBSERVATIONS

OBSERVATIONS

4408040034 FOR: LA BOMBA 4408040033 19

4408040030 FOR: LA BOMBA 4408040031 19

4408060087 FOR: LA BOMBA 4408040033 20

4408060080 FOR: LA BOMBA 4408040031 20

4408060119 FOR: D50

30

4408060024 FOR: D63

30

REV.: 2

DATA: 31/03/2015

ESPLOSO

PAG.: 1 / 3

CODICE ₅₄₀₄₈

DESCRIZIONE: ELETTROLISI SEL WATCH

ITALIANO

DESCRIZIONE POS CODICE DESCRIZIONE

CODICE POS

SCATOLA IN SEL PURE V4

4408060028 4408060002 CAVO ELETTRODO

1 15

SCATOLA PICCOLA + LAMINA + GRIGLIA

4408060084 4408060036 DEPRESSORE ANALYS

2 16

COPERCHIO CORPO DUAL CORE

4408060043 4408040035 PORTA RULLI MODELLO 6 L/H MP2 D

3 17

COPERCHIO PER SCATOLA PICCOLA

4408060085 4408040029 PORTA RULLO DA 4 RULLI 0,1 L/H.

4 18

COPERCHIO ASTRAL SEL WATCH

4408060090 * 4408040034 TUBO IN LATEX CON RACCORDI 6 L/H.

5 19

SCHEDA VISORE ANALYS 3

4408060086 * 4408040030 TUBO IN LATEX CON RACCORDI

6 19

CONNETTORE 14 VIAS DISPLAY

4408060041 * 4408060087 COPERTURA TRANSPARENTE POMPA 6L/H

7 20

POMPA PERISTALTICA 6 L/H MP2P 1BA

4408040033 * 4408060080 COPERTURA TRANSPARENTE POMPA L3 MOD. 2

8 20

POMPA PERISTALTICA 0.1 L/H MP1 P

4408040031 4408060034 CLIP PORTATUBI

9 21

GRUPPO PREMISTOPPA PG16

4408060050 4408040042 RACCORDO T M/M/M 3/8"

10 22

GRUPPO PREMISTOPPA PG11

4408060051 4408040043 ADATTATORE MASCHIO 3/4 - 1/2

11 23

SERBATOIO ELETTRODO COMPLETO 100 M3

4408060032 4408060088 RACCORDO D'INIEZIONE CON ANTIRITORNO

12 24

CIRCUITO STAMPATO ANALYS 3

4408040041 4408040027 RACCORDO INIEZIONE, ASPIRAZIONE

13 25

* -> SI FACCIA RIFERIMENTO AL FOGLIO DELLE OSSERVAZIONI

REV.: 2

DATA: 31/03/2015

ESPLOSO

PAG.: 2 / 3

CODICE ₅₄₀₄₈

DESCRIZIONE: ELETTROLISI SEL WATCH

CAVO DI ALIMENTAZIONE 2X1,5MM2 2.1M

4408040040 4408060035 CONNETTORE BORSA REATTIVA DYOPACK

14 26

TUBO PVC TRASPARENTE 4X6MM L=4M

4408040028 * 4408060119 COLLARE D. 50

27 30

REAGENTE CLORO 1 L.

4408040036 * 4408060024 COLLARE D. 63

28 30

SUPPORTO MURALE 4408040037

29

* -> SI FACCIA RIFERIMENTO AL FOGLIO DELLE OSSERVAZIONI

REV.: 2

DATA: 31/03/2015

ESPLOSO

PAG.: 3 / 3

CODICE ₅₄₀₄₈

DESCRIZIONE: ELETTROLISI SEL WATCH

POS CODICE OSSERVAZIONI

OSSERVAZIONI

4408040034 PER: LA BOMBA 4408040033 19

4408040030 PER: LA BOMBA 4408040031 19

4408060087 PER: LA BOMBA 4408040033 20

4408060080 PER: LA BOMBA 4408040031 20

4408060119 PER: D50

30

4408060024 PER: D63

30

ÜBER.: 2

DATUM: 31/03/2015

EINZELTEILE

BLATT: 1 / 3

CODE ₅₄₀₄₈

BESCHREIBURG: ELEKTROLYSE SEL WATCH

DEUTSCH

BESCHREIBURG POS CODE BESCHREIBURG

CODE POS

GEHÄUSE SEL PURE V4

4408060028 4408060002 ELEKTRODENKABEL KOMPLETT

1 15

GEHÄUSE KLEIN MIT PLATINE UND GITTER

4408060084 4408060036 DEPRESSIONSEINEHIT ANALYS

2 16

ABDECKUNG GEHÄUSE DUAL PURE

4408060043 4408040035 ROLLENSITZ MODELL 6 L/H MP2 D

3 17

ABDECKUNG FÜR GEHÄUSE KLEIN

4408060085 4408040029 ROLLENSITZ 4 ROLLEN 0,1 L/H

4 18

BEDIENFELD ASTRAL SEL WATCH

4408060090 * 4408040034 LATEXROHR MIT GEWINDEN 6 L/H

5 19

PLATINE MIT DISPLAY ANALYS 3

4408060086 * 4408040030 LATEXROHR MIT GEWINDEN

6 19

STECKKUPPLUNG 14-WEGE DISPLAY

4408060041 * 4408060087 ABDECKUNG TRANSPARENT PUMPE 6 L/H

7 20

PERISTALTIKPUMPE 6 L/H MP2P 1BA

4408040033 * 4408060080 ABDECKUNG TRANSPARENT PUMPE L3 MODELL 2

8 20

PERISTALTIKPUMPE 0,1 L/H MP1 P

4408040031 4408060034 REGULIERCLIP ROHR

9 21

SET QUETSCHVERSCHRAUBUNG PG16

4408060050 4408040042 T-STÜCK NIPPEL/NIPPEL/NIPPEL 3/8"

10 22

SET QUETSCHVERSCHRAUBUNG PG11

4408060051 4408040043 REDUZIERSCHRAUBTEIL 3/4 - 1/2

11 23

GEHÄUSE ELEKTRODE KOMPLETT 100 M3

4408060032 4408060088 INJEKTOR-GEWINDESTÜCK MIT RÜCKSCHLAG

12 24

PLATINE SCHLATKREIS ANALYS 3

4408040041 4408040027 INJEKTOR-GEWINDESTÜCK, SAUG

13 25

* -> SIEHE ANMERKUGSBLATT

ÜBER.: 2

DATUM: 31/03/2015

EINZELTEILE

BLATT: 2 / 3

CODE ₅₄₀₄₈

BESCHREIBURG: ELEKTROLYSE SEL WATCH

VERSORGUNGSKABEL 2X1,5MM2 2.1M

4408040040 4408060035 STECKKUPPLUNG BEUTEL DYOPACK

14 26

ROHR PVC TRANSPARENT 4X6MM L=4M

4408040028 * 4408060119 LADESCHELLE 50

27 30

REAGENZ CHLOR 1 L

4408040036 * 4408060024 LADESCHELLE 63

28 30

WANDHALTERUNG 4408040037

29

* -> SIEHE ANMERKUGSBLATT

ÜBER.: 2

DATUM: 31/03/2015

EINZELTEILE

BLATT: 3 / 3

CODE ₅₄₀₄₈

BESCHREIBURG: ELEKTROLYSE SEL WATCH

POS CODE HINWEISE

HINWEISE

4408040034 FÜR: LA BOMBA 4408040033 19

4408040030 FÜR: LA BOMBA 4408040031 19

4408060087 FÜR: LA BOMBA 4408040033 20

4408060080 FÜR: LA BOMBA 4408040031 20

4408060119 FÜR: D50

30

4408060024 FÜR: D63

30

REV.: 2

DATA: 31/03/2015

ITEM

FOLHA: 1 / 3

CODIGO ₅₄₀₄₈

DESCRICÃO: ELECTRÓLISE SEL WATCH

PORTUGUES

DESCRICÃO POS CODIGO DESCRICÃO

CODIGO POS

CARCAÇA SEL PURE V4

4408060028 4408060002 CABO SONDA

1 15

ARMAÇÃO PEQUENA + CHAPA + GRELHA

4408060084 4408060036 DEPRESSOR ANALYS

2 16

TAMPA CORPO DUAL PURE

4408060043 4408040035 PORTA CILINDROS MODELO 6 COMP./ALT. MP2 D

3 17

TAMPA CORPO PARA ARMAÇÃO PEQUENA

4408060085 4408040029 PORTA CILINDROS DE 4 CILINDROS 0,1 COMP./ALT.

4 18

COBERTA ASTRAL SEL WATCH

4408060090 * 4408040034 TUBO LÁTEX COM PEÇAS DE LIGAÇÃO 6 COMP./ALT.

5 19

PLACA VISUALIZAÇÃO ANALYS 3

4408060086 * 4408040030 TUBO LÁTEX COM PEÇAS DE LIGAÇÃO

6 19

LIGAÇÃO 14 VIAS DISPLAY

4408060041 * 4408060087 COBERTURA TRANSPARENTE BOMBA 6L/H

7 20

BOMBA PERISTÁLTICA 6 L/H MP2P 1BA

4408040033 * 4408060080 COBERTURA TRANSPARENTE BOMBA L3 MOD. 2

8 20

BOMBA PERISTÁLTICA 0.1 L/H MP1 P

4408040031 4408060034 GANCHO REGULADOR DE TUBO

9 21

CJTO. PRENSA-ESTOPAS PG16

4408060050 4408040042 RACORD T M/M/M 3/8"

10 22

CJTO. PRENSA-ESTOPAS PG11

4408060051 4408040043 ROSCA MACHO REDUTORA 3/4 - 1/2

11 23

TANQUE ELÉTRODO COMPLETO 100 M3

4408060032 4408060088 RACORD INJEÇÃO COM ANTIRRETORNO

12 24

CIRCUITO IMPRESSO ANALYS 3

4408040041 4408040027 RACORD INJEÇÃO, ASPIRAÇÃO

13 25

* -> VEJA A FICHA DE OBSERVACÕES

REV.: 2

DATA: 31/03/2015

ITEM

FOLHA: 2 / 3

CODIGO ₅₄₀₄₈

DESCRICÃO: ELECTRÓLISE SEL WATCH

CABO ALIMENTAÇÃO 2X1,5MM2 2.1M

4408040040 4408060035 CONETOR BOLSA REATIVO DYOPACK

14 26

TUBO PVC TRANSPARENTE 4X6MM L=4M

4408040028 * 4408060119 TOMADA EM CARGA D. 50

27 30

REAGENTE CLORO 1 L.

4408040036 * 4408060024 TOMADA EM CARGA D. 63

28 30

SUPORTE PAREDE 4408040037

29

* -> VEJA A FICHA DE OBSERVACÕES

REV.: 2

DATA: 31/03/2015

ITEM

FOLHA: 3 / 3

CODIGO ₅₄₀₄₈

DESCRICÃO: ELECTRÓLISE SEL WATCH

POS CODIGO OBSERVACÕES

OBSERVACÕES

4408040034 PARA: LA BOMBA 4408040033 19

4408040030 PARA: LA BOMBA 4408040031 19

4408060087 PARA: LA BOMBA 4408040033 20

4408060080 PARA: LA BOMBA 4408040031 20

4408060119 PARA: D50

30

4408060024 PARA: D63

30
