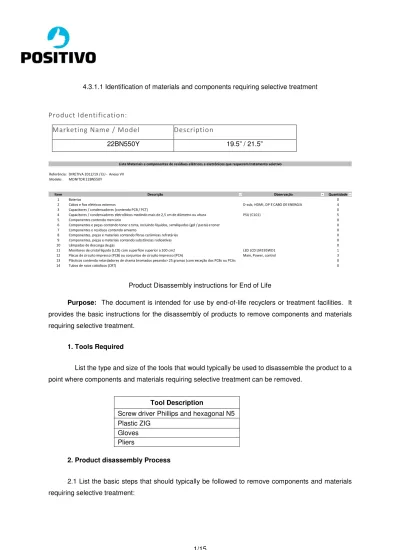

4.3.1.1 Identification of materials and components requiring selective treatment
Product Identification:
Marketing Name / Model
Description
22BN550Y 19.5” / 21.5”
Product Disassembly instructions for End of Life
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for the disassembly of products to remove components and materials requiring selective treatment.
1. Tools Required
List the type and size of the tools that would typically be used to disassemble the product to a point where components and materials requiring selective treatment can be removed.
Tool Description
Screw driver Phillips and hexagonal N5 Plastic ZIG
Gloves Pliers
2. Product disassembly Process
2.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:
Referência: DIRETIVA 2012/19 / EU - Anexo VII Modelo: MONITOR 22BN550Y
Item Descrição Observação Quantidade
1 Baterias 0
2 Cabos e fios elétricos externos D-sub, HDMI, DP E CABO DE ENERGIA 4 3 Capacitores / condensadores (contendo PCB / PCT) 0 4 Capacitores / condensadores eletrolíticos medindo mais de 2,5 cm de diâmetro ou altura PSU (C101) 5
5 Componentes contendo mercúrio 0
6 Componentes e peças contendo toner e tinta, incluindo líquidos, semilíquidos (gel / pasta) e toner 0
7 Componentes e resíduos contendo amianto 0
8 Componentes, peças e materiais contendo fibras cerâmicas refratárias 0 9 Componentes, peças e materiais contendo substâncias radioativas 0
10 Lâmpadas de descarga de gás 0
11 Monitores de cristal líquido (LCD) com superfície superior a 100 cm2 LED LCD LM195WD1 1 12 Placas de circuito impresso (PCB) ou conjuntos de circuito impresso (PCA) Main, Power, control 3 13 Plásticos contendo retardadores de chama bromados pesando> 25 gramas (com exceção dos PCBs ou PCAs 0
14 Tubos de raios catódicos (CRT) 0
2.2 OPTIONAL: Depending upon the complexity of the disassembly process, a graphic depicting the locations of items contained within the product which require selective treatment (with descriptions and arrows identifying locations) can be inserted below:
2.3 How to write
1) Provide a picture of disassembly process
2) All the screws are showed in the picture
3) All the PCBAs are showed in the picture
4) LCD panel are showed in the picture
5) All the accessories like remote controller, batteries, and cables are showed in the picture
3. Related regulations: WEEE directive, EPEAT
Step 1 - Disassembly the screw (1ea)
Step 9 - Pull control board and remove from front cabine
Step 11 - Remove all gaskets and separate metal part with plastic part.
Step 12 - Separate LCD Module Panel with front cabinet
Step 13- At Power PCB using pliers cut the connection between capacitor and board. For the glued capacitors take if off pushing it.
1. Back Cover 2. LCD Module 3. Hight Stand 4. Stand Base 5. PCB Bracket
6. Bracket (Rear Shield) Step 13 – All items disassembly
7. Cabinet 8. Cable 9. Cable 10. Cable 11. Cables 12. Metal Av Shield 13. PSU Shield 14. Main Board 15. Lips 16. Flat cable 17. Gaskts (EMI) 18. Gasket Sponge 19. Cable 20. Cable 21. Cable 22. Manual
