Tissue healing of immediate implant placement in extraction sockets with titanium versus zirconium oxide implants : an experimental study in the beagle dog

U

F

M

T

IMPLANT PLACEMENT IN EXTRACTION SOCKETS WITH TITANIUM VERSUS ZIRCONIUM OXIDE IMPLANTS

:

AN EXPERIMENTAL STUDY IN THE BEAGLE DOG

H

C

D

O

F

Orientadores:

Prof. Doutor João Manuel Mendez Caramês Prof. Doutor António Duarte Sola Pereira da Mata

Tese  especialmente  elaborada  para  a  obtenção  do  grau  de  Doutor  em  Medicina  Dentária,   especialidade de Periodontologia

UNIVERSIDADE DE LISBOA

FACULDADE DE MEDICINA DENTÁRIA

TISSUE HEALING OF IMMEDIATE IMPLANT PLACEMENT IN EXTRACTION SOCKETS WITH TITANIUM

VERSUS ZIRCONIUM OXIDE IMPLANTS: AN EXPERIMENTAL STUDY IN THE BEAGLE DOG

HELENA CRISTINA DE OLIVEIRA FRANCISCO

Orientadores:

Prof. Doutor João Manuel Mendez Caramês Prof. Doutor António Duarte Sola Pereira da Mata

Tese especialmente  elaborada  para  a  obtenção  do  grau  de  Doutor  em  Medicina  Dentária,   especialidade de Periodontologia

Júri Presidente:

Doutor Mário Filipe Cardoso de Matos Bernardo, Professor Catedrático e Presidente do

Conselho Científico da Faculdade de Medicina Dentária da Universidade de Lisboa;

Vogais:

Dennis Perry Tarnow, Clinical Professor of Dental Medicine do College of Dental Medicine

da Columbia University, USA;

Doutor António Cabral de Campos Felino, Professor Catedrático da Faculdade de Medicina

Dentária da Universidade do Porto;

Doutor Ricardo Manuel Casaleiro Lobo de Faria Almeida, Professor Catedrático da

Faculdade de Medicina Dentária da Universidade do Porto;

Doutor Femando Alberto Deométrio Rodrigues Alves Guerra, Professor Associado com

Agregação da Faculdade de Medicina da Universidade de Coimbra;

Doutor João Manuel Mendes Caramês, Professor Catedrático da Faculdade de Medicina

Dentária da Universidade de Lisboa;

Doutor António Duarte Sola Pereira da Mata, Professor Catedrático da Faculdade de

Medicina Dentária da Universidade de Lisboa;

Doutor Paulo Alexandre Mascarenhas Lopes, Professor Auxiliar da Faculdade de Medicina

Dentária da Universidade de Lisboa;

A

The research presented in this thesis would not have been possible without the help of many people to whom I am gratefully indebted. It will be simple to name all the people that helped to get this done, but it will be tough to thank them enough. First and foremost, my sincere thanks go to my two Ph.D. supervisors Professor João Manuel Mendez Caramês and Professor António Duarte Sola Pereira da Mata.

I would like to express my sincerest gratitude to my supervisor Professor João Manuel Mendez Caramês, Full Professor at the University of Lisbon College of Dentistry, who has supported me throughout my thesis with his patience and knowledge. Professor Caramês welcomed me to his office when I arrived from New York and has been a strong guiding influence on my professional career ever since. I have been extremely lucky to have a supervisor whose care and attention has made this such a thoughtful and rewarding journey. His expertise in animal research in particular was a great asset to the research. His continuing effort, commitment and mentorship has helped me to bring this study to its conclusion. His sincere enthusiasm, absolute commitment and generous support continue to inspire me.

Professor António Duarte Sola Pereira da Mata, Full Professor at the University of Lisbon College of Dentistry, introduced me to academic and research life in my second year of dental school when I became a member of GIBO (Oral Biology and Research Group) at ISCS-S (Instituto Superior de Ciências da Saúde Sul). He influenced my graduate and postgraduate career in an ineffably positive way. His thoroughness and understanding of biology, his passion for academia and research remain a tremendous source of inspiration, support and an example to follow. Moreover, his patient guidance and valued friendship were crucial in helping me to reach my goals.

During my training at New York University College of Dentistry I had the chance to meet and work with a number of wonderful people. There are however, two people that had a profound impact on my academic and professional life. I will always be

expertise and thoughtful criticism. More than a mentor, he is an extraordinary friend. My sincere thanks for inspiring me to pursue my ideas, go further and keep it simple. I will always cherish his lectures. To Dr Gary Greenstein whose everlasting support and encouragement, excellent sense of humor and dedication to the profession throughout the years was truly priceless. My work at New York University College of Dentistry would not have been as enjoyable without him.

I am very grateful and wish to acknowledge the administration of FMDUL for the institutional support, in particular to the Director Professor Luís Pires Lopes, Vice-Director Professor Jaime Portugal and Past-Vice-Director Professor João Aquino and who always expressed interest in this research project and also to o the Scientific Board at FDMUL, and its President, Professor Mário Bernardo.

My deepest gratitude to the team of Professor Ramiro Mascarenhas, Dr João Maria Nobre and Paulo Dias at the Experimental Surgery Center at National Zoothecnical Station in Santarém. Without their help this work could not have taken place.

I would like to extend my sincere thanks to Professor Fernando Guerra and his team at the University of Coimbra. My personal thanks to Professor Paulo Palma and Dr João Martins for their skillful support. I cannot thank Cláudia Brites enough for spending long hours struggling to have the zirconia sections ready on time.

My sincere gratitude to Professor José Rino, responsible for microscopy at Champalimaud Foundation who willingly shared his expertise and gave me access to the laboratory and research facilities.

I am grateful to my dear long time friend Professor Joana Rita da Silva Fialho for her help in the phase of the conclusion of this thesis. Her statistical assistance during the final stretch was greatly appreciated.

This thesis would not have been possible without the help of Franz Berghaenel from Metoxit who I would like to thank specially for his help and commitment and also to Ulrich Voltz whose help in the initial phases of this project and knowledge on zirconia implants was crucial in bringing this thesis to fruition.

My thanks also to Professor Duarte Marques for being a loyal friend and colleague and for his continuous encouragement and friendship throughout our years working together. His sound advice and support have been invaluable on an academic level for which I am extremely grateful.

I would like to express my gratitude to my dear friends and colleagues at the University of Lisbon College of Dentistry, Dr André Chen and Dr João Canta, for the great support and friendship that they have given me over the years.

To Professor Joana Marques and Professor João Silveira my dearest friends I would like to thank them for all the support and mostly for their friendship since we started working in the Oral Biology Research Group (GIBO) in 2001.

To all the staff and friends at the Implantology Institute. I would like to thank Manuela André especially who was very important during the experimental phase. Her human qualities, help and enthusiasm were always present during experimental surgery. To my dental assistant Filipa Teixeira for being patient, for organizing everything at the office and for taking everything she could off my shoulders so that I could focus on this thesis.

The dedication needed to complete this work would not have been possible without the understanding and support of my family and friends. First and foremost, I cannot thank my parents Celeste and Manuel enough. They have encouraged me in my studies and gave me both the freedom and support that I needed to become the person I am today. They were excellent teachers and role models, but still trusted me enough to let me choose my own goals. They have served as my guiding light throughout my education and I hope that I have lived up to their expectations. Last

A

Objectives: To compare and evaluate the biomechanical, radiographic and

histological behavior of zirconia and titanium implants placed into extraction sockets.

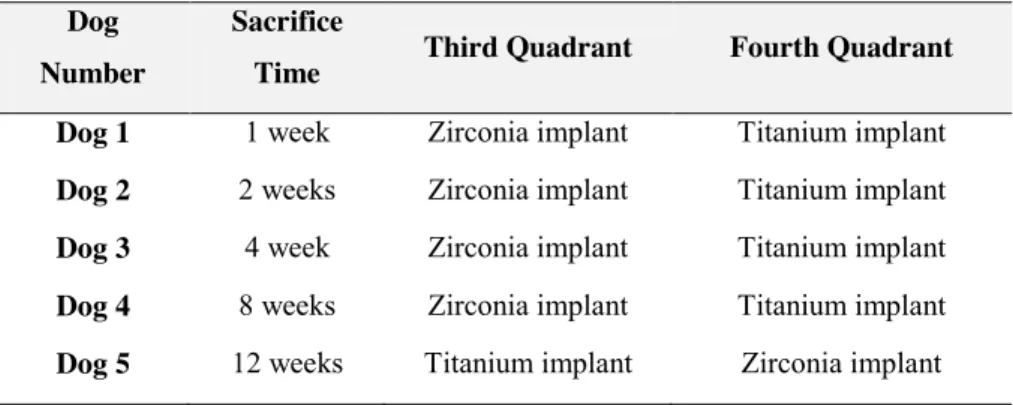

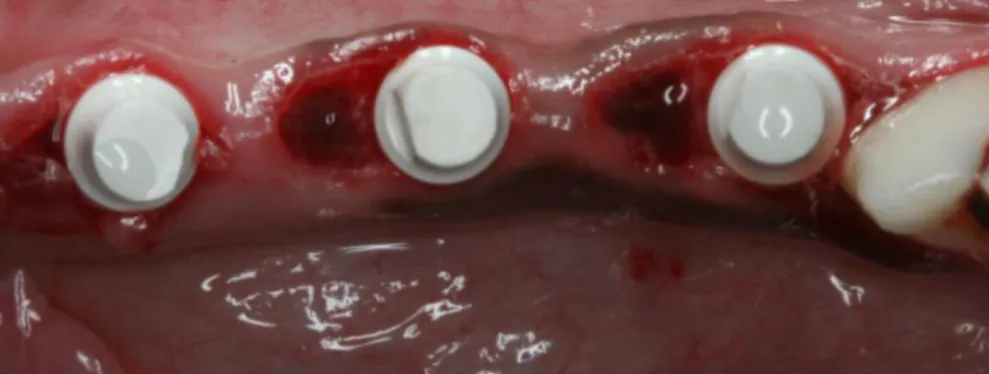

Materials and methods: Five Beagle dogs received 15 titanium implants (Ti) and

15 zirconia implants (Zr) immediately placed into the distal socket of the second, third and fourth premolars. Implant stability and radiographic evaluation was performed at the time of implant placement and sacrifice. Animals were sacrificed at 1, 2, 4, 8 and 12 weeks. Peri-implant mucosa dimensions, marginal bone loss and bone-to-implant contact were evaluated. Kruskall-Wallis test, Mann-Whitney test and Spearman correlation analysis were used when appropriate. Values of p < 0.05 were taken as significant.

Results: The primary stability values were 82.53 ± 1.10 ISQ (Ti) and 57.6 ± 3.29

ISQ (Zr) (p = .05). After 12 weeks, implant stability was 79.33 ± 0.58 ISQ (Ti) and 84.67 ± 6.11 (Zr) (p > .05). The buccal peri-implant mucosa ranged between 3.54 ± 0.23 mm (Zr) and 3.93 ± 0.49 mm (Ti) (p > .05). The buccal bone crest was located 1.53 ± 0.15 mm (Ti) and 1.55 ± 0.12 mm (Zr) (p > .05) below the implant shoulder (p = .05). The BIC, NBF and TBA were 59.4 ± 0.75 % (Ti) and 57.8 ± 2.26 % (Zr), 65.37 ± 3.05 % (Ti) and 63.63 ± 3.79 % (Zr), 77.97 ± 2.08 % (Ti) and 75.1 ± 2.31 % (Zr) respectively (p > 0.05).

Conclusions: Even though zirconia implants exhibited less primary stability when

compared to titanium implants they reach a similar degree of stability over time. Zirconia implants did not prevent the remodeling of the extraction socket. Zirconia implants rendered similar peri-implant soft tissue dimensions, ridge alterations and osseointegration when compared to titanium implants.

R

Introdução: A colocação de implantes imediatamente após extração dentária

tornou-se, nos últimos anos, um protocolo clínico frequente. A literatura descreve taxas de sobrevivência elevadas e semelhantes às encontradas em implantes convencionais. Nos últimos 50 anos, o titânio tem constituído o material de eleição para o fabrico de implantes dentários, devido à sua biocompatibilidade, elevada resistência à corrosão e propriedades mecânicas. No entanto, a procura de materiais não metálicos para utilização em reabilitação oral, tem permitido o desenvolvimento recente de novos materiais cerâmicos. A zircónia, caracterizada por uma elevada dureza, resistência e estabilidade, a par de uma excelente biocompatibilidade, tem sido considerada na literatura atual, uma alternativa válida ao titânio. A sua utilização tem sido indicada em várias situações clínicas, inclusive na colocação imediata de implantes no alvéolo pós-extracional. Do nosso conhecimento não existe na literatura nenhuma publicação, que descreva a evolução dos eventos biológicos iniciais na cicatrização de implantes em zircónia colocados imediatamente após extração dentária e a sua comparação com a de implantes em titânio colocados nas mesmas condições.

Objectivo: O principal objetivo desta investigação experimental foi estudar, no

modelo animal, a evolução do processo de cicatrização, nas doze primeiras semanas, de implantes de zircónia, colocados em alvéolos pós-extracionais, analisando o seu comportamento biomecânico, radiográfico e histológico e compará-la com a evolução do processo de cicatrização de implantes em titânio. Os objetivos secundários foram: avaliar a estabilidade e as alterações radiográficas de implantes em titânio e em zircónia, colocados em alvéolos pós-extracionais; descrever as fases iniciais de cicatrização dos tecidos moles e duros em torno de implantes em titânio e em zircónia; determinar e comparar as dimensões dos tecidos moles em torno de implantes em titânio e em zircónia colocados em alvéolos pós-extracionais; avaliar as alterações da crista óssea e formação óssea de implantes em titânio e em zircónia colocados em alvéolos pós-extracionais; correlacionar a estabilidade implantar com a percentagem de contacto ósseo com o implante dentário; correlacionar os achados radiológicos com os histológicos.

género masculino com 2 anos de idade. Foi feita extração dos quatro pré-molares de cada quadrante mandibular, de cada um dos cinco animais experimentais. Nos alvéolos distais do segundo, terceiro e quarto pré-molares foram colocados 15 implantes em titânio (Ti) (Astra OsseoSpeed TX 4.0 S de 4 x 11 mm; Astra Tech AB, Molndal, Sweden) e 15 implantes em zircónia (Zr) (4 x 11 mm; ref. SDScd401411; SDS Swiss Dental Solutions AG Switzerland). Cada cão recebeu seis implantes, três em titânio (grupo de controlo) de um lado da mandíbula e três em zircónia (grupo teste) do lado contralateral. Durante o período de osteointegração foi seguido um protocolo de higiene oral semanal e a uma dieta mole. Os animais foram sacrificados em diferentes períodos de tempo (1, 2, 4, 8 e 12 semanas) para análise histológica e histomorfométrica. A resposta tecidular foi avaliada utilizando técnicas biomecânicas (análise da frequência de ressonância, Ostell® _{ISQ), radiográficas, e histológicas. Os testes Kruskall-Wallis e}

Mann-Whitney foram utilizados quando apropriado. As médias das várias variáveis foram calculadas e valores de p < 0.05 foram considerados significativos.

Resultados: A estabilidade primária avaliada no dia da colocação, através da

análise da frequência de ressonância (Ostell® _{ISQ) dos implantes em titânio (82.53 ±}

1.10 ISQ), foi superior à dos implantes em zircónia (57.6 ± 3.29 ISQ) (p = .05). Essa tendência inverteu-se significativamente na segunda semana do período de cicatrização, com diminuição da estabilidade dos implantes em titânio (68.33 ± 5.13 ISQ) e aumento da estabilidade nos implantes de zircónia (86.67 ± 5.51 ISQ) (p = .05). Da segunda à quarta semana a estabilidade dos implantes em titânio aumentou progressivamente (82.67 ± 0.58 ISQ), enquanto a estabilidade dos implantes em zircónia apresentou ligeira diminuição (84.0 ± 1.73 ISQ). A partir da oitava semana ambos os tipos de implantes apresentaram estabilidades semelhantes sem diferenças significativas (Titanio, 80.33 ± 3.06 ISQ às oito semanas e 79.33 ± 0.58 ISQ às 12 semanas; Zirconia, 77.33 ± 1.53 ISQ às 8 semanas e 84.67 ± 6.11 ISQ às 12 semanas.

O nível ósseo marginal radiográfico no dia da colocação dos implantes, foi em mesial -1.50 ± 0.04 mm (Ti) e -1.17 ± 0.05 (Zr); em distal foi - 1.45 ± 0.03 mm (Ti)

e -1.13 ± 0.06 mm (Zr). Após 12 semanas de cicatrização o nível ósseo radiográfico diminuiu significativamente, sendo em mesial - 0.48 ± 0.04 mm (Ti) e - 0.28 ± 0.04 mm (Zr) (p = 0.05) e em distal - 0.44 ± 0.05 mm (Ti) (p = 0.05) e - 0.23 ± 0.04 mm (Zr).

Em vestibular o nível ósseo marginal radiográfico registado às 12 semanas foi 1.57 ± 0.14 mm (Ti) e 1.54 ± 0.02 mm (Zr) (p > 0.05). Em lingual foi - 0.42 ± 0.05 mm (Ti) e - 0.17 ± 0.05 mm (Zr) (p = 0.05).

O espaço biológico em vestibular após período de 12 semanas foi 3.54 ± 0.23 mm (Zr) e 3.93 ± 0.49 mm (Ti) e em lingual 2.35 ± 0.31 mm (Zr) e 2.6 ± 0.36 mm (Ti) (p > .05). As dimensões do epitélio em vestibular foram 1.32 ± 0.19 mm (Zr) e 1.34 ± 0.18 mm (Ti) (p > .05), enquanto que em lingual foram 0.94 ± 0.11 mm (Zr) e 1.73 ± 0.23 mm (Ti) (p = .05). As dimensões do tecido conjuntivo em vestibular foram 2.22 ± 0.27 mm (Zr) (p > .05) e 2.15 ± 0.16 mm (Ti) e em lingual 1.45 ± 0.23 mm (Zr) e 0.87 ± 0.25 mm (Ti) (p = .05). Em vestibular a crista óssea estava localizada a 1.53 ± 0.15 mm (Ti) e 1.55 ± 0.12 mm (Zr) (p > .05) apical ao ombro do implante, enquanto que em lingual estava localizada a - 0.39 ± 0.06 mm (Ti) e - 0.13 ± 0.06 mm (Zr) coronal ao ombro do implante (p = .05). A percentagem de contato osso/ implante, formação óssea e área óssea total foram de 59.4 ± 0.75 % (Ti) e 57.8 ± 2.26 % (Zr), 65.37 ± 3.05 % (Ti) e 63.63 ± 3.79 % (Zr), 77.97 ± 2.08 % (Ti) e 75.1 ± 2.31 % (Zr), respetivamente, não existindo diferenças estatisticamente significativas entre os dois grupos de implantes (p > 0.05). O coeficiente de correlação de Spearman entre a estabilidade e percentagem de contacto osso/ implante foi de - 0.011 (Ti) e - 0.441 (Zr). O coeficiente de correlação de Spearman entre os resultados radiológicos e histomorfométricos foi de 1 para ambos os grupos de implantes.

Conclusões: Neste estudo demonstrámos que os implantes em zircónio, colocados

após exodontia, não evitam a remodelação fisiológica do alvéolo, afetando maioritariamente a dimensão vertical da parede vestibular, tendo um comportamento semelhante aos implantes em titânio colocados nas mesmas condições. As comparações entre os implantes em zircónia e titânio deverão ser interpretadas como tendências e não como conclusões definitivas, devido ao número reduzido de amostras. No entanto, os resultados biomecânicos, radiológicos e

investigações futuras. Dentro das limitações deste estudo podemos concluir que: a sobrevivência de implantes em zircónia é semelhante á encontrada em implantes em titânio não tendo sido perdido nenhum implante em ambos os grupos; a estabilidade biomecânica dos implantes em zircónia parece ser comparável à dos implantes em titânio; todos os implantes obtiveram valores de estabilidade semelhantes ao fim de um período de 12 semanas, independentemente dos valores da estabilidade primária; os resultados radiológicos demonstraram que após exodontia e colocação imediata de implantes, a remodelação óssea marginal continuou durante a fase de cicatrização em mesial, distal, vestibular e lingual, sendo mais acentuada em vestibular; a colocação de implantes imediatos em zircónia não evitou as alterações dimensionais do alvéolo pós-extracional; a perda óssea na tábua vestibular após um período de 12 semanas nos implantes em zircónia foi semelhante aos implantes em titânio; quanto às dimensões dos tecidos moles, os implantes em zircónia apresentaram valores semelhantes aos implantes em titânio; os resultados histológicos demonstraram que os implantes em zircónio não alteraram o padrão de cicatrização do alvéolo pós-extracional e que a maior perda óssea se deu ao nível da tábua vestibular; os dois tipos de implantes utilizados neste estudo apresentaram níveis semelhantes de osteointegração relativamente à área de contacto osso-implante. Este estudo experimental demonstrou que não existe uma correlação entre a estabilidade implantar medida através de análise da frequência de ressonância e a percentagem de contacto osso/ implante. Investigação futura poderá complementar este estudo na compreensão do processo de cicatrização alveolar e validar a utilização de implantes de zircónia, em alvéolos pós-extracionais,

Palavras Chave: implantes imediatos, titânio, zirconia, histologia, estabilidade do
