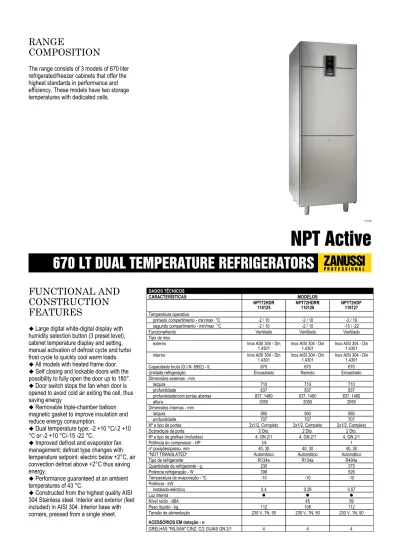

NPT Active 670 LT DUAL TEMPERATURE REFRIGERATORS ZANUSSI RANGE COMPOSITION FUNCTIONAL AND CONSTRUCTION FEATURES

(1)

ZANUSSI

P R O F E S S I O N A L

670 LT DUAL TEMPERATURE REFRIGERATORS

NPT Active

110125

Tensão de alimentação 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50

Peso líquido - kg. 112 108 112

Nível ruído - dBA 45 59

Luz interna l l l instalado-eléctrico 0.4 0.28 0.57 Potência - kW Temperatura de evaporação - ºC -10 -10 -10 Potência refrigeração - W 398 526 Quantidade de refrigerante - g. 230 375

Tipo de refrigerante R134a R134a R404a

*NOT TRANSLATED* Automático Automático Automático

nº posições/passo, mm 40, 30 40, 30 40, 30

Potência do compressor - HP 1/4 1

Nº e tipo de grelhas (incluídas) 4, GN 2/1 4, GN 2/1 4, GN 2/1

Dobradiças da porta 2 Dto. 2 Dto. 2 Dto.

Nº e tipo de portas 2x1/2, Completo 2x1/2, Completo 2x1/2, Completo

profundidade 707 707 707

largura 560 560 560

Dimensões internas - mm

altura 2050 2050 2050

profundidade/com portas abertas 837, 1480 837, 1480 837, 1480

profundidade 837 837 837

largura 710 710 710

Dimensões externas - mm

Unidade refrigeração Encastrado Remoto Encastrado

Capacidade bruta (D.I.N. 8952) - lt. 670 670 670

interno Inox AISI 304 - Din

1.4301

Inox AISI 304 - Din 1.4301

externo Inox AISI 304 - Din

1.4301

Inox AISI 304 - Din 1.4301

Inox AISI 304 - Din 1.4301 Tipo de inox

Funcionamento Ventilado Ventilado Ventilado

segundo compartimento - min/max °C -2 / 10 -2 / 10 -15 / -22 primeiro compartimento - min/max °C -2 / 10 -2 / 10 -2 / 10 Temperatura operativa NPT72HDR 110125 NPT72HDRR110126 NPT72HDF110127 CARACTERÍSTICAS MODELOS DADOS TÉCNICOS

The range consists of 3 models of 670 liter refrigerated/freezer cabinets that offer the highest standards in performance and efficiency. These models have two storage temperatures with dedicated cells.

FUNCTIONAL AND

CONSTRUCTION

FEATURES

� Large digital white-digital display with humidity selection button (3 preset level), cabinet temperature display and setting, manual activation of defrost cycle and turbo frost cycle to quickly cool warm loads. � All models with heated frame door. � Self closing and lockable doors with the possibility to fully open the door up to 180°. � Door switch stops the fan when door is opened to avoid cold air exiting the cell, thus saving energy

� Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption.

� Dual temperature type: -2 +10 °C/-2 +10 °C or -2 +10 °C/-15 -22 °C.

� Improved defrost and evaporator fan management; defrost type changes with temperature setpoint: electric below +2°C, air convection defrost above +2°C thus saving energy.

� Performance guaranteed at an ambient temperatures of 43 °C.

� Constructed from the highest quality AISI 304 Stainless steel. Interior and exterior (feet included) in AISI 304. Interior base with corners, pressed from a single sheet.

(2)

670 LT DUAL TEMPERATURE REFRIGERATORS NPT Active

DAJC01_Copy2013-10-31 O fabricante reserva-se ao direito de modificar e realizar melhoramentos no produto sem autorização prévia.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L PEDAL ABERTURA PARA FRIG/CONG.670LT 881027 881027 881027

KIT HACCP INTEGRADO-FRIG. DIGITAL (IR33) 880252

KIT 2 GUIAS INOX-FRIG.670/1430L 881021 881021 881021

IMPRESSORA P/ FRIG. VERSÃO BÁSICA HACCP 881457 881457 881457

GRELHAS INOX AISI 304 GN 2/1 881016 881016 881016

GRELHAS INOX AISI 304 COM 2 GUIAS GN 2/1 881018 881018 881018 GRELHAS CINZENTAS "RILSAN" GN 2/1 881004 881004 881004

ESTANTE PERFURADA GN 2/1 881042 881042 881042

ESPAÇADOR PARA ARMÁRIOS 670L & 1430L 880248 880248 880248 CONTAINER GN 1/1 PLÁSTICO FUNDO FALSO 880705 880705 880705 CONJUNTO 8 CONTAINERS GN 1/1 PVC P/PEIXE 880243 880243 CESTO RILSAN GN 1/1 EM REDE A=150 MM 881043 881043 881043 4 RODAS GIRATÓRIAS (2 COM TRAVÃO) 881002 881002 881002

2 GUIAS P/FRIGORÍFICO 670/1430 (MARINE) 880242 880242

*NOT TRANSLATED* 881047 881047 881047 *NOT TRANSLATED* 881039 881039 881039 NPT72HDR 110125 NPT72HDRR110126 NPT72HDF110127 ACESSÓRIOS MODELOS ACESSÓRIOS OPCIONAIS

� Stainless steel runners and supports easily disassembled (without any tool) for more convenient cleaning.

� Mounted on adjustable Stainless steel feet, with castors as an option. Prearranged for plinth installation.

� The rounded internal corners, the easily removable runners, grids and air conveyors allow for ease of cleaning and high hygiene standards.

� Refrigerant type: R134a.

� Hidden evaporator thus guaranteeing higher storage capacity and less corrosion problems.

� Automatic evaporation of the defrosting water by hot gas on the top.

� Easy access to the main components for an easy maintenance. Evaporator easily accessible from the top and even from the internal cell for fast mantenance.

� Evaporator features 60mm thick insulation which can be easily removed with a single operation.

� - ACTIVE - fully automatic defrost starts only when ice is actually building-up in the evaporator.

� Large storage area suitable to contain 2/1 GN grids or shelves in anti-tilt runners. � Internal structure with numerous charging positions available to host grids for a higher net capacity and greater storage space. � Fully compliant HACCP digital temperature control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.

� Cabinet fitted with up to 75 mm thickness of cyclopentane insulation for best insulating performance with 100% environmental protection.

� Bottom of the internal cell is prearranged for water drain.

� Anti-corrosion bottom avoids any damage to the cabinet when using agressive detergents to clean the floors.

� Optimized back to front forced air flow and removable air conveyors provide even temperature distribution and fast cooling in any conditions.

� Interior LED light to save energy. � Extremely quiet operation.

� Remote refrigeration unit to suit operating conditions on selected model.

� Three probes constantly monitoring the working conditions of the appliance. � Prearranged to fit RS485 port to connect to a remote computer and integrated HACCP systems.

� RILSAN coated grids for improved protection.

� Frontal and side IPX5 water protection. � Provided with Schuko type plug. � CFC and HCFC free insulation.

(3)

ZANUSSI

P R O F E S S I O N A L EI - Ligação eléctrica 230 V, 1N, 50 NPT72HDR 110125 LEGENDA 110125

(4)

670 LT DUAL TEMPERATURE REFRIGERATORS NPT Active

DAJC01_Copy 2013-10-31 O fabricante reserva-se ao direito de modificar e realizar melhoramentos no produto sem autorização prévia.

ZANUSSI

P R O F E S S I O N A L RI - Unidade remota l EI - Ligação eléctrica 230 V, 1N, 50 ED - Unidade remota l NPT72HDRR 110126 LEGENDA 110126

(5)

ZANUSSI

P R O F E S S I O N A L EI - Ligação eléctrica 230 V, 1N, 50 NPT72HDF 110127 LEGENDA 110127
