Anais da Academia Brasileira de Ciências (2007) 79(4): 693-711 (Annals of the Brazilian Academy of Sciences)
ISSN 0001-3765 www.scielo.br/aabc
Analysis of tectonic-controlled fluvial morphology and sedimentary processes
of the western Amazon Basin: an approach using satellite images
and digital elevation model
CLAUZIONOR L. SILVA1, NORBERTO MORALES2, ALVARO P. CRÓSTA3, SOLANGE S. COSTA1,4 and JAIRO R. JIMÉNEZ-RUEDA2
1Universidade Federal do Amazonas (UFAM), Departamento de Geociências/ICE
Av. Gal. Rodrigo O.J. Ramos, 3000, Campus Universitário, Coroado I. 69077-000 Manaus, AM, Brasil
2Universidade Estadual Paulista (UNESP), Instituto de Geociências e Ciências Exatas
Departamento de Petrologia e Metalogenia, Av. 24-A, 1515, 13506-900 Rio Claro, SP, Brasil
3Universidade Estadual de Campinas (UNICAMP), Instituto de Geociências
R. João Pandiá Calógeras 51, 13083-970 Campinas, SP, Brasil
4SIPAM - CTO/MN, Av. do Turismo, 1350 - Tarumã CEP 69049-630 Manaus, AM, Brasil
Manuscript received on March 17, 2006; accepted for publication on February 21, 2007; presented byALCIDESN. SIAL
ABSTRACT
An investigation of the tectonic controls of the fluvial morphology and sedimentary processes of an area located southwest of Manaus in the Amazon Basin was conducted using orbital remote sensing data. In this region, low topo-graphic gradients represent a major obstacle for morphotectonic analysis using conventional methods. The use of remote sensing data can contribute significantly to overcome this limitation. In this instance, remote sensing data comprised digital elevation model (DEM) acquired by the Shuttle Radar Topographic Mission (SRTM) and Landsat Thematic Mapper images. Advanced image processing techniques were employed for enhancing the topographic textures and providing a three-dimensional visualization, hence allowing interpretation of the morphotectonic elements. This led to the recognition of main tectonic compartments and several morphostructural features and landforms related to the neotectonic evolution of this portion of the Amazon Basin. Features such as fault scarps, anomalous drainage patterns, aligned ridges, spurs and valleys, are expressed in the enhanced images as conspicuous lineaments along NE-SW, NW-SE, E-W and N-S directions. These features are associated to the geometry of alternated horst and graben structures, the latter filled by recent sedimentary units. Morphotectonic interpretation using this approach has proven to be efficient and permitted to recognize new tectonic features that were named Asymmetric Ariaú Graben, Rombohedral Manacapuru Basin and Castanho-Mamori Graben.
Key words:morphotectonics, morphostructural, neotectonics, Amazon Basin.
INTRODUCTION
The use of thematic maps, such as landscape, drainage, hypsometric, morphometric and geomorphologic maps, constitutes the basis of morphotectonic analysis, partic-ularly for investigating Cenozoic tectonics. The produc-tion of these maps can be considerably facilitated by
em-Correspondence to: Clauzionor Lima da Silva E-mail: csilva@ufam.edu.br
artificial shadowing in different directions and color en-hancements allows interpreting the terrain features.
In the Amazon region, morphotectonic analysis is not a simple task due mainly to the lack of altimetric data at adequate scales. Most of this region has only cartographic maps in the scale of 1:250,000, without or only with a few topographic data, mainly due to low to-pographic gradients. This data constraint occurs mostly along the Amazon River channel, where there are only point altimetric values. More detailed cartography is lim-ited to some charts in the scale of 1:100,000, restricted to the region surrounding the city of Manaus and some neighboring areas. Furthermore, existing topographi-cal surveys were carried out in the 1970s and 1980s, based on small-scale aerial photographs, with altimetric data being estimated on the basis of the height of tree canopies, which sometimes does not express the actual ground heights.
A new remote sensing technology based on radar interferometry (InSAR) is making it possible to acquire high quality altimetric data (Madsen and Zebker 1998). Using this technology, NASA launched theShuttle
Ra-dar Topography Mission (SRTM) in 2000, which
al-lowed the acquisition of altimetric data and the gen-eration of DEMs of nearly 80% of the Earth’s surface (Rabus et al. 2003). These data were used in the present study in order to overcome the scarcity of information on the topography of the study region and to enable mor-photectonic analysis.
In spite of the limitations inherent to the region’s thick vegetation coverage, and the available SRTM data with moderate spatial resolution (90 m), DEMs enabled three-dimensional visualization of the region’s landscape and contributed significantly to the analysis of the main geomorphologic features. The topographic data tained in these DEMs are more precise than those con-tained in the previous topographic charts of the area, and permit the extraction of information for the elaboration of several types of thematic maps. Furthermore, the use of three-dimensional (3-D) digital visualization tools, in conjunction with the SRTM data, allows for the recog-nition of important and previously unknown morpho-structural.
A 3-D model has been generated for the region southwest of Manaus along the Solimões River, between
the towns of Iranduba and Manacapuru, encompassing about 23,850 km2(Fig. 1), for the purpose of
morpho-tectonic analysis. The area comprises an important seg-ment of the Amazon Basin affected by Cenozoic tec-tonics and has the availability of topographic maps at 1:100,000 scale to compare results from different applied methods. Analyses of the drainage network, landscape features and geological information were spatially in-tegrated to support the morphostructural interpretation, the field checking of structural features and the spatial analysis of the Cenozoic cover. Important structural fea-tures, such as tectonically uplifted and lowered areas, fault scarps, aligned ridges and spurs, and anomalous patterns in the drainage, were determined. Such features were used to interpret the morphotectonic framework of the study area and to compare it to the regional neotec-tonic model proposed by Hasui (1990) and Costa and Hasui (1997).
MATERIALS AND METHODS
The materials used for the morphotectonic analysis in-clude: a) topographic maps of Manaus and Manaca-puru at 1:100,000 scale (ManacaManaca-puru SA.20-Z-D-II and Manaus SA.20-Z-D-III); b) geological map of Brazil at 1:2,500,000 in digital format, prepared by the Geolog-ical Survey of Brazil – CPRM (Bizzi et al. 2001); c) Landsat Enhanced Thematic Mapper (ETM+) multispec-tral image (path 231/row 62, acquired on 07.10.2001); and d) digital elevation model from the Shuttle Radar Topographic Mission (NASA).
Drainage elements and topographic contours of the available topographic maps were manually drawn using a digitizing table and vector-data capture software, for qualitative comparison with SRTM data. Data obtained from the geological map of Brazil were superimposed on the DEM with the use of geographic information system (GIS) software for integrated analysis.
ANALYSIS OF TECTONIC FLUVIAL IN THE AMAZON RIVER 695
MANAUS
60
00
W
o
Cities Drainage Road
Area of the study
0 5 10 20 km 61°30'0"W
61°30'0"W
61°12'0"W 61°12'0"W
60°54'0"W 60°54'0"W
60°36'0"W 60°36'0"W
60°18'0"W 60°18'0"W
60°0'0"W 60°0'0"W
59°42'0"W 59°42'0"W
59°24'0"W 59°24'0"W
4°12'0"S 3°54'0"S 3°36'0"S 3°18'0"S 3°0'0"S 2°42'0"S
BR-319
AM-070
BR-174
AM -010
Fig. 1 – Map of the location of the study area (southwest of the city of Manaus).
zone 20. Lineament extraction and landscape/drainage interpretation were made from the geometrically cor-rected image, using a RGB (red, green and blue) color composition of bands 3, 4 and 5, and also individual bands 5 and 7.
SRTM data were obtained through NASA´s web-site (http://www.jpl. nasa.gov/srtm/index.html). SRTM used two different radar systems: C band and X band. In the present study the C band data were used.
The original spatial resolution of SRTM data is 1 arcsecond, equivalent to 30 m on the ground. However, for strategic reasons (the mission was funded by the National Imagery and Mapping Agency, North-Amer-ican military cartographical agency), SRTM data made available to the public for areas outside North Amer-ica have a moderate spatial resolution of 3 arcseconds, equivalent to about 90 m. Even so, the quality of data is sufficient to generate 3-D models compatible to scales around 1:100,000, with horizontal and vertical accura-cies of about 50 m and 12 m, respectively. This
repre-sents a significant advance for areas with limited altimet-ric data, such as the Amazon.
There are some limitations of InSAR technology for topographic surveys of vegetation-covered areas that must be taken into consideration. The main limitation is the ability of radar waves to penetrate into vegetation. For C band, radar penetration is only partial when the vegetation is dense. It must, therefore, be expected that the DEMs used in this work may not represent with fi-delity the true ground surface topography of the study area, yet they may contain topographic values which are intermediate between the plant canopy’s topography and that of the ground.
the RGB+Intensity display technique was used, in which the DEM is allocated to the intensity channel whereas three spectral bands of the Landsat ETM+ image are al-located to the red, green and blue channels of the vi-sualization display. In this way, the topography, given by the DEM image, modulates the pixel color intensity of each of the Landsat ETM+ bands used in the RGB color composite, producing an image in which the in-formation from the DEM and the Landsat bands is fully merged.
The geomorphologic analysis comprised the iden-tification and characterization of landscape elements in-dicative of modern tectonic deformations, such as linear features, fault scarps, formation of asymmetric terraces, low (modern deposition sites) and high (sites prone to erosion) blocks. Maps of lineaments and relief forms were generated to provide support for the interpretation. The principles of the relief analysis used in this study are based on Cooke (1990), Summerfield (1993), Stewart and Hancock (1994) and Keller and Pinter (1996). Anal-ysis of the drainage network was based on recognition of drainage patterns associated with structural elements (weaving, parallel, rectangular, in chandelier patterns, among others), channel anomalies (anomalous meander-ing, rectilinear channels, etc.), formation of lakes and rivers with drowned valleys and drainage lineaments, as-sociated to the Cenozoic tectonics. The drainage map was used for the interpretation of these features and for the extraction of drainage lineaments. Drainage analysis was based on Howard (1967), Ouchi (1985), Schumm (1986), Deffontaines (1989), Summerfield (1993) and Stewart and Hancock (1994), among others.
The maps obtained from the analysis of lineaments, relief forms and drainage network were integrated with SRTM DEM and Landsat ETM+ images used as a basis for field checking of the main interpreted features. The final results were integrated as a morphotectonic map, showing the tectonic compartments of the study region.
DATA ANALYSIS AND PROCESSING
In order to evaluate the precision of SRTM topographic data, a comparison was made with elevation contours obtained from the topographic maps Manaus SA.20-Z-D-III and Manacapuru SA.20-Z-D-II (Fig. 2). Most of the topographic contours on the existing maps
corre-spond to the 50 m level, being restricted to limited areas reaching up to 100 m in altitude (Fig. 2A). To the south of the Solimões River, there are only a few areas exhibit-ing 50 m contour lines, since the level of the Amazonian plain is generally lower than 30 m.
It is possible to generate topographic contour lines using SRTM data at any intervals, bearing in mind that these data have a theoretical error of about 12 m in height. However, a large number of contour lines would hinder the comparative analysis. Therefore, contour lines were generated at levels 35, 50 and 70 m (Fig. 2B), which are representative of the relief of the region and are within the theoretical error of the data. The 100 m level was excluded, since its occurrence is rare and does not repre-sent any broad or significant surface. The generation of the contour lines relative to these levels was performed through automatic extraction and tracing using digital image processing software.
The comparison between map and SRTM eleva-tions was done qualitatively, and the results showed that they were quite similar. Furthermore, the 30 m contour closely follows point values with this height shown on the maps. Therefore, the SRTM data were considered to be satisfactory and appropriate for performing the mor-phostructural analysis in the study region.
A synthetic directional shading filter was applied to the SRTM model represented in pseudo-color, for the purpose of enhancing the topography and landscape features (Fig. 3A). The azimuth and elevation values used in this synthetic shading may be varied interactively, en-abling the selection of optimal combinations of azimuth and elevation values to enhance the desired morpholog-ical features. The best combination was found to be an azimuth of 62◦and elevation of 53◦, as shown in
Fig-ure 3B. This filtered image was used as the basis for the interpretation of the relief compartments and, from this interpretation, to infer the main brittle structures (frac-tures and faults) present.
GEOLOGIC AND TECTONIC CONTEXT
ANALYSIS OF TECTONIC FLUVIAL IN THE AMAZON RIVER 697

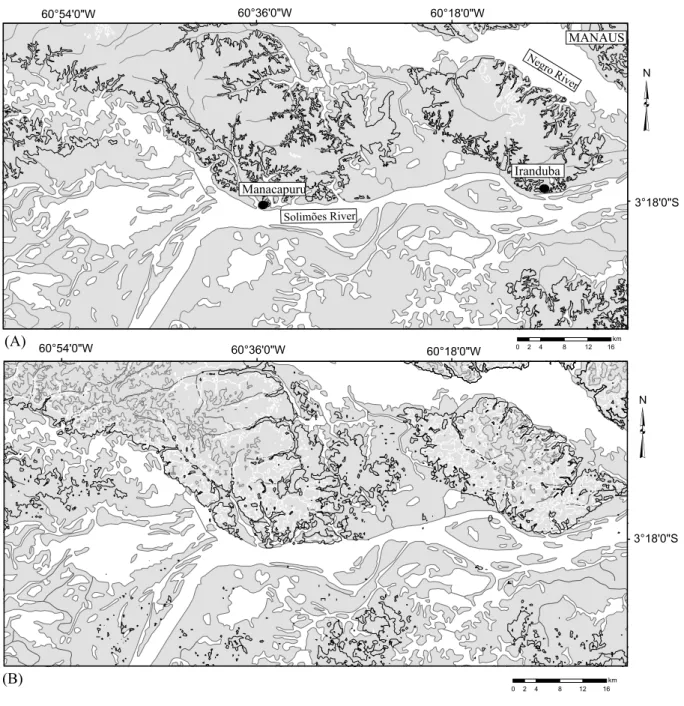

Fig. 2 – Comparison between topographical contour lines obtained from the 1:100.000 topographic charts (A) and those from the SRTM model (B). Contour lines of the topographic charts are at 50 m and 100 m and the ones from the SRTM model are at 35 m, 50 m and 70 m represented in black, white and gray lines, respectively.
and Quaternary sediments. The Alter do Chão Forma-tion is constituted by kaolin-rich, fine to medium-grained red sandstone, locally displaying cross stratification (Caputo et al. 1971). It crops out in the northern part of the study area, at elevations between 50 and 100 m, near Manaus, Iranduba and Manacapuru. This formation has been deposited by a high-energy fluvial system, in
(A)
0 10 20 40km60°54'0"W
60°54'0"W
60°36'0"W
60°36'0"W
60°18'0"W
60°18'0"W
60°0'0"W
60°0'0"W
3°54'0"S 3°36'0"S 3°18'0"S 3°0'0"S
Careiro da Várzea
Iranduba Manacapuru
Manaquiri
Careiro
(B)
0 10 20 40km
60°54'0"W
60°54'0"W
60°36'0"W
60°36'0"W
60°18'0"W
60°18'0"W
60°0'0"W
60°0'0"W
3°54'0"S 3°36'0"S 3°18'0"S 3°0'0"S
Iranduba
Careiro da Várzea
Manacapuru
Manaquiri
Careiro
ANALYSIS OF TECTONIC FLUVIAL IN THE AMAZON RIVER 699
(C)
(D)
60 00 60 30
61 00
03 00
03 30
04 00
(D)
system with eolian reworking; and an upper Sequence 2 (Cenomanian), deposited in a fluvial-deltaic and lacus-trine prograding system.
According to the geologic map of Brazil (Bizzi et al. 2001), the areas located to the west of Manacapuru and to the south of the Solimões River are characterized by outcrops of the Içá Formation. This unit is uncon-formable with the Alter do Chão Formation and com-prises interlayered sandy and muddy deposits, formed in an alluvial system. The occurrence of the Içá Forma-tion in this region is controverse (controversial?), with many authors considering only the Solimões Formation (Costa et al. 1978, Lourenço et al. 1978). Rossetti et al. (2005) consider that the Içá Formation has a Plio-Pleistocene age, based on the fact that this unit overlies unconformably the Solimões Formation (Miocene).
Quaternary sediments occur along the Amazon River and its tributaries and consist of fluvial sand and mud formed in meandering bars, floodplains, crevasse splays, abandoned meanders and lakes setting (Nasci-mento et al. 1976, Costa et al. 1978, Latrubesse and Franzinelli 2002). In the southwest area of the city of Manaus, Latrubesse and Franzinelli (2002) recognized an ancient alluvial plain dominated by point bars, a barred floodplain and a floodplain dominated by chan-nels along of the Amazon River. The ancient alluvial plain occurs in low, sandy terraces. The barred flood-plain is characterized by a large area with lakes compris-ing mostly grey to grey-greenish and mottled (yellowish) mud exhibiting bioturbation and plant debris. Secondar-ily, levees, crevasse splays and various delta systems oc-cur. There is a predominance of the sand fraction in the channel-dominated floodplains, where the main features are channels, active sand bars, levees, inactive islands and a system of abandoned channels.
Quaternary sediments in the Ariaú River region, lo-cated between the towns of Manacapuru and Iranduba, comprise light grey to mid-grey sand and mud that lo-cally intergraded with sand layers up to 1m thick. Soares et al. (2001) recognized three levels of terraces, related to the Paraná do Ariaú River, situated between 30 m and 50 m above sea level, interpreted as having being formed on subsiding blocks (Fig. 5). These resulted from tec-tonic processes associated to normal faults, as explained by Silva (2005). Three boreholes in this area indicated
a minimum thickness of 60 m for these Quaternary sedi-ments (Silva 2005). Drainage patterns such as rectangu-lar and trellis suggest a strong structural control (Howard 1967). Moreover, the landforms exhibit ruptures on the relief, rectilinear scarps, smooth surfaces and block tilt-ing, being located on a lower topographical level.
Quaternary sediments in the Cacau-Pirêra area, lo-cated at the confluence of the Negro and Solimões rivers, consist of mud and cross stratified sand related to crevasse splays and abandoned channels. Those deposits occur in subsurface up to a depth of 20 m overling the Alter do Chão Formation.
Several studies have proposed a tectonic control for the evolution of the Amazon River system in the study area during the Quaternary (Costa et al. 2001, Bemerguy et al. 2002, Igreja and Franzinelli 2002, Silva 2005). Other studies have also shown that tectonic processes were responsible for the formation of several Quaternary sediments along the Amazon River outside the study area (P.E.L. Bezerra et al. unpublished data).
Costa and Hasui (1997), applying the neotectonic model of Hasui (1990) for the Brazilian Platform, defined an E-W dextral strike-slip tectonic model for the Amazon region, after the opening of the Atlantic Ocean. This was reflected in Eastern Amazon by a Miocene-Pliocene and Quaternary tectonic episodes.
According to the relief classification proposed by Projeto Radambrasil (Nascimento et al. 1976, Costa et al. 1978), the Rio Trombetas-Rio Negro Dissected Pla-teau or Negro-Jari PlaPla-teau encompasses the Alter do Chão Formation. The area to the south of the Amazon River is included into the western domain of the Ama-zon Lowered Plateau and the Central AmaAma-zon Depres-sion, and consists of the deposits of the Içá Formation (Bizzi et al. 2001). Finally, the Amazonian floodplain comprises the Quaternary sediments in the floodplain of the Solimões-Amazon rivers, at topographic levels up to 25 m.
MORPHOSTRUCTURAL ANALYSIS
medium-ANALYSIS OF TECTONIC FLUVIAL IN THE AMAZON RIVER 701

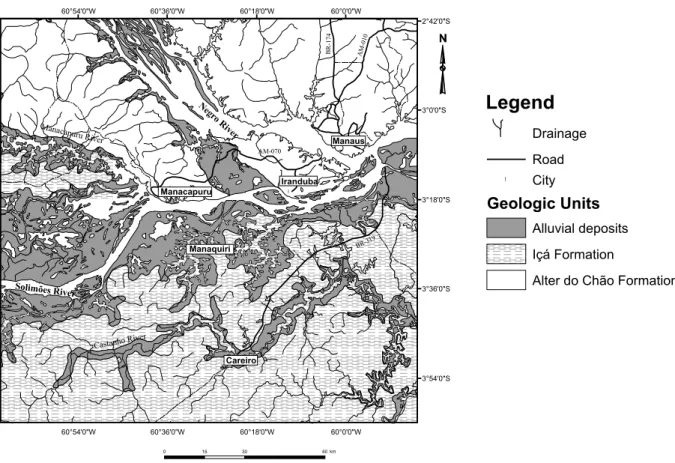

Fig. 4 – Geological map of the study region (1:2,500,000) according to Bizzi et al. (2001).
sized hills up to 100 m in height. To the north of Man-acapuru, the relief is more preserved from erosion, with medium elevations (about 50 meters) and sub-horizontal tops. Close to the rivers, however, the relief changes to well-dissected and small forms, defining a characteristic topographic alignment (Fig. 3C). The Ariaú River re-gion, between Iranduba and Manacapuru, includes a flat surface with levels not higher than 50 m, often flooded and covered by Quaternary sediments.
The region to the south of the Solimões River, in the central area, corresponds to the Amazon Lowered Plateau, and comprises the towns of Careiro and Mana-quiri. Its relief is low (around 50 m), with flat and dis-sected tops and poorly-evolved drainage. In this region, the Castanho River marks the boundary between two lowered surfaces. On its left margin, on the outskirts of Manaquiri, heights are typically below 30 m, whereas the right margin exhibits altitudes between 30 m and 50 m. This configuration of the relief shows a gentle
unlevelling that may reach up to 20 m. Moreover, this surface is in the same level of the Solimões River plain, getting mixed up with terraces of the Negro River, Ariaú River and of the right margin of the Manacapuru River. This unlevelling between the two surfaces becomes more conspicuous when visualized through a 3-D model of the DEM with high vertical exaggeration (Fig. 3D).
com-Fig. 5 – Geological map with the location of the Iranduba and Ariaú region with stratigraphic sections. Points 1, 2, 3 and 4 correspond to the respective sedimentological profiles. Modified from Soares et al. (2001).
partments that occur in the Amazonia Plain.
The Negro River Fault is an important structure mentioned by several authors, including Sternberg (1950), Andrade and Cunha (1971), and Igreja and Franzinelli (2002). This fault controls the margins of that river for more than 70 km and it is easily recog-nized on maps and satellite images as sets of rectilinear scarps on both margins of the river. Its extension may be noted in the western region of the Ariaú River, in the contact between the Quaternary sediments and the Alter do Chão Formation. It is possible that this fault extends towards the Careiro region, forming the various NW-SE lineaments seen in this region (Silva 2005). According to Cordani et al. (1984), the Negro River Fault is a pos-sible extension of structures of the Amazonian Craton, suggesting that they were reactivated during the Palaeo-zoic and CenoPalaeo-zoic times (Fig. 6A e B).
In the Ariaú River region, some landforms suggest
the occurrence of block movements, such as parallel and rectangular patterns in the course of the Acajituba River (right margin of the Rio Negro River), aligned confluence of tributaries and also the asymmetry of the drainage be-tween the blocks (long and short segments). An example of drainage asymmetry is the anomalous trellis pattern of the Acajituba stream, enclose to the scarp of the Ne-gro River (Fig. 6B). The parallel disposition of the wa-tershed between the Acajituba and Miriti streams and the asymmetric valleys of the Miriti and Manacapuru rivers, along the NW-SE direction, are associated to in-terfluvial zones on the relief.
ANALYSIS OF TECTONIC FLUVIAL IN THE AMAZON RIVER 703
Iranduba Block is bounded by Cacau-Pirêra and Iran-duba lineaments, forming the island where IranIran-duba is located. In the central portion of the block, the relief shows residual dissected hills with sub-horizontal tops that stand out in the landscape and may be visualized in the DEM (Fig. 3C and D).
Between the scarps of the Negro and Iranduba rivers there is a depressed region with altitudes up to 50 m, with terraces formed on Quaternary sediments, to-gether with Quaternary sediments from the Ariaú River plain, both confined among Cretaceous deposits of the Alter do Chão Formation. In that sector, the Ariaú River, that links the Negro and Solimões rivers, lies asymmet-rically on the plain due to the migration of the channel towards east. The asymmetry of the channels is also ev-ident in the Acajituba River. Close to the scarp of the Negro River it presents a trellis pattern, as well as ano-malous confluence of its tributaries. The depressed area is controlled by the Negro River’s Fault. Farther west, in the region of Manacapuru, the homonymous river lies oriented NW-SE and presents asymmetric channels and drowned mouth (the Manacapuru lake). The mor-phostructural arrangement shows unlevelled areas, with strong relief asymmetry, characterized by tectonic land-forms and drainage anomalies associated to the Negro River Fault.
Castanho River is the main tributary of the Soli-mões River in the southern portion, showing a rectan-gular pattern associated with ENE-WSW and NW-SE lineaments and drowned-type drainage anomalies (Figs. 3C, D and 6B). The extensive areas of still waters rep-resenting drowned rivers are called “lakes”, such as the Castanho Lake. In this area, the formation of drowned channels is associated with relief lineaments, which in turn are responsible for the development of the rectangu-lar pattern of the channels. The strong asymmetry of the tributary channels indicates that the surface is slightly lowered, dipping gently northward. Tributaries of the Castanho River also exhibit an arrangement parallel to the lineaments ENE-WSW. The rectangular drainage pattern observed in the Castanho River region is con-trolled by NW-SE lineaments (Fig. 6A).
Along its fluvial plain, the Solimões River shows straight segments with former bar and meander situated in asymmetric positions (Fig. 6B). To the southwest of
Manacapuru, the river suddenly changes its course from E-W to NNE-SSW, for nearly 50 km. That region em-braces a wide low area, with a flat relief which does not surpass 27 m, dominated by a series of lakes, such as the Cabaliana, Padre, Sacambu and Manacapuru, as well as present and ancient bar deposits of the Solimões River. The boundaries of the alluvial plain sediments are marked by NE-SW and E-W relief lineaments.
This extensive lowered region narrows down near Manacapuru, where the river suddenly changes the di-rection of its course. P.E.L. Bezerra et al. (unpub-lished data) mentioned the existence of a series of tec-tonic depressions which control the Quaternary sedimen-tation along the channel of the Solimões River. Silva (2005) described several strike-slip and normal faults and transtensive tectonic basins along the left bank of the Solimões River between Coari and Manaus. Among these basins, the Manacapuru pull-apart basin stands out, with its peculiar rhombohedric form.
In the stretch between Manacapuru and Manaus, the Solimões River follows an approximate E-W course for about 70 km (Fig. 6B). In that stretch the river shows evidences of erosion in both, the meander bars and the deposits from the Alter do Chão and Içá formations. Thus, an area with a wide and another with a narrow floodplain becomes evident along the river. The paleo-geographic reconstruction shows that the Solimões River presented an E-W orientation on this entire sector, possi-bly with meandering characteristics. Through the analy-sis of SRTM and Landsat images, a lineament map was produced (Fig. 6A), showing the relationship between the morphostructural anomalies and main structural fea-tures (Fig. 7).
conspic-CL A U Z IO N O R L . S IL V A et al. (A)
Length accumulated Frequency accumulated
0 10 20 40
km 60°54'0"W 60°36'0"W 60°18'0"W 60°0'0"W
3°54'0"S 3°36'0"S 3°18'0"S 3°0'0"S Acajituba River Castanho River A ri aú Ri ve r ! Mamori lake (B)
0 10 20 40
km
! !
!
60°54'0"W 60°36'0"W 60°18'0"W 60°0'0"W
3°54'0"S 3°36'0"S 3°18'0"S 3°0'0"S city Iranduba Manacapuru Manaquiri
0 10 20 40
km
! !
!
60°54'0"W 60°36'0"W 60°18'0"W 60°0'0"W
ANALYSIS OF TECTONIC FLUVIAL IN THE AMAZON RIVER 705
Fig. 7 – Relief lineaments overlayed to the SRTM DEM.
uous tectonic lineaments along different directions. In the NW-SE direction the interpreted lineaments were named Manaus, Cacau-Pirêra, Iranduba, Negro River, Miriti, Manacapuru River and Manaquiri. Along NE-SW the lineaments are: Castanho River, Castanho River-lake Mamori, Acajituba and Solimões River (Padre lake). Fi-nally, along E-W the lineaments are: Paricatuba, Mana-capuru-Iranduba, lineaments of Careiro and southern Castanho River (Fig. 8).
Morphostructural features along the NW-SE direc-tion comprise fault scarps, aligned interfluves, asym-metric patterns of the channels and the linear course of the Negro River. They confirm that this river is con-trolled by a normal fault zone, as suggested by Silva (2005). This is also the case of the Quaternary sediments
at low topographical level, thought to be tectonically-controlled by normal faulting associated with the Iran-duba, Cacau-Pirêra and Manacapuru lineaments. Some authors referred to the Negro River region as “the Negro RiverGraben”, later interpreted by Igreja and Franzinelli
(2002) as a northeasterly tilted hemi-graben. However, these authors analyzed the supposed graben only along the margins of that river. The evidence presented in this work indicates that this lineament comprises a set of nor-mal faults, which extend beyond the margins of the Negro River until the Ariaú River region, forming graben and horst structures.

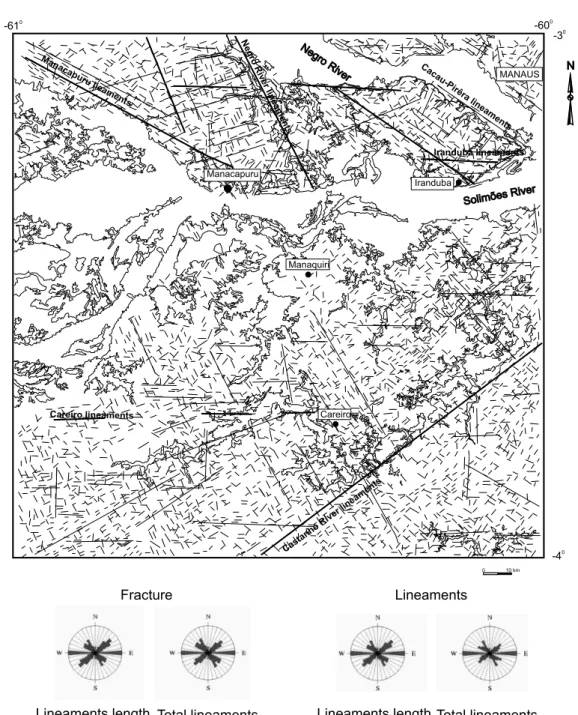

Fig. 8 – Lineament map of the study region from the integration of relief and drainage features obtained from Landsat TM images. Rose diagrams show the directions of the lineaments.
left edge from the Negro River fault. The extension of this structure may be observed further north, in the region of the Cuieiras River.
The NE-SW lineaments seem to have imposed sig-nificant control on the deposition of Quaternary sedi-ments along the straight segsedi-ments of the Solimões River.
ANALYSIS OF TECTONIC FLUVIAL IN THE AMAZON RIVER 707
transference, normal and dextral strike-slip faults. Those authors showed that these lineaments are associated with a strike-slip system.
The E-W and N-S lineaments are more difficult to characterize because their morphostructural expression does not indicate the associated kinematics. The most significant E-W feature is the Paricatuba lineament, rep-resenting the northern boundary of the Ariaú River. In addition, other E-W lineaments may be seen cutting the topography in the region of Manacapuru and Iranduba and in the south of the Careiro region (Fig. 8). The N-S structures are less expressive, represented by scarce sets of lineaments on the region west of Manaus, in Man-acapuru and east and west of Careiro. Based on the re-gional tectonic model proposed by Hasui (1990), E-W faults have been interpreted as dextral strike-slip faults, whereas those along the N-S direction as normal faults dipping to the west (Igreja and Franzinelli 2002).

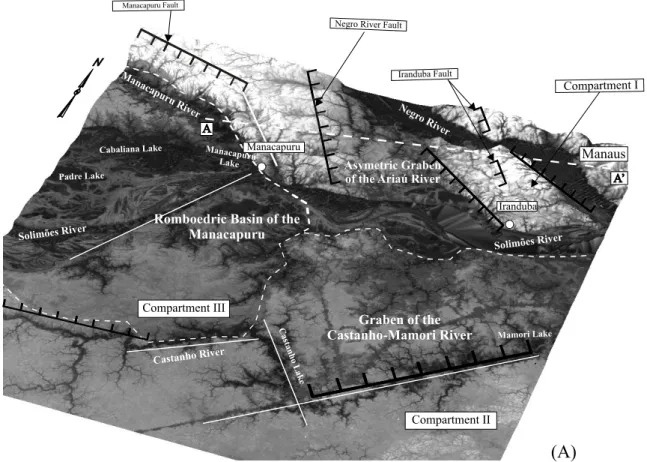

As a result of the morphotectonics analysis pre-sented here, three tectonic compartments were recog-nized in the study area (Figs. 8 and 9). The first com-partment comprises the northern portion of the area, en-compassing the cities of Manaus, Iranduba and Manaca-puru, and includes the asymmetric graben of the Ariaú River (Fig. 9A and B). The western limit of this graben is represented by the scarp of the Negro River Fault scarp, coinciding with the contact between Cretaceous and Quaternary units.
The second morphotectonic compartment is loc-ated on the right margin of the Solimões River and corre-sponds to the area with flat relief and rectangular drainage patterns. This compartment is marked by relief linea-ments and aligned drainage channels following the NW-SE and NE-SW directions. The lineaments along these two directions induce a parallel arrangement of the drainage and relief, such as the fault scarp of Castanho River and portions of the watersheds of its tributaries. They also control stretches of that river and produce con-spicuous drainage anomalies. The development of a typ-ical rectangular pattern and the remarkable relief asym-metry, marked by escarpments, point out to the existence of two blocks unlevelled by about 30 m, similar to the Ariaú depression. The morphostructural features associ-ated with this compartment also include anomalous par-allel drainage patterns, drowned portions of Castanho and
Mamori lakes, anomalous bends and channel asymmetry (Fig. 9A). The relief elements and drainage anomalies show a significant structural control of the present allu-vial sedimentation. The extensive abandoned deposits on the left bank of the Solimões River result from the migration of the channel from NW to S-SE leading to the present asymmetric position.
The third compartment is located west of Mana-capuru and is represented by the alluvial plain of the Solimões River. That area comprises part of the Purus Rhombohedral Basin localized in western of this region (Silva 2005).
The paleogeographic reconstruction shows that the Iranduba region, bounded by the Cacau-Pirêra and Iran-duba lineaments, was once part of the left margin of the Negro River (Fig. 10A). The ancient channel of the river was probably narrower and flowed along the Ariaú de-pression and, from there, into the Solimões River (Fig. 10B). The proto-channel of the Negro River opened by normal faulting that formed the Negro River Graben. This process made possible the development of sedimen-tation at the confluence of the Negro and Solimões rivers, where the Ariaú River is situated today. The continu-ous movement of the E-W binary produced the NW-SE faulting observed west of Manaus and at Cacau-Pirêra and Iranduba, resulting in the formation of fault scarps (Fig. 10C). Normal faulting generated an opening into which the Negro River was captured, thus changing its flow direction from south to east and south-east, aban-doning the channel where the Ariaú river currently lies (Fig. 10D). This E-W lineament played an important role in the capture process observed in this area. The presence of ancient bar deposits indicates that the Soli-mões River had meanders and was probably orientated towards E-W, as currently seen between Manacapuru and Manaus (Fig. 10E). The migration of the Solimões River towards southeast would be the result of tectonic processes, associated with the formation and evolution of the Manacapuru Rhombohedral Basin (Fig. 10).
CONCLUSIONS
ANALYSIS OF TECTONIC FLUVIAL IN THE AMAZON RIVER 709
0 20 km 0 20 km
0 20 km
0 20 km 0 20 km
Solimões River SolimõesRive r N egro Ri ve r Solimões River Iranduba Manacapuru Solim
ões R
iver avulsion Sol imõe sR ive r MANAUS MANAUS Iranduba N egro Rive r Solimões River Manacapuru Solimões River Manacapuru N egro Rive r MANAUS Iranduba A riaúRi
ver
Solimões River
MANAUS
Solimões River
Manacapuru
Negro River
Iranduba
Manacapuru Iranduba
Solimões River
Negro
River
MANAUS
Fig. 10 – Paleogeographic model of the study region. In (A) the first stage where the Negro River passed into the region of the Ariaú River. (B) The normal fault of the Negro River (left margin) evolved also on the right margin enlarging the basin (C). The diversion of the Negro River to the east was the result of E-W fractures, following the fulfillment of the channel at Ariaú; (D) The E-W Solimões River formed meanders in the western portion. (E) The last stage shows the current morphology of the region.
observations. The combination of modern remote sens-ing technologies and three-dimensional visualization tools enabled a detailed characterization of the relief and drainage patterns of this region, unveiling subtle ter-rain features related to Cenozoic tectonics of the western Amazon Basin. The tectonic compartments were named Ariaú Graben, Castanho-Mamori Graben and Manaca-puru Basin.
The Ariaú Graben corresponds to an asymmetric depression, where unlevelled Quaternary deposits are bounded by the NW-SE Negro River Fault. Morpho-structural features recognized in association with the Ariaú Graben, include terraces, fault scarps, drainage asymmetry and anomalies, such as rectangular and trel-lis patterns, beheaded stream and drowned rivers.
The Castanho-Mamori Graben is a NE-SW rect-angular asymmetric feature located at the right margin of the Solimões River. Its main tectonic boundary is
the Castanho Fault, also orientated towards NE-SW and plunging NW, controlling the course of the Castanho River. Morphostructural features recognized in associ-ation with this graben include relief anomalies, such as fault scarps of the Castanho River, rectangular drainage patterns and drowned rivers which formed Mamori, Cas-tanho and Janauacá lakes. These features are interpreted mostly as the result of faulting along NW-SE, NE-SW and N-S, represented by the relief and drainage linea-ments along the same directions.
The results presented in this paper strengthen the important role of neotectonics in controlling the fluvial morphology and sedimentation processes of the western Amazon Basin. The configuration of relief patterns and drainage networks, as well as the spatial distribution and characteristics of Quaternary sediments in the region lo-cated southwest of Manaus, are unmistakably associated with the Cenozoic tectonic compartments here defined.
ACKNOWLEDGMENTS
The authors would like to thanks the Dr. Giorgio Basi-lici of the Universidade Estadual de Campinas, who re-viewed parts of the manuscript. A.P. Crósta and N. Morales acknowledge Conselho Nacional de Desenvol-vimento Científico e Tecnológico (CNPq) for research grant 305203/2003-7 (APC) and 307526/2003-8 (NM).
RESUMO
Uma investigação do controle tectônico da morfologia fluvial e dos processos sedimentares de uma área localizada a sudoeste da cidade de Manaus, na Bacia do Amazonas, foi conduzida a partir do uso de dados de sensores remotos orbitais. Nessa região, o baixo gradiente topográfico representa o principal obstáculo para a análise morfotectônica usando métodos vencionais. O uso de dados de sensores remotos pode con-tribuir significativamente para superar essa limitação. Desse modo, dados de sensoriamento remoto, compreendendo mode-lo digital de elevação (DEM) obtido pemode-lo Shuttle Radar Topo-graphic Mission (SRTM) e imagens Landsat TM, foram uti-lizados para essa investigação. Técnicas avançadas de proces-samento de imagem foram empregadas para realce de imagens topográficas e sua elaboração tridimensional, permitindo desse modo, a interpretação dos elementos morfotectônicos. Isso permitiu o reconhecimento de principais compartimentos tec-tônicos, diversas feições morfoestruturais e formas de relevo relacionadas à evolução neotectônica dessa porção da Bacia do Amazonas. Feições como escarpas de falha, padrão anô-malo na drenagem, alinhamentos de relevo, vales e divisores d’água foram realçados nas imagens como notáveis lineamen-tos ao longo das direções NE-SW, NW-SE, E-W e N-S. Es-sas feições foram associadas à geometria de estruturas do tipo horste e gráben alternados, este último preenchido por unidades sedimentares recentes. A interpretação morfotectônica usando essa técnica mostrou-se eficiente e permitiu o reconhecimento de novas feições tectônicas as quais foram denominadas de
Gráben Assimétrico Ariaú, Bacia Romboédrica de Manaca-puru e Gráben Castanho-Mamori.
Palavras-chave: morfotectônica, morfoestrutura, neotectô-nica, Bacia do Amazonas.
REFERENCES
ANDRADECACANDCUNHAFM. 1971. Geologia da Bacia
Paleozóica do Amazonas. In: CONGRESSOBRASILEIRO
DEGEOLOGIA25, São Paulo SBG 3: 93–112.
BEMERGUYRL, COSTAJBS, HASUIY, BORGESMSAND
SOARES JÚNIORAV. 2002. Structural geomorphology
of the Brazilian Amazon region. In: KLEIN ELET AL.
(Eds), Contribuição à Geologia da Amazônia, Belém: SBG Núcleo Norte 3: 245–57.
BIZZIL, SCHOBBENHAUSC, GONÇALVESJH, BAARSFJ, DELGADOIMO, ABRAMMB, LEÃONETOR, MATOS
GMM AND SANTOS JOS. 2001. Mapa geológico do Brasil. Geologia, tectônica e recursos minerais do Brasil: sistemas de informações geográficas – SIG. Mapas – Es-cala 1:2.500.000. CPRM, 2001, Brasília, digital, 4 CD-ROMs.
CAPUTO MV, RODRIGUES R AND VASCONCELOS DN.
1971. Litoestratigrafia da Bacia do Amazonas. Brasil, PETROBRAS, 92 p.
COOKERU. 1990. Neotectonics, earthquakes, and
volcanic-ity. New York: Oxford. Clarendon Press, 403 p. CORDANI UB, BRITO NEVES BB, FUCK RA, THOMAZ
FILHOAANDCUNHAFMB. 1984. Estudo preliminar
de integração do pré-Cambriano com os eventos tectôni-cos das bacias sedimentares brasileiras. Ciências Técnica
Petróleo. PETROBRAS, n◦15, 70 p.
COSTA JBSANDHASUIY. 1997. Evolução geológica da
Amazônia. In: COSTAMLANDANGÉLICARS (Eds),
Contribuições à Geologia da Amazônia, Belém: FINEP/ SBG 1: 15–90.
COSTAJBS, BEMERGUYRL, HASUIYANDBORGESMS.
2001. Tectonics and paleogeography along the Amazon river. J S Am Earth Sci 14: 335–347.
COSTARCR, NATALIFILHOTANDOLIVEIRAAAB. 1978.
Geomorfologia da Folha SA.20-Manaus. In: PROJETO
RADAMBRASIL. Folha SA.20-Manaus, geologia, geo-morfologia, pedologia, vegetação e uso potencial da ter-ra. Levantamento de Recursos Naturais. Rio de Janeiro, RJ, MME/DNPM 18: 165–244.
ANALYSIS OF TECTONIC FLUVIAL IN THE AMAZON RIVER 711
France. Bulletin INQUA Neotectonic Commission 12: 48–52.
DINOR, SILVAOBANDABRAHÃOD. 1999. Caracterização palinológica e estratigráfica de estratos cretáceos da
For-mação Alter do Chão, Bacia do Amazonas. In: SIMPÓSIO
SOBRE OCRETÁCEO DOBRASIL, 5, Rio Claro, Boletim p. 557–565.
HASUIY. 1990. Neotectônica e aspectos da tectônica
ressur-gente no Brasil. In: WORKSHOP SOBRE NEOTECTÔ
-NICA ESEDIMENTAÇÃOCENOZÓICA NOSUDESTE DO
BRASIL, 1, Belo Horizonte, Anais, p. 1–31.
HOWARDAD. 1967. Drainage analysis in geologic
inter-pretation: A summation. Amer Assoc Pet Geol Bull 51: 2246–2259.
IGREJAHLSANDFRANZINELLIE. 2002. Modern sedimen-tation in the lower Negro River, Amazon State, Brazil. Geomorphology 44: 259–271.
KELLEREANDPINTERN. 1996. Active tectonics:
earth-quake, uplift and landscape, 1sted., New Jersey: Prentice
Hall, 338 p.
LATRUBESSEEANDFRANZINELLIE. 2002. The holocene alluvial plain of the middle Amazon River, Brazil. Geo-morphology 44: 241–257.
LOURENÇORS, MONTALVÃORMG, PINHEIROSS, FER -NANDESPECA, PEREIRAER, FERNANDESCACAND
TEIXEIRAW. 1978. Geologia, geomorfologia, pedologia,
vegetação e uso potencial da terra. In: BRASIL. PROJETO
RADAM. Geologia das Folhas SA. 20 Manaus. Rio de Janeiro, RJ, DNPM, p. 19–173.
MADSENSNANDZEBKERHA. 1998. Imaging radar
inter-ferometry. In: HENDERSONFMANDLEWISAJ (Eds),
Principles & applications of imaging radar, Manual of
Remote Sensing, 3rded., Am Soc of Photogrammetry and
Rem Sens 2: 359–406.
NASA SHUTTLE RADAR TOPOGRAPHY MISSION. 2000.
The mission to map the world
(http://www.jpl.nasa.gov/srtm/index.html), accessed Jan-uary 5, 2000.
NASCIMENTODA, MAUROCAANDGARCIAMGL. 1976.
Geomorfologia da Folha SA.21-Santarém. In: PROJETO
RADAMBRASIL. Folha SA.22-Santarém. Geologia, geo-morfologia, pedologia, vegetação e uso potencial da ter-ra. Levantamento de Recursos Naturais. Rio de Janeiro: MME/DNPM 10: 131–198.
OUCHIS. 1985. Response of alluvial rivers to slow active
tectonic movement. Geol Soc Amer Bull 96: 504-515.
RABUSBM, EINEDERM, ROTHAANDBAMLERR. 2003.
The shuttle radar topography mission- a new class of dig-ital elevation models acquired by spaceborne radar. Pho-togrammetry and Rem. Sens 57: 241–262.
ROSSETTIDF, TOLEDOPMANDGÓESAM. 2005. New geological framework for western Amazonia (Brazil) and implications for biogeography and evolution. Quaternary Res 63: 78–89.
SCHUMM SA. 1986. Alluvial river response to active tec-tonics. Active tectonics, studies in geophysics, National Academy Press, p. 80–94.
SILVACL. 2005. Análise da tectônica cenozóica da região de
Manaus e adjacências. Tese de Doutorado, Universidade Estadual Paulista, Rio Claro, SP, Brasil.
SOARES EAA, SILVA C, NOGUEIRA ACR, SUGUIO K,
BARROS DSANDSANTOS WHD. 2001. Os depósitos
quaternários na confluência dos rios Negro e Solimões, municípios de Iranduba e Manacapuru, Amazonas. In: ANAIS DOVI SIMPÓSIO DE GEOLOGIA DA AMAZÔ
-NIA, Belém, PA 1: 19–22.
STERNBERGHOR. 1950. Vales tectônicos na planície ama-zônica? Rev Bras Geog 12(4): 3–26.
STEWARTISANDHANCOCKPL. 1994. Neotectonics range-front fault scarps in the Aegean region. Episodes 13(4): 93–107.
