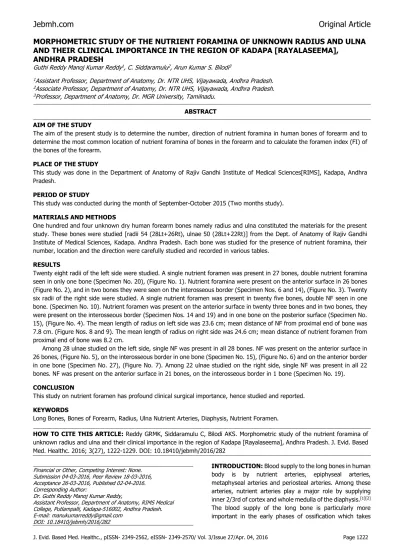

J. Evid. Based Med. Healthc., pISSN- 2349-2562, eISSN- 2349-2570/ Vol. 3/Issue 27/Apr. 04, 2016 Page 1222
MORPHOMETRIC STUDY OF THE NUTRIENT FORAMINA OF UNKNOWN RADIUS AND ULNA
AND THEIR CLINICAL IMPORTANCE IN THE REGION OF KADAPA [RAYALASEEMA],
ANDHRA PRADESH
Guthi Reddy Manoj Kumar Reddy1, C. Siddaramulu2, Arun Kumar S. Bilodi3
1Assistant Professor, Department of Anatomy, Dr. NTR UHS, Vijayawada, Andhra Pradesh.
2Associate Professor, Department of Anatomy, Dr. NTR UHS, Vijayawada, Andhra Pradesh.
3Professor, Department of Anatomy, Dr. MGR University, Tamilnadu.
ABSTRACT
AIM OF THE STUDY
The aim of the present study is to determine the number, direction of nutrient foramina in human bones of forearm and to determine the most common location of nutrient foramina of bones in the forearm and to calculate the foramen index (FI) of the bones of the forearm.
PLACE OF THE STUDY
This study was done in the Department of Anatomy of Rajiv Gandhi Institute of Medical Sciences[RIMS], Kadapa, Andhra Pradesh.
PERIOD OF STUDY
This study was conducted during the month of September-October 2015 (Two months study).
MATERIALS AND METHODS
One hundred and four unknown dry human forearm bones namely radius and ulna constituted the materials for the present study. These bones were studied [radii 54 (28Lt+26Rt), ulnae 50 (28Lt+22Rt)] from the Dept. of Anatomy of Rajiv Gandhi Institute of Medical Sciences, Kadapa. Andhra Pradesh. Each bone was studied for the presence of nutrient foramina, their number, location and the direction were carefully studied and recorded in various tables.
RESULTS
Twenty eight radii of the left side were studied. A single nutrient foramen was present in 27 bones, double nutrient foramina seen in only one bone (Specimen No. 20), (Figure No. 1). Nutrient foramina were present on the anterior surface in 26 bones (Figure No. 2), and in two bones they were seen on the interosseous border (Specimen Nos. 6 and 14), (Figure No. 3). Twenty six radii of the right side were studied. A single nutrient foramen was present in twenty five bones, double NF seen in one bone. (Specimen No. 10). Nutrient foramen was present on the anterior surface in twenty three bones and in two bones, they were present on the interosseous border (Specimen Nos. 14 and 19) and in one bone on the posterior surface (Specimen No. 15), (Figure No. 4). The mean length of radius on left side was 23.6 cm; mean distance of NF from proximal end of bone was 7.8 cm. (Figure Nos. 8 and 9). The mean length of radius on right side was 24.6 cm; mean distance of nutrient foramen from proximal end of bone was 8.2 cm.
Among 28 ulnae studied on the left side, single NF was present in all 28 bones. NF was present on the anterior surface in 26 bones, (Figure No. 5), on the interosseous border in one bone (Specimen No. 15), (Figure No. 6) and on the anterior border in one bone (Specimen No. 27), (Figure No. 7). Among 22 ulnae studied on the right side, single NF was present in all 22 bones. NF was present on the anterior surface in 21 bones, on the interosseous border in 1 bone (Specimen No. 19).
CONCLUSION
This study on nutrient foramen has profound clinical surgical importance, hence studied and reported.
KEYWORDS
Long Bones, Bones of Forearm, Radius, Ulna Nutrient Arteries, Diaphysis, Nutrient Foramen.
HOW TO CITE THIS ARTICLE: Reddy GRMK, Siddaramulu C, Bilodi AKS. Morphometric study of the nutrient foramina of
unknown radius and ulna and their clinical importance in the region of Kadapa [Rayalaseema], Andhra Pradesh.J. Evid. Based Med. Healthc. 2016; 3(27), 1222-1229. DOI: 10.18410/jebmh/2016/282
INTRODUCTION: Blood supply to the long bones in human
body is by nutrient arteries, epiphyseal arteries, metaphyseal arteries and periosteal arteries. Among these arteries, nutrient arteries play a major role by supplying inner 2/3rd of cortex and whole medulla of the diaphysis.[1][2]
The blood supply of the long bone is particularly more important in the early phases of ossification which takes
Financial or Other, Competing Interest: None. Submission 04-03-2016, Peer Review 18-03-2016, Acceptance 26-03-2016, Published 02-04-2016. Corresponding Author:
Dr. Guthi Reddy Manoj Kumar Reddy,
Assistant Professor, Department of Anatomy, RIMS Medical College, Putlampalli, Kadapa-516002, Andhra Pradesh. E-mail: manukumarreddy@gmail.com
J. Evid. Based Med. Healthc., pISSN- 2349-2562, eISSN- 2349-2570/ Vol. 3/Issue 27/Apr. 04, 2016 Page 1223
place in the active growth period of the embryo and foetus.[3] In the early postnatal period, nutrient arteries
provide 70-80% of interosseous blood supply, which when compromised can lead to medullary ischemia, reduced vascularity of metaphysis and growth plate abnormalities.[4]
The point of entry of nutrient artery (NA) into the long bone is indicated by the nutrient foramen (NF). The direction of the nutrient foramen is determined by the growing end of the bone. The growing end of the bone grows at least twice as fast as the non-growing end. This is the reason for the nutrient vessels to move away from the growing end of the bone.[5] The direction of NF follows the dictum “to the elbow
I go and away from the knee I flee”.[2] In radius and ulna,
nutrient artery is a branch of anterior interosseous artery (a branch of ulnar artery). Nutrient foramen is usually single, located on the anterior surface, near the proximal end of the bone and is directed proximally towards the elbow.[1] At
times, there may be more than one nutrient foramen and the nutrient foramen may be found on the interosseous
border (or) lateral surface (or) on the posterior surface (or) rarely on the anterior border.
MATERIALS AND METHODS: One hundred and four
unknown dry human both bones of forearm that is radius and ulna were selected for the study of nutrient foramina. Their number, location and direction were studied in all one hundred and four bones. Among them radii were fifty four [twenty eight of the left side and twenty six of right side]and that of ulna they were fifty bones [of twenty eight on the left side and twenty two on the right side] from the. The study was conducted in the Department of Anatomy at Rajiv Gandhi Institute of Medical Sciences, Kadapa, Andhra Pradesh. All the bones were studied for the number of NF and location of NF. The total length of each bone and distance of NF from the proximal end of the bone is measured using osteometric board. The observations made were tabulated and the Foramen Index was calculated using
HUGH’s Formula.[6]
According to HUGH’S Formula,
OBSERVATIONS: The observations made regarding the number and location of nutrient foramina of radii are tabulated as
follows:
Left side Right side
Sl. No. Number of NF Location of NF Sl. No. Number of NF Location of NF
1. 1 Anterior surface 1. 1 Anterior surface
2. 1 Anterior surface 2. 1 Anterior surface
3. 1 Anterior surface 3. 1 Anterior surface
4. 1 Anterior surface 4. 1 Anterior surface
5. 1 Anterior surface 5. 1 Anterior surface
6. 1 Interosseous border 6. 1 Anterior surface
7. 1 Anterior surface 7. 1 Anterior surface
8. 1 Anterior surface 8. 1 Anterior surface
9. 1 Anterior surface 9. 1 Anterior surface
10. 1 Anterior surface 10. 2 Anterior surface
Anterior surface
11. 1 Anterior surface 11. 1 Anterior surface
12. 1 Anterior surface 12. 1 Anterior surface
13. 1 Anterior surface 13. 1 Anterior surface
14. 1 Interosseous Border 14. 1 Interosseous Border
15. 1 Anterior surface 15. 1 Posterior surface
16. 1 Anterior surface 16. 1 Anterior surface
17. 1 Anterior surface 17. 1 Anterior surface
18. 1 Anterior surface 18. 1 Anterior surface
19. 1 Anterior surface 19. 1 Interosseous Border
20. 2 Anterior surface
Anterior surface 20. 1 Anterior surface
21. 1 Anterior surface 21. 1 Anterior surface
22. 1 Anterior surface 22. 1 Anterior surface
23. 1 Anterior surface 23. 1 Anterior surface
J. Evid. Based Med. Healthc., pISSN- 2349-2562, eISSN- 2349-2570/ Vol. 3/Issue 27/Apr. 04, 2016 Page 1224
25. 1 Anterior surface 25. 1 Anterior surface
26. 1 Anterior surface 26. 1 Anterior surface
27. 1 Anterior surface -
28. 1 Anterior surface -
Table 1: Number and location of nutrient foramina for radius
Among 28 radii studied on the left side, single NF was present in 27 bones, double NF is seen in one bone. (Specimen No. 20), (Figure No. 1). NF was present on the anterior surface in 26 bones (Figure No. 2), on the interosseous border in 2 bones (Specimen Nos. 6 and 14), (Figure No. 3).
Among 26 radii studied on the right side, single NF was present in 25 bones, double NF is seen in one bone. (Specimen No. 10). NF was present on the anterior surface in 23 bones, on the interosseous border in 2 bones (Specimen Nos. 14 and 19) and on the posterior surface in one bone (Specimen No. 15), (Figure No. 4).
Left side Right side
Sl. No. Number of Nutrient
Foramina
Location of Nutrient
Foramina Sl. No.
Number of Nutrient Foramina
Location of Nutrient Foramina
1. 1 Anterior surface 1. 1 Anterior surface
2. 1 Anterior surface 2. 1 Anterior surface
3. 1 Anterior surface 3. 1 Anterior surface
4. 1 Anterior surface 4. 1 Anterior surface
5. 1 Anterior surface 5. 1 Anterior surface
6. 1 Anterior surface 6. 1 Anterior surface
7. 1 Anterior surface 7. 1 Anterior surface
8. 1 Anterior surface 8. 1 Anterior surface
9. 1 Anterior surface 9. 1 Anterior surface
10. 1 Anterior surface 10. 1 Anterior surface
J. Evid. Based Med. Healthc., pISSN- 2349-2562, eISSN- 2349-2570/ Vol. 3/Issue 27/Apr. 04, 2016 Page 1225
12. 1 Anterior surface 12. 1 Anterior surface
13. 1 Anterior surface 13. 1 Anterior surface
14. 1 Anterior surface 14. 1 Anterior surface
15. 1 Interosseous Border 15. 1 Anterior surface
16. 1 Anterior surface 16. 1 Anterior surface
17. 1 Anterior surface 17. 1 Anterior surface
18. 1 Anterior surface 18. 1 Anterior surface
19. 1 Anterior surface 19. 1 Interosseous Border
20. 1 Anterior surface 20. 1 Anterior surface
21. 1 Anterior surface 21. 1 Anterior surface
22. 1 Anterior surface 22. 1 Anterior surface
23. 1 Anterior surface - -
24. 1 Anterior surface
25. 1 Anterior surface
26. 1 Anterior surface
27. 1 Anterior border
28. 1 Anterior surface
Table 2: Number and location of NF for ulna
Among 28 ulnae studied on the left side, single NF was present in all 28 bones. NF was present on the anterior surface in 26 bones, (Figure No. 5), on the interosseous border in one bone (Specimen No. 15), (Figure No. 6) and on the anterior border in one bone (Specimen No. 27), (Figure No. 7).
Among 22 ulnae studied on the right side, single NF was present in all 22 bones. NF was present on the anterior surface in 21 bones, on the interosseous border in 1 bones (Specimen No. 19).
Left side Right side
Sl. No. Length of the
Bone (cm)
Distance of the Nutrient Foramina (From proximal
end of Bone) [cm]
Sl. No. Length of the
Bone (cm)
Distance of the Nutrient Foramina (From proximal
end of Bone) [cm]
1. 23.5 8 1. 24 8.5
2. 23 8 2. 24 9
3. 24 7.5 3. 24 7.5
4. 23 8 4. 23 8
5. 25 7 5. 25 7.5
J. Evid. Based Med. Healthc., pISSN- 2349-2562, eISSN- 2349-2570/ Vol. 3/Issue 27/Apr. 04, 2016 Page 1226
7. 23.5 8 7. 23 7.5
8. 24 7 8. 24 9
9. 24.5 9 9. 24.5 7
10. 24 7 10. 25 7.5
6
11. 24 8.5 11. 25.5 8.5
12. 23 7.5 12. 24 8.5
13. 23 8 13. 23 8
14. 24 9 14. 24 8
15. 23.5 9.5 15. 23.5 8
16. 24 8.5 16. 24 8
17. 24 7 17. 25 7
18. 23 7.5 18. 23 8.5
19. 25 9 19. 24 8
20. 24 8
6.5 20. 25 7
21. 23 8 21. 23 9
22. 24 8.5 22. 24 7
23. 24 9 23. 24.5 8.5
24. 25 8 24. 23.5 7.5
25. 25 7 25. 24 8
26. 24 8 26. 25 9.5
27. 23 7.5 - - ss-
28. 23.5 8 - - -
Mean 23.6 7.8 Mean 24.6 8.2
Foramen
Index 33.05
Foramen
Index 33.33
Table 3: Length, distance of NF from proximal end and foramen index of radius
The mean length of radius on left side was 23.6 cm; mean distance of NF from proximal end of bone was 7.8 cm. (Figure Nos. 8 and 9).
The mean length of radius on right side was 24.6 cm; mean distance of NF from proximal end of bone was 8.2 cm.
Left side Right side
Sl. No. Length of
bone (in cm)
Distance of NF
(from proximal end of bone) Sl. No.
Length of bone (in cm)
Distance of NF (from proximal end of bone)
1. 24.5 9 1. 23.5 9
2. 23 9 2. 24 8.5
3. 24 7 3. 23 7
4. 24 9 4. 25 7
5. 25 7 5. 24.5 9
J. Evid. Based Med. Healthc., pISSN- 2349-2562, eISSN- 2349-2570/ Vol. 3/Issue 27/Apr. 04, 2016 Page 1227
7. 23.5 9 7. 24 8
8. 24 9 8. 25 7
9. 25 9 9. 24.5 9
10. 24 7.5 10. 24 9
11. 25 9 11. 25.5 8
12. 24 9 12. 25 8
13. 24 9 13. 28.5 10.5
14. 24.5 9 14. 23 9
15. 24.5 9 15. 24 9
16. 24.5 8.5 16. 24 9
17. 24 7 17. 24 7
18. 24 7 18. 23.5 9
19. 25 9 19. 24.5 7
20. 24 9 20. 23 8.5
21. 24 8 21. 24 9
22. 24 9.5 22. 25.5 9
23. 24 9
24. 25 9
25. 25 8
26. 24 8
27. 25 9.5
28. 23.5 9
Mean 24.3 8.6 Mean 24 8.4
Foramen
Index 35.4
Foramen
Index 35
Table 4: Length, distance of NF from proximal end and foramen index of ulna
The mean length of ulna on left side was 24.3 cm; mean distance of NF from proximal end of bone was 8.6 cm. (Figure Nos. 10 and 11).
The mean length of ulna on right side was 24 cm; mean distance of NF from proximal end of bone was 8.4 cm.
RESULTS: The following table shows the results regarding
the number and location of NF and Foramen Index of the human forearm bones.
Radius Ulna
Left side Right
side Total Left side
Right
side Total
Total number of bones studied 28 26 54 28 22 50
No. of bones with single NF 27(96.4%) 25(96.2%) 52(96.3%) 28(100%) 22(100%) 50(100%)
No. of bones with double NF 01(3.6%) 01(3.8%) 02(3.7%) 00 00 00
J. Evid. Based Med. Healthc., pISSN- 2349-2562, eISSN- 2349-2570/ Vol. 3/Issue 27/Apr. 04, 2016 Page 1228
No. of bones with NF on Interosseous
border 02(7.2%) 02(7.6%) 04(7.4%) 01(3.6%) 01(4.5%) 02(04%)
No. of bones with NF on Posterior surface 00 01(3.8%) 01(1.9%) 00 00 00
No. of bones with 00 00 00 01(3.6%) 00 01(02%)
Foramen Index 33.05 33.34 33.2 35.4 35 35.2
Table 5: Number of NF, location of NF and foramen index of the human forearm bones
Among the total number of radii studied 96.3% of bones showed single NF, 3.7% showed double NF. NF was present on anterior surface in 90.7% of bones, on interosseous border in 7.4% of bones and on Posterior surface in 1.8% of bones. Foramen index is 33.2.
Among the total number of Ulnae studied all bones showed single NF. NF was present on anterior surface in 94% of bones, on interosseous border in 4% of bones and on anterior border in 2% of bones. Foramen index is 35.2.
COMPARISON WITH PREVIOUS STUDIES:
Radius Ulna
S ingle NF Doub le NF NF o n A nte ri o r s ur fa c e NF o n Inte ro s s e o u s b o rde r NF o n P o s te ri o r s ur fa c e S ingle NF Doub le NF NF o n A nte ri o r s ur fa c e NF o n P o s te ri o r s ur fa c e NF o n A nte ri o r b o rde r
Present study 96.3 3.7 90.7 7.4 1.9 100 - 94 4 2
Ojaswini et al[5] 94.3 - 5.6 98.9 - -
Ukoha Ukoha et
al[7] 68 91.4 - 8.6 78 100 - -
Bichitrananda et
al[8] 97.29 2.7 100
Pereira et al[9] 99.4 0.6 73.2 98.6 1.4 82.2
Satish M Patel et
al[10] 100 87.5 12.5 92.5 7.5 100
Table 6: Comparison with previous studies
DISCUSSION: In the present study, 96.3% of radii showed
single NF and 3.7% showed double NF. These findings were similar to those made by Bichitrananda et al,[8] Pereira et
al,[9] and differs with the observations made by Ukoha Ukoha
et al.[7] NF was present on anterior surface of radius in
90.7% of bones, these observations are close to those observations made by Ojaswini et al,[5] Ukoha Ukoha et al[7]
and differs from those observations made by Pereira et al,[9]
Satish M Patel et al.[10] Nutrient Foramina were present on
the posterior surface in 1.8% of bones, these findings differ from those recorded by Ojaswini et al,[5] Ukoha Ukoha et
al[7] and Satish M Patel et al.[10] Mean Foramen index is 33.2
indicating that the NF is located in the upper third of bone. In the present study, all ulnae showed single NF and this finding was similar to those observations made by Bichitrananda et al,[8] while Ukoha Ukoha et al,[7] Pereira et
al,[9] Satish M Patel et al[10] could locate the presence of
double NF in Ulna. Nutrient foramina were present on anterior surface in 94% of bones, close to the findings of Ojaswini et al.[5] Mean Foramen Index is 35.2 indicating that
the nutrient foramina was located in the middle third of bone.
CONCLUSION: The vascular system of the long bones
plays key role in the development of some pathological bone conditions like congenital pseudoarthrosis,[11] Acute and
haematogenous osteomyelitis, healing of long bone fractures.[12]
The knowledge of the variations occurring in the blood supply of the long bones is important in the development of new transplantation and resection techniques in orthopaedics,[3][13] reconstructive surgeries,[14]
microvascular bone graft procedures.[15][16]
In transplant techniques, the use of statistical data on the nutrient foramina distribution in long bones makes it possible for the professional to select the osseous section levels of the receptor in order to place the graft without damaging the nutrient arteries, preserving, thus, the diaphyseal vascularisation and the transplant consolidation.[17]
J. Evid. Based Med. Healthc., pISSN- 2349-2562, eISSN- 2349-2570/ Vol. 3/Issue 27/Apr. 04, 2016 Page 1229
An accurate knowledge of the location of the nutrient foramina in long bones would help in preventing intraoperative injuries in orthopaedic as well as in plastic and reconstructive surgery. Placement of internal fixation devices can be appropriately done with the knowledge of variations in the nutrient foramen.[20]
Take home message: This study give us the knowledge of
location of nutrient artery so as to preserve these nutrient arteries during surgery in case of fractures bones.
REFERENCES:
1. Gray's Anatomy. The anatomical basis of clinical practice. Standring S, Healy JC, Johnson D, Collins P, et al, London: Elsevier Churchill Livingstone 2005;40th
ed:871.
2. Principles of general anatomy. Asim Kumar Dutta, the Blood supply of bones 2013;7th ed:58,75,76.
3. Kizilkanat E, Boyan N, Ozsahin ET, et al. Location, number and clinical significance of nutrient foramina in human long bones. Ann Anat 2007;189(1):87-95. 4. Forriol Campos F, Gomez Pellico L, Gianonatti Alias M,
et al. A study of the nutrient foramina in human long bones. Surg Radiol Anat 1987;9(3):251-255.
5. Malukar O, Joshi H. Diaphyseal nutrient foramina in long bones and miniature long bones. NJIRM 2011;2(2):23-26.
6. Hughes H. The factors determining the direction of the canal for the nutrient artery in the long bones of mammals and birds. Acta Anat 1952;15:261-280. 7. Ukoha Ukoha, Kosisochukwu Emmanuel Umeasalugo,
Henry C Nzeako, et al. A study of nutrient foramina in long bones of Nigerians. National Journal of Medical Research 2013;3(4):304-308.
8. Bichitrananda Roul, Meena Goyal. A study of nutrient foramen in long bones of superior extremity in human being. International Journal of Current Research in Life Sciences 2015;4(4):198-200.
9. Pereira GAM, Lopes PTC, Santos AMPV, et al. Nutrient foramina in the upper and lower limb long bones: morphometric study in bones of Southern Brazilian adults. Int J Morphol 2011;29(2):514-520.
10. Patel SM, Vora RK. Anatomical study of nutrient foramina in long bones of human upper limbs. IAIM 2015;2(8):94-98.
11. Raj Kumar, Raghuveer Singh Mandloi, Alok Kumar Singh, et al. Analytical and morphometric study of nutrient foramina of femur in Rohilkhand region. Innovative Journal of Medical and Health Science 2013;3(2):52-54.
12. Skawina A, Wyczolkowski M. Nutrient foramina of humerus, radius and ulna in human fetuses. Folia Morphol 1987;46:17–24.
13. Kirschner MH, Menck J, Hennerbichler A, et al. Importance of arterial blood supply to the femur and tibia transplantation of vascularized femoral diaphyseal and knee joints. World J Surg 1998,22(8):845-851.
14. Dyankova S. Vascular anatomy of the radius and ulna diaphyses in their reconstructive surgery. Acta Chir Plast 2004;46(4):105-109.
15. Guo F. Observations of the blood supply to the fibula. Arch Orthop Traumat Surg 1981;98(2):147-151. 16. Bonnel F, Desire M, Gomis R, et al. Arterial
vascularization of the fibula microsurgical transplant techniques. Anat Clin 1981,3:13-22.
17. Wavreille G, Dos Remédios C, Chantelot C, et al Anatomic bases of vascularized elbow joint harvesting to achieve vascularized allograft. Surg Radiol Anat 2006;28(5):498-510.
18. Al-Motabagoni. The arterial architecture of the human femoral Diaphysis. J Anat Soc India 2002;51(1):27-31.
19. Craig JG, Widman D, van Holsbeeck M. Longitudinal stress fracture: patterns of edema and the importance of the nutrient foramen. Skeletal Radiol 2003;32(1):22-27.
