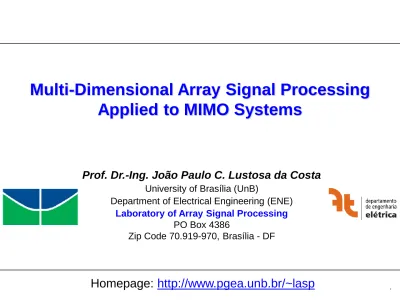

Multi-Dimensional Array Signal Processing Applied to MIMO Systems

(1)

Universidade de Brasília

Laboratório de Processamento de Sinais em Arranjos 1

Multi-Dimensional Array Signal Processing

Applied to MIMO Systems

Prof. Dr.-Ing. João Paulo C. Lustosa da Costa

University of Brasília (UnB)

Department of Electrical Engineering (ENE)

Laboratory of Array Signal Processing

PO Box 4386

Zip Code 70.919-970, Brasília - DF

(2)

Outline

 Universidade de Brasília: A Short Overview  Motivation

 Antenna Array Based Systems

 Multi-Dimensional Array Signal Processing Multi-Dimensional Array Interpolation Model Order Selection

Prewhitening

 MIMO-OFDM System  Conclusions

(3)

Outline

 Multi-Dimensional Array Signal Processing

Multi-Dimensional Array Interpolation

Model Order Selection

Prewhitening

 MIMO-OFDM System

 Conclusions

(4)

Universidade de Brasília: A Short Overview (1)

 Universidade de Brasília (UNB)

One of the best federal universities in Brazil

The best university in the central-west region of Brazil

• Region with 12 million inhabitants UNB is located in Brasília

• capital of Brazil

– political influence and cooperation with the Federal Government 

• one of the most expensive cities in Brazil 

• one of the safest cities in Brazil 

• Great weather (avrg 20,6o_{C, avrg min 17}o_{C, avrg max 26,6}o_{C) } • Several amazing waterfalls around Brasília 

– Itiquira, Pirinópolis, Chapada dos Veadeiros and others

(5)

(6)

Universidade de Brasília: A Short Overview (3)

 Universidade de Brasília (UNB)

In 2013, around 23234 candidates for 4219 places In 2013, 37465 students

In 2013, 2594 professors

(including all departments and all semesters)  Department of Electrical Engineering

composed of three bachelor courses

• Communication Network Engineering

• Mechatronics

• Electrical Engineering

• Computer Engineering

around 1560 bachelor students around 65 professors

(7)

Outline

Prewhitening

 Conclusions

(8)

Laboratório de Processamento de Sinais em Arranjos

Motivation (1)

5

[1] Ericsson Mobility Report, Nov 2014

 Mobile network subscribers forecast [1]

(9)

Motivation (2)

5  Mobile network traffic forecast [1]

(10)

Motivation (3)

5  5th_{generation mobile networks (5G) [2]}

Generation 1G 2G 3G 4G 5G

Year 1981 1991 2001 2011 2020 Throughput < 1 kbps 9,6 kpbs 144 – 2000 kpbs 100 – 1000 Mbps _{– 10 Gbps}100 Mbps

[2] J. G. Andrews, S. Buzzi, W. Choi, S. Hanly, A. Lozano, A.C.K. Soong, and J. Zhang, "What will 5G be?," IEEE Journal on Selected Areas in Communications, Vol. 32, No. 6, pp. 1065 - 1082, June 2014

millimeter wave wireless communications (up to 90 GHz)

• compensation using massive MIMO Massive Distributed MIMO

Multi-hop networks and device-to-device (D2D) communications Cognitive radio technology

(11)

Outline

Prewhitening

 Conclusions

(12)

Antenna Array Based Systems (1)

 Standard (Matrix) Array Signal Processing

5 Four gains: array gain, diversity gain, spatial multiplexing gain and

interference reduction gain

TX RX

Array gain: 3 for each side

Diversity gain: same information for each path

(13)

Antenna Array Based Systems (2)

TX RX

Array gain: 3 for each side

Diversity gain: same information for each path

(14)

Antenna Array Based Systems (3)

TX RX

(15)

Antenna Array Based Systems (3)

TX RX

(16)

Outline

 Multi-Dimensional Array Signal Processing Multi-Dimensional Array Interpolation

Prewhitening

 Conclusions

(17)

Receive array: 1-D or 2-D

Frequency Time

Transmit array: 1-D or 2-D

Direction of Arrival (DOA)

Delay Doppler shift Direction of Departure (DOD)

Multi-Dimensional Array Signal Processing (1)

 MIMO channel model

(18)

5 Dimensions depend on the type of application

• MIMO

– Received data: two spatial dimensions, frequency and time – Channel: 4 spatial dimensions, frequency and time

• Microphone array

– Received data: one spatial dimension and time

– After Time Frequency Analysis

• Space, time and frequency

• EEG (similarly as microphone array)

• Psychometrics

• Chemistry

• Food industry …

(19)

 Multi-Dimensional (Tensor) Array Signal Processing

5 Advantages: increased identifiability, separation without imposing

additional constraints and improved accuracy (tensor gain)

RX: Uniform

Rectangular Array (URA)

1 2 3 1 2 3 1 2 3 m₂ 1 1 1 2 2 2 3 3 3 m₁ n ₁ ₂ ₃

 9 x 3 matrix: maximum rank is 3.

• Solve maximum 3 sources!

(20)

RX: Uniform

Rectangular Array (URA)

m₁ 1 2 3 m₂ 1 2 3 1 2 n 3

[3] J. B. Kruskal. Rank, decomposition, and uniqueness for 3-way and N-way arrays. Multiway Data Analysis, pages 7–18, 1989

3 x 3 x 3 tensor: maximum rank is 5 [3].

• Solve maximum 5 sources!

(21)

=

+

• For matrix model, nonrealistic assumptions such as orthogonality (PCA) or independence (ICA) should be done.

• For tensor model, separation is unique up to scalar and permutation ambiguities.

(22)

additional constraints and improved accuracy (tensor gain) • Array interpolation due to imperfections

– Application of tensor based techniques

• Estimation of number of sources d

– also known as model order selection

– multi-dimensional schemes: better accuracy

• Prewhitening schemes

– multi-dimensional schemes: better accuracy and lower complexity

• Parameter estimation

– Drastic reduce of computational complexity

• Multidimensional searches are decomposed into several one dimensional searches

(23)

 Measurements or data from several applications, for instance,

 MIMO channels, EEG, stock markets, chemistry, pharmacology, medical imaging, radar, and sonar

 Array interpolation

 SPS, FBA, ESPRIT and multidimensional techniques

 Model order selection

 estimation of the number of the main components (total number of parameters)

 Parameter estimation techniques

 extraction of the parameters from the main components

 Subspace prewhitening schemes

 application of the noise statistics to improve the parameter estimation

Measurements Model order

selection Subspace Prewhitening Parameter Estimation Is the noise colored? Yes No Array Interpolation

(24)

Outline

Prewhitening

 Conclusions

(25)

Multi-Dimensional Array Interpolation (1)

 Data model

(26)

Multi-Dimensional Array Interpolation (2)

 Power response for r-th dimension

(27)

Multi-Dimensional Array Interpolation (3)

 Interpolation in each r-th mode

obtained from measurements. obtained from power response.  Interpolated data

Structure closer to PARAFAC structure

• Tensor is attenuated.

(28)

Multi-Dimensional Array Interpolation (3)

 d = 3, 8 x 8 antenna array, N = 100

(29)

Outline

Prewhitening

 Conclusions

(30)

Model Order Selection (1)

 Noiseless case

Our objective is to estimate d from the noisy observations .

 Matrix data model

+

(31)

1 2 3 4 5 6 7 8 0 2 4 6 8 10 Eigenvalue index i  i

Model Order Selection (2)

 Finite SNR, Finite N

M - d noise eigenvalues follow a Wishart distribution.

d signal plus noise eigenvalues

d = 2, M = 8, SNR = 0 dB, N = 10  The eigenvalues of the sample covariance matrix

(32)

Model Order Selection (3)

 Observation is a superposition of noise and signal

 The noise eigenvalues still exhibit the exponential profile: EFT

 We can predict the profile of the noise eigenvalues to find the “breaking point”

 Let P denote the number

of candidate noise eigenvalues.

• choose the largest P such that the P noise eigenvalues can be fitted with a decaying exponential

(33)

Multi-Dimensional Model Order Selection (1)

Noiseless data representation

Problem

where is the colored noise tensor.

=

+

(34)

We can define global eigenvalues

 R-D exponential profile

(35)

Comparison between the global eigenvalues profile and the profile of the last unfolding

 R-D exponential profile

(36)



 White Gaussian noise



Model Order Selection in Additive White Gaussian Noise Scenario Probability of correct Detection vs. SNR

(37)

Outline

Prewhitening

 Conclusions

(38)

Motivation

 Colored noise is encountered in a variety of signal processing applications, e.g., SONAR, communications, and speech processing.

 Without prewhitening the parameter estimation is severely degraded.

 Traditionally, stochastic prewhitening schemes are applied.

 By prewhitening the subspace via our proposed deterministic prewhitening scheme, an improvement of the parameter estimation is obtained compared to the stochastic prewhitening schemes.

(39)

Noise Analysis

Stochastic

prewhitening schemes

With colored noise the d main

components are more affected.

 Analysis via SVD

Deterministic prewhitening scheme

(40)

Simulations

The noise correlation is known.

SE – Standard ESPRIT

Subspace Prewhitening for Colored Noise with Structure RMSE vs. Correlation Level

(41)

 These matrix based prewhitening schemes have a worse accuracy for

multidimensional colored noise or interference with Kronecker correlation structure,

 when applied in conjunction with the subspace-based parameter estimation techniques, such as R-D Standard ESPRIT and R-D Standard Tensor-ESPRIT

 Therefore, we propose the Sequential Generalized Singular Value Decomposition (S-GSVD) of the measurement tensor and of the multidimensional noise samples

 enables us to improve the subspace estimation

 based on the prewhitening correlation factors estimation

 has a low complexity and a high accuracy version

(42)

Simulations

Subspace Prewhitening for Multi-dimensional Colored Noise RMSE vs. Number of Samples without Signal Components (N_l)

STE – Standard Tensor-ESPRIT

(43)

Iterative S-GSVD

 In some multidimensional applications,

 the noise samples without the presence of signal components are not

available

 For these cases, we propose the Iterative Sequential GSVD (I-S-GSVD)

 jointly estimation of the signal data and of the noise statistics via a proposed

iterative algorithm in conjunction with the S-GSVD

 low computational complexity of the S-GSVD

 for intermediate and high SNR regimes similar accuracy as the S-GSVD, where

is required

 convergence with two or three iterations

 applied in conjunction with the subspace-based parameter estimation techniques, e.g., R-D Standard Tensor-ESPRIT (R-D STE)

(44)

Simulations

Subspace Prewhitening for Multi-dimensional Colored Noise RMSE vs. Correlation Level

(45)

Simulations

Subspace Prewhitening for Multi-dimensional Colored Noise RMSE vs. Number of Iterations

(46)

Outline

Prewhitening

(47)

MIMO-OFDM System (1)

 Time dimensions: period and frames

(48)

MIMO-OFDM System (2)

K: number of receive antennas. M: number of transmit antennas.

N: number of time-slots in the whole time frame.

P: number of symbol periods in each time-slot.

F: number of subcarriers

Our objective is to estimate S and H from the noisy observations Y. .

Known.

(49)

MIMO-OFDM System (3)

 Matrix representation

 Tensor representation

Solved first!

(50)

State-of-the-art MIMO-OFDM Schemes

 Existing Solution: Alternating Least Squares (ALS) Receiver

Drawback: iterative, higher complexity, requires pilot symbols (loss in transmission efficiency)

 Proposed Solution I: Least Squares Khatri-Rao factorization (LS-KRF) Closed-form, lower complexity for medium-to-high SNRs, requires

pilot symbols (loss in transmission efficiency)

 Proposed Solution II: Simplified Closed-form PARAFAC

Avoid the knowledge on the first row in the symbol matrix

Closed-form, lower complexity, same performance of the pilot symbols based schemes for intermediate and high SNR regimes (high transmission efficiency)

(51)

MIMO-OFDM Simulations (1)

51 -15 -10 -5 0 5 10 15 20 25 30 10-4 10-3 10-2 10-1 SNR (dB) B it E rr o r R a te

Bit Error Rate vs. SNR @ K=2, M=4, F=4, N=5, P=3

ALS (₁=₂=0.0001) (P-)LS-KRF -15 -10 -5 0 5 10 15 20 25 30 10-3 10-2 10-1 100 SNR (dB) N M S E

Channel estimate NMSE vs. SNR @ K=2, M=4, F=4, N=5, P=3

ALS (₁=₂=0.0001)

(P-)LS-KRF

Parameter Settings:

(52)

-15 -10 -5 0 5 10 15 20 25 30 0 0.02 0.04 0.06 SNR (dB) M e a n P ro c e s s in g T im e ( s

) Mean Processing Time vs. SNR @ K=2, M=4, F=4, N=5, P=3

-15 -10 -5 0 5 10 15 20 25 30 5 10 15 20 SNR (dB) N u m b e r o f It e rt a ti o n s

Number of Iterations in ALS vs. SNR @ K=2, M=4, F=4, N=5, P=3

ALS (

1=2=0.0001)

LS-KRF P-LS-KRF

No. of Iters. Outer (

1=0.0001)

No. of Iters. Inner (₂=0.0001)

(53)

Parameter Settings I:

K=2, M=4, F=4, N=5, P=3

-15 -10 -5 0 5 10 15 20 25 30 10-3 10-2 10-1 SNR (dB) B it E rr o r R a te

Bit Error Rate vs. SNR @ K=2, M=4, F=4, N=5, P=3 (P-)LS-KRF (w/ Overhead) S-CFP w/ Pairing (w/o Overhead)

-15 -10 -5 0 5 10 15 20 25 30 10-3 10-2 10-1 100 101 SNR (dB) N M S E

Channel estimate NMSE vs. SNR @ K=2, M=4, F=4, N=5, P=3 (P-)LS-KRF (w/ Overhead) S-CFP w/ Pairing (w/o Overhead)

(54)

Outline

Prewhitening

(55)

Conclusions

 In this presentation, we have present our state-of-the-art proposed schemes for

 array interpolation

 model order selection (MOS)

 subspace prewhitening

 Multi-Dimensional Array Interpolation: measurements fit to PARAFAC structure

 Important contributions in the MOS field

 Modified Exponential Fitting Test (M-EFT): Matrix data contaminated by white noise

 R-D EFT: Tensor data contaminated by white noise

 Important contributions in the subspace prewhitening field

 Deterministic prewhitening: Matrix data and noise with correlation structure

 Sequential GSVD: Tensor data and noise with tensor structure

 Iterative Sequential GSVD: Tensor data and noise with tensor structure No availability of noise samples

 In the MIMO-OFDM field:

(56)

Thank you for your attention!

Prof. Dr.-Ing. João Paulo C. Lustosa da Costa

University of Brasília (UnB)

Department of Electrical Engineering (ENE)

Laboratory of Array Signal Processing

PO Box 4386

Zip Code 70.919-970, Brasília - DF
