Software architecture for YOLO, a creativity-stimulating robot
Patrícia Alves-Oliveira
a,b,c,∗, Samuel Gomes
c,d, Ankita Chandak
e, Patrícia Arriaga
a,
Guy Hoffman
b, Ana Paiva
c,daIscte-Instituto Universitário de Lisboa, CIS-IUL, Lisbon, Portugal
bSibley School of Mechanical and Aerospace Engineering, Cornell University, Ithaca, NY, USA cINESC-ID, Lisbon, Portugal
dInstituto Superior Técnico, Universidade de Lisboa, Lisbon, Portugal eComputer Science Engineering, Cornell University, Ithaca, NY, USA
a r t i c l e i n f o
Article history:
Received 23 September 2019
Received in revised form 5 February 2020 Accepted 27 March 2020 Keywords: Social robotics Artificial intelligence Human–robot interaction Creativity Open software a b s t r a c t
YOLO is a social robot designed and developed to stimulate creativity in children through storytelling activities. Children use it as a character in their stories. This article details the artificial intelligence software developed for YOLO. The implemented software schedules through several Creativity Behav-iors to find the ones that stimulate creativity more effectively. YOLO can choose between convergent and divergent thinking techniques, two important processes of creative thought. These techniques were developed based on the psychological theories of creativity development and on research from creativity experts who work with children. Besides promoting creativity, this software allows the creation of Social Behaviors that enable the robot to behave as a believable character. We built 3 main social behavior parameters: Exuberant, Aloof, and Harmonious. These behaviors are meant to ease immersive play and the process of character creation. The 3 social behaviors were based on psychological theories of personality and developed using children’s input during co-design studies. Overall, this work presents the design, development, and usage of social robots that might nurture intrinsic human abilities, such as the ability to be creative.
© 2020 The Authors. Published by Elsevier B.V. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/).
Code metadata
Current code version v0.4
Permanent link to code/repository used for this code version https://github.com/ElsevierSoftwareX/SOFTX_2019_242
Legal Code License CC Attribution 4.0 International Code versioning system used git
Software code languages, tools, and services used Python
Compilation requirements, operating environments & dependencies Raspbian Stretch Lite OS
If available Link to developer documentation/manual https://github.com/patricialvesoliveira/YOLO-Software/wiki
Support email for questions Samuel Gomes:samuel.gomes@tecnico.ulisboa.ptand Patrícia Alves-Oliveira:
patricia_alves_oliveira@iscte-iul.pt
Software metadata
Current software version v0.4
Permanent link to executables of this version https://github.com/patricialvesoliveira/YOLO-Software
Legal Software License CC Attribution 4.0 International Computing platform / Operating System Linux (Raspbian Stretch Lite OS) Installation requirements & dependencies Raspbian Stretch Lite OS
If available link to user manual https://github.com/patricialvesoliveira/YOLO-Software/wiki
Support email for questions Samuel Gomes:samuel.gomes@tecnico.ulisboa.ptand Patrícia Alves-Oliveira:
patricia_alves_oliveira@iscte-iul.pt
∗
Corresponding author.
E-mail address: patricia_alves_oliveira@iscte.pt(P. Alves-Oliveira).
URL: http://www.patricialvesoliveira.com(P. Alves-Oliveira).
https://doi.org/10.1016/j.softx.2020.100461
2 P. Alves-Oliveira, S. Gomes, A. Chandak et al. / SoftwareX 11 (2020) 100461
Fig. 1. YOLO, a social robot that can boost creativity in children.
1. Introduction
Creativity is one of the most sought-after skills, with rec-ognized benefits in education, mental health, and professional success [1,2]. It is associated with states of joy, play, efficiency, and pleasure [3,4]. When stimulated in childhood, it promotes overall development with specific benefits in learning and adap-tation. [5]. Creativity has been stimulated through the use of different intervention programs with promising effectiveness lev-els, demonstrating the potential to develop creativity with proper training [6,7]. However, most of these interventions developed for children lack elements of joy and fun. Instead, they are consid-ered similar to test-like exercises that can hinder their creative expression. The fast pace of technology development enabled the design of new tools for exploring the context of creativity stim-ulation [8] (e.g., the CUBUS virtual environment for storytelling with emotionally evocative characters [9]).
In our work, we aim to expand the range of technologies used for creativity stimulation by incorporating social robots to catalyze this ability. With this in mind, we designed and devel-oped YOLO (Your Own Living Object), an original social robot to be used as a toy during children’s play times (see Fig. 1). YOLO belongs to a new generation of technological toys meant to stimulate creative abilities in children. This robot is envisioned as a character children use during storytelling. By having a small-size and a light-weight design, YOLO can be manipulated by children as if it was a traditional toy (similarly to what they do with dolls or toy cars). The added-value of this robot is that it can increase the creative thought process of children during story creation by providing novel ideas for storylines. Because YOLO is a non-anthropomorphic robot, it interacts with children using alternative but effective interactive modalities. These comprise variable motion and illumination profiles. In this paper, we detail the software behind YOLO. The software is composed of Creativity and Social Behaviors whose design was grounded on creativity research [10], the Big Five personality model [11], and co-design
sessions with children [12]. We release the robot’s software1 along with its installation guide2 in open access. This software should be exclusively installed on YOLO hardware [13].
2. Background and problems
2.1. Creativity research
As societies develop into creativity-based economies, innova-tive and creainnova-tive problem solving and the ability to collaborate are becoming must-have skills [1,14]. However, around the age of 7–9 years old there is a decline in children’s creativity abilities known as the ‘‘creative crisis’’ [15]. Research has shown that everyone has the potential to be creative and that creativity can be nurtured if stimulated [16,17]. In our work, we aim to contribute to the increase in children’s creativity by using a social robot. It therefore becomes imperative to stimulate this ability at a young age. In particular, emphasizing the school environment where children spend most of their time. While some schools already feature activities (e.g., storytelling) to support the promo-tion of children’s creative thinking [18], current activities can be challenging to integrate into traditional classroom formats as they need preparation time and are not formally included in the school curriculum [19]. Technologies – such as social robots – appear as a more effective tool to apply in these contexts.
2.2. Robots for creativity
Robots have been programmed with a deep variety of socially intelligent behaviors and affective states; thus, allowing them to be perceived as social actors [20,21]. Additionally, due to their physical and interactive nature, they become a technology that can uniquely impact creativity stimulation. Ali, Moroso, and Breazel [22] demonstrated that a robot displaying creative behav-iors positively influenced the creativity of children. The authors found that children who interacted with a creative robot gener-ated more ideas, explored more themes, and were more original, than children who interacted with a non-creative robot [22]. Ad-ditionally, Gordon et al. [23] demonstrated that children become more curious, an important creativity trait, when interacting with a curious robot. The authors found that these children posed more questions and become avid explores, compared to children who interacted with a non-curious robot [23].
3. Software framework
3.1. Software architecture
The architecture of our software includes several modules that manipulate data at different levels of abstraction from the low-level sensors and actuators to high-low-level behaviors.Fig. 2shows the scheme of these modules and how they interact. Each module is explained in the next sections.
3.2. Control
This module has two main functions: first, it extracts data associated with the robots’ sensors and translates into a pro-grammable format. Second, it instructs the actuators what to do based on the software calls.
1 Download YOLO Software: https://github.com/patricialvesoliveira/YOLO-Software.
2 Link to YOLO Software installation guide:https://github.com/patricialvesoli veira/YOLO-Software/wiki.

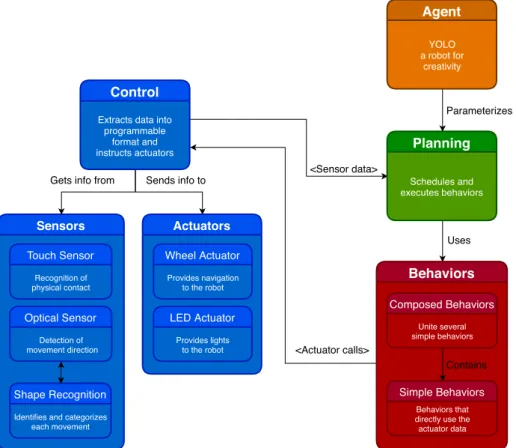

Fig. 2. Architecture of the modules that compose YOLO software.
The touch sensor of YOLO indicates to the robot that physi-cal contact was established, and the optiphysi-cal sensor observes the differences in position to detect the direction of movement. The sensors are updated at each moment. The shape recognizer dy-namically identifies and characterizes each movement using Ma-chine Learning (ML). The pre-trained K nearest neighbor (KNN) algorithm determines a shape using the robot motion sensors which capture coordinates in 3 s intervals [24].Fig. 3depicts the ML workflow. We trained the model by collecting raw coordi-nates and converting these coordicoordi-nates into a feature vector using the convex hull algorithm [25].3 Every time a movement is de-tected, KNN is used to determine the closest matching shape from the training data. Simulations with a computer mouse showed us that with n
=
3, KNN provided high accuracy (94%). Therefore, we used this parameterization. The current ML model was trained with the physical robot and can recognize with an 80% success rate the following shapes: circle, rectangles, loops, curls, spikes, and a straight line (seeFig. 4).YOLO actuators include the Wheel Actuator and LED Actuator. While Wheel Actuator receives direction and speed values and moves the wheels’ motors accordingly, LED Actuator receives a color and brightness level and displays it in the robot’s LEDs. 3.3. Behaviors
The Behaviors module coordinates the simultaneous execution of different actuators based on given parameters. The intended behavior arises from the simultaneous execution of different ac-tuators. To simplify the development process, we divided behav-iors into more concrete Simple Behavbehav-iors, which directly use the actuator data and Composed Behaviors, which unite several simple 3 More details about our shape recognizer algorithm are present at this link: https://github.com/patricialvesoliveira/YOLO-Software/wiki/Algorithm.
Fig. 3. Workflow of the ML algorithm for shape recognition used by YOLO.
behaviors. Simple behaviors directly call the Control module. These behaviors consist of assigning different light behaviors (differ-ent colors, animations, and brightness) to differ(differ-ent movem(differ-ent configurations (different movement patterns at varying speed).4 Composed behaviors can be used to define the social behaviors which YOLO exhibits, such as Exuberant, Aloof, and Harmonious.5
4 Examples of simple behaviors are included with the software
documentation: https://github.com/patricialvesoliveira/YOLO-Software/wiki/ SimpleBehavior-Hierarchy.
5 Composed behaviors are further explained at the software documentation: https://github.com/patricialvesoliveira/YOLO-Software/wiki/ComposedBehavior.
4 P. Alves-Oliveira, S. Gomes, A. Chandak et al. / SoftwareX 11 (2020) 100461

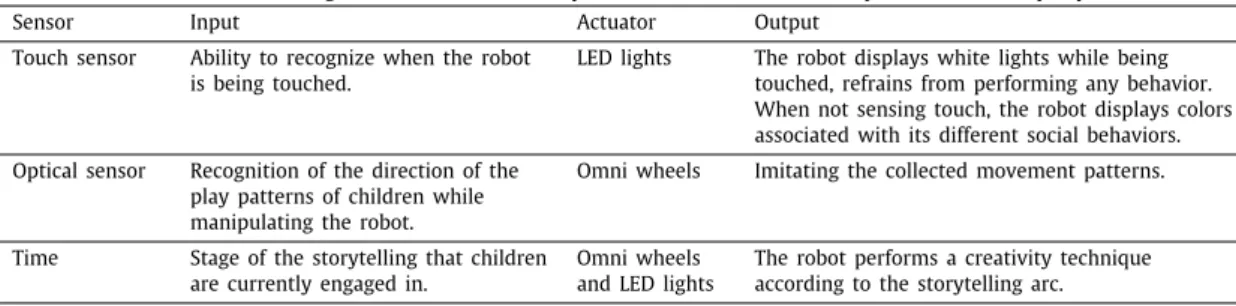

Table 1
Software functionalities considering the sensors used, the input collected, the actuators in place, and the output provided. Sensor Input Actuator Output
Touch sensor Ability to recognize when the robot is being touched.
LED lights The robot displays white lights while being touched, refrains from performing any behavior. When not sensing touch, the robot displays colors associated with its different social behaviors. Optical sensor Recognition of the direction of the
play patterns of children while manipulating the robot.
Omni wheels Imitating the collected movement patterns.
Time Stage of the storytelling that children are currently engaged in.
Omni wheels and LED lights
The robot performs a creativity technique according to the storytelling arc.
Fig. 4. The lines illustrate the movement shapes performed by YOLO that are
recognized by our algorithm. Illustrated shapes are: circle, rects, loops, curls, spikes, and straight line.
3.4. Planning
The Planning module schedules the behaviors in each moment of the interaction, executing specific ones based on the current interaction state. In order to trigger new interaction states, Plan-ning module uses the data extracted from the sensors which the Control module provides. A flowchart illustrating the schedule provided by the Planning module is depicted inFig. 5.
4. Software functionalities
A primary function of this software is to serve as an Appli-cation Programming Interface (API) that enables any user the opportunity to design personalized behaviors for YOLO, conse-quently providing the possibility to generate new behaviors and interaction modes.6The robot can receive information from the environment (input) and express different interactive behaviors (output).Table 1lists pre-sets that were developed for YOLO to act as a social robot that can stimulate creativity in children.
Since each aspect of the robot is controllable and param-eterizable, behaviors can be tweaked, created and mixed. To demonstrate the API functionality, we conducted testing ses-sions in which we asked two participants unfamiliar with YOLO software to create different behaviors for the robot. One of the participants had a background in Computer Science and the other in Psychology. The participants were instructed to choose beloved characters from animation movies and to create a behavior for the robot that would resemble the behavior of those characters. The examples created by the participants were Mickey, Barbie, Bugs Bunny, and Genie from Aladdin.7
6 A guide the API is provided with the software documentation: https: //github.com/patricialvesoliveira/YOLO-Software/wiki/API-Documentation.
7 Examples created by the participants using the API: https://github.com/ patricialvesoliveira/YOLO-Software/wiki/Examples.
4.1. Implementation
In our work, we developed a software that gives life to the so-cial robot YOLO, whose interaction is meant to display Creativity and Social Behaviors.
4.2. Creativity behavior
In our specific application scenario, YOLO acts as a character that can trigger new directions in children’s stories that other-wise would not emerge. During story creation, a combination of divergent (i.e., broad gathering of multiple ideas) and convergent thinking (i.e., narrowing down possibilities to create a coherent story plot) is required [26–28]. We have chosen two techniques that are often used to stimulate creativity, named ‘‘mirroring’’ and ‘‘contrasting’’ [10] (seeFig. 6)8:
•
Contrasting — This technique is used to stimulate divergentthinking [29]. In the Contrast technique, YOLO provides stimuli unrelated to the storyline that children are exploring at the moment, producing an opportunity to explore new directions in the plot. This leads to heightened action and interesting plot twists in the stories of children.
•
Mirroring — This technique is used to stimulateconver-gent thinking [30]. When using the Mirror technique, YOLO provides stimuli that are connected with the storyline that children are exploring, leading to the elaboration and con-vergence of story ideas. This leads to the emergence of interesting details about a character, a scenario, or an action in the story.
4.3. Storytelling arc
Successful and satisfying stories follow a storytelling arc [31,
32]. According to the Theory of Dramatic Structure, each story has five acts: exposition, raising action, climax, falling action, and dénouement [31,32]. These five acts can be modified and adapted to the dramatic structure of short stories, fables, or fairy-tales. In our software, we considered a short-story format similar to what is used in children’s stories [33]. Therefore, we divide the narrative of a story in the following phases:
•
Rising action — Characters are introduced, a context isgiven to the story, and the story builds. During this stage, YOLO stimulates convergent thinking by using the mirror creativity technique (see Section4.2);
•
Climax — The story reaches the point of greatest tension.During this stage, YOLO stimulates divergent thinking by applying the contrast creativity technique (see Section4.2); 8 Parameterization specifications for the creativity behaviors of YOLO
can be found here:https://github.com/patricialvesoliveira/YOLO-Software/wiki/ CreativityProfile.

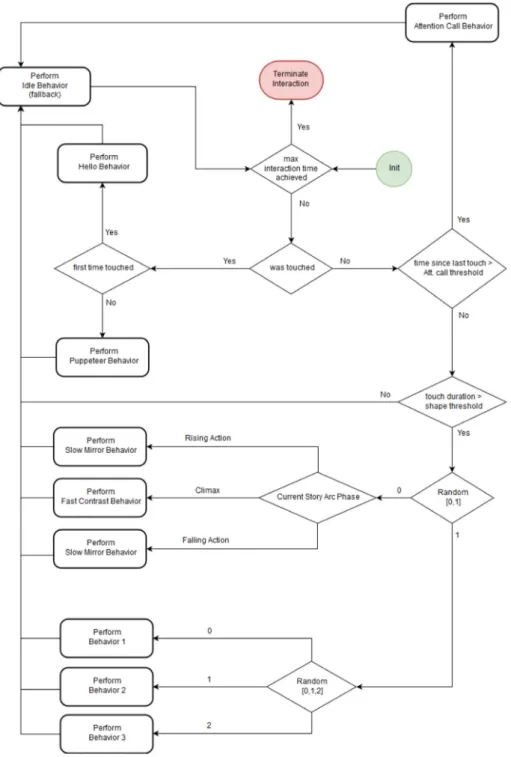

Fig. 5. State machine diagram representing the schedule of the procedures executed in the Planning module.
•
Falling action — The story shifts to an action that happensbecause of the climax, which means that the conflict is resolved and the story reaches its end. During this stage, YOLO stimulates convergent thinking by using the mirror creativity technique (see Section4.2).
4.4. Social behavior
YOLO expresses different social profiles to exhibit social be-haviors. The profiles are named Exuberant, Aloof, and Harmo-nious.9 These social behaviors appear as pre-sets when YOLO is 9 Parameterization specifications for all the social behaviors of YOLO
can be found here:https://github.com/patricialvesoliveira/YOLO-Software/wiki/ SocialProfile.
turned on and can be used interchangeably, making the robot a flexible character in the children’s stories. The three different social modes for YOLO are explained below:
•
Exuberant — YOLO reacts to every social interaction in an‘‘enthusiastic’’ manner. Movements are fast and have a high amplitude. It displays vibrant purple and red colors with high brightness levels. As Exuberant, YOLO is proactive and seeks out social interaction. This is a vibrant, frenetic, and daring social profile;
•
Aloof — YOLO is less ‘‘socially reactive’’ and is a ‘‘shy robot’’.In this mode, the robot exhibits low amplitude, slow move-ments and displays cold colors such as green and blue with low brightness levels. As Aloof, YOLO is not proactive; does
6 P. Alves-Oliveira, S. Gomes, A. Chandak et al. / SoftwareX 11 (2020) 100461
Fig. 6. Storytelling arcs associated with creativity techniques: convergent thinking is stimulated during rising and falling action phases by using the mirror technique;
divergent thinking is stimulated during climax by using the contrast technique.
not seek interactions. This profile could also be described as loner, contemplative, or reclusive;
•
Harmonious — YOLO acts in a moderated fashion,pre-senting behaviors that are in-between the extreme ver-sions of Exuberant and Aloof. As Harmonious, YOLO exhibits medium speed, movements with medium amplitude, and displays warm colors such as yellow and orange at medium brightness levels. This is a balanced and moderate profile.
4.5. Child–robot interaction design
Children use YOLO as a character in their stories, moving it around while creating story-lines. The robot, being an active character, provides ideas for new narratives. It does so by using two techniques aimed at stimulating divergent and convergent thinking, ‘‘Mirroring’’ and ‘‘Contrasting’’, respectively. The robot decides which technique to use according to the story arc in which children are involved (seeFig. 6). Each story arc is asso-ciated with fixed timing, e.g., Raising Action starts at time 0 and goes until time 5. The timings were defined given knowledge collected from previous studies where children created stories with the same robot with the purpose of establishing a mean time for each story arc. Additionally, YOLO can be puppeteered by children mimicking a traditional toy. The puppeteer mode is activated when YOLO detects children’s physical contact. There-fore, while children are physically touching the robot, i.e., playing, the robot refrains from performing any movement. This mode enables children to be in full control of YOLO, thus, maintaining traditional play formats.
5. Illustrative example
To validate the effectiveness of our software, we have tested it with children in a storytelling activity. The instruction provided information that they should use the robot as a character for the story they created. In the box below, we transcribed part of an interaction case during a study session between a child and YOLO (see complementaryFig. 7). In this example, it is visible how the robot makes use of its interaction profiles to stimulate convergent and divergent thinking and how this relates to the different stages of the storytelling.
The child is on the floor playing with YOLO.
Child: ‘‘This is a football field and YOLO is from the Juventus
team, so we are going to win!’’
The child manipulates YOLO in the imaginary football field, imitating the robot running after an imaginary ball and deviating from imaginary team adversaries. Because YOLO is still in the first part of the storytelling arc, i.e., in the Raising Action stage, the robot will stimulate conver-gent thinking abilities. Therefore, the robot imitates the last movement that the child performed. The child looks at the robot while it is moving.
Child: ‘‘Yes! Go for it, Ronaldo, score! (Ronaldo is the name
of a Portuguese football player).
The child imitates scoring a goal and then grabs YOLO and celebrates.
Child: ‘‘Ok Ronaldo, but we have to continue doing well.
These other guys are good too.
The child continues manipulating YOLO through the ad-versaries. At this point in time, YOLO entered the next storytelling arc which is the Climax. During climax, di-vergent thinking is stimulated so the robot will perform a movement that is different from the last movement that the child has performed. The child manipulates the robot straight ahead towards the soccer goal but the robot goes the opposite direction.
Child: ‘‘What happened? Oh no, the other guys hit you in
the knee. Assistance is needed here!’’ The game continues.
6. Conclusions and impact
As societies develop increasingly higher levels of sophistica-tion, social robots can play a crucial role in the development of human creativity. Related research has indicated that social robots impact the play behaviors in children, pulling them to-wards traditional play formats such as physical, unstructured, and unrestrained play, benefiting multiple aspects of growth [34].
In this article, we presented the software which allows the YOLO robot to encourage creativity stimulation. This software al-lows potential developers to create behaviors that make the robot act according to different social behaviors. We also described several tests applying our software in real-world scenarios. These tests revealed the potential of our program, as robots using our software provoke creative narratives in stories which the children created.
Fig. 7. Use-case example of a child using YOLO as a character for the creativity-stimulating storytelling scenario.
The impact of this software is broad. By being an easy-to-use tool, stakeholders such as educators and parents have access to a robot that is easy to prepare (e.g., for Science, Technology, Engineering, Art, and Mathematics (STEAM)-related activities), contrasting with other existing technological tools that can be cumbersome for non-experts to prepare [19]. Additionally, this software serves as a solid platform in academic studies, where researchers can use YOLO’s API to study child–robot interaction.
7. Highlights
•
Creativity stimulating robot: YOLO can stimulate children’screativity during play;
•
Open-access: Access to the code and the guide to install andexecute the software;
•
Scalability and personalization: API for developers tocre-ate new behaviors for YOLO;
•
Application: YOLO can be used by children’s stakeholdersand by the research community.
Declaration of competing interest
The authors declare that they have no known competing finan-cial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
This work was supported by national funds through Fun-dação para a Ciência e a Tecnologia, Portugal (FCT-UID/CEC/500 21/2013) and through AMIGOS project, Portugal ref. PTDC/EEISII/ 7174/2014. P. Alves-Oliveira acknowledges a FCT grant ref. SFRH/ BD/110223/2015. We thank André Pires for his contribution on the initial stage of software development.
