Volatile profile of yellow passion fruit juice by static headspace and solid phase
microextraction techniques
Perfil volátil do suco do maracujá-amarelo por técnicas de extração em headspace estático e microextração em fase sólida
Gilberto Costa BragaI Adna PradoII Jair Sebastião da Silva PintoII
Severino Matias de AlencarII ISSN 0103-8478
ABSTRACT
The profile of volatile compounds of yellow passion fruit juice was analyzed by solid phase microextraction headspace (HS-SPME) and optimized static headspace (S-HS) extraction techniques. Time, temperature, NaCl concentration and sample volume headspace equilibrium parameters was adjusted to the S-HS technique. The gaseous phase in the headspace of samples was collected and injected into a gas chromatograph coupled to a mass spectrometer. In the HS-SPME technique was identified 44 volatile compounds from the yellow passion fruit juice, but with S-HS only 30 compounds were identified. Volatile esters were majority in both techniques, being identified ethyl butanoate, ethyl hexanoate, (3z)-3-hexenyl acetate, hexyl acetate, hexyl butanoate and hexyl hexanoate. Aldehydes and ketones were not identified in S-HS, but were in HS-SPME. β-Pinene, p-cymene, limonene, (Z)-β-ocimene, (E)-β-ocimene, γ-terpinene, α-terpinolene and (E) -4,8-dimethyl-1, 3,7 - nonatriene terpenes were identified in both techniques. This study showed that the S-HS optimized extraction technique was effective to recovery high concentrations of the major volatile characteristics compounds in the passion fruit, such as ethyl butanoate and ethyl hexanoate, which can be advantageous due to the simplicity of the method.
Key words:Passiflora edulis f. flavicarpa Deg., GC/MS, SPME,
HS, aroma profile.
RESUMO
O perfil de compostos voláteis do suco de maracujá-amarelo foi analisado pelas técnicas de extração microextração em fase sólida (SPME-HS) e headspace estático (S-HS). Os parâmetros de equilíbrio do headspace tempo, temperatura, concentração de NaCl e volume da amostra foram ajustados para a técnica S-HS. Em ambas as técnicas de extração, a fase gasosa no headspace das amostras foi recolhida e injetada em cromatógrafo gasoso acoplado a espectrômetro de massas. Na
técnica SPME-HS, foram identificados 44 compostosvoláteis no suco do maracujá-amarelo e, em S-HS, foram identificados 30 compostos. Ésteres voláteis foram majoritários em ambas as técnicas, sendo identificados butanoato de etila, hexanoato de etila, (3z)-3-hexenil acetato, hexil acetato, hexil butanoatoe hexil hexanoato. Aldeídos e cetonas não foram identificados com a técnica S-HS. Os terpenos β-pineno, p-cimeno, limoneno, (Z)-β-ocimeno, β-ocimeno, γ-terpineno, α-terpinoleno e (E)-4,8-dimetil-1,3,7-nonatrieno foram identificados em ambas as tιcnicas.. Este estudo mostrou que a técnica de extração otimizada S-HS foi eficaz para a recuperação de altas concentrações dos principais compostos voláteis característicos do maracujá, como o butanoato de etila e o hexanoate deetila, o que é vantajoso, devido à simplicidade do método.
Palavras-chave: Passiflora edulis f. flavicarpa Deg., CG/EM,
SPME, HS, perfil de aromas.
INTRODUCTION
The yellow passion fruit (Passiflora edulis
f. flavicarpa Deg.) is the most widely cultivated
Passiflora species in Brazil and much appreciated
by the intense aroma and taste of its juice. The chemical composition of yellow passion fruit juice is characterized by the presence of volatile and
non-volatile substances, which define their sensory
and nutritional attributes. In the case of volatile compounds, they interfere directly with the sensory quality of the fruit and its processed products (PONTES et al., 2009). The juice of yellow passion
fruit has an “ester” floral aroma with exotic tropical
ICentro de Ciências Agrárias, Universidade Estadual do Oeste do Paraná (Unioeste), Rua Pernambuco, 1777, 85960-000, Marechal Cândido Rondon, PR, Brasil. E-mail: gcb1506@gmail.com. Corresponding author.
characteristic of sulfurous note (CARASEK & PAWLISZYN, 2006). Notably, volatiles aroma of fruits are composed of a complex group of chemical substances, such as aldehydes, alcohols, ketones, esters, lactones and terpenes (JORDÁN et al., 2002). However, terpenes and esters are more related to the aroma of passion fruit juice (MACORIS et al., 2011). Additionally, the major volatile compounds
identified in yellow passion fruit juice belong to the
methyl and ethyl esters (WERKHOFF et al., 1998; CARASEK & PAWLISZYN, 2006). The levels of individual volatile compounds related to the aroma
profile in food matrix are largely influenced by the
extraction technique of the volatile fraction used in gas chromatograph analysis (BICCHI et al., 2008). Headspace sampling techniques are widely
used for providing volatile profiles near the profiles
experienced by humans. Based on the collection of the volatile compounds in the gaseous phase above,
a sample under defined conditions is dependent on
the volatility of the aromatic compounds (GUTH & GROSCH, 1993). Among the headspace techniques currently used for the extraction of aromatic volatiles, solid-phase microextraction (HS-SPME) has been applied for isolation of volatile compounds from fruits (BARBONI et al., 2009; PONTES et al., 2009; FIGOLI et al., 2010, ALVAREZet al., 2012). This technique is based on a dynamic process of adsorption of volatiles on the vapor phase in the sample headspace
in a silica fiber coated with an adsorbent polymer
and has high sensitivity in the volatiles extraction with a wide range of polarity (BICCHI et al. 2008). In the static headspace sampling techniques (S-HS), the equilibrium between the sample and the headspace gas phase must be reached, and a gaseous fraction of the headspace is collected directly for analysis by gas chromatograph (SNOW & SLACK, 2002; WANG et al., 2008). The S-HS technique is simpler and faster and has been used in comparative analysis of
the flavor profile of vegetable matrices (MILLER &
STUART, 1999; VARMING et al., 2004; BYLAITE &MEYER, 2006; UBEDA et al. 2011). However, S-HS has not yet been used in the analysis of yellow passion fruit juice volatiles. The S-HS procedure is free of solvents, demands little sample handling, and can be automated, but its sensitivity is considered low compared to SPME, being indicated for the analysis of compounds whose boiling points are low (MESTRES et al., 2002). Nevertheless, the S-HS sensitivity can be increased by salt addition, pH control or increasing the equilibrium temperature during sample heating (B’HYMER, 2003), which can improve the recovery of major volatile compounds of the aroma of passion
fruit, such as esters and terpenes. Therefore, the
aim of this study was to determine the profile of
volatile compounds of the yellow passion fruit juice through the headspace solid-phase microextraction (HS-SPME) and optimized static headspace (S-HS) extraction techniques.
MATERIALS AND METHODS
Yellow passion fruits were harvested in April 2011 in an orchard in Piracicaba, São Paulo State, Brazil, located at 22º43’31’’ south latitude and 47º38’57’’ west longitude. Fruits were selected on the yellow-ripe physiological stage, healthy and without physical defects. For assays, 15 fruits were chosen with lengths between 8 and 10cm. A cross section was made in each fruit to extract the pulp (juice and seed). The juice was separated from the seed by drainage through a plastic sieve and then was frozen and stored at -24°C until the time of analysis. The
frozen juice samples were first thawed in water bath
at 25°C for analyses on HS-SPME and S-HS. The extractions were performed without pH adjustment. All analyzes were performed in triplicate. For the extraction in HS-SPME, the equilibrium parameters were established according to PONTES et al. (2009)
with modifications. In a 20mL flask 0.2mL aliquot of
juice sample was diluted with 1.0mL Milli-Q water (Millipore Corporation, Brazil). The solution ionic strength was increased to improve the extraction
efficiency with the addition of 17% NaCl (0.2g,
wv-1) in the diluted sample. The vial was tightly
sealed with a screw cap with coupled silicone septum.
The fiber used in the HS-SPME extraction had the
coating of polydimethylsiloxane/divinylbenzene (PDMS / DVB, Supelco Inc., Bellefonte, PA, USA).
The fiber was exposed in the sample headspace
and maintained for 20 minutes at 50°C, with the sample in a thermostatic magnetic stirrer at 450rpm. After the extraction procedure by adsorption in the
headspace, the fiber was inserted into the injector of
the gas chromatograph-mass spectrometry system for 6 minutes in the splitless mode, where the extracted volatiles were thermally desorbed at 250ºC.
In the S-HS technique the parameters of equilibrium between gas and liquid phases of the passion fruit sample were adjusted to improve the
extraction efficiency with higher recovery levels
30% (wv-1) salt and the control without salt. The
NaCl addition in the sample decreases the solubility of volatile compounds, increasing its volatility in the sample (PONTES et al., 2009). The optimal salt concentration was established keeping invariable the conditions of time and equilibrium temperature in 20 minutes and 70°C. Times of 10, 20 and 30 minutes and temperatures of 50, 60, 70, 80 and 90°C were tested. Above 90°C the sample reached the boiling point and therefore was chosen as the limit temperature. The choice of best time of equilibrium was carried out at the temperature of 60ºC. The selection of the binomial time and temperature of equilibrium was achieved with the addition of the best NaCl concentration adjusted (w v-1) in the juice
sample. The adjusted condition of equilibrium in the headspace for temperature and time was used for adjusting the sample volume with 2.5, 5.0 and 7.5mL. The heating of the juice sample at all procedures for balance adjustment in the headspace occurred under
constant stirring in a glass flask silalized (20mL)
and hermetically sealed with a screw cap with a coupled silicone septum. The volume of 1.5mL was collected from the headspace and injected into the gas chromatograph with Shimadzu automatic injector equipped with heating oven of the sample.
The volatile compounds sampled in S-HS and HS-SPME were analyzed in a gas chromatograph Shimadzu 2010 coupled to a mass spectral detector Shimadzu QP 2010 Plus. The samples were separated in DB5 capillary column (30mx0.25mm x0.25µm,
J&W Scientific, Palo Alto, CA). Mass spectra and total
ion currents (TIC chromatograms) were obtained by automatic scanning with energy ionization 70 eV, in the mass range m/z 35-500. The temperature ramp began at 40°C maintained for 4.0min, then 150°C at 3.0°C min-1 and 250ºC at 15ºC min-1 maintained for 2.0
min. Helium was used as carrier gas at linear velocity of 36.1cm s-1. Kovats indices of linear retention (KI) of
the chromatographic peaks obtained were determined experimentally based on the retention time of a homologous n-alkanes series (C6-C18).
Peaks were tentatively identified based
on: I) comparison of fragmentation patterns using the mass spectral database of the library Wiley8 of
the GCMSsolution Software identification system
(Mass Spectrometer Systems - Shimadzu) II) by comparing the Kovats retention indices (KI) obtained experimentally with theoretical ratios obtained from the literature. The compounds were expressed as relative amounts to the peak areas percentage.
The Analysis of variance was used to
check for significant differences in tests of headspace
balance adjustment and among the methods of
volatiles extraction. The significance level P<0.05
was considered. The statistical package SAEG (UFV - Viçosa, MG, Brazil) was used.
RESULTS AND DISCUSSION
HS-SPME and S-HS are are simple, rapid, solvent-free extraction techniques and can help to
analyze the volatile profile of vegetable matrices that
have intense aroma to human scent, as the case of the yellow passion fruit juice. The temperature is a key parameter in the extraction yield and, with time, have
a significant effect on the balance of the gas phase in
the sample headspace, since they determine the vapor pressure of volatiles (CARASEK & PAWLISZYN, 2006), and for this reason, adjustments were made. In addition, the NaCl concentration and volume of juice samples were also adjusted. The results
of these assays are shown in figure 1. There were significant increases (P<0.05) in total area of peaks
with increasing equilibrium time in the range of 10 to 30min (Figure 1a), but between 20 and 30 min
there were no significant differences among peak
areas. Thus, the time of 20 min was selected because
it was the shortest not significant contrast time. While
adjusting the equilibrium temperature, the extraction time of 20min was maintained constant at all
temperatures tested. According to figure 1b, increases in peak area values show that the extraction efficiency increased significantly (P<0.01) with increasing
equilibrium temperature and the maximum extraction
efficiency was achieved at 90°C. Preliminary analysis
of the chromatographic peaks for the sample at 50, 60 and 90°C (not reported) showed no degradation of the volatiles in the sampling conditions at 90°C for 20 minutes.
No significant differences were found
for the results of the total area when different NaCl concentrations were tested in the yellow passion fruit juice (Figure 1c), showing that the use of salt (NaCl) is not recommended in whole juice samples of yellow
passion fruit by adding no increase efficiency in the
extraction of volatiles in the S-HS technique. The NaCl addition in the sample aims to improve the
extraction efficiency by increasing the ionic strength
and decrease the solubility of volatile compounds soluble in the aqueous phase (PONTES et al., 2009). Probably, there was no effect of salt addition, since the ionic strength in the juice sample should be
sufficiently high, justifying the high volatility of
the volatile compounds of the yellow passion fruit.
juice influenced in significant increases (P<0.01)
in the total area values of volatiles peaks, showing
that the most efficient extraction of volatiles was
achieved in 7.5mL juice sample and therefore, it was the chosen volume. Thus, the adjusted conditions of headspace equilibrium in the volatiles extraction in the S-HS technique were 90°C for 20min, 7.5mL sample volume for the juice without NaCl addition.
The results of yellow passion fruit volatile
profiles obtained through S-HS and HS-SPME
extraction techniques are shown in table 1. Kovats retention linear indices (KI) were calculated for each peak and, when evaluable, they were compared with the reference literatures in order
to ensure the compounds identification. The
percentage of total area for the S-HS and
HS-SPME extraction techniques were 96.85±1.59% and 93.58±1.25%, respectively. The differences in the total percentages (100%) represent the
peak areas of the volatiles that have not had their
identity confirmed by comparisons of mass spectra
and Kovats linear retention indices (KI).
Among the different types of fibers routinely
used for sampling of volatiles, which have a range of polarities and different mechanisms of selectivity,
the PDMS/DVB fiber (polydimethylsiloxane/
divinylbenzene) was used in this study and the conditions of headspace equilibrium in the extraction
with the fiber had been pre-established. The
equilibrium conditions were extraction temperature of 50°C, extraction time of 20min, stirring at 450rpm
and the addition of 17% NaCl(w v-1). In a comparative
study between five types of fibers it was observed that PDMS/DVB fiber was the most efficient for volatiles
extraction in a sample of purple passion fruit juice (PONTES et al., 2009). These authors also found a
high affinity of this fiber for ethyl esters, alcohols and
terpenes.
According to table 1, analysis of the
volatile profile of passion fruit juice (P. edulis f.
Flavicarpa Deg.) in GC/MS by the S-HS and
HS-SPME techniques resulted in 30 and 44 identified
volatile compounds, respectively. Esters, terpenes, alcohols, aldehydes and ketones formed the groups of
volatiles identified in the study of yellow passion fruit
and they probably play an important role in the juice
sensory profile (WERKHOFF et al., 1998; MACORIS
et al., 2011). In the HS-SPME technique recovery of
volatiles was more efficient with the identification

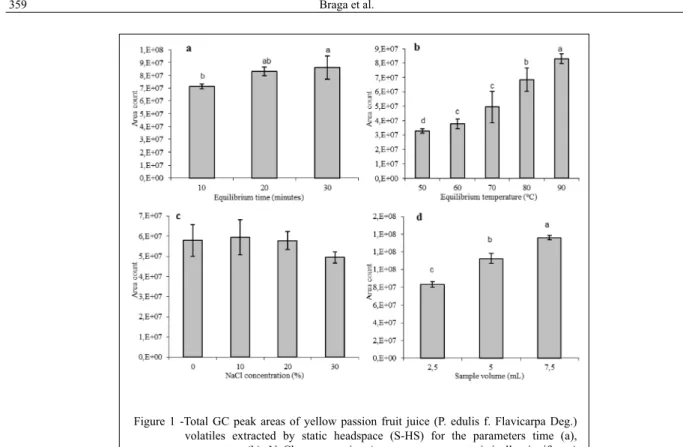

of 24 esters, 8 terpenes, 6 alcohols, 3 aldehydes, Figure 1 -Total GC peak areas of yellow passion fruit juice (P. edulis f. Flavicarpa Deg.)

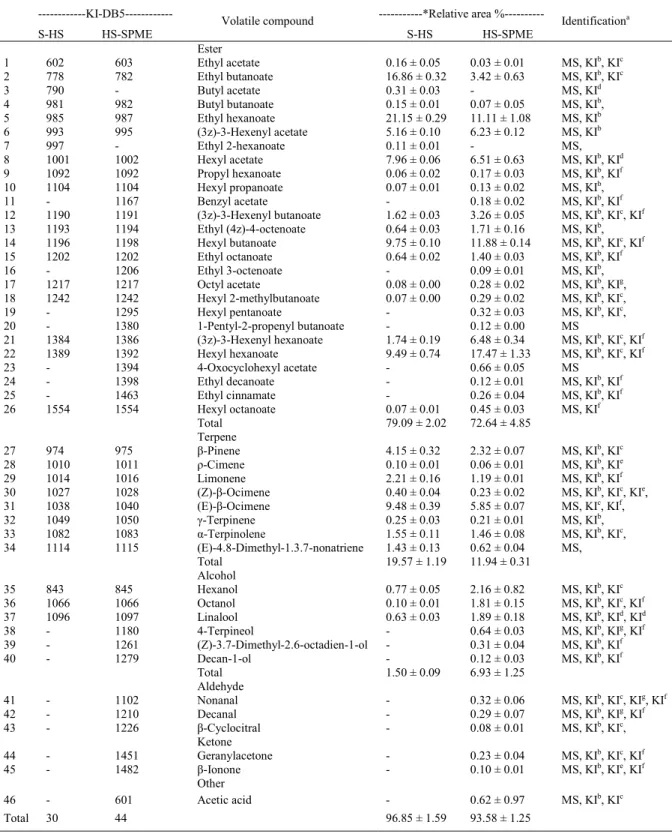

Table 1 -Volatile profile of yellow passion fruit juice (P. edulis f. Flavicarpa Deg.) tentatively identified by GC/MS (DB5 column) and extracted by the static-headspace (S-HS) (30 compounds) and headspace solid-phase microextraction (HS-SPME)(44 compounds).
---KI-DB5--- ---*Relative area
%---S-HS HS-SPME
Volatile compound
S-HS HS-SPME
Identificationa
Ester
1 602 603 Ethyl acetate 0.16 ± 0.05 0.03 ± 0.01 MS, KIb, KIc
2 778 782 Ethyl butanoate 16.86 ± 0.32 3.42 ± 0.63 MS, KIb, KIc
3 790 - Butyl acetate 0.31 ± 0.03 - MS, KId
4 981 982 Butyl butanoate 0.15 ± 0.01 0.07 ± 0.05 MS, KIb,
5 985 987 Ethyl hexanoate 21.15 ± 0.29 11.11 ± 1.08 MS, KIb
6 993 995 (3z)-3-Hexenyl acetate 5.16 ± 0.10 6.23 ± 0.12 MS, KIb
7 997 - Ethyl 2-hexanoate 0.11 ± 0.01 - MS,
8 1001 1002 Hexyl acetate 7.96 ± 0.06 6.51 ± 0.63 MS, KIb, KId
9 1092 1092 Propyl hexanoate 0.06 ± 0.02 0.17 ± 0.03 MS, KIb, KIf
10 1104 1104 Hexyl propanoate 0.07 ± 0.01 0.13 ± 0.02 MS, KIb,
11 - 1167 Benzyl acetate - 0.18 ± 0.02 MS, KIb, KIf
12 1190 1191 (3z)-3-Hexenyl butanoate 1.62 ± 0.03 3.26 ± 0.05 MS, KIb, KIc, KIf 13 1193 1194 Ethyl (4z)-4-octenoate 0.64 ± 0.03 1.71 ± 0.16 MS, KIb, 14 1196 1198 Hexyl butanoate 9.75 ± 0.10 11.88 ± 0.14 MS, KIb, KIc, KIf 15 1202 1202 Ethyl octanoate 0.64 ± 0.02 1.40 ± 0.03 MS, KIb, KIf
16 - 1206 Ethyl 3-octenoate - 0.09 ± 0.01 MS, KIb,
17 1217 1217 Octyl acetate 0.08 ± 0.00 0.28 ± 0.02 MS, KIb, KIg, 18 1242 1242 Hexyl 2-methylbutanoate 0.07 ± 0.00 0.29 ± 0.02 MS, KIb, KIc,
19 - 1295 Hexyl pentanoate - 0.32 ± 0.03 MS, KIb, KIc,
20 - 1380 1-Pentyl-2-propenyl butanoate - 0.12 ± 0.00 MS
21 1384 1386 (3z)-3-Hexenyl hexanoate 1.74 ± 0.19 6.48 ± 0.34 MS, KIb, KIc, KIf 22 1389 1392 Hexyl hexanoate 9.49 ± 0.74 17.47 ± 1.33 MS, KIb, KIc, KIf
23 - 1394 4-Oxocyclohexyl acetate - 0.66 ± 0.05 MS
24 - 1398 Ethyl decanoate - 0.12 ± 0.01 MS, KIb, KIf
25 - 1463 Ethyl cinnamate - 0.26 ± 0.04 MS, KIb, KIf
26 1554 1554 Hexyl octanoate 0.07 ± 0.01 0.45 ± 0.03 MS, KIf
Total 79.09 ± 2.02 72.64 ± 4.85
Terpene
27 974 975 β-Pinene 4.15 ± 0.32 2.32 ± 0.07 MS, KIb, KIc
28 1010 1011 ρ-Cimene 0.10 ± 0.01 0.06 ± 0.01 MS, KIb, KIe
29 1014 1016 Limonene 2.21 ± 0.16 1.19 ± 0.01 MS, KIb, KIf
30 1027 1028 (Z)-β-Ocimene 0.40 ± 0.04 0.23 ± 0.02 MS, KIb, KIc, KIe, 31 1038 1040 (E)-β-Ocimene 9.48 ± 0.39 5.85 ± 0.07 MS, KIc, KIf,
32 1049 1050 γ-Terpinene 0.25 ± 0.03 0.21 ± 0.01 MS, KIb,
33 1082 1083 α-Terpinolene 1.55 ± 0.11 1.46 ± 0.08 MS, KIb, KIc, 34 1114 1115 (E)-4.8-Dimethyl-1.3.7-nonatriene 1.43 ± 0.13 0.62 ± 0.04 MS,
Total 19.57 ± 1.19 11.94 ± 0.31
Alcohol
35 843 845 Hexanol 0.77 ± 0.05 2.16 ± 0.82 MS, KIb
, KIc
36 1066 1066 Octanol 0.10 ± 0.01 1.81 ± 0.15 MS, KIb, KIc, KIf
37 1096 1097 Linalool 0.63 ± 0.03 1.89 ± 0.18 MS, KIb, KId, KId
38 - 1180 4-Terpineol - 0.64 ± 0.03 MS, KIb, KIg, KIf
39 - 1261 (Z)-3.7-Dimethyl-2.6-octadien-1-ol - 0.31 ± 0.04 MS, KIb, KIf
40 - 1279 Decan-1-ol - 0.12 ± 0.03 MS, KIb, KIf
Total 1.50 ± 0.09 6.93 ± 1.25
Aldehyde
41 - 1102 Nonanal - 0.32 ± 0.06 MS, KIb, KIc, KIg, KIf
42 - 1210 Decanal - 0.29 ± 0.07 MS, KIb, KIg, KIf
43 - 1226 β-Cyclocitral - 0.08 ± 0.01 MS, KIb, KIc,
Ketone
44 - 1451 Geranylacetone - 0.23 ± 0.04 MS, KIb, KIc, KIf
45 - 1482 β-Ionone - 0.10 ± 0.01 MS, KIb, KIe, KIf
Other
46 - 601 Acetic acid - 0.62 ± 0.97 MS, KIb, KIc
Total 30 44 96.85 ± 1.59 93.58 ± 1.25
* mean ± standard deviation (n=3)
a MS, Comparison of mass spectra from Wiley8 library and NISTdatabase (http://webbook.nist.gov). a KI, comparisons with the linear retention indices (Kovats Index) from the literature.
2 ketones and one acid, while in S-HS extraction
were identified 19 esters, 8 terpenes and 3 alcohols, not being identified in this extraction procedure the
volatiles ketone and aldehyde groups. Among the
esters identified in both extraction techniques, ethyl
butanoate, ethyl hexanoate, (3z)-3-hexenyl acetate, hexyl acetate, hexyl butanoate and hexyl hexanoate were the major ones. However, similarities in area
percentage among the esters identified in S-HS and
HS-SPME were found only for (3Z)-3-hexenyl acetate
(5.16%±0.10 and 6.23±0.12% respectively), hexyl acetate (7.96±0.06% and 6:51±0.63%, respectively) and hexyl butanoate (9.75±0.10% and 11.88±0.14%
respectively), while the greatest differences
were found for ethyl butanoate (16.86±0.32% and 3.42±0.63% respectively), ethyl hexanoate (21:15±0.29% and 11.11±1.08%, respectively) and hexyl hexanoate (9.49±0.74% and 17.47±1.33%,
respectively).
According to reports in scientific
study,volatile esters are the major compounds with the highest concentration of yellow passion fruit juice(JORDÁN et al.,2002; CARASEK & PAWLISZYN, 2006). In addition,hexyl hexanoate, hexyl butanoate, ethyl butanoate, (Z)-3-hexenyl hexanoate, (Z)-3-hexenyl butanoate and ethyl hexanoate are the most abundant compounds found among the volatile fraction of yellow passion fruit juice (WERKHOFF et al., 1998; BRAT et al., 2000). In the present study, these compounds were
identified in the two extraction techniques. Using
dynamic headspace MACORIS et al. (2011) found ethyl butanoate in both organic and conventional
passion fruit pulps produced in Brazil, with 52%and 57% of the total relative area of the chromatogram,
respectively. Meantime, in the present study this
specific compound was found in high concentrations
only when the HS technique was used. However, the esters (Z)-3-hexenyl hexanoate and (Z)-3-hexenyl
butanoate showed significant higher concentrations in
HS-SPME extraction with area percentages of 6.48±
0.34% and 3.26±0.05% respectively, while in S-HS were found areas of 1.74±0.19% and 1.62±0.03%,
respectively. Only esters butyl acetate and 2-ethyl
hexanoate were not identified in HS-SPME; however,
benzyl acetate, ethyl 3-octenoate, hexyl pentanoate, 1-pentyl-2-propenyl butanoate, 4-oxocyclohexyl acetate, and ethyl decanoate ethyl cinnamate were not
identified in the S-HSprocedure.
Studies on volatile profile in Passiflora
species with extraction procedures in HS-SPME (PDMS/DVB) showed 24 volatile compounds in the yellow passion fruit juice, and the most abundant
esters were the methyl hexanoate (32.9%), followed by (E)-methyl-2-hexenoate (11.7%), methyl benzoate (11.3%), methyl dihydrojasmonate (6.2%)(PONTES
et al., 2009). However, no volatile methyl esters were found in this study (Table 1).
Terpenes simultaneously identified in both extraction methods were β-pinene, ρ-cimene,
limonene, (Z)-β-ocimene, (E)-β-ocimene,
γ-terpinene, α-terpinolene and
(E)-4,8-dimethyl-1,3,7-nonatriene. The largest sum of percentages of peak area for terpenes volatile found for the
S-HSprocedure with 19.57±1.19%, while in HS-SPME was found 11.94±0.31%.Although with lower
total intensity of peaks, terpenoids recovered in S-HS are the same recovered in HS-SPME, showing similarity extraction of terpenes volatile compounds. The similarity in the recovery of terpenes in both extraction techniques shows that these compounds, although not showing the highest concentration, present easily volatile in the fraction of passion fruit juice in comparison with some volatile esters and alcohols, and all aldehydes and ketones which
were not identified in the S-HSprocedure. Hexanol,
octanol and linalool were the only alcohols
extracted and identified simultaneously in S-HS
and HS-SPME. Other threealcohols 4-terpineol, (Z)-3,7-dimethyl-2,6-octadien-1-ol and decan-1-ol
were identified only in the HS-SPME procedure. In addition to lower extraction efficiency to some
esters and alcohols, S-HS procedure was not sensitive to recover volatile ketone and aldehyde groups (Table 1).
CONCLUSION
This study showed that the S-HS optimized extraction technique was effective to recovery high concentrations of characteristics major volatile compounds in the passion fruit, such as ethyl butanoate and ethyl hexanoate, which can be
advantageous due to the simplicity of the
method.β-Pinene, p-cymene, limonene, (Z)-β-ocimene,
(E)-β-ocimene, γ-terpinene, α-terpinolene and (E)
-4,8-dimethyl-1, 3,7 - nonatriene terpenes were
identified with the same similarity of recovery in both
techniques. This is important, because together these compounds are considered to be the most important
for the characteristic passion fruit flavor.
ACKNOWLEDGMENTS
REFERENCES
ALVAREZ, R. et al. Citrus juice extraction systems: effect on chemical composition andantioxidant activity of clementine juice.
Journal of Agricultural and Food Chemistry, v.60, p.774-781, 2012. Disponível em: <http://pubs.acs.org/doi/abs/10.1021/ jf203353h>. Acesso em: 15 fev. 2013. Doi 10.1021/jf203353h.
B’HYMER, C. Residual solvent testing: a review of gas-chromatographic and alternative techniques. Pharmaceutical
research, v.20, p.337-344, 2003. Disponível em: <http:// download.springer.com/static/pdf/283/art%253A10.1023%252FA %253A1022693516409.pdf?auth66=1401546116_48f6ae79912c6 b54547eb7b5c1a43bf2&ext=.pdf>. Acesso em: 23 mar. 2013. Doi 10.1023/A:1022693516409.
BARBONI, T. et al. Volatile composition of hybrids Citrus juices by headspace solid-phase micro extraction/gas chromatography/mass spectrometry. Food Chemistry, v.116, p.382-390, 2009. Disponível em: <http://dx.doi.org/10.1016/j.foodchem.2009.02.031>. Acesso em: 24 mar. 2013. Doi 10.1016/j.foodchem.2009.02.031.
BICCHI C. et al. Headspace sampling of the volatile fraction of vegetable matrices. Journal of Chromatography A, v.1184, p.220-233, 2008. Disponível em: <http://dx.doi.org/10.1016/j. chroma.2007.06.019>. Acesso em: 24 mar. 2013. Doi 10.1016/j. chroma.2007.06.019.
BRAT, P. et al. Free volatile components of passion fruit puree obtained by flash vacuum-expansion. Journal of Agricultural and Food Chemistry, v.48, p.6210-6214, 2000. Disponível em: <http://pubs.acs.org/doi/abs/10.1021/jf000645i>. Acesso em: 24 mar. 2013. Doi 10.1021/jf000645i.
BYLAITE, E.; MEYER, A.S. Characterization of volatile aroma compounds of orange juices by three dynamic and static headspace gas chromatography techniques. European Food Research and
Technology, v.222, p.176-184, 2006. Disponível em: <http://link. springer.com/article/10.1007/s00217-005-0141-8>. Acesso em 23 nov. 2012. Doi 10.1007/s00217-005-0141-8.
CARASEK, E.; PAWLISZYN, J. Screening of tropical fruit volatile compounds using solid-phase micro extraction (SPME) fibers and internally cooled SPME fiber. Journal of Agricultural and Food Chemistry, v.54, p.8688-8696, 2006. Disponível em: <http://pubs.acs.org/doi/abs/10.1021/jf0613942>. Acesso em 20 nov. 2012. Doi 10.1021/jf0613942.
DU, X. et al. Evaluation of volatiles from two subtropical strawberry cultivars using GC–olfactometry, GC-MS odor activity values, and sensory analysis. Journal of Agricultural and Food
Chemistry, v.59, n.23, p.12569-12577, 2011. Disponível em: <http://pubs.acs.org/doi/abs/10.1021/jf2030924>. Acesso em: 17 out. 2012. Doi 10.1021/jf2030924
FIGOLI, A. et al. Evaluation of pervaporation process of kiwifruit juice by spme-gc/iontrap mass spectrometry. Desalination, v.250, p.1113-1117, 2010. Disponível em: <http://dx.doi.org/10.1016/j. desal.2009.09.120>. Acesso em 20 nov. 2012. Doi 10.1016/j. desal.2009.09.120.
GUTH, H.; GROSCH, W. Identification of potent odourants in static headspace samples of green and black tea powders on the basis of aroma extract dilution analysis (AEDA).
Flavour and Fragrance Journal, v.8, p.173-178, 1993. Disponível em: <http://onlinelibrary.wiley.com/doi/10.1002/
ffj.2730080402/abstract>. Acesso em 17 out. 2012. Doi 10.1002/ffj.2730080402.
JORDÁN, M.J. et al. Characterization of the aromatic profile in aqueous essence and fruit juice of yellow passion fruit (Passiflora edulis Sims F. Flavicarpa Degner) by GC-MS and GC/O. Journal of Agricultural and Food Chemistry, v.50, p.1523-1528, 2002. Disponível em: <http://pubs.acs.org/doi/abs/10.1021/jf011077p>. Acesso em 12 out. 2012. Doi 10.1021/jf011077p.
MACORIS, M.S. et al. Volatile compounds from organic and conventional passion fruit (Passiflora edulis F. Flavicarpa) pulp. Ciência e Tecnologia de Alimentos, v.31, n.2, p.430-435, 2011. Disponível em: <http://dx.doi.org/10.1590/S0101-20612011000200023>. Acesso em 20 nov. 2012. Doi 10.1590/ S0101-20612011000200023.
MAHATTANATAWEE, K. et al. Comparison of three lychee cultivar odor profiles using gas chromatography−olfactometry and gas chromatography−sulfur detection. Journal of Agricultural and Food Chemistry, v.55, n.5, p.1939-1944, 2007. Disponível em: <http://pubs.acs.org/doi/abs/10.1021/jf062925p>. Acesso em 12 nov. 2012. Doi 10.1021/jf062925p.
MESTRES, M. et al. Application of headspace solid-phase microextraction to the determination of sulphur compounds with low volatility in wines. Journal of Chromatography A, v.945, n.1-2, p.211-219, 2002. Disponível em: <http://dx.doi.org/10.1016/ S0021-9673(01)01521-7>. Acesso em 08 fev. 2013. Doi 10.1016/ S0021-9673(01)01521-7.
MILLER, M.E.; STUART, J.D. Comparison of gas-sampled and spme-sampled static headspace for the determination of volatile flavor components. Analytical Chemistry, v.71, p.23-27, 1999. Disponível em: <http://pubs.acs.org/doi/abs/10.1021/ac980576v>. Acesso em 15 out. 2012. Doi 10.1021/ac980576v.
PONTES, M. et al. Headspace solid-phase microextraction-gas chromatography-quadrupole mass spectrometric methodology for the establishment of the volatile composition of Passiflora fruit species. Microchemical Journal, v.93, p.1-11, 2009. Disponível em: <http://dx.doi.org/10.1016/j.microc.2009.03.010>. Acesso em 15 out. 2012. Doi 10.1016/j.microc.2009.03.010.
RODRÍGUEZ-BURRUEZO, A. et al. Comparative analysis of genotypic diversity in the volatile fraction and aroma-contributing compounds of Capsicum fruits from the annuum−
chinense−frutescen complex. Journal of Agricultural and Food
Chemistry, v.58, n.7, p.4388-4400, 2010. Disponível em: <http:// pubs.acs.org/doi/abs/10.1021/jf903931t>. Acesso em 16 out. 2012. Doi 10.1021/jf903931t.
SNOW, N.H.; SLACK, G.C. Head-space analysis in modern gas chromatography. Trends in Analytical Chemistry, v.21, p.608-617, 2002. Disponível em: <http://dx.doi.org/9936(02)00802-6>. Acesso em 16 out. 2012. Doi 10.1016/S0165-9936(02)00802-6.
UBEDA, C. et al. Determination of major volatile compounds during the production of fruit vinegars by static headspace gas chromatography–mass spectrometry method. Food Research
International, v.44, p.259-268, 2011. Disponível em: <http:// dx.doi.org/10.1016/j.foodres.2010.10.025>. Acesso em 16 out. 2012. Doi 10.1016/j.foodres.2010.10.025.
(Ribes nigrum L.) juice, using nasal impact frequency profiling.
Journal of Agricultural and Food Chemistry, v.52, p.1647-1652, 2004. Disponível em: <http://pubs.acs.org/doi/abs/10.1021/ jf035133t>. Acesso em 15 out. 2012. Doi 10.1021/jf035133t.
WANG, Y. et al. Recent advances in headspace gas chromatography.
Journal of Liquid Chromatography and Related Technologies, v.31, p.1823-1851, 2008. Disponível em: <http://www.tandfonline.
com/doi/abs/10.1080/10826070802129092#.U4eZr3YUN8w>. Acesso em 22 nov. 2012. Doi 10.1080/10826070802129092.
WERKHOFF, P. et al. Vacuum headspace method in aroma research: Flavor chemistry of yellow passion fruits. Journal of
