Abstract
This research aims to study the effect of supplementary cementi-tious materials (SCMs) such as quarry dust limestone (QDL) and natural pozzolana (NP) on the performance of fiber reinforced self-consolidating repair mortars (FR-SCRMs). Based on previous opti-mization of QDL and NP replacement ratios, two mortar mixtures incorporating 10% QDL and 20% NP as cement replacements were prepared. The evaluation was based on both fresh (slump flow, flow time) and hardened (compressive and flexural strengths and adher-ence to old concrete) tests. In addition, the influadher-ence of three curing conditions, similar from those normally encountered in the field was evaluated on the compatibility between repair materials and sub-strate, under flexural strength test by using third-point’s loading beam test method. It is demonstrated that the FR-SCRMs is prom-ising to be used in repair concrete structures class R4 (EN 1504-3) without reducing the adhesive strength.
Keywords
QDL; NP; Fiber-reinforced self-consolidating mortar, Adherence; Old concrete; Compatibility; Third-point bending.
Characterization of Fiber Reinforced Self-Consolidating
Mortars for Use in Patching Damaged Concrete
1 INTRODUCTION
Cracks in concrete structures are inevitable. These cracks result usually from poorly concrete mix design, overloading, corrosion, exposure to high temperatures, shrinkage, etc. (Benjeddou et al. 2007, Jummat et al. 2006). The use of patch repair method on cracked concrete structures is widely used to bring the structure to its original capacity (Emmons and Vaysburd 1996). Indeed, this method consists in removing the crumbly parts of concrete and reinstatement with a fresh repair mortar. The success of repairing and strengthening process of reinforced structure depends on the proper bonding between the repair mortars and old concrete. Which in turn results in a monolithic behavior of the repaired composite and therefore no separation at the interface is observed (ACI
Amar Benyahia a
Mohammed Ghrici a
Said Choucha a
Ahmed Omran b
a Geomaterials Laboratory, Hassiba Benbouali University of Chlef, P.O. Box 151, Chlef 02000, Algeria.
Benyahia_genie@yahoo.fr
b Dept. of Civil Eng., University of Sherbrooke, 2500 Blvd. de l'Université, Sherbrooke (QC) J1K2R1, Canada
http://dx.doi.org/10.1590/1679-78253718
1975). To achieve such behavior, selecting suitable repair materials for concrete requires an under-standing of compatibility between the repair materials and old concrete and behavior of concrete materials in the exposure conditions (Lee et al. 2007). The repair layer compactness is one of the main parameters that will govern the quality of the bond since the more the repair layer fill the cracks and pores the more mechanical interlock between two layers is obtained. This can be achieved either by using sufficient vibration or highly flowable repair mortar (Liu and Huang 2008, Dawood and Ramli 2014). Selecting self-compacting repair mortars (SCRM) could be a suitable alternative.
Nowadays, self-consolidating repair mortars (SCRMs), as new technology products are especially preferred for the rehabilitation and repair of reinforced concrete structures (Courard et al. 2002). In addition to reducing labor time and noise, the SCRM technology can be also involved in filling nar-row gaps between congested steel bars and coatings (Khayat and Morin 2002). The main difference between SCRMs and ordinary mortar is the presence of a large amount of mineral admixtures (poz-zolanic or inert fillers) in the former (Cyr et al. 2000). The common mineral admixtures that are likely used in SCRMs are fly ash, quarry dust powder, blast furnace slag, silica fume, and/or quartz-ite powder (Okamura and Ouchi 2003, Ferraris et al. 2000). Indeed, the mineral admixtures can be blended with cement or added separately during the mortar mixing (Erdoğan 1997). The use the mineral admixtures in SCRMs is not only to enhance flowability properties but also to improve strength and durability characteristics. The cement-based mixtures made with mineral admixtures as partial cement replacement are usually less expensive and eco-friendly. Unfortunately, the tradi-tional mineral admixtures are not available in all areas and would be costly if transported. This gives the motivation to search for alternative local available materials that can be used as mineral admixtures for the production of SCRM. Quarry-dust limestone (QDL) and natural pozzolana (NP) are two possible materials to be used as mineral admixtures in the SCRM production.
The QDL is an industrial by-product obtained during the crushing process of calcareous rocks. The large storage quantities of the QDL waste is considered as one of problems facing the quarry industry. The QDL has very high fine particles that can cause air pollution and therefore, chronic respiratory diseases such as asthma. Past researches (Cochet and Sorrentino 1993, Sahmaran et al. 2006) were performed to study the effects of QDL on the properties of mortar and concrete. These studies showed that the use of QDL improves workability with reduced cement content, mechani-cals strength, and durability characteristics. The use QDL in self-consolidating concrete (SCC) is expected to bring significant economical benefits to quarries (Ho et al. 2002) and concrete industry. This could also provide an economical solution for the disposal of the QDL and the environmental problems associated with this material (Torkaman et al. 2014). However, limited researches have been published about the performance of self-consolidating mortar or concrete that contains QDL. The NP is obtained by grinding natural rocks or volcanic sediments that have pozzolanic properties (Shannag and Yeginonobali 1995). The NP is widely existed in large amounts in many regions all over the world where volcanic activities take place.
(2006), Ezziane et al. (2007) and Kaid et al. (2009) investigated the effect of NP on fresh and hard-ened properties of mortars. They found that the use of NP as partial replacement of cement can improve strength and durability characteristics. Shannag and Yeginonobali (1995) reported also that incorporation of NP in SCC provides technical benefits as far as environmental problems be of concern. However, until now, there are few published studies (Behfarnia and Farshadfar 2013, Shaeed et al. 2015, Shamsad et al. 2014) reporting on the use of NP in SCC. In recent years, there was more research attention towards the valorization of natural pozzolanic, industrial by-products, and waste materials in various industrial applications, including concrete and mortar.
The main objective of the current study is to evaluate the feasibility of producing self-consolidating repair mortars using a local quarry dust limestone and natural pozzolana and to eval-uate the overall performance of these patch repair materials. Based on an optimization of QDL and NP in previous study (Ghrici et al. 2007) two repair mortars incorporating 10% QDL (FR-SCRM1) and 20% NP(FR-SCRM2) as a cement replacement were evaluated in the fresh and hardened states in comparison to a control mortar with 100% cement (FR-SCRM0). Compatibility between the manufactured patch repair materials and old concrete and behavior of concrete materials in the exposure conditions was also investigated by four-point loading flexural strength test to validate their utility in field.
2 EXPERIMENTAL PROGRAM
2.1 Material Properties
Ordinary Portland cement used in this study was produced according to EN197-1(2000) European Standards and referred as CEM I 42.5. The physical and chemical properties of cement were ob-tained in laboratory and summarized in Table 1.
Physical properties
Powder (OPC) (QDL) (NP)
Specific gravity 3.15 2.73 2.62 Specific surface area (m2/kg) 340 450 600 28-Days compressive strength (MPa) 42.5 -- --
Chemical properties (%)
Basic oxide (OPC) (QDL) (NP) Calcium Oxide (CaO) 63.90 52.58 10.91 Silicon Dioxide (SiO2) 21.60 4.57 48.00 Aluminum Oxide (Al2O3) 4.45 0.43 18.85 Sulphur Trioxide (SO3) 1.92 0.01 0.50 Ferric Oxide (Fe2O3) 5.35 0.43 10.5 Magnesium Oxide (MgO) 1.65 0.22 4.39 Sodium Oxide (Na2O) 0.11 0.01 0.80 Potassium Oxide (K2O) 0.22 0.13 0.20 Loss on ignition 0.78 41.58 5.70
The quarry-dust limestone (QDL) and natural pozzolana (NP) according to ASTM C 618-12, were from obtained from Algerian companies; Oued Fodda and Ferfos (Beni-Saf-West Algerian), respectively. These materials were grinded with a laboratory pulverizer to a particle-size distribution (PSD) with a mean-particle diameter (d50) of 125µm. Their physical and chemical properties are
also listed in Table 1. The Blaine fineness of the QDL and NP were higher than that of the cement (340 m2/kg) with respective values of 450 and 600 m2/kg. Polycarboxylate-based (PCE) superplas-ticizer conforming EN 934-2 (2009) specifications, with a density of 1.065 g/cm3 and a solid content of 30% was used in the mortar mixes. PPF fiber of 12 mm in length was used in this investigation. The general characteristics of this fiber are shown in Table 2.
Photo Length Specific gravity
Melting point
Young’s Modulus
Maximum elongation at failure
Section of fiber
12 mm 0.9 150°C 3kN/mm2 50% 30 µm
Table 2: General characteristics of polypropylene fibers.
The coarse aggregate (G) used in this study was crushed limestone sourced from a local quarry. It had a maximum size of aggregate (MSA) of 15 mm and specific gravity of 2.56. Natural land sand (LS) and natural river sand (RS) were used as fine aggregate. Their specific gravities were 2.36 and 2.42 respectively. Properties of these aggregates are given in Table 3. The PSD of the fine and coarse aggregates were determined by sieve analysis and the results are presented in Figure 1.
Figure 1: Particle-size distribution of fine and coarse aggregates.
, ,
Cu
ul
ati
e
pas
si
g
%
Sie e ope i g size Land sand 0-1 mm
Properties (LS) (RS) (G) Specific gravity 2.36 2.42 2.56 Fineness modulus 1.50 1.65 --
Absorption 0.73 0.78 --
Table 3: Physical properties of sand and coarse aggregates.
2.2 Mixing Proportions
One control (FR-SCRM0) and two mixtures incorporating quarry dust limestone (FR-SCRM1) and natural pozzolana (FR-SCRM2) were prepared according to the requirements of the European Fed-eration for Specialist Construction Chemicals and Concrete Systems (EFNARC 2005).
Name of the rep ai r mo rt ar s C ement (OPC ) [k g] quarr y-dust
limestone (QDL) [
kg ] natur al pozz ol an a (N P ) [kg ] Tot al p ow der (P ) [ kg] Wa ter [k g] coarse ag gr eg at e ( G ) [k g] nat ur al ri ve r sand (R S)] [k g] N atur al land sa nd (LS) [kg] Wa ter-t o-p ow der ra tio (W /P ) Super
plasticizer SP [k
g] PPF fi ber [% ]
FR-SCRM0 685 -- -- 685 275 -- 955 319
0.4
7.4
0.03
FR-SCRM1 616 69 -- 685 275 -- 955 319 6.5
FR-SCRM2 548 -- 137 685 275 -- 955 319 8.2
Substrate
concrete 340 -- -- 340 170 1130 720 -- 0.5 -- --
Table 4: Mixture proportions of FR-SCRMs mortars and substrate concrete.
Table 4 presents the composition and labeling of the patch repair mortar mixtures. In the two patch repair mortar mixtures FR-SCRM1 and FR-SCRM2, cement was replaced with quarry dust limestone and natural pozzolana by 10% and 20%, respectively. After some preliminary investiga-tions, the water-to-powder ratio (w/p) selected as 0.40 and the total powder content was fixed at 685 kg/m3. In the three mortar mixtures, the volume fraction of the polypropylene fiber (PPF) was kept constant at 0.03%.
The substrate concrete (C) prepared in this study is a common concrete typically used by Alge-rian construction companies. The mix proportion of the substrate is also presented in Table 3.
2.3 Mixing Sequence
The production of all patch repair materials followed the mixing sequence to achieve similar homo-geneity of all mixtures. A standard mixer with a capacity of 5 liters was used. The sand, cement, and natural perlite powder, if applicable, were added to the mixer bowl. During mixing for 2.0 min, two-thirds of the mixing water was added slowly.
2.4 Testing Methods
The slump flow diameter using mini-slump cone and flow table, visual indices for bleeding and seg-regation, and flow time using mini V-funnel test were measured for each of the three mortar mix-tures in the fresh state. All these tests were conducted in accordance with the procedures recom-mended by EFNARC (2005).
The compressive and flexural strengths are the most important criteria for classifying repair ma-terial according to the EN 1504-3 (2006). For this purpose, prism specimens measuring 40×40×160 mm were prepared for both compressive and flexural strengths for each repair mortar according to EN 12190-6 (1999). The flexural and compressive strength tests were carried out at the ages of 2, 7 and 28 days. For each patch repair mortar, the compressive strength was determined by taking the average of six test results, whereas the flexural strength was determined as an average of three samples.
For the substrate concrete, the compressive and splitting-tensile strengths were determined us-ing 100 × 200 mm cylinders.
The adhesion between repair mortars and concrete substrate (C) was characterized with slant-shear test according to ASTM C882 (1999). The slant-slant-shear test can represent typical cases in the real structures (Climaco and Regan 1989) and produces reliable results (Knab and Spring 1989).
Figure 2: Dimensions of repaired specimen. Figure 3: Specimen subjected to slant shear.
The specimen used in the slant-shear test consisted of two halves of a cylinder bonded at 30°. One half cast with repair mortars (FR-SCRMs) and bonded to a second half cast with the substrate concrete (Figure 2). The composite cylinder was tested under axial compression. The substrate part of the specimen was cast using plastic molds positioned at 30° inclination angle and cured for 28 days in water. The inclined surface of the samples was treated by wet sandblasting (crushed sand of 1 mm diameter under 7 MPa pressure).
hours and surface dried before casting the FR-SCRMs. The patch repair materials were cast on the top of the substrate concrete specimen and then cured inside polyethylene bags at a relative humid-ity (RH) of 95±5% and a temperature of 20±2°C. The composite cylindrical samples were topped with a sulphur layer for surface leveling, and then tested in compression according to ASTM C39 at ages of 1, 7, and 28 days (Figure 3). The bond strength using the slant-shear test can be calculated using the following equation.
τ π ∅F sin ° (1)
where;
: bond strength [MPa]
Fmax: maximum applied force [kN]
ϕ: diameter of cylinder [mm]
Figure 4: Dimensions of a notched beam serving as a substrate.
Compatibility study between patch repair materials and substrate concrete is very important before selecting a repair material. To evaluate the compatibility of manufactured repair materials, a small prismatic concrete samples (beams) with dimensions of 100 mm were prepared. A notch of 200 mm (length) 100 mm (width) 10 mm (thick) was cast into the bottom of the pris-matic concrete samples using a 3-dimensional inset to receive patch repair materials (Figure 4).

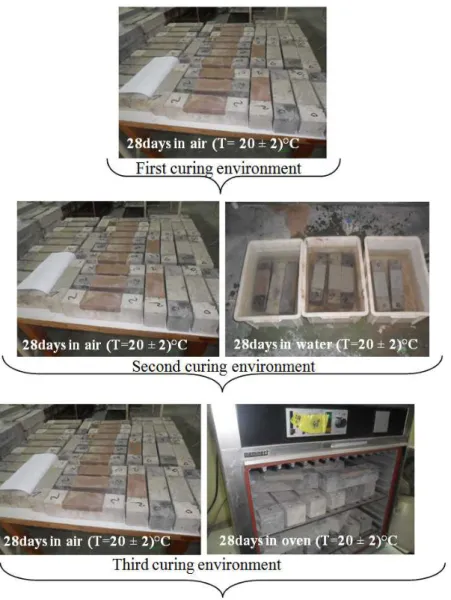

Figure 5: Different types of curing for the composite beams.
Figure 6: Configuration for four-point bending test.
σ .8 (2)
Where;
: Flexural bond strength in (MPa) F: Fracture load in (kN)
a: Side of the prism in (cm)
In addition, the elaborated patch repair materials were assessed compatible or incompatible with the substrate concrete by the mode of failures. If the failure passes through repair material and substrate at the middle third of the beam, then it is a compatible failure or else the repair ma-terial is incompatible with the substrate concrete (Czarnecki et al. 1999, Rashmi and Prasada 2007).
3 RESULTS
The visual inspection of the tree tested mortar mixtures showed no evidence of bleeding or segrega-tion. The other fresh and rheological properties (Slump and V-Funnel flow time) for the tested patch repair materials are detailed in the following sections.
3.1 Mini Slump Flow
The results of the mini-slump flow test for all tested mortar mixtures are shown in Table 5. A tar-get slump flow diameter of 250±10 mm according to EFNARC 2005 for repair mortars was secured by adjusting the HRWRA dosage.
The obtained slump flow diameters were in ranges of 245 to 255mm. The lowest slump flow di-ameter was measured for the patch repair mortar FR-SCRM1 followed by the FR-SCRM0, while the FR-SCRM2 had the highest value.
Repair mortars
Mini Slump (mm)
EFNARC1 Specifications
Mini V-funnel
(sec)
EFNARC1 Specifications
FR-SCRM0 250
Between 240 to 260 mm
8.3
Less than 11 seconds
FR-SCRM1 245 7.0
FR-SCRM2 255 7.6
1 EFNARC: European Federation of National Associations Representing for Concrete

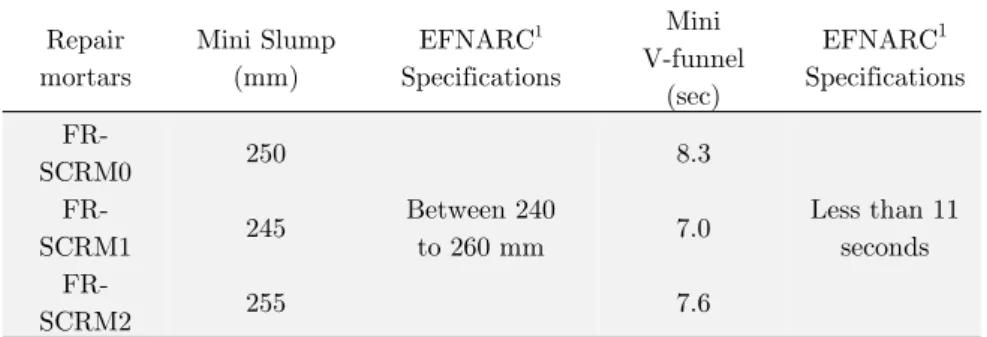

Table 5: Fresh properties of FR-SCMS.
However, FR-SCRM2 required slightly higher superplasticizer dosage (0.83 kg/m3) than that used for the FR-SCRM0 mixture to achieve desired slump flow. This can be attributed to the NP particles of the higher fineness area (600 m2/kg).The effect of the higher particle fineness overcame the positive effect of its spherical shapes. Indeed, the spherical shape of NP particles was reported to improve the workability and reduce friction at the aggregate-paste interface producing a ball-bearing effect at the point of contact, resulting in higher fluidity of the paste (Wei et al. 2003).
3.2 Mini V-Funnel Flow Time
The flow time results obtained from the mini V-Funnel test were found to vary between 7 and 8.3s for the three FR-SCRMs mixtures, as shown in Table 5. The use of 10% QDL or 20% NP was ob-served to decrease the flow time (7.0 and 7.6s for FR-SCRM1 and FR-SCRM2, respectively) com-pared to that of 8.3s for the SCRM0. However, all investigated patch repair materials FR-SCRMs satisfied the allowable flow-time requirements (greater than 7s) (EFNARC 2005).
The decrease of the flow time noted for the patch repair mortars FR-SCRM1 and FR-SCRM2 compared to that of the FR-SCRM0 can be attributed to the decrease of the lower force driving the flow that decreased due to the decrease of the mortar density when incorporating mineral admix-tures with low densities (Bogas et al. 2012).
3.3 Compressive and Flexural Strengths
The results of the compressive and flexural strengths for the studied patch repair mortars FR-SCRMs showed continuous increase with age, as shown in Figures 7 and 8, respectively. At all ages, the compressive strength of the FR-SCRM1 and FR-SCRM2 mortars were lower than that of the FR-SCRM0. The higher compressive strength was reported for the FR-SCRM0, followed by the SCRM2, and then the SCRM1, except for the first day of curing, the strength of FR-SCRM1 was comparable to that of the FR-SCRM0.
(C3A). Indeed, the CaCO3 reacts with the alumina phases of the cement (C3A and C4AF) to form calcium carboaluminate (C3A.CaCO3.11H2O) (Vuk et al. 2000). This reaction accelerating the hy-dration of C3S and increasing the compressive strength of the FR-SCRM1 mortar, at the early age (one day). This finding was consistent with that obtained by Care et al. (2000) and Temiz et al. (2014).
Figure 7: Compressivel strength results for tested FR-SCRMs at 1, 7, and 28 days.
Figure 8: Flexural strength results for tested FR-SCRMs at 1, 7, and 28 days.
, , , , , , , , , , , , , ,
‐ day ‐ days ‐ days
Co pr es siv e st re gt h [MP a] Age [da s]
FR‐SCRM FR‐SCRM FR‐SCRM
Lo er li it at days, for class R aterials
EN ‐ , , , , , , , , , , , , , ,
‐ day ‐ days ‐ days
Fl e ur al st re gt h [MP a] Age [da s]
On the other hand, the decrease in the compressive strength of the FR-SCRM2 at this early age (one day) can be attributed to the dilution effect (Lemonis et al. 2015). Many researchers have re-ported that replacing cement by NP reduces the strength at the early curing period (Ghrici et al. 2006, Shannag 2000).
After seven days of curing, the FR-SCRM2, exhibited significantly higher compressive strength than that of the FR-SCRM1. The reductions in compressive strength values for the FR-SCRM1 and FR-SCRM2 compared to the FR-SCRM0 were19% and 6%, respectively. The short-term strength (at seven days) of FR-SCRM1 can be attributed mainly to the lower reactivity and fineness (450m2/kg) of the QDL particles compared to that of the NP particles (Saridemir 2013). Indeed, the surfaces of the NP particles act as nucleation sites for the early reaction products of CH (C=CaO and H=H2O) and C-S-H (C=CaO; S=SiO2 and H=H2O), which accelerate the hydration of cement and therefore improve the compressive strength (Guru et al. 2013). In the same way, at 28 days of curing, the reductions in compressive strength values of FR-SCRM1 (with QDL) and SCRM2 (with NP) compared to the FR-SCRM0 were 20% and 3%, respectively. The FR-SCRM2 had slightly lower reduction in the compressive strength (3%) compared to the FR-SCRM2 that can be attributed to the higher volume of C-S-H formed during cement hydration. The large reduction in the compressive strength of FR-SCRM1 (28%) than the control may be attributed mainly to its low reactivity.
In summary, all of the patch repair mortars had 28-day compressive strength values higher than 45 MPa, fulfilling the requirements for Class R4 materials according to the standards EN 1504-3.
The evolution of the flexural strength (Figure 8) with time was similar to that observed in the case of the compressive strength. It is observed that the replacement of cement by 10% QDL in FR-SCRM1 reduced the flexural strength values of FR-FR-SCRM1 compared to the SCRM0 by about 3%, 12%, and 14% at 1, 7, and 28 days, respectively. At the same ages, the cement replacement by 20% NP in FR-SCRM2 resulted in 19%, 10%, and 4% reductions in the flexural strength values, respec-tively. Additionally, the improvement of the flexural strength reported for the FR-SCRM2 was mainly referred to the higher fineness (see Table 1) and the pozzolanic activity of the NP. These two parameters govern the adhesion between the cement paste and the fine aggregate. The strength increase in mortars systems containing pozzolanic materials as it plays a key role in improving the aggregate-paste bond by the densification of the transition zone and formation of more calcium silicate hydrates (Shannag 2000). In this research, NP has higher fineness than the QDL in addi-tion to its pozzolanic activity, resulting in higher flexural strength of the patch repair mortar FR-SCRM2 compared to the FR-SCRM1.
3.4 Bond Strength by Slant Shear Test

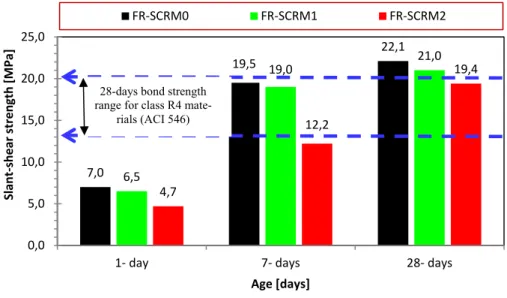

Figure 9: Slant shear strength for composite cylinders (FR-SCRMS/C) at 1, 7, and 28 days.
At all testing ages, the use of 10% QDL in the patch repair mortar FR-SCRM1 had a remarka-ble effect on mortar slant-shear strength than using 20% NP in FR-SCRM2. After one day of cur-ing, the reductions in slant-shear strength values of FR-SCRM1/C and FR-SCRM2/C compared to the FR-SCRM0/C were 6% and 32%, respectively. This can be attributed to the difference in ma-turity of the patch repair mortars (Şahmaran et al. 2013). After seven days of curing, the use of QDL in FR-SCRM1 also exhibited a significant improvement in the slant-shear strength develop-ment of FR-SCRM1/C than that of the NP in the FR-SCRM2/C. The reductions in slant-shear strength values at this age for the composites FR-SCRM1/C and FR-SCRM2/C compared to the FR-SCRM0/C were 3% and 38%, respectively. The significant improvement in the slant-shear strength values of FR-SCRM1/C composite specimens was probably attributed to the large sizes of the QDL particles compared to the NP particles. After 28 days of curing, the use of QDL in SCRM1 was also beneficial in terms of slant-shear strength. Indeed, the slant-shear strength of FR-SCRM1/C increased slightly compared to the 7-day results and exceeded the values determined for the SCRM2/C. The reductions in slant-shear strength values of SCRM1/C and FR-SCRM2/C compared to the FR-SCRM0/C were 6% and 12%, respectively. This might increase the friction at the interface, leading to an improvement in the slant-shear strength (Aliabdo and Elmoaty 2012). The significant development of the slant-shear strength after 28 days of curing for the FR-SCRM2/C (with NP) can be attributed to the improvement of the microstructure specially at the interfacial transition zone between the patch repair mortar FR-SCRM2 and substrate con-crete (C). In fact, the improvement of the microstructure was not governed only by the pozzolanic activity of the NP, but also by the ability of the finer NP particles to fill up the gaps between the cement particles, leading to significant increases of the intermolecular force and mechanical inter-locking (Guangjing et al. 2002).
,
, ,
,
, ,
,
,
,
, , , , , ,
‐ day ‐ days ‐ days
Sl
a
t‐s
he
ar
st
re
gt
h
[MP
a]
Age [da s]
FR‐SCRM FR‐SCRM FR‐SCRM
28-days bond strength range for class R4
(a) (b) (c)
Figure 10: Mode of failure for composite specimens in slant-shear test: (a) Failure on slant surface,
(b) Failure of substrate and repair material (7-days) and (c) Failure of substrate (28-days).
Three different failure modes were observed during the slant-shear test, as presented in Figure 10. For the test after one day of curing, the failure type for all FR-SCRMs/C was interface separat-ing. At seven days, a monolithic failure mode appeared with the propagation of crack through the repair mortars and the substrate concrete for all specimens. The substrates were noticed to be com-pletely damaged; however, few cracks were observed within the repair mortars. At an age of 28 days, all the FR-SCRMs/C composites showed serious failure through the substrate concrete (C), which showed clearly that the substrate was weaker than the repair mortars. In summary, all the repair mortars have considerably greater shear strength values than the lower limit of slant-shear strength values specified by the ACI (Concrete Repair Guide-ACI 546R-2004), at all testing ages.
3.5 Flexural Bond Strength
It is well established that a beam having higher thickness or higher strength material deflects less in bwnding compared to a beam with lower thickness or lower strength material under the same load. If the repair material is compatible with the substrate concrete (compressive strength of repair ma-terial divided by compressive strength of substrate concrete is greater than 1.0), the load transfer to repair material is adequate and the failure mode occurs in the middle-third of the notched beam.
Beams Flexural bond strength [MPa]
Curing environment First curing environment
Second curing environment
Third curing environment
Control beam 2.1 3.1 2.7
Composite beam 1 (filled with 1 cm composite containing 10%
QDL) 1.9 2.9 2.4
Composite beam 2 (filled with 1 cm composite containing 20%
NP) 2.0 3.0 2.5
Table 6: Results of flexural bond strength.

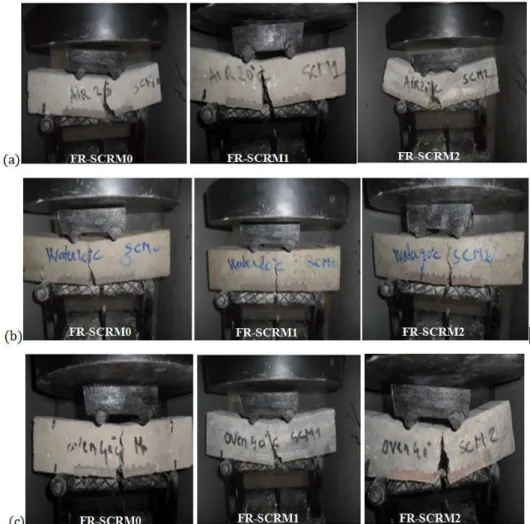

Figure 11: Compatibility evaluation: (a) First curing environment (compatibles), (b) Second
curing environment (compatibles), and (c) Third curing environment (compatibles).
There-fore, the composite beams are considered compatibles (Czarnecki et al. 1999, Rashmi and Prasada 2007). Such behavior can be attributed to the continuous densification of micro-structure of the interfacial transition zone (ITZ), due to the filler effect and long-term pozzolanic reactions (Scrive-ner and Gart(Scrive-ner 1988, Ollivier and Maso 1995, Leemann and Munch 2006). In summary, the use of 10% QDL in FR-SCRM1 or 20% NP in the FR-SCRM2 can successfully ensure the durability of the repair mortars, applied with 1 cm thick layers in the given curing conditions which was an im-portant aspect to be considered in construction (Ramli and Tabassi 2012).
4 CONCLUSIONS
This study demonstrates that it is possible to successfully using local mineral fillers, like quarry-dust limestone (QDL) and natural pozzolana (NP), to produce self consolidating repair mortars. It is to highlight that cement can be partially replaced by theses fillers while maintaining the Stand-ard specifications for the patch repair mortar in terms of flowability, strength, durability, and adhe-sion. From this investigation, the following conclusions can be drawn:
Using of 10% QDL in the FR-SCRM1 mixture, resulted in slightly decreased in the SP dosage, compared to the FR-SCRM0 control mixture, to get the desired target flowability (no vibration, stable and without segregation) of the prepared repair mortars mixtures (FR-SCRMs). And vice-versa, for the addition of 20% NP in the FR-SCRM2 mixture. It is important to note that the shape and fineness of fillers have a significant effect on superplasticizer dosage.
In term of compressive strength, all the patch repair mortars tested in this study fulfill the re-quirement for Class R4 according to the standards EN 1504-3 for compressive strength (45MPa at 28 days). At early age (one day), the 10% QDL is more effective than 20% NP; however, at 28 days, the mixes incorporating NP developed more strength and resulted in approximately similar strength of the control mixture due to the fineness and pozzolanic reactivity of the NP.
The 28-days slant shear strength values obtained for all the composite cylinders satisfied the re-quirement of bond strength as per ASTM specifications. Moreover, the bond strength of the composite repaired by FR-SCRM1 repair material was more than that repaired by FR-SCRM2. The strength enhancement of FR-SCRM1 (1.5 MPa) is due to the large particles size of QDL, which might increase the friction at the interface.
According to the flexural bond strength experiments, all the substrate beams repaired by manu-factured repair materials with 1 cm thickness of mortar layer and stored in three curing condi-tions, showed that fractures have been occurred near mid span and no de-bonding has been ob-served. Hence, all the patch repair materials are considered compatibles in given curing condi-tions. In addition to this, the second curing environment (moist cure) is adequate to carry out durable repairs of concrete by these repair mortars, because of the high bond strengths of the composites in this environment compared to the other ones.
