A DFT study on the adsorption of benzodiazepines to vermiculite surfaces

ORIGINAL PAPER

A DFT study on the adsorption of benzodiazepines

to vermiculite surfaces

A. J. Palace Carvalho&A. V. Dordio& J. P. Prates Ramalho

Received: 28 February 2014 / Accepted: 8 June 2014 / Published online: 11 July 2014 # Springer-Verlag Berlin Heidelberg 2014

Abstract Widespread use of pharmaceuticals such as benzo-diazepines has been resulting over the last decades in the dissemination of residues of these compounds in the environ-ment, and such fact has been raising increasing concern. The generally low efficiencies of conventional wastewater treat-ment processes for the removal of this type of pollutants demands for the development of alternative or complementary water and wastewater treatment technologies, among which adsorption processes have been gaining popularity, provided that cheap efficient adsorbents are found. Clay materials have been one of the popular choices in this regard. In the present study, quantum chemical calculations have been performed by periodic DFT using the projector augmented-wave (PAW) method to characterize the interactions of two benzodiazepine molecules, alprazolam and diazepam, with a surface of clay mineral, vermiculite. It was observed that both molecules interact strongly with the vermiculite surface, both through a water-bridge binding and by cation-bridge provided by the exchangeable Mg2+ cations of the vermiculite surface. The results point to an interesting potential of vermiculite to be

used efficiently as filter medium to remove these pollutants from water and wastewater.

Keywords Adsorption . Benzodiazepines . Clay minerals . DFT . PAW . Vermiculite

Introduction

Benzodiazepines (BDZs) belong to the group of psychiatric substances which act on the central nervous system, having anxiolytic, sedative, and hypnotic effects and it is one of the most prescribed groups of pharmaceuticals throughout the world. Moreover, these compounds are not used exclusively for human therapeutics. In fact, their prescription is also common in veterinary treatments for anxiolytic and appetite stimulation effects.

There are several BDZs presently in use for therapeutic purposes, and the effects of the widespread consumption of these compounds extend to several facets of human life, including potential environmental and ecotoxicological issues [1–4]. Indeed, trace levels of BDZs can now be found dis-seminated on the environment, thus becoming a matter of ecological concern [1–6]. Over the last decade, there has been a significant number of studies reporting the occurrence of BDZs in environmental matrices, namely in wastewater treat-ment plants influents and effluents, surface waters, and drink-ing waters [5–11]. Some of the more frequently detected BDZs include alprazolam, diazepam, lorazepam, and oxaze-pam [5–11].

The main reason for the ubiquitous presence of BDZs in the environment is associated not only with the high consump-tions of these drugs but also the generally low efficiency of conventional biological wastewater treatment processes to remove these pharmaceutical residues [5–7]. It has been sug-gested that this inefficiency is due to the halogenated structure

This paper belongs to Topical Collection QUITEL 2013 A. J. P. Carvalho (*)

:

:

7000-671 Évora, Portugal e-mail: [email protected] A. J. P. Carvalho

:

CQE– Centro de Química de Évora, University of Évora, Rua Romão Ramalho 59, 7000-671 Évora, Portugal

A. V. Dordio

IMAR– Marine and Environmental Research Centre, University of Évora, Rua Romão Ramalho 59, 7000-671 Évora, Portugal J. P. P. Ramalho

CGE– Centro de Geofísica de Évora, University of Évora, Rua Romão Ramalho 59, 7000-671 Évora, Portugal

of these compounds that significantly reduces their suscepti-bility to biodegradation [12]. Adsorption processes are the most promising and cheap alternative for removal of this kind of organic xenobiotics from wastewaters. In recent years, inexpensive widely available materials have been investigated for the selection of efficient adsorbents that can make adsorp-tion processes an attractive soluadsorp-tion at reasonable costs. Among some of the adsorbents studied, clay-based materials have received some attention [13–19] due to their interesting properties such as the high cation exchange capacity, swelling properties, and high specific surface areas. In particular for the treatment of wastewaters, these materials can overcome the limitations of biological processes, as used in conventional wastewater treatment. A better understanding of the interac-tions of these organic molecules with clay minerals may thus allow a more judicious selection of materials to be made for application as water/wastewater treatment filters that present significant enhancements in the removal of BDZs. In addition, given the fact that clay minerals are an important component of most types of soils, a better characterization of the interac-tions of these substances with clay surfaces may contribute to understanding the fate of these pollutants in the environment, in particular by allowing a better description of the partition phenomena between the aquatic and soil compartments. In this regard, quantum chemical studies that can achieve the most accurate and detailed description of electronic and atom-ic level phenomena can be a valuable tool to discern the several aspects that can contribute to a more clear understand-ing of these processes. Specifically, these methods can eluci-date on which sites adsorption to a surface occurs at, the relative stabilities of the different binding sites and geometri-cal details that take place on the adsorbate and on the surface upon adsorption.

In this work, electronic structure calculations based on the density functional theory (DFT) are presented on the interac-tion of two representative BDZ molecules, diazepam (DZP) and alprazolam (APZ) (chemical structures in Fig.1), with a periodic model surface of a clay mineral, vermiculite. Geom-etry changes of the molecules upon adsorption were compared and the interaction energies with the surfaces were determined for a few different molecular orientations in order to under-stand the way these molecules interact with the clay surface and the essential factor governing the adsorption processes.

Computational details

A theoretical study of the interactions between adsorbing molecules of APZ and DZP with a vermiculite surface was carried out by density functional theory (DFT) calculations. This study was performed using the plane-wave based VASP software [20] with the Perdew–Burke–Ernzerhof (PBE)

generalized-gradient approximation of the

exchange-correlation functional [21] on a periodic slab model of the vermiculite surface. Density-functional theory calculations with different flavors of the generalized gradient approxima-tion (GGA) for the exchange–correlation functional have been extensively used in molecules on surface studies. The PBE functional in particular has recently been employed success-fully in studies of siliceous materials [22,23] and, in particu-lar, in the adsorption of organic molecules to clays [24–26].

A plane-wave basis set with an energy cutoff of 450 eV was employed and the electron–ion interactions were repre-sented through the projector augmented-wave (PAW) method of Blöchl [27] as implemented in VASP [28].

The model of the vermiculite surface was constructed based on a structure derived from crystallographic data report-ed by Shirozu and Bailey [29] as available in the American Mineralogist Crystal Structure Database [30]. Vermiculite is a 2:1 clay, i.e., with two tetrahedral sheets for each octahedral sheet. Vermiculites contain either Al3+or Mg2+and Fe2+as normal octahedral ions, and substitution of some Si4+ions by Al3+occurs in tetrahedral sheets. The negative charge caused by substitutions is neutralized by various hydrated cations present in the interlayer space.

In the model used in the calculations, the octahedral ions consisted exclusively of Mg2+and silicon was substituted by aluminum in a 1:3 ratio. The resulting net lattice charge was neutralized with hydrated Mg2+, thus yielding a chemical formula of Mg3Si3AlO10(OH)2.[Mg(H2O)6]1/2. The model slab consisted of a single T-O-T layer but due to the large size of the adsorbed molecules a single unit cell of the starting structure had to be expanded by replication into a 2×2×1 super-cell, which was defined by the following lattice param-eters (of a monoclinic structure): a=10.698 Å, b=18.510 Å, c=35.000 Å, andβ=97.12°. The vacuum thickness assured by this box is sufficiently large to avoid any noticeable inter-action between the repeated slabs and is large enough to obtain meaningful results by considering the Γ-point of the reciprocal space only.

Alprazolam Diazepam

Fig. 1 Chemical structures of the studied benzodiazepines, alprazolam (left) and diazepam (right)

During the calculations, the internal slab atoms were kept fixed at the bulk positions obtained from crystallographic data while the atoms in the top surface were allowed to relax in order to“adjust” to the molecules adsorption. The set of atoms with freedom to move in optimization included the adsorbed hydrated Mg2+ions and, of course, the adsorbing molecules of APZ or DZP.

Several initial structures were considered for the location of the adsorbates. The APZ and DPZ molecules were placed initially with electron-donating atoms (N or O) located over one atom of each of the surface atom types (Al, Si, or O) and, additionally, over one of the external hydrated Mg2+cations. The choice of these starting structures can be justified with the fact that previous studies on the adsorption of other small organic molecules to the surface of clay minerals ranked the interactions between organic adsobate’s heteroatoms and the clay’s external cations to be the strongest among all types considered [24].

Subsequent calculations were performed on a simplified system to better study the interactions of the adsorbing mole-cules and the surface Mg2+cations, in which case the hydra-tion water molecules of these cahydra-tions were removed and the whole procedure was repeated as in the previous calculations.

Adsorption energies were calculated by:

ΔEAds ¼ ESurf−Adsor− ESurf þ EAdsor

ð1Þ

where ESurf−Adsoris the energy of the geometry-optimized surface+adsorbate (OSA) system, ESurf is the energy of a separately optimized surface (including the hydrating water molecules when appropriate) and EAdsor is the energy of a separately optimized molecule in the gas phase. The energy of all the systems (isolated molecules, isolated surface, and sur-face+adsorbate systems) have been calculated using unit cells of the same size and same energy cutoffs.

In addition, adsorbate-adsorbent interaction energies were also calculated for the non-hydrated Mg2+systems by:

ΔEInt ¼ ESurf−Adsor− ESurfþ EAdsor
ð2Þ

where ESurf−Adsoris the energy of the OSA system (identical to ESurf−Adsorabove), whereas ESurf* is the energy (i.e., single-point calculation) of the surface in the same configuration that results from the surface+adsorbate optimization (i.e., the con-figuration of the OSA system with the adsorbate atoms re-moved) and EAdsor*is the energy (i.e., single-point calculation as well) of the adsorbate molecule in the adsorbed configura-tion (i.e., as obtained from the OSA system, without any further optimization in vacuum/gas phase). ESurf*and EAdsor* were calculated in unit cells of the same size and using the same energy cutoffs as employed for the OSA systems.

Energies of deformation of the adsorbate molecules and of the surfaces as a result of their interaction upon the adsorption process were also calculated, corresponding to the differences between the optimized isolated components and the corre-sponding configurations as obtained in the OSA systems, i.e., EAdsor−EAdsor*and ESurf−ESurf*respectively.

Results and discussion

Relevant initial configurations of the adsorbates were sampled by placing electron-donating atoms (N or O) of the adsorbates over one atom of each of the surface atom types (Al, Si, O) and, additionally, over one of the external Mg2+cations.

Starting from these initial configurations, the systems were permitted to relax by allowing modification of the positions of all of the adsorbate’s atoms as well as of the surface’s upper layer of atoms and the top Mg2+ cations (including their hydration waters in the case of the hydrated systems), until an energy minimized structure was obtained.

Systems with hydrated Mg2+surface cations

From all the initial configurations of the systems with hydrated Mg2+surface cations, only two of them evolved to configurations with favorable (negative) adsorption en-ergies (Table1). The resulting structures of these adsorbed systems are depicted in Fig.2, and the main features of the optimized geometries, namely the distances between the atoms which are involved in the binding between the adsorbates and the surface, are presented in Table2.

It can be observed that under the influence of the adsorbate molecules over the surfaces, the Mg+ions are slightly lifted from the surface. In the final energy minimized configurations of these systems, the only one that resulted in a favorable adsorption energy case was characterized, for both molecules, by departure from contact distance with the surface to a longer distance, and bound to the surface by means of a water molecule establishing a bridge through H-bonds to a N atom of the molecule on one side and to an O atom of the surface on the other (Fig.2).

In regard to the starting configuration set over the hydrated Mg2+cation, the energy minimized result also appears to be energetically favorable in the case of both molecules, with the cation thereby bridging the binding of the molecules to the surface. However, in comparison, this cation-bridge interac-tion seems weaker than the water H-bonds mediated adsorp-tion (Table1).

For the two adsorbates taken in comparison, the calcula-tions suggest that DZP has a stronger affinity for the vermic-ulite surface. Bonded to it either by cation bridge or H-bonds, the adsorption energies are more negative in both configura-tions than they are for the case of the APZ molecule.

Table 1 Energies (kJ mol-1) of adsorption and (only for the non-hydrated Mg2+systems) of surface-adsorbate interaction. In addition, energies due to the adsorbates and surface deformations to accommodate the adsorption phenomena are also presented

Mg bridge H-bonds bridge

a _ΔE

Adsb ΔEIntc ΔED mold ΔED surfe ΔEAdsb ΔEIntc ΔED mold ΔED surfe

APZh −9.27 −41.57

APZnh −101.56 −154.37 11.77 41.04

DZPh −24.07 −56.44

DZPnh 28.34 −163.00 16.42 174.92 30.93 −97.41 117.29 11.05 a_{indices h refer to systems with all hydrated surface Mg}2+_{cations (according to Fig.2); indices nh refer to systems where, on the adsorbate side of the}

surface, Mg2+ _{cations are not hydrated (according to Fig.3)} b

Adsorption energy, as defined by Eq. (1)

c

Interaction energy, as defined by Eq. (2)

d

Deformation energy of the adsorbate, as defined in the text (computational details)

e_{Deformation energy of the surface, as defined in the text (computational details)}

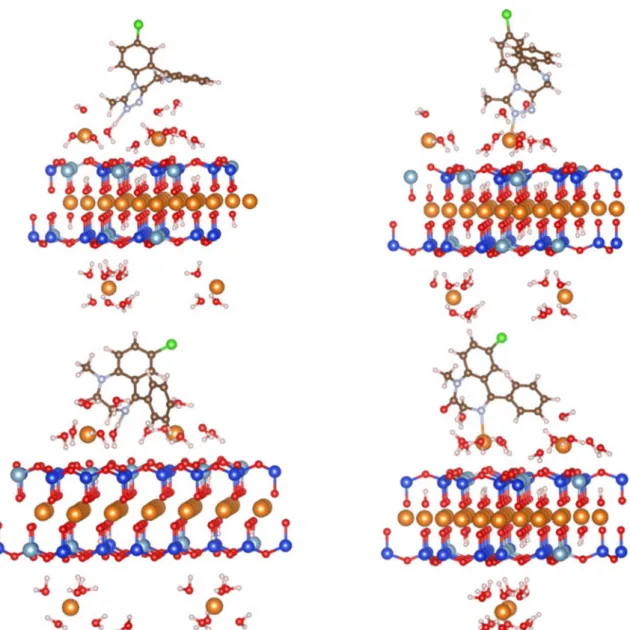

Fig. 2 Energy minimized geometries of the hydrated Mg2+surface cations systems: alprazolam adsorbate on top structures, diazepam adsorbate on bottom structures; water-bridge binding on left structures, and Mg2+_{-bridge binding on right structures}

Table 2 Features of the optimized geometries of APZ and DZP adsorbed to hydrated and non-hydrated vermiculite. Also the average distances to the surface of hydrated and non-hydrated surface Mg2+ _{cations are}

presented. Surface level is taken as the average z position of the outer surface oxygens. Negative distances to the surface mean positions which are below the surface level (toward the interior of the vermiculite slab)

Hydrated Non-hydrated

APZ DZP APZ DZP

Distances Surfd Mg bridge Water bridge Mg bridge Water bridge Surfd Mg bridge Mg bridge H-bond bridge Mg-Surf 2.078 2.152 1.896 2.003 1.961 −0.183 −0.206 −0.254 −0.218

2.184 2.160 2.222 2.185

Mol-Surfa 4.312 (N) 4.336 (N) 4.521 (C) 3.255 (C) 2.361 (N) 2.797 (C) 2.551 (O) X-Yb 2.212 (N-Mg) 1.766 (N-H) 2.451 (N-Mg) 1.776 (N-H) 2.109 (N-Mg) 2.170 (N-Mg) 1.024 (O-H) Y-Surfc 2.152 (Mg) 2.417 (Ow) 2.222 (Mg) 2.167 (Ow) 0.360 (Mg) 0.986 (Mg) 1.583 (H)

a

distance of the non-hydrogen atom of the molecule nearest to the surface (atom type given in parenthesis)

b_{distance between pair of atoms involved in the bridge structure (identity of the involved atoms X and Y are given in parenthesis)} c

distance of the bridging molecule/atom to the surface (the type of atom Y is given in parenthesis; Ow meaning that the water oxygen is taken as reference position of the molecule)

d

clean surface, without adsorbate

Fig. 3 Energy minimized geometries of the non-hydrated Mg2+surface cations systems: alprazolam adsorbate on top structure showing Mg2+-bridge binding; diazepam adsorbate on bottom structures, with Mg2+

-bridge on left and H-bond--bridge on right

Systems with non-hydrated surface Mg2+cations

Calculations were also performed on simplified systems with-out the hydration waters of the cations on the side of the surface in contact with the molecules (Fig. 3). Although unrealistic, since in real applications these systems are always hydrated, these calculations are useful for better illustrating the extent of the Mg2+interactions with the molecules and for better characterizing the cations’ role in the adsorption process.

In the absence of the hydration of the Mg2+cations in the vicinity of the adsorbates, there are no water molecules to provide a bridge between the molecules and the surface through H-bonds. For APZ, a cation bridge is the only pro-vided mechanism for adsorption of the molecule to vermicu-lite. However, in the case of DZP, two different bindings are found: in addition to the cation bridge structure, a kind of tautomeric modification is observed as a result of the energy minimization procedure, where a H atom transfers from a neighboring CH2group to the carbonyl group and subsequent-ly provides a H-bond between the carbonyl’s O atom of the adsorbate and an O atom of the surface (Fig.3). Of all these energy minima, however, only the APZ configuration corre-sponds to negative adsorption energies at this level of theory whereas both structures obtained for DZP seem less favorable for the adsorption of this molecule to vermiculite. The reasons for this observation can be understood by considering the energies of adsorbate-surface interaction (as defined in the methods section) and the deformation energies for the adsor-bate molecules and for the surfaces. In fact, the interaction energy between a DZP molecule and the surface is somewhat more negative than in the case of APZ. However, as a result of not being hydrated, the Mg2+cations coalesce into the surface of the vermiculite slab during the energy minimization, but the DZP molecule has the effect of pulling one Mg2+cation off the surface (Fig. 3 and Table 2) which results in a sufficiently positive energy associated with this deformation of the surface to also yield a positive value for the adsorption energy. In regard to the other minimum, the adsorbate-surface interaction energy for this structure is also very negative (although much lower in absolute value than the Mg-bridged interaction) but in this case it is the deformation of the adsorbate molecule that is very unfavorable, due to the involvement of a H transfer as described above.

Overall, the strong adsorbate-surface interactions obtained for all of these configurations are in line with the adsorption energies yielded in the fully-hydrated Mg2+systems and fol-low the qualitative trends observed in the former cases. How-ever, the significant modifications that occur in the absence of the water molecules in latter cases are responsible for the positive adsorption energies observed for DZP in these unre-alistic situations. Nevertheless, these calculations reaffirm the strong interactions of the molecules with the Mg2+bridge and

the preference toward DZP. It is interesting to note that the importance of cation-bridge structures has also been evi-denced in a previous study on the adsorption of DNA/RNA bases to a different clay surface, montmorillonite [24]. In that work the electrostatic type of interactions between the nucleobases’ heteroatoms (N or O) and the Na+

cation of the surface are found to be the most energetic among all the other studied possibilities. In fact, in comparison, the adsorption energy obtained in this work for AZP interacting through a N atom with the non-hydrated Mg2+cation (−101.6 kJ mol-1) is of the same order as the adsorption energy of, e.g., the guanine base interacting with a Na+cation through the same heteroatom (−90.4 kJ mol-1

).

Further insights into the adsorbate-substrate interaction were gained by analyzing the atomic charges obtained from the“atoms in molecules” (AIM) topological analysis of Bader [31].

Fig. 4 Electron density difference between the adsorbed AZP (top) and DZP (bottom) and the separated systems. The yellow and light blue regions correspond to electron depletion and accumulation, respectively. The isosurface values are−0.003 and +0.003 e/Å3

Calculating the Bader charges of the free and adsorbed molecules by summing over the partial Bader charges of the corresponding atoms one can estimate the charge transfer that occurs between the molecules and the surface upon adsorption. Upon conclusion of this calculation, a charge transfer of 0.053 electrons from APZ to the surface was observed, whereas in the case of DZP the charge transfer was only of 0.036 electrons. The small amount of charge transferred upon adsorption is in agreement with the calculated adsorption energies.

A more comprehensive picture of the interaction between the molecules with the surface results from analysis of the electron density difference defined as:

Δρ rð Þ ¼ ρSurf−Adsorð Þ−ρr Surfð Þ−ρr Adsorð Þr ð3Þ

whereρSurf−Adsor(r) is the electronic density of the adsorbate covered surface andρSurf(r) andρAdsor(r) are the densities of the surface and the adsorbate respectively. This difference of the electronic densities illustrates the electronic reorganization that results from adsorption. Electron density difference plots are depicted in Fig.4for the APZ and DZP adsorption through the Mg2+bridge case. It is clear from the picture that the small charge transfer comes from the molecules’ nitrogen toward the magnesium cation.

Conclusions

The adsorption of two benzodiazepine molecules, diazepam and alprazolam, on a periodic model surface of vermiculite has been studied by periodic DFT methods. It was observed that adherence of these molecules to the vermiculite surface can be attained by two effects, through bridging by Mg2+ cations or by a water molecule via H-bonds to the molecules and to the surface. When comparing the two adsorbates, the calculations suggest that DZP has a stronger affinity for the vermiculite surface. Bader charges analysis showed that in both cases a small charge is transferred from the molecules to the surface.

Further developments on the present model can be devised, for instance, a more refined model where full hydration of the system is considered as well as the study of the process in the interlayer space between two vermiculite sheets (which allows the modeling of intercalation processes in the expandable structure of vermiculite) may provide a more realistic assess-ment of organic molecules’ adsorption phenomena onto this clay mineral. Work along these lines is currently underway.

Vermiculite is a mineral with both ingredients to provide efficient capture of these two compounds by adsorption phe-nomena, namely it is an extensively hydrated mineral and it possesses abundant exchangeable cations on its surfaces, both of which can provide the bridging effects that have been

observed in this work and, consequently, a strong interaction between the adsorbates and the surface. This study suggests vermiculite as a promising and cheap alternative for removal of these drugs from waters and wastewaters through adsorp-tion processes.
