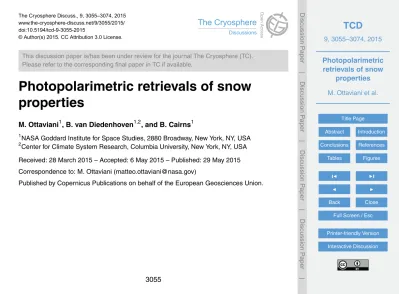

The Cryosphere Discuss., 9, 3055–3074, 2015 www.the-cryosphere-discuss.net/9/3055/2015/ doi:10.5194/tcd-9-3055-2015

This discussion paper is/has been under review for the journal The Cryosphere (TC). Please refer to the corresponding final paper in TC if available.

Photopolarimetric retrievals of snow

properties

M. Ottaviani1, B. van Diedenhoven1,2, and B. Cairns1

1

NASA Goddard Institute for Space Studies, 2880 Broadway, New York, NY, USA

2

Center for Climate System Research, Columbia University, New York, NY, USA

Received: 28 March 2015 – Accepted: 6 May 2015 – Published: 29 May 2015

Correspondence to: M. Ottaviani ([email protected])

(2)

TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Abstract

Polarimetric observations of snow surfaces, obtained in the 410–2264 nm range with the Research Scanning Polarimeter onboard the NASA ER-2 high-altitude aircraft, are analyzed and presented. These novel measurements are of interest to the remote sensing community because the overwhelming brightness of snow plagues aerosol

5

and cloud retrievals based on air- and space-borne total reflection measurements. The spectral signatures of the polarized reflectance of snow are therefore worthwhile in-vestigating in order to provide guidance for the adaptation of algorithms currently em-ployed for the retrieval of aerosol properties over soil and vegetated surfaces. At the same time, the increased information content of polarimetric measurements allows for

10

a meaningful characterization of the snow medium. In our case, the grains are mod-eled as hexagonal prisms of variable aspect ratios and microscale roughness, yielding retrievals of the grains’ scattering asymmetry parameter, shape and size. The results agree with our previous findings based on a more limited dataset, with the majority of retrievals leading to moderately rough crystals of extreme aspect ratios, for each scene

15

corresponding to a single value of the asymmetry parameter.

1 Introduction

The development of accurate techniques for the retrieval of climatologically relevant pa-rameters in snow-covered regions is of obvious importance for the success of climate models predictions (Comiso, 2006; Zwally and Giovinetto, 2011; Zatko et al., 2013). For

20

instance, the retrieval of grain size and surface temperature leads to information that can be used to map the snow melting state, valuable to understand the mass balance of the ice sheets (Stamnes et al., 2007; Lyapustin et al., 2009). Passive optical sen-sors are employed in this regard to evince the optical and microphysical properties of snow grains from measurements of snow reflectance, and advanced algorithms have

25

(3)

TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

(MODIS) and sensors with similar capabilities (Hori et al., 2007; Aoki et al., 2007; Jin et al., 2008; Stamnes et al., 2011). However, the limited information content of such measurements translates into uniqueness problems during the retrieval process, with the result that operational snow products are still limited to snow covered area and albedo (with the exception of the recent addition to MODIS of the dust radiative forcing

5

product as described in Painter et al., 2012). Polarimetric remote sensing (Diner et al., 2007; Cairns et al., 2009; Dubovik et al., 2011; Hasekamp et al., 2011; Chowdhary et al., 2012; Ottaviani et al., 2012a; Knobelspiesse et al., 2012) adds to the information contained in MODIS-type observations because it can provide information on the ice grain shape (van Diedenhoven et al., 2012; Ottaviani et al., 2012b) and an accurate

10

characterization of the optical and microphysical properties of aerosols present in the scene including possible impurities embedded in the snowpack. The benefits of pas-sive polarimetric observations originate from both their extreme sensitivity to particle microphysics and the specifics of surface polarized reflectance. For conventional land types (soil, vegetation), the latter can be eff_{ectively parameterized as a scaled Fresnel}

15

reflection function with negligible spectral dependence. As a consequence, the sepa-ration of the signal into its surface and atmospheric contributions (i.e., the atmospheric correction procedure) is achieved with improved accuracy.

The NASA GISS Research Scanning Polarimeter (RSP, Cairns et al., 1999), born as an aerosol research instrument, collects a target’s total and polarized reflectance

20

with high accuracy in 9 bands between 410 and 2264 nm and at 152 viewing angles per scene. A recent deployment led to the first published study of the polarimetric signatures of snow reflectance from airborne observations (Ottaviani et al. (2012b), hereafter referred to as O12). In that case, the measurements were acquired over a topologically complex terrain in the Yosemite National Park region and processed with

25

(4)

TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

retrieval scheme to a more recent dataset of improved quality, in terms of the flatness of the surveyed terrain.

In the next section we describe the data collection, and in Sect. 3 the processing scheme. In Sect. 4 we discuss the results obtained from the analysis. The conclusions are found in Sect. 5.

5

2 Data

The data analyzed here were collected onboard the high-altitude ER-2 aircraft during the POlarimeter Definition EXperiment (PODEX) mission, a NASA eff_{ort to ultimately}

test and compare the performance of diff_{erent polarimeters, as part of the Decadal}

Survey activities and in preparation of the Studies of Emissions and Atmospheric

Com-10

position, Clouds and Climate Coupling by Regional Surveys (SEAC4RS) campaign. Compared to more traditional aircraft such as the King Air B200 used in O12, the ER-2 off_{ers the advantages of a perspective more similar to that of a satellite. For example,}

interference caused by cirrus clouds is readily assessed using the RSP 1880 nm chan-nel, which is usually very dark because of the strong absorption by tropospheric water

15

vapor that masks the surface, and is therefore very sensitive to high-altitude clouds. There is in fact interest in exploiting this wavelength as a cirrus screener in a broader context, since cold places tend to have dry atmospheres and the reflectance of snow at 1880 nm is much less than at, say, 1380 nm (the eff_{ective strength of absorption by}

ice at 1880 nm is twice that exhibited at 1380 nm). Also, RSP operations on the ER-2

20

benefit from the stable attitude intrinsic to stratospheric flights, which enhances data quality since the RSP scans along the flight track (approximately 50◦_{on either side of}

nadir) to assemble the multiangle view of a target’s reflectance from subsequent scans. About a dozen snow-covered targets were selected for the 6.8 h flight over Colorado and the Sierra Nevada range in California on 15 March 2012. Well-formed

snow-25

(5)

TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

(39◦₀₈′_{N, 108}◦₁₂′_W,

∼3000 m a.s.l.) in Western Colorado exhibits remarkable flatness

and a consistent snowpack with a depth of greater than one meter from nearly simulta-neous in-situ surveys (Mesa Lakes SNOTEL site managed by the Natural Resources and Conservation Service of the US Department of Agriculture, and M. Skiles, personal communication, 2013). Lake Granby (40◦₁₀′_{N, 105}◦₅₃′_W,

∼2500 m a.s.l.), the third

5

largest body of water in Colorado and second largest reservoir, was frozen at the time of the overpass and covered with a thin layer of aged, likely metamorphosed snow (the SNOTEL site at Stillwater Creek reports a snow depth of_∼0.5 m). The scene denoted by Derby Peak (39◦₅₉′_{N, 107}◦₁₀′_W,

∼3500 m a.s.l.) is another high-altitude rather flat

region (in fact belonging to the Flat Tops Wilderness Area). The closest SNOTEL site

10

at Trapper Lake, 2950 m a.s.l., reports a snow depth of 0.7 m.

3 Methodology

The details of the method employed for the atmospheric correction procedure are ex-plained in detail in O12. In short, the Jacobians generated from the linearization of the Doubling-Adding radiative transfer code in use at GISS (De Haan et al., 1987) are used

15

to separate the surface and atmospheric signals within an iterative scheme based on a general inversion and optimization procedure (Rodgers, 2000). This iterative scheme decouples the surface and the atmospheric contributions of the total signal measured at instrument altitude, while expressing the surface total reflectance as the weighted sum of three kernels as in the RossThick – LiSparse form (Wanner et al., 1995; Lucht

20

et al., 2000):

R(Θ₎=_f

iso+fvolKvol(Θ)+fgeoKgeo(Θ) (1)

whereΘ_{is the scattering angle. The three terms on the right-hand side describe}

dif-ferent scattering mechanisms: a Lambertian component for isotropic reflection, a vol-umetric term Kvol for scattering from small structures and a geometric term Kgeo for

(6)

TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

a macroscopic shadowing from large objects. Although this model was created for re-flection from surfaces other than snow, its mathematical form adapts without problems to snowpacks, with the isotropic kernel systematically assuming the largest weight be-cause of the dominance of multiple scattering in the reflection of light from snow.

As far as the polarized reflectance is concerned, we instead employ a scaled Fresnel

5

kernel elsewhere used for vegetated surfaces (Nadal and Bréon, 1999):

Rp=

Fp(θi) 4[cos(θ_s)+_cos(_θ

v)]

(2)

with the fractional polarized reflectanceFp(θi) given by (Born and Wolf, 1999):

Fp(θi)= 1 2

" _n

1cosθi−n2cosθt n1cosθi+n2cosθt

2

−

_n

2cosθi−n1cosθt n2cosθi+n1cosθt

2#

(3)

where n1 and n2 are the indices of refraction of pure air and ice, and the angle of

10

refractionθtis connected to the angle of incidenceθiby Snell’s law.

Shifting the attention to the retrieval of crystal habit, the polarized reflectance at 864 nm is used because of the very weak ice absorption at this wavelength and the relatively weak Rayleigh scattering contribution. In these retrievals, the fit is sought to the RSP measurements by using a database of ice crystal properties to implement the

15

radiative transfer within the snow layer. Limited by the lack of constraints on the correct optical properties, very few studies have departed from the common practice of assum-ing spherical shapes for the snow grains, an approximation which can negatively impact the quality of the albedo products (Tedesco and Kokhanovsky, 2007; Aoki et al., 2000). In our case, the description of the snowpack is refined by treating it as a compact,

20

(7)

TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

regardless of its capability to mimic the true shape of the crystals. There is recogni-tion that hexagonal plates and columns can be eff_{ectively used as radiative proxies for}

more complex crystal habits (Fu, 2007; Baran, 2009; van Diedenhoven et al., 2012; Ottaviani et al., 2012a). As demonstrated by van Diedenhoven et al. (2012), matching measured polarized reflectances with simulated values by adjusting the aspect ratios

5

and roughness parameters of simple hexagonal particles yields an estimate of the asymmetry parameter of the more complex ice crystals within the top of the snowpack. Our database, initially created to be of use for the retrieval of ice clouds properties, con-tains 765 diff_{erent combinations of aspect ratios and roughness parameters and was}

computationally assembled by running Monte Carlo simulations based on geometric

10

optics (Macke et al., 1996). The use of conventional geometric optics and the simple parameterization of rough crystals were evaluated by van Diedenhoven et al. (2012).

The retrieval of grain size is instead based on the total reflectance at selected Short-Wave InfraRed (SWIR) bands where ice absorption is high. The total reflectance of an optically semi-infinite snow layer at 2264 and 1594 nm is eff_{ectively determined by the}

15

asymmetry parameter and the single scattering albedo at the respective wavelength. The single scattering albedo at a given wavelength in turn is mainly determined by the eff_{ective diameter of the ice crystals. The grain diameter is not unequivocally}

de-fined in the literature, which is understandable since the definition of snow grain itself is often ambiguous. There is a consensus for expressing grain eff_{ective diameter as}

20

proportional to the ratio of crystal volume to projected area, but the value of the multi-plier can vary according to the specific choice of the author (Kokhanovsky et al., 2011; Kokhanovsky and Zege, 2004; Aoki et al., 2000). In line with several recent publications (see for example Zege et al., 2011; Jin et al., 2008), we define it as 3/2 times the ratio of their volume over the crystal surface area as outlined in the Appendix, which includes

25

the details of the relationship to geometric size. Here, we estimate the eff_ective

(8)

TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

this end, various modified gamma size distributions were applied to yield varying ef-fective diameters and the doubling-adding radiative transfer code was used to simulate the corresponding 1594 and 2264 nm reflectances (van Diedenhoven et al., 2014). For conditions equivalent to those found in snowpacks, Bi et al. (2014) showed that the errors in retrieved eff_{ective radius attributable to the use of the conventional}

geomet-5

ric optics approach are below 5 %. In the analysis, it should be remembered that the 1594 and 2264 nm channels experience diff_{erent penetration depths, with the former}

weighted more towards the top layer while the latter probes deeper into the medium: as a consequence, the retrieved sizes contain information on the vertical structure of the snowpack (Wang et al., 2009; Li et al., 2001; Warren, 1982).

10

As far as the atmospheric component is concerned, the high elevation of these alpine scenes allowed us to assume negligible contributions from aerosols, so that in the ra-diative transfer code a standard Rayleigh atmosphere was used with a surface pres-sure extrapolated at the indicated altitude. Cirrus-free conditions were guaranteed from the screening procedure described earlier. The SWIR channels were corrected for the

15

minimal interference caused by absorption from a standard amount of trace gases. There certainly is debate on the applicability of the radiative transfer theory to a densely packed medium as snow. In any case, the formalism is recognized to model the total reflectance with suffi_{cient accuracy for reasons likely associated with the large}

number of scattering events taking place within the snowpack. Based on this

assump-20

tion, the method is expected to perform even better for the polarization component because the polarimetric signatures of a medium are known to originate from its top layer (van Diedenhoven et al., 2013): deeper into the medium (i.e., past the first units of optical depth) multiple scattering randomizes polarization.

4 Results and discussion

25

The core of our findings is condensed in Fig. 1. The analysis for each scene (diff_erent

(9)

spa-TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

tial resolution of about 225 m, since averaging over a few adjacent aggregated scans did not show appreciable scan-to-scan variability, revealing more or less uniform snow conditions within the instrument instantaneous field of view. The upper panels show the results of the iterative correction scheme applied to the relevant RSP channels. With the exception of O12, the visible and SWIR behavior of the polarized reflectance

5

of snow has not been previously published. Real-time imagery from the high-resolution camera onboard the ER-2, overlaid to Google Earth, is included for context.

The total reflectance exhibits the familiar high spectral albedo in the visible, although with some expected scene-to-scene variability. Lake Granby in particular shows lower total reflectance than the other two scenes; in situ simultaneous surveys from the

per-10

sonnel at the US Forest Service in Arapaho National Forest reported a snow depth on the order of 5–8 cm. These values are close to the limit of thickness required to visually mask the underlying surface, leaving the possibility that the lake ice underneath the snow cover is darkening the reflectance. Nevertheless, it should be remembered that a layer of a few millimeters is suffi_{cient to fulfill the semi-infinite approximation at the}

15

long wavelengths used for the retrieval of grain size. Conversely, the SWIR channels at 1594 and 2264 nm are very dark as expected by the strong absorption of ice at these wavelengths. The polarized reflectance as a function of the scattering angle is very similar among the three scenes. Note that in the case of Derby Peak the flight track was oriented at about 45◦ _{with respect to the principal plane (i.e. the plane defined by}

20

the solar azimuth and the normal to the surface), leading to a smaller range of scat-tering angles collected by the RSP. It has already been observed in O12 as the land model used for the polarized reflectance converges to zero toward backscatter (scat-tering angle>160◦_{), and in this region agreement with the data is not to be expected.}

It is useful to quantify the spectral spread of the channels by examining the diff_erences

25

(10)

TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

wavelengths when aerosols retrievals are attempted. The residuals with respect to the 2264 nm polarized reflectance are found to be within 0.005, which as in O12 is larger than conventional land surfaces but still very small. The polarized reflectance is small too in absolute value.

Shifting the attention to the search of a snow model, the plots at the bottom contour

5

the Root Mean Square Error (RMSE) of the data fit to each combination of aspect ratio and roughness parameter in the database. Multiple combinations led to a satisfactory fit to each of the three polarized reflectance observations, so we considered as optimal all habits with an RMSE falling below a small threshold value (4.5_×10−7_{). These minima,}

marked with red circles, therefore correspond to those crystal habits that when used

10

to model the snowpack at the bottom of the simulated atmosphere yield the best fits to the data. The analysis shows that the polarized reflectances are consistent with particles that have components that are like thin plates or like thin columns, a fact already observed in O12. Interestingly, the butterfly-like topology of the RMSE was recognized to closely resemble that obtained for the asymmetry parametergplotted vs.

15

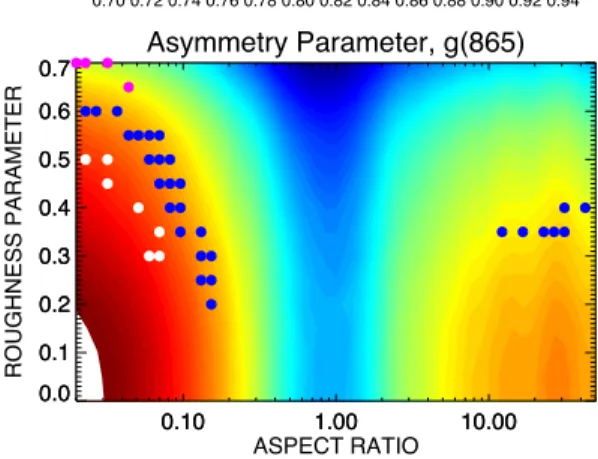

the same coordinates (Fig. 2). In each scene, the optimal crystal habits are associated with very similar values of the asymmetry parameter (0.84 for Lake Granby, 0.876 for Derby Peak and 0.90 for Grand Mesa). This result is understood by considering that the asymmetry parameter is the main descriptor for the scattering properties. As demonstrated by van Diedenhoven et al. (2012) using a large variety of complex ice

20

crystal shapes, all the combinations of aspect ratio and roughness parameter fitting a polarized reflectance measurement are ultimately characterized by similar values of

g. Consequently, they will also yield similar particles size retrievals.

All retrieved parameters are conveniently reported for comparison in Table 1, to-gether with the results of the size retrievals. Using the simple approach outlined in

25

the previous section, we obtained eff_{ective diameters equal to 152, 182 and 144 µm}

(11)

TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

penetration depths of the two channels, indicating crystal size increasing with depth as expected (Hori et al., 2007; Li et al., 2001; Aoki et al., 2000; Warren, 1982). These values, at the lower end of common retrieval ranges, are normally associated with fresh snow conditions as found in studies based on other remote sensors in alpine regions (Negi and Kokhanovsky, 2011; Painter et al., 2009; Dozier and Painter, 2004;

5

Nolin and Dozier, 2000) and polar plateaus (Lyapustin et al., 2009; Hori et al., 2007). However, a direct comparison is challenged by diff_{erences in the definition of grain size,}

assumptions on grain sphericity and diff_{erent penetration depths achieved by the use}

of selected instrument channels. The larger grain sizes obtained for the Lake Granby scene were attributed to the shallow aged snow over the lake, since metamorphized

10

snow is recognized to be composed of larger grains (Aoki et al., 2000; Warren, 1982).

5 Conclusions

We have presented the extension of a novel analysis described by Ottaviani et al. (2012b) to a dataset acquired with the high-accuracy RSP airborne instrument overfly-ing high-altitude snow fields. The data were processed within an automated retrieval

15

scheme capable of isolating the surface contribution. The spectral dependence of the polarized reflectance is larger than for soil or vegetated surfaces, but nonetheless small. This fact has important implications for the construction of advanced algorithms which aim at the retrieval of the microphysical properties of aerosols layers located over ice and snow fields.

20

Furthermore, we applied a retrieval procedure which is demonstrated to yield snow microphysical parameters of primary climatological interest. We retrieve snowpacks be-having as a collection of grains of extreme geometries (thin plates and/or long columns) and moderate to high microscale roughness. These results reinforce those of our pre-vious study based on a limited dataset acquired over very rugged terrain. For each

25

(12)

simi-TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

lar values of the asymmetry parameter. Size retrievals were also tested, leading grain eff_{ective diameters in the 140–180 µm range.}

Appendix: Size descriptors for hexagonal prisms

The results of Macke’s Geometric Optics code were tabulated with the choice of the radius of the sphere with equal surface area,rsph, as a size descriptor. This parameter

5

is linked to the geometric size of hexagonal prisms and to the grain eff_{ective diameter}

by the following relations:

Ahex=4π rsph2 (Surface area of sphere and hexagonal prism) (A1)

Ap=Ahex/4=π r_sph2 (Projected surface area of hexagonal prism) (A2)

rhex=

s

4Ap

3√3+₁₂_α

(Radius or side length of hexagonal prism) (A3)

10

V =₃p₃_{α r}3

hex (Volume of hexagonal prism) (A4)

deff= 3 2

V Ap

= 6

√

3α

√

3+₄_αrhex (E

ff_{ective diameter)} _(A5)

whereαis the aspect ratio, defined as the ratio of the cross section width of the prism to its length. The last expression is valid for a single particle of any solid shape. In case of a polydisperse collection of particles, the eff_{ective diameter is obtained through}

15

integration over a size distribution:

Deff= 3 2

R_∞

0 V(D)N(D) dD

R_∞

0 Ap(D)N(D) dD

(A6)

(13)

TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Acknowledgements. This work was possible through the dedication of the ER-2 pilots Tom Ryan, Dean Neeley and Stu Broce. Their exceptional skills and proactive attitude towards the goals of the mission were critical to success. The assistance of personnel on the ground was invaluable, especially that of Hans Moosmüller from the Desert Research Institute, Davide Sar-toni from Mistras-Ropeworks, Rick Brinkam from Water Services at the City of Grand Junction, 5

Sam Williams and Aldin Strautins from NOAA, McKenzie Skiles from NASA JPL, Holly King from the Trappers Lake Lodge, and Dan Matthews and John Saye from the US Forest Service in Arapaho National Forest. We also thank Rose Dominguez and Dennis Gearhart from NASA GSFC for providing access to the ER-2 DCS camera imagery. The RSP data used for this anal-ysis are publicly available on the GISS server (http://data.giss.nasa.gov/pub/rsp/). The graphs 10

were produced with IDL©supplemented by David Fanning’s Coyote Graphics free library of rou-tines. Partial support from the Radiation Sciences Program managed by Hal Maring is gratefully acknowledged.

References

Aoki, T., Aoki, T., Fukabori, M., Hachikubo, A., Tachibana, Y., and Nishio, F.: Eff_{ects of snow} 15

physical parameters on spectral albedo and bidirectional reflectance of snow surface, J. Geo-phys. Res., 105, 10219–10236, 2000. 3060, 3061, 3065

Aoki, T., Hori, M., Motoyoshi, H., Tanikawa, T., Hachikubo, A., Sugiura, K., Yasunari, T. J., Storvold, R., Eide, H. A., Stamnes, K., Li, W., Nieke, J., Nakajima, Y., and Takahashi, F.: ADEOS-II/GLI snow/ice products – Part II: Validation results using GLI and MODIS data, 20

Remote Sens. Environ., 111, 274–290, 2007. 3057

Baran, A.: A review of the light scattering properties of cirrus, J. Quant. Spectrosc. Ra., 110, 1239–1260, 2009. 3061

Bi, L., Yang, P., Liu, C., Yi, B., Baum, B. A., van Diedenhoven, B., and Iwabuchi, H.: Assessment of the accuracy of the conventional ray-tracing technique: Implications in remote sensing and 25

radiative transfer involving ice clouds, J. Quant. Spectrosc. Ra., 158–174, 2014. 3062 Born, M. and Wolf, E.: Principles of Optics, 7th (expanded) Edn., Cambridge University Press,

1999. 3060

(14)

TCD

9, 3055–3074, 2015

properties

M. Ottaviani et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

ference Series, Vol. 3754, edited by: Goldstein, D. H. and Chenault, D. B., Denver, CO, USA, 18 July 1999, 186–196, 1999. 3057

Cairns, B., Waquet, F., Knobelspiesse, K., Chowdhary, J., and Deuzé, J.: Polarimetric remote sensing of aerosols over land surfaces, Chap. 10, Springer-Praxis Books in Environmental Sciences, Chichester, UK, 295–325, 2009. 3057

5

Chowdhary, J., Cairns, B., Waquet, F., Knobelspiesse, K., Ottaviani, M., Redemann, J., Travis, L., and Mishchenko, M.: Sensitivity of multiangle, multispectral polarimetric re-mote sensing over open oceans to water-leaving radiance: analyses of RSP data acquired during the MILAGRO campaign, Remote Sens. Environ., 118, 284–308, doi:10.1016/j.rse.2011.11.003, 2012. 3057

10

Comiso, J. C.: Arctic warming signals from satellite observations, Weather, 61, 70–76, 2006. 3056

De Haan, J., Bosma, P., and Hovenier, J.: The adding method for multiple scattering calculations of polarized light, Astron. Astrophys., 183, 371–391, 1987. 3059

Diner, D. J., Davis, A., Hancock, B., Gutt, G., Chipman, R. A., and Cairns, B.: Dual-photoelastic-15

modulator-based polarimetric imaging concept for aerosol remote sensing, Appl. Optics, 46, 8428–8445, 2007. 3057

Dozier, J. and Painter, T.: Multispectral and hyperspectral remote sensing of alpine snow prop-erties, Annu. Rev. Earth Pl. Sc., 32, 465–494, 2004. 3065

Dubovik, O., Herman, M., Holdak, A., Lapyonok, T., Tanré, D., Deuzé, J. L., Ducos, F., 20
