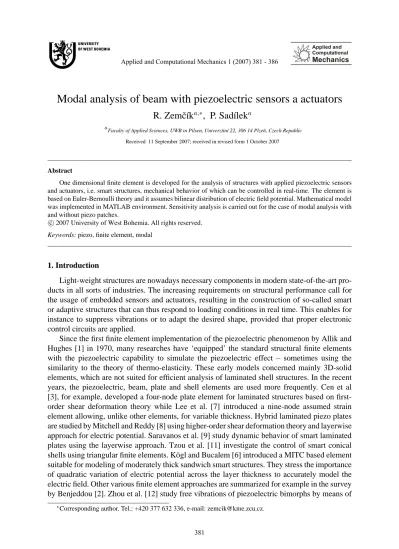

Modal analysis of beam with piezoelectric sensors a actuators
R. Zemcˇı´k
a,∗, P. Sadı´lek
aaFaculty of Applied Sciences, UWB in Pilsen, Univerzitnı´ 22, 306 14 Plzenˇ, Czech Republic
Received 11 September 2007; received in revised form 1 October 2007
Abstract
One dimensional finite element is developed for the analysis of structures with applied piezoelectric sensors and actuators, i.e. smart structures, mechanical behavior of which can be controlled in real-time. The element is based on Euler-Bernoulli theory and it assumes bilinear distribution of electric field potential. Mathematical model was implemented in MATLAB environment. Sensitivity analysis is carried out for the case of modal analysis with and without piezo patches.
c
2007 University of West Bohemia. All rights reserved.
Keywords: piezo, finite element, modal
1. Introduction
Light-weight structures are nowadays necessary components in modern state-of-the-art pro-ducts in all sorts of industries. The increasing requirements on structural performance call for the usage of embedded sensors and actuators, resulting in the construction of so-called smart or adaptive structures that can thus respond to loading conditions in real time. This enables for instance to suppress vibrations or to adapt the desired shape, provided that proper electronic control circuits are applied.
Since the first finite element implementation of the piezoelectric phenomenon by Allik and Hughes [1] in 1970, many researches have ‘equipped’ the standard structural finite elements with the piezoelectric capability to simulate the piezoelectric effect – sometimes using the similarity to the theory of thermo-elasticity. These early models concerned mainly 3D-solid elements, which are not suited for efficient analysis of laminated shell structures. In the recent years, the piezoelectric, beam, plate and shell elements are used more frequently. Cen et al [3], for example, developed a four-node plate element for laminated structures based on first-order shear deformation theory while Lee et al. [7] introduced a nine-node assumed strain element allowing, unlike other elements, for variable thickness. Hybrid laminated piezo plates are studied by Mitchell and Reddy [8] using higher-order shear deformation theory and layerwise approach for electric potential. Saravanos et al. [9] study dynamic behavior of smart laminated plates using the layerwise approach. Tzou et al. [11] investigate the control of smart conical shells using triangular finite elements. Ko¨gl and Bucalem [6] introduced a MITC based element suitable for modeling of moderately thick sandwich smart structures. They stress the importance of quadratic variation of electric potential across the layer thickness to accurately model the electric field. Other various finite element approaches are summarized for example in the survey by Benjeddou [2]. Zhou et al. [12] study free vibrations of piezoelectric bimorphs by means of
analytical solution. Heyliger [4] and later Heyliger and Wu [5] present exact analytical solution for laminated piezoelectric cylinder and sphere, respectively. Zemcˇı´k et al. [13] developed four-noded piezoelectric shell element and implemented into commercial code ANSYS.
The element proposed in this paper is two-noded and has two structural degrees of freedom (DOFs) at each node plus two DOFs for electric potential. The piezoelectric coupling is full and direct (i.e. non-iterative), and it is intended for the simulation of applied piezoelectric layers – patches.
2. Mathematical model
2.1. Constitutive equations
The theory of piezoelectric materials used here assumes symmetrical hexagonal piezoelectric structure – class 6mm (C6v). Only the laminar piezoelectric effect (so-calledd31effect [10]) is
considered, i.e., the material is polarized in the thickness direction. The stress-strain law for each piezoelectric element can be written as
σ = Cε − eTE
,
D = eε + ǫE, (1)
where D is the vector of electric flux density, ǫis the dielectric permittivity matrix, e is the
piezoelectric coefficient matrix andEis the electric field vector.
The permittivity matrixǫis defined as
ǫ =
ǫ11 0 0
0 ǫ22 0
0 0 ǫ33
(2)
and the piezoelectric matrixeas
e =
0 0 0 0 e15 0
0 0 0 e24 0 0
e31 e32 e33 0 0 0
. (3)
2.2. Analytical formulation
The beam element is based on Euler-Bernoulli theory. It has two nodes with one deflection
wiand one rotationalϕiDOF at each node (see fig. 1). Let the deflectionw(x)across the length
be approximated by the polynomial:
w(x) = a0+a1x+a2x 2
+a3x 3
=Nw, (4)
whereNis matrix of approximation functions and the structural DOF vector is ordered as
w= [wn, ϕn, wn+1, ϕn+1]T. (5)
Then, the axial displacement can be written as
u(x, z) = zϕ(x) =z∂w
Fig. 1. Element geometry example. Piezo material (dark grey) and its supporting structure (light grey) sharing common nodes (degrees of freedom).
and, consequently, the axial strain is
ε(x, z) = ∂u
∂x =z ∂2
w
∂x2 =Bw, (7)
whereBis strain-displacement matrix consisting of shape functions derivatives.
Similarly, let the electric field potentialφ(x, z)be approximated by bi-linear function
φ(x, z) =a4+a5x+a6z+a7xz . (8)
Hence, the electric field intensity vectorEis
E=−∇φ=Φφ, (9)
whereΦis the electric field intensity-potential matrix and the electrical DOF vector is ordered as
φ= [φn, ψn, φn+1, ψn+1] T
(10)
with φi and ψi being the potential values on the lower and upper surfaces, respectively (see
fig. 1).
2.3. Variational principle
The equations of motion of a piezoelectric structure can be derived from the Lagrangian and the virtual work which must include both the mechanical and the electrical contributions. The potential energy densityP of a piezoelectric material includes contributions from the strain energy and from the electrostatic energy, hence
P = 1 2σ
T
ε = 1 2ε
TC
ε−ETeε− 1 2E
T
ǫE (11)
while the kinetic energy density is simply
K = 1 2ρ( ˙w)
2
. (12)
Let us confine to case without external mechanical forces and electric charge. The Lagrangian can then be written in the form
L=
Z
V
(K−P) dV . (13)
Using the variation principle, the condition
must be satisfied for any arbitrary variation of the displacements and electrical potentials, thus the resulting equations of motion with the assumptions made above are assembled as
M uu 0 0 0 ¨ w ¨ φ + K
uu Kuφ KT
uφ Kφφ
w φ = 0 0 , (15)
where the submatrices (element stiffness, piezoelectric coupling, capacitance and mass matrix) are
Kuu =
Z
V
BTC BdV [4×4],
Kuφ = −
Z
V
BTeΦdV [4×4],
Kφφ = −
Z
V
ΦTǫΦdV [4×4],
Muu = ρ
Z
V
NTNdV [4×4].
(16)
2.4. Modal analysis
In order to perform the modal analysis the system must be statically condensed, hence the set of equation is modified to
Muuw¨ + Kuu−KuφK−1 φφK
T
uφ
w=0 (17)
and the problem reduces to the eigenvalue analysis of the matrix
A=Muu−1 K
uu−KuφK−
1 φφK T uφ . (18)
The corresponding values for electrical DOFs can be retrieved using
φ=−K−1 φφK
T
uφw. (19)
The set of equations in eq. (15) for single element is expanded accordingly in finite element analysis when joining element with common nodes (see fig. 1).
3. Numerical tests
Two types of sensitivity analyses were carried out using MATLAB code. One for pure structural behavior and one for fully coupled piezoelectric (hybrid) system. The first test concer-ned simple steel cantilever beam clamped atx = 0. Up to three lowest eigenfrequencies were obtained for total length l = 1m modeled with 1 , 2, 4, 8 and 16 elements, respectively. The thickness wash= 0.01m, widthb = 0.1m and material properties are shown in tab. 1.
PVDF (polyvynilidene fluoride) piezopatch of thicknesshp = 1mm was modeled across the
whole length of the steel beam in the second test. The lower surface of the patch was grounded, i.e. φi = 0V, while the upper surface was left open. The piezoelectric properties are again in
tab. 1.
Steeel Piezo
E [GPa] 210 2
ρ [kg/m3
] 7850 1800
e31 [N/m
2
] - 0.044
ǫ11 =ǫ33 [nF/m] - 1.062
Tab. 1. Material properties.
Elements ω1[Hz] ω2 [Hz] ω3 [Hz]
1 8.39 82.71 -2 8.36 52.81 178.60 4 8.36 52.42 147.74 8 8.36 52.37 146.70 16 8.36 52.36 146.61
Tab. 2. Summary of lowest eigenfrequencies for steel beam.
Elements ω1[Hz] ω2 [Hz] ω3 [Hz]
1 8.35 82.29 -2 8.32 52.53 177.69 4 8.31 52.16 147.00 8 8.31 52.10 146.96 16 8.31 52.10 145.88
Tab. 3. Summary of lowest eigenfrequencies for hybrid steel/piezo beam.
4. Conclusion
One dimensional beam element suitable for the analysis of structures with applied piezo-electric sensors and actuators, i.e. smart structures, is developed and implemented in MATLAB code. The element is based on Euler-Bernoulli theory and it assumes bilinear distribution of electric field potential. Sensitivity analysis is carried out for the case of modal analysis of steel beam with and without applied piezo patches. The results of the analysis in terms of the first three lowest eigenfrequencies show very good convergence of the element.
Acknowledgements
The paper was supported by the research project MSM 4977751303.
References
[1] H. Allik, T. J. R. Hughes , Finite element method for piezoelectric vibration. International Journal for Numerical Methods in Engineering, 2, pp. 151–157, 1970.
[2] A. Benjeddou , Advances in piezoelectric finite element modeling of adaptive structural elements: a survey. Computers and Structures, 76, pp. 347–363, 2000.
[3] S. Cen, A.-K. Soh, Y.-Q. Long, Z.-H. Yao, A new 4-node quadrilateral FE model with varia-ble electrical degrees of freedom for the analysis of piezoelectric laminated composite plates. Composite Structures, 58, pp. 583-‚599, 2002.
[4] P. Heyliger, A note on the static behavior of simply supported laminated piezoelectric cylinders. Int. J. Solids Structures, 34, No. 29, pp. 3781–3794, 1997.
[5] P. Heyliger, Y.-C. Wu, Electroelastic fields in layered piezoelectric spheres. International Journal of Engineering Science, 37, pp. 143–161, 1999.
[6] M. Ko¨gl, M. L. Bucalem, Analysis of smart laminates using piezoelectric MITC plate and shell elements. Computers and Structures, 83, pp. 1153–1163, 2005.
[7] S. Lee, N. Goo, H. C. Park, K. J. Yoon, C. Cho, A nine-node assumed strain shell element for analysis of a coupled electro-mechanical system. Smart Mater. Struct., 12, pp. 355–362, 2003. [8] J. N. Reddy, An evaluation of equivalent single-layer and layerwise theories of composite
lamina-tes. Composite Structures, 25, pp. 31–35, 1993.
[9] D. A. Saravanos, P. R. Heyliger, D. A. Hopkins, Layerwise mechanics and finite element for the dynamic analysis of piezoelectric composite plates. Int. J. Solids Structures, 34, No. 3, pp. 359–378, 1997.
[10] H. S. Tzou, Piezoelectric shells. Distributed sensing and control of continua. Kluwer Academic Publishers, 1993.
[11] H. S. Tzou, D. W. Wang, W. K. Chai, Dynamics and distributed control of conical shells laminated with full and diagonal actuators. Journal of Sound and Vibration, 256(1), pp. 65–79, 2002. [12] Y. Zhou, Y. Chen, H. Ding, Analytical modelling and free vibration analysis of piezoelectric
bimorphs. Journal of Zhejiang University Science, 6A(9), pp. 938–944, 2005.
