ORIGINAL RESEARCH
ACCURACY OF MAGNETIC RESONANCE IN
IDENTIFYING TRAUMATIC INTRAARTICULAR KNEE
LESIONS
Carlos Eduardo Sanches Vaz, Olavo Pires de Camargo, Paulo José de Santana, and Antonio Carlos Valezi
Vaz CES, Camargo OP de, Santana PJ de, Valezi AC. Accuracy of magnetic resonance in identifying traumatic intraarticular knee lesions. Clinics. 2005; 60(6):445-50.
PURPOSE: To evaluate the diagnostic accuracy of magnetic resonance imaging of the knee in identifying traumatic intraarticular knee lesions.
METHOD: 300 patients with a clinical diagnosis of traumatic intraarticular knee lesions underwent prearthoscopic magnetic resonance imaging. The sensitivity, specificity, positive predictive value, negative predictive value, likelihood ratio for a positive test, likelihood ratio for a negative test, and accuracy of magnetic resonance imaging were calculated relative to the findings during arthroscopy in the studied structures of the knee (medial meniscus, lateral meniscus, anterior cruciate ligament, posterior cruciate ligament, and articular cartilage).
RESULTS: Magnetic resonance imaging produced the following results regarding detection of lesions: medial meniscus: sensitivity 97.5%, specificity 92.9%, positive predictive value 93.9%, positive negative value 97%, likelihood positive ratio 13.7, likelihood negative ratio 0.02, and accuracy 95.3%; lateral meniscus: sensitivity 91.9%, specificity 93.6%, positive predictive value 92.7%, positive negative value 92.9%, likelihood positive ratio 14.3, likelihood negative ratio 0.08, and accuracy 93.6%; anterior cruciate ligament: sensitivity 99.0%, specificity 95.9%, positive predictive value 91.9%, positive negative value 99.5%, likelihood positive ratio 21.5, likelihood negative ratio 0.01, and accuracy 96.6%; posterior cruciate ligament: sensitivity 100%, specificity 99%, positive predictive value 80.0%, positive negative value 100%, likelihood positive ratio 100, likelihood negative ratio 0.01, and accuracy 99.6%; articularcartilage: sensitivity 76.1%, specificity 94.9%, positive predictive value 94.7%, positive negative value 76.9%, likelihood positive ratio 14.9, likelihood negative ratio 0.25, and accuracy 84.6%.
CONCLUSION: Magnetic resonance imaging is a satisfactory diagnostic tool for evaluating meniscal and ligamentous lesions of the knee, but it is unable to clearly identify articular cartilage lesions.
KEYWORDS: Magnetic resonance. Knee. Arthroscopy. Traumatology.
Due to its anatomical configuration and because of its being the biggest joint of the human body, the knee is fre-quently subjected to direct trauma that can result in inju-ries of variable gravity.1–5.
Intraarticular knee lesions are associated with
signifi-cant morbidity and frequently need surgical treatment and extensive rest. Although they are common, their correct di-agnosis still is a challenge.6–8
Clinical tests may be confusing, and delay in diagno-sis can result in social and economic problems and some-times in a worse prognosis.8–10 Therefore, complementary diagnostic tools are often necessary,11–14 mainly when sus-picion of multiple lesions exists.15,16
hospitalization and regional or general anesthesia, thus pre-senting all the potential complications of an open surgical procedure.21–27
During the last decade, magnetic resonance imaging has been confirmed as the ideal approach for primary diagno-sis of traumatic intraarticular knee lesions.28–31 It is noninvasive, fast, can be done on an outpatient basis, and is free of complications. Despite this, magnetic resonance imaging is a new technology, 32 which means that clinical experience is still lacking. Additionally, there are doubts about the accuracy of magnetic resonance imaging and the clinical advantages of this test, since it is still an expen-sive procedure.33–36
With the purpose of investigating the accuracy of mag-netic resonance imaging in patients with clinical signs of traumatic intraarticular knee lesions, we compared its find-ings with those obtained from the subsequent arthroscopies.
METHODS
Design: Diagnostic test evaluation.
Setting: Department of Orthopedics and Traumatology, University of Londrina, Londrina, Brazil.
Participants: A population of 300 consecutive patients with clinical signs of traumatic intraarticular knee lesions examined from August 1998 through March 2002 who un-derwent prearthoscopic magnetic resonance imaging where included in the study. Patients with previous knee injuries and knee surgery where excluded.
Procedures:
Magnetic Resonance:
All the exams were performed in the same diagnostic imaging center with blinded interpretation by 3 radiology specialists in magnetic resonance imaging. A Phillips de-vice model NT5 with magnetic-field strength of 0.5 TESLA was used, along with a special knee bobbin. The magnetic resonance imaging sequences were TT2; coronal SE-T1, TSE-T2, SPIR, and TSE-T2 oblique; and coronal and sagittal GRE-T2 (special sequences for the meniscus).
Arthroscopy:
The arthroscopies were all done in a hospital environ-ment, with complete preoperative care, with most them be-ing outpatient surgery. A Stryker 3 CCD video camera was used with a 4 mm Karl-Storz arthroscope with a 30-degree angle. Standard arthroscopic portals were used: the superomedial portal for fluid outflow, the inferolateral por-tal for the arthroscope, and the inferomedial porpor-tal for
in-strumentation. During arthroscopy, a systematic examina-tion of the knee was performed with a complete evalua-tion of the joint. All arthroscopies where done by the same surgeon and filmed on appropriate tapes.
Data Analysis:
The intraarticular structures included in the study were the medial meniscus, the lateral meniscus, the anterior and posterior cruciate ligaments, and the articular cartilage. All these structures were evaluated to identify lesions, and the results of the magnetic resonance imaging were compared with the arthroscopies (considered the gold standard for di-agnosis). The following were calculated as defined in Fig-ure 1 using Epi Info 6, V 6.04 software: sensitivity, specificity, accuracy, positive predictive value, negative pre-dictive value, likelihood ratio for a positive test, likelihood ratio for a negative test, and the 95% confidence intervals.
RESULTS
Results for all the measured parameters are presented in Table 1. It can be seen that MRI has very high levels of sensitivity, specificity, positive predictive value, positive-negative value and accuracy for meniscal and ligamentous lesions. Likelihood of positive and negative ratio was also excellent. For articular cartilage lesions, results were not nearly as precise.
DISCUSSION
While clinical data remain the most important tool for identifying intraarticular knee lesions, sometimes it is in-sufficient to elucidate the final diagnosis.
Until the last decade, diagnostic arthroscopy was the only possible way to clarify a doubtful diagnosis. Unfor-tunately, it is an invasive and expensive procedure, and its overuse has produced unnecessary complications, such as infection, neurovascular lesions, damaged intraarticular materials, amongst others.
With the evolution of the materials and surgical tech-niques, arthroscopy has become more of a surgical method than a diagnostic tool, and magnetic resonance is fast be-coming the favorite diagnostic method for many of sur-geons52–54.

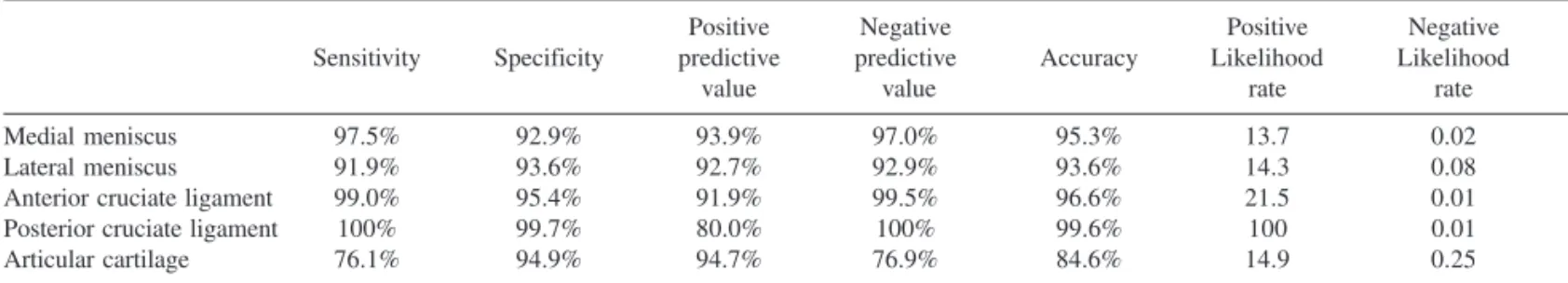

Table 1 - Results of the data analysis: sensitivity, specificity, positive predictive value, negative predictive value, positive likelihood rate, negative likelihood rate, and accuracy of magnetic resonance imaging to evaluate lesions of the medial meniscus, lateral, meniscus, anterior cruciate ligament, posterior cruciate ligament, and articular cartilage
Positive Negative Positive Negative
Sensitivity Specificity predictive predictive Accuracy Likelihood Likelihood
value value rate rate
Medial meniscus 97.5% 92.9% 93.9% 97.0% 95.3% 13.7 0.02
Lateral meniscus 91.9% 93.6% 92.7% 92.9% 93.6% 14.3 0.08
Anterior cruciate ligament 99.0% 95.4% 91.9% 99.5% 96.6% 21.5 0.01
Posterior cruciate ligament 100% 99.7% 80.0% 100% 99.6% 100 0.01
Articular cartilage 76.1% 94.9% 94.7% 76.9% 84.6% 14.9 0.25
A = number of true positive results; B= number of false positive results C = number of false negative results; D= number of true negative results
S = Sensitivity; E = Specificity
Willians49 performed a study in which magnetic reso-nance imaging scans were performed on 69 patients wait-ing for knee arthroscopy. All patients had a clinical diag-nosis of traumatic intraarticular knee lesion. Of the patients scanned, magnetic resonance imaging ruled out lesions in 24 patients, who were removed from the waiting list. Af-ter 9 months, only 1 of them had been re-listed for thera-peutic arthroscopy because of continued symptoms.
Since magnetic resonance imaging results in a fast and accurate diagnosis, it allows the surgeon time to plan the surgical procedure prior to surgery for treatment, whereas diagnostic arthroscopy necessitates immediate treatment, without previous study.
Although knee magnetic resonance is still considered an expensive tool, with costs ranging from US $250 to US $500, the total cost of arthroscopy is far greater, ranging from US $1500 to US $3000. Weinstabl et al, 48 studying the cost-benefit of knee magnetic resonance, evaluated 201patients with clinical signs of knee meniscal lesions who later had undergone arthroscopy. They report that 30% of the diagnoses were false-positives, and that 30% fewer arthroscopies would have resulted in an economy of US $723,600 dollars. The total cost of knee magnetic resonance was US $160,800, and magnetic resonance offered a com-parative accuracy of 96% against 78% for clinical exami-nation.
Bui-Mansfield et al46 performed a study to ascertain
whether there would be a significant economy if magnetic resonance to complement the clinical examination was done in all cases for which a diagnostic arthroscopy was indicated, using a value of US $1000 dollars for each mag-netic resonance procedure. Of 50 diagnostic arthroscopies, 42% had been unnecessary (false-positive results). They observed that if the results of the magnetic resonance had been taken into account before the performance of the arthroscopy, there would have been an economy of US $680 dollars for each case.
Our study demonstrates that magnetic resonance does not appear to have a satisfactory accuracy for diagnosing knee articular cartilage lesions, since it was associated with a great number of false negative results (low sensitivity). It has been proposed that enhancement of the magnetic resonance imaging accuracy with articular cartilage lesions is obtained by the introduction of a special contrast in the knee.50 This procedure is called resonance (or arthro-MRI), and recent studies have demonstrated this innova-tion to have good accuracy.51
CONCLUSION
Magnetic resonance imaging has high accuracy to for diagnosing knee meniscal and cruciate ligament lesions, but does not have satisfactory accuracy in detecting articular cartilage lesions.
