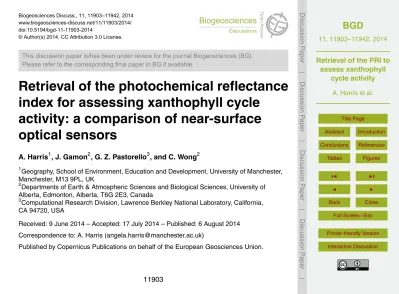

Biogeosciences Discuss., 11, 11903–11942, 2014 www.biogeosciences-discuss.net/11/11903/2014/ doi:10.5194/bgd-11-11903-2014

This discussion paper is/has been under review for the journal Biogeosciences (BG). Please refer to the corresponding final paper in BG if available.

Retrieval of the photochemical reflectance

index for assessing xanthophyll cycle

activity: a comparison of near-surface

optical sensors

A. Harris1, J. Gamon2, G. Z. Pastorello3, and C. Wong2

1

Geography, School of Environment, Education and Development, University of Manchester, Manchester, M13 9PL, UK

2

Departments of Earth & Atmospheric Sciences and Biological Sciences, University of Alberta, Edmonton, Alberta, T6G 2E3, Canada

3

Computational Research Division, Lawrence Berkley National Laboratory, California, CA 94720, USA

Received: 9 June 2014 – Accepted: 17 July 2014 – Published: 6 August 2014

Correspondence to: A. Harris ([email protected])

(2)

BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Abstract

Unattended optical sensors are increasingly being deployed on eddy covariance flux towers and are often used to complement existing vegetation and micrometeorolog-ical measurements to enable assessment of biophysmicrometeorolog-ical states and biogeochemmicrometeorolog-ical processes over a range of spatial scales. Of particular interest are sensors that can

5

measure the photochemical reflectance index (PRI), which can provide information pertaining to leaf pigments and photosynthetic activity. This interest has facilitated the production of a new range of lower-cost sensors specifically designed to measure temporal changes in the PRI signal. However, little is known about the characteristics (spectral, radiometric and temporal) of many of these PRI sensors, making it difficult

10

to compare data obtained from these sensors across time, geographical locations and instruments. Furthermore, direct testing of the capability of these sensors to actually detect the conversion of the xanthophyll cycle, which is the original biological basis of the PRI diurnal signal, is largely absent, which often results in an unclear interpreta-tion of the signal, particularly given the wide range of factors now known to influence

15

PRI. Through a series of experiments, we assess the sensitivity of one of the leading brands of PRI sensor (Skye SKR 1800) to changes in vegetation photosynthetic activity in response to changing irradiance. We compare the results with those obtained using a more expensive industry-standard spectrometer (PP-systems UniSpec) and deter-mine the radiometric compatibility of measurements made by the different instruments.

20

Results suggest that the lower cost SKR 1800 instrument is able to track rapid (sec-onds to minutes) and more gradual diurnal changes in photosynthetic activity associ-ated with xanthophyll cycle pigment conversion. Measurements obtained from both the high and lower cost instrument were significantly linearly correlated but were subject to a large systematic bias, illustrating that small differences in instrument configuration

25

(3)

BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

p <0.05), although the dynamic range of the SKR 1800 PRI signal was often lower than more expensive instruments and thus the lower cost instrument may be less sen-sitive to pigment dynamics related to photosynthetic activity. Based on our findings, we make a series of recommendations for the effective use of such sensors under field conditions.

5

1 Introduction

Quantitative estimates of carbon dioxide exchange at regional to global scales are crit-ical for understanding the links between carbon and climate. Eddy covariance (EC) flux tower measurements are the key means of providing direct measures of trace gas and water fluxes between the biosphere and the atmosphere. Whilst EC methods

10

are of great importance for carbon balance estimations (Baldocchi et al., 2001), the measurements are often only representative of a limited geographical region directly surrounding the flux tower and their number and distribution across the globe is limited and uneven. Remote sensing can provide spatially continuous data across a range of spatial scales and is rapidly becoming an important supplementary source of

informa-15

tion for carbon monitoring and modelling efforts (e.g. Liu et al., 1999; Turner et al., 2003; Reichstein et al., 2007; Jung et al., 2011). Through the use of satellites such as MODIS (Moderate Resolution Imaging Spectrometer), remote sensing can be used to derive regional and global measures of vegetation parameters (e.g. leaf area in-dex (LAI) and fraction of absorbed photosynthetically active radiation (FAPAR); Myneni

20

et al., 1997), which can be utilised in biogeochemical models for estimating carbon exchange variables such as gross primary productivity (GPP; Running et al., 2004). However, the growing availability of satellites with high spatial and/or spectral resolu-tions (e.g. Hyperion, Worldview-2, VIIRS and the forthcoming Sentinel-2 satellites), has resulted in an increasing number of investigations aimed at providing quantitative

in-25

(4)

BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

et al., 2011; Hilker et al., 2011) potentially providing a new source of data for existing or new productivity models (Hill et al., 2006). Spectral vegetation indices, based on reflected radiation, which have the potential to track changes in the light use efficiency (LUE) of vegetation (Monteith and Moss, 1977), such as the photochemical reflectance index (PRI), are of particular interest. Specifically, the PRI was formulated to measure

5

changes in reflectance at_∼531 nm, which are related to the state of epoxidation of the xanthophyll cycle pigments caused by excess light energy (Gamon et al., 1990, 1992, 1993). Because of the relationship between excess light and PSII photochemical ef-ficiency, the PRI can also provide an estimate of photosynthetic light-use efficiency (Gamon et al., 1992, 1997; Peñuelas et al., 1995).

10

Validation and correct interpretation of remotely sensed data is essential if they are to be used to facilitate an improved understanding of global carbon fluxes (Gamon et al., 2006b). Near-surface spectral measurements can provide a detailed character-isation of the Earth’s surface and minimize or eliminate exogenous influences (e.g. atmospheric conditions, changes in illumination and geometry, and calibration drift)

15

on the reflectance signal, which are often apparent in airborne and satellite measure-ments. As a consequence, near-surface optical measurements play an important role not only in the calibration and validation of airborne and satellite data (Smith and Mil-ton, 1999; Gamon et al., 2006b; Milton et al., 2009; Wright et al., 2014), but also in their mechanistic interpretation and use for scaling carbon flux estimations (Williams et al.,

20

2008; Stoy et al., 2013).

The recent proliferation of interest in near-surface spectral data for carbon flux mod-elling, coupled with a lowering in the cost of unattended optical instruments, is such that these instruments are increasingly being deployed for long term in situ temporal mon-itoring, many of which are mounted on eddy covariance flux towers (Eklundh et al.,

25

(5)

BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

deployment (e.g. distance from the ground and angle of measurement) (Milton et al., 2009; Anderson et al., 2013; Pacheco-Labrador and Martin, 2014). In response, inter-national networks such as SpecNet (http://www.specnet.info; Gamon et al., 2006b) and Cost Action ES0903-EUROSPEC (http://cost-es0903.fem-environment.eu) have been formed to help standardize and develop optical sampling methodologies. However,

5

there are comparatively few studies that have investigated the comparability and re-producibility of near-surface optical measurements (e.g. Anderson et al., 2003; Castro-Esau et al., 2006; Pacheco-Labrador and Martin, 2014), and few that have focused on the comparability of data obtained from lower cost instruments specifically developed for unattended field deployment (e.g. Fitzgerald, 2010; Eklundh et al., 2011; Erdle et al.,

10

2011; Yao et al., 2013). Most of these focus on characterising instruments designed to measure broad-band spectral indices such as the normalised difference vegetation in-dex (NDVI) whereas comparisons of automated sensors designed to collect fine spec-tral resolution multispecspec-tral data, such as those used to measure the narrow bands required to calculate the PRI, are sorely lacking. The narrow-band nature of the PRI

15

is such that the index is likely to be highly sensitive to between-sensor differences in spectral bandwidths and locations of the spectral bands (Castro-Esau et al., 2006). The potential of narrow-band indices, such as the PRI, for monitoring carbon relevant physiological changes in vegetation is such that cross-sensor comparison studies of these types of instruments are essential if these data are to be e_ffectively utilised by

20

the scientific community.

This paper reports the results of a series of comparative experiments aimed at as-sessing both the sensitivity of near-surface optical instruments to changes in vegetation photosynthetic activity, and the radiometric compatibility of PRI measurements from in-struments that differ in their spectral configuration and cost (PP-systems UniSpec and

25

(6)

con-BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

ditions, and more gradual changes in photosynthetic activity in response to diurnal changes in illumination. We further assessed the quality of the PRI measurements by comparing them with leaf-level measurements and pigments, to determine whether canopy PRI measurements from each sensor are related to changes in the xanthophyll cycle or an artefact of other non-physiological processes. We also investigated the

5

impacts of differences in the spectral response function and working principles of indi-vidual instruments, by means of measurement inter-comparisons, in which magnitudes of systematic differences between the sensors and vegetation canopy dependencies were examined.

2 Methods

10

2.1 Instruments

Performance comparisons were assessed using a pool of 3 different instruments (Ta-ble 1). The instruments were chosen to facilitate a comparison of the results obtained from a commonly used commercially available lower-cost sensor specifically designed for field deployment and continuous in situ monitoring, with those obtained from more

15

expensive industry-standard instruments that are field-portable but not specifically de-signed to be deployed unattended in the field. Towards this aim, over the duration of the study, we used three industry-standard UniSpec spectroradiometers (PP Sys-tems, USA), which are capable of measuring reflectance throughout the visible to near infrared regions (VIS-NIR) of the electromagnetic spectrum at_∼3 nm sampling

inter-20

vals, and a pair of SKR 1800 sensors (Skye Instruments, UK), which incorporate just two narrow green wavebands for computation of the photochemical reflectance index (PRI), the exact wavelengths of which depend on the manufacturer’s filter selection and calibration (see Sect. 2.2).

UniSpec instruments can be used in both a single channel (SC) and dual channel

25

(7)

radi-BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

ance (often obtained from measuring the reflectance of a highly reflective Lambertian white panel) and the reflectance from the target are obtained sequentially; whereas the DC configuration obtains measures of solar irradiance and target reflectance si-multaneously (often by means of an additional upward looking sensor head fitted with a cosine diffuser), thereby minimizing the impact of changes in the atmosphere on

re-5

flectance measurements (Rollin et al., 1998) and facilitating automation. To calculate reflectance, the DC requires a cross-calibration between the upward- and downward-looking sensors (Gamon et al., 2006a). The SKR 1800 sensors operate in a similar configuration to the DC instrument; consisting of a pair of sensors where one looks downward towards the target and the other is equipped with a cosine correction

dif-10

fuser and points upwards to measure hemispherical irradiance. The first generation SKR 1800 sensors use relative calibration factors of two detectors on the same sen-sor to generate PRI. Following the manufacture’s guidelines, these sensen-sors can only calculate ratio-based indices and not reflectance values. Although not part of the man-ufacture’s recommendations, a user-level in situ cross-calibration between the upward

15

and downward SKR 1800 sensors can be undertaken to allow the user to retrieve re-flectance values for individual spectral bands (see Sect. 2.2). Furthermore, this type of user-level cross-calibration can be used to provide a relative calibration for the sensors if the manufacturer’s calibration certificate has expired, and to check the stability of sensor calibrations over time (Jin and Eklundh, 2013).

20

2.2 Processing of spectral data

The photochemical reflectance index (PRI) was calculated from data obtained by each of the different instruments. The means by which the PRI values were obtained differed depending on the instrument configuration but the formulation of the PRI equation re-mained the same throughout (Eq. 1).

25

PRI=R531 nm−R570 nm

R531 nm+R570 nm

(8)

BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

whereR531 nm and R570 nm refer to reflectance factor at 531 nm and 570 nm,

respec-tively. We refer to 531 nm and 570 nm as the PRI wavelengths for the UniSpec and SKR 1800 instruments in subsequent equations, although slight differences in the PRI wavelengths for the SKR 1800 should be noted (Table 1).

2.2.1 UniSpec dual channel (DC) instrument

5

The UniSpec DC instrument was operated in cosine-conical mode where downwelling and upwelling radiation are sampled simultaneously. To account for potential diff er-ences in sensor properties between the upward and downward sensor channels, mea-sures of a white reference panel (Spectralon, LabSphere, North Sutton NH, USA) were made at the start and end of each experiment to provide a cross-calibration function,

10

which was used to calculate the hemispherical-conical reflectance factor (HCRF) using Eq. (2) (Gamon et al., 2006a).

Rcorrected=

Rtarget/Idownwelling

Rpanel/Idownwelling

(2)

whereRcorrected is the corrected reflectance factor and Rtarget/Idownwellingis the raw

re-flectance factor andRpanel/Idownwellingis the cross-calibration function.

15

2.2.2 UniSpec single channel (SC) instrument

Canopy HCRFs were measured by the UniSpec SC using periodic measurements taken from the horizontal white reference panel using Eq. (3):

Rcorrected=

Rtarget

Rpanel

(3)

whereRcorrectedis the corrected reflectance factor,Rtargetis the radiance from the target

20

and Rpanel is the radiance from the white Spectralon panel. PRI was calculated from

(9)

BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

Leaf-level spectral measurements were made using a UniSpec SC attached to a leaf clip with an integrated illumination source, which enabled repeatable sampling of radi-ance at a fixed geometry and under identical illumination conditions (Gamon and Sur-fus, 1999). Each set of measurements was preceded by the measurement of a white Spectralon disc and the leaf-level HCRF was obtained using Eq. (3).

5

2.2.3 SKR 1800 sensors

The SKR 1800 upward-looking cosine sensor (180◦ FOV) was calibrated to irradiance (µmol m−2_s−1_µA−1_{) by the manufacturer, however for first generation sensors such} as those used in this study, the downward sensor did not have an absolute calibra-tion. Consequently, the HCRF at individual wavelengths cannot be obtained directly

10

although the PRI can be calculated from the relative sensitivity of the two wavelength channels in the same sensor. The PRI was calculated following the manufacturer’s guidance using Eq. (4):

PRI=(R531 nm/I531 nm)−(Z·R570 nm/I570 nm) (R531 nm/I531 nm)+(Z·R570 nm/I570 nm)

(4)

whereZ is the ratio sensitivity of reflected 570 nm : 531 nm,R531 nmandR570 nmare the

15

reflected readings at 531 nm and 570 nm (nA), respectively; andI531 nmand I570 nm are

the incident (µmol m−2s−1µA−1) readings for 531 nm and 570 nm; respectively.

An in situ relative cross-calibration was also used to calculate the HCRF for each of the SKR 1800 wavelength channels (i.e. 531 nm and 570 nm) for the diurnal experi-ment. At regular intervals throughout the day, a white Spectralon panel was positioned

20

(10)

BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

the HCRF for each wavelength channel.

Reflectance_x= Rx

m_·I_x+c (5)

where Reflectance_x is the reflectance factor at a given wavelength (i.e. 531 nm or 570 nm),Rx andIx are the raw readings (nA) from the downward and upward looking sensors (respectively) for wavelength channelx, andmandcare the coefficients

de-5

rived from the white panel measurements. Robust linear regression was implemented in the R statistical environment (R Development Core Team, 2012) using the MASS package (Venables and Ripley, 2002).

2.2.4 Correcting for differences in instrument spectral response function

The UniSpec and each of the SKR 1800 sensors have different spectral response

10

functions (SRF) (e.g. band centres and full width at half maximum; FWHM), which re-sult in differences between instruments in the PRI wavelengths (Fig. 1). The spectral resolution (FWHM) of the UniSpec instruments is approximately 10 nm with a_∼3 nm sampling interval. The data are subsequently interpolated to 1 nm intervals during pro-cessing and the HCRF at 531 nm and 570 nm is used for the calculation of PRI in

15

both the SC and DC configurations. For the SKR 1800 sensors the PRI wavelengths are centred at 530 nm and 569 nm for the reflected radiation (i.e. downward facing sensor) and 531 nm and 567 nm for the upward looking sensor recording incoming ir-radiance. As noted above, these values are a function of the particular filters chosen by the manufacturer and can vary from one batch of sensors to the next. To

under-20

(11)

BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

2.3 Experimental set-up

All experiments were performed at the University of Alberta campus, Edmonton, Canada during July and August 2012 and 2013. Two types of experiment were under-taken during this period, (i) a series of midday shade removal studies, which provided an abrupt transition from low to high light intensities over a range of plant canopies; and

5

(ii) a single diurnal study that followed PRI change under ambient sunlight. Both types of experiment were designed to observe the canopies as they underwent physiological transitions from their dark state to full illumination and facilitated an investigation of the sensitivity of the different instruments to changes in vegetation photosynthetic activity, and the radiometric compatibility of the PRI measurements. A series of custom

sen-10

sor mounts were designed to ensure that on each occasion all instruments used for inter-comparisons were viewing a similar portion of the plant canopy as was physically possible. The area viewed by each instrument was approx. 20 cm in diameter. Similar experimental protocols were applied to all sets of measurements collected.

2.3.1 Experiment 1: dark-to-light transitions

15

Dark-to-light transition experiments were performed over five different plant canopies (Table 2) following a similar approach to that described in Gamon et al. (1990). Straw-berry (Fragaria x ananassa), pine (Pinus ponderosa) and aspen (Populus tremuloides) were all grown on the roof of the Biological Sciences building, University of Alberta. The strawberry plants were cultivated in a large (2 m_×2 m) flat crate, and the pine and

as-20

pen were grown in large pots arranged in a wooden crate to simulate a dense seedling monoculture stand. The alfalfa (Medicago sativa) was grown as a perennial crop on the university farm (Edmonton, Alberta). With the exception of the alfalfa, all plants were irrigated and fertilized regularly. Alfalfa received no supplemental fertilizer or irrigation. On each sampling occasion plants were covered with a black shade cloth the evening

25

(12)

BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

of plants to excess photosynthetic photon flux density (PPFD) is such that changes in sun angle, canopy structure and leaf movement, which can confound PRI measure-ments, will have limited influence on the spectral measurements (Gamon et al., 1990, 1992). Over the next_∼30 min, canopy HCRF was collected from multiple instruments (Table 2) at_∼10 s intervals over the previously shaded plant canopy. The PRI from the

5

UniSpec DC was obtained using Eqs. (1) and (2) whereas the PRI from the SKR 1800 sensors was derived from Eq. (4) (see Sect. 2.2 for equations and details of spectral processing).

Time series plots were used to visually examine dynamic changes in the canopy PRI. The mean difference (MD) between the values of PRI derived from the SKR 1800 and

10

UniSpec DC instruments, along with the standard deviation of the di_fferences (SDs) and of the mean difference (or standard error, SE) were computed as a quantitative measure of discrepancies:

MD=1_n n

X

i=1

(x_i, SKR 1800−xi, Unispec DC) (6)

SD=

r

1

n−1

n

X

i=1

[xi, SKR 1800−xi, Unispec DC−MD]2 (7)

15

SE=SD_√

n (8)

wherex_i, SKR 1800andxi, Unispec DCare the PRI values of SKR 1800 and UniSpec DC

in-struments, respectively. The same comparative analysis was repeated for pooled data and data stratified by species.

20

2.3.2 Experiment 2: a diurnal study

(13)

BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

changing sunlight. The influence of changing sun angle and low light levels on mea-sured PRI and diurnal dependencies of sensor differences were also assessed. Mea-surements were collected from 06:30 LT to 19:50 LT on 25 July 2013 over a potted lodgepole pine (Pinus contorta) closed-canopy stand. The pine saplings were approx-imately 3 years old, well-watered and located on the roof of the Biological Sciences

5

building at the University of Alberta.

Canopy PRI was measured at 1 min intervals from the automated SKR 1800 sensors and at_∼15 min intervals for the UniSpec SC instrument. In addition, hourly leaf-level HRCFs were measured using a separate UniSpec SC instrument fitted with a nee-dle leaf clip, bifurcated fiber optic and an internal light source. On each occasion, leaf

10

spectral measurements were recorded from the same four plants, one located in each of the four corners of the study plot (n=40). Sample leaves were randomly chosen from the top of each plant canopy. Needles with a similar orientation and sun exposure to those used for leaf reflectance factor measurements were also sampled (2_×3 cm) and immediately frozen in liquid nitrogen for analysis of xanthophyll cycle pigments

us-15

ing the HPLC procedure of Thayer and Björkman (1990). The epoxidation state (EPS) was calculated from the area-based molar concentrations of the three xanthophyll cy-cle pigments, violaxanthin (V), antheraxanthin (A), and zeaxanthin (Z) using Eq. (9):

EPS=V +0.5·A

V +A+Z (9)

20

Incident PPFD was recorded throughout the experiment with a quantum sensor (LI190SB, LI-COR, Lincoln NE, USA). Time series were used to visually examine re-lationships between PRI and the epoxidation state of the pine canopy as a function of illumination conditions, and regression relationships were formulated between PRI and EPS.

(14)

BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

3 Results

3.1 Experiment 1: dark-to-light transitions

3.1.1 Sensor comparisons

Figure 2 shows an example of the observed changes in the PRI as an alfalfa canopy was suddenly exposed to high light levels. The dynamic pattern of the PRI was similar

5

for both instruments, although the actual values of the index measured by the SKR 1800 sensors were much higher. When data from all plant canopies used in the dark-to-light experiments were pooled, there was a near-linear relationship between the PRI recorded by both sensors (r2=0.98; Fig. 3a), although the values obtained from the SKR 1800 sensor-pair exhibited a lower dynamic range and were consistently and

10

significantly higher (p <0.0001, Student’s t test) than the UniSpec DC, with a mean difference (MD) of 0.1. After correcting for instrument configuration differences, using the SRFs for the SKR 1800, the SKR 1800 PRI remained consistently and signifi-cantly higher (p <0.0001, Student’st test) than those derived from the UniSpec DC, but the values were closer to the 1 : 1 line, and the MD was reduced by a factor of

15

10 (MD=0.01, Fig. 3b). Figure 4 summarizes the differences between the two instru-ments by plant species, after SRF corrections had been applied. Mean PRI instrument differences were similar for alfalfa, aspen and strawberry canopies (_∼10–15 %), but SKR 1800 PRI values were often more than twice as high as those measured by the UniSpec DC over the ponderosa pine canopy.

20

3.1.2 Tracking physiological change

The full results of the dark-to-light experiment, after correcting for different instrument SRFs, can be seen in Fig. 5. For most species, the PRI rapidly decreased upon ini-tial removal of the shade cloth. Largest decreases occurred within the first 5 min after exposure to sunlight. After the initial reduction, the PRI for aspen and ponderosa pine

(15)

BGD

11, 11903–11942, 2014

cycle activity

A. Harris et al.

Title Page

Tables Figures

◭ ◮

Back Close

Full Screen / Esc

Discussion

P

a

per

|

Discus

sion

P

a

per

|

Discussion

P

a

per

|

Discussion

P

a

per

|

began to gradually increase as the leaves became acclimatised to the light. The fluctu-ating nature of the PRI response for aspen can be explained by intermittent cloud cover that was present during the latter part of the experiment (data not shown). Additionally, aspen leaves are prone to fluttering in the wind (Roden and Pearcy, 1992), which may have caused additional fluctuation in the PRI response.

5

3.2 Experiment 2: a diurnal study

Figure 6 illustrates the environmental conditions present during the diurnal experiment undertaken over a lodgepole pine canopy during July 2013. Temperatures throughout the measurement period ranged from 13◦C at sunrise to a maximum of at 24◦C at 17:08 LT. Sky conditions were clear throughout the morning although some clouds were

10

present at noon and became more frequent from 16:00 LT onwards (Fig. 6a).

3.2.1 Sensor comparisons

Diurnal PRI profiles for the pine canopy (UniSpec SC canopy and SKR 1800) and individual pine needles (UniSpec SC leaf) are shown in Fig. 7a. The PRI was highest in the morning and early evening and lowest during the early to mid-afternoon when

15

both temperature and illumination were greatest (Fig. 6a and c). Leaf-level PRI followed a similar trend to that of the canopy but did not replicate the high values measured at the canopy-level during the early part of the day when solar zenith angles (SZA) were high

(&60◦). These anomalously high canopy PRI values are unlikely to accurately indicate

physiological state. A closer inspection of the full VIS-NIR reflectance spectrum for data

20

collected with the canopy UniSpec instrument, illustrated that the observed artefacts at high SZAs were not confined to reflectance factors at 531 nm and 570 nm (data not shown), but were probably general responses to high SZAs and low light. When differences in the SRF of each instrument were not taken into account, the SKR 1800 PRI values were significantly higher than those obtained from either of the UniSpec
